MN52M MN52M series Test Setup Photos - FCC ID 2BLIDMN52M
FCC ID 2BLIDMN52M

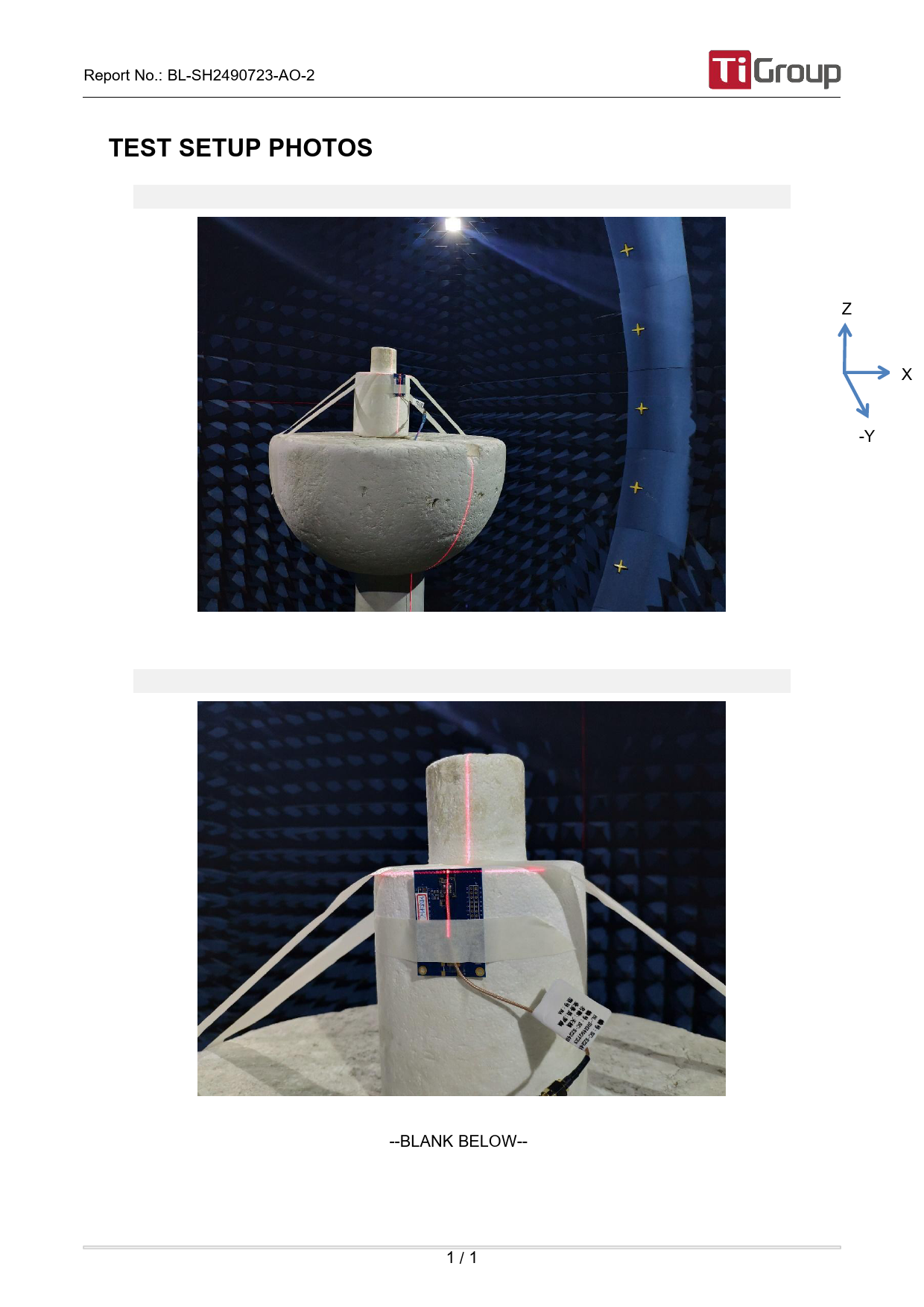

BL-SH2490723-AO-2 test setup photo
MN52M series
Document preview loads when visible.
Document Details
| FCC ID | 2BLIDMN52M |
|---|---|
| Document ID | 7852274 |
| Document Type | Test Setup Photos |
| Description | BL-SH2490723-AO-2 test setup photo |
| Document Title | BL-SH2490723-AO-2 test setup photo |
| Applicant | Arad Connectivity Co., Ltd. |
| Equipment Class | MN52M series |
| Product Code | MN52M |
| Application ID | hHfV5uSdQyQccUVUwpvvpA== |
| Application Purpose | Original Equipment |
| Application Date | 2024-12-10 |
| Frequency Range | 2402-2480 MHz |
| FRN | 0036070175 |
| Test Firm | Shanghai Tejet Communications Technology Co., Ltd. |
| Certified By | Xuewen Wu Certification Manager |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Short-Term Confidentiality Date | 05/26/2025 |
| Grant Deferral | No |
| Modular Equipment | Single Modular Approval |
| Composite Device | No |
| Composite Part | No |
| Submitted | 2024-11-26 |
| Available | 2025-05-26 |
| Created | 2024-11-01 |
| Modified | 2024-11-05 |
| Pages | 1 |
| File Type | Adobe Acrobat PDF |
| File Size | 208745 |
| File SHA-256 | f660cc9ceb022f829c1b75ef18a4c5d2f4783e273f8d59cd064979764391dfdb |
| PDF Metadata Author | 陈洁莹 |
| PDF Metadata Producer | WPS 文字 |
| FCC.gov Sources | FCC.gov 7852274 |
