FCC ID 2AB87-NANO
WiFi Pineapple
by Iconnect
Grantee Code: 2AB87 Product Code: NANO
Latest application date: 2016-02-02
Device Images
FCC ID Device Details
| FCC ID | 2AB87-NANO |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | 2AB87 |
| Product Code | NANO |
| Applicant Business | Iconnect 🇹🇼 |
| Related Domains |  iconnect.com.tw |
| Equipment Class | WiFi Pineapple |
| Test Firm | A Test Lab Techno Corp. |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 2412-2462 MHz | Original Equipment | 2016-02-02 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|

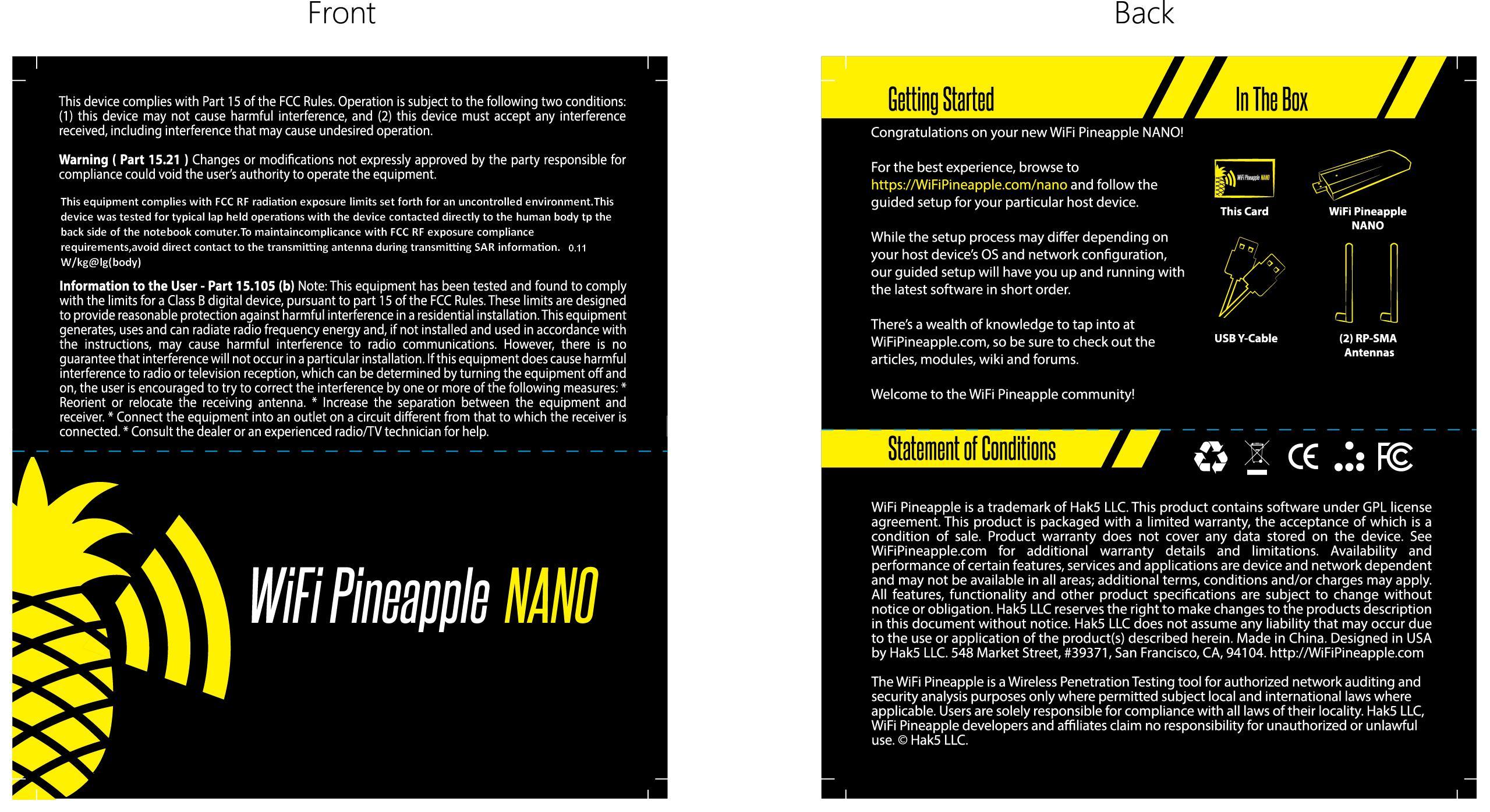

| User manual | Users Manual | 2016-02-02 | PDF 538.4 KB |
| Int photo | Internal Photos | 2016-02-02 | PDF 570.7 KB |

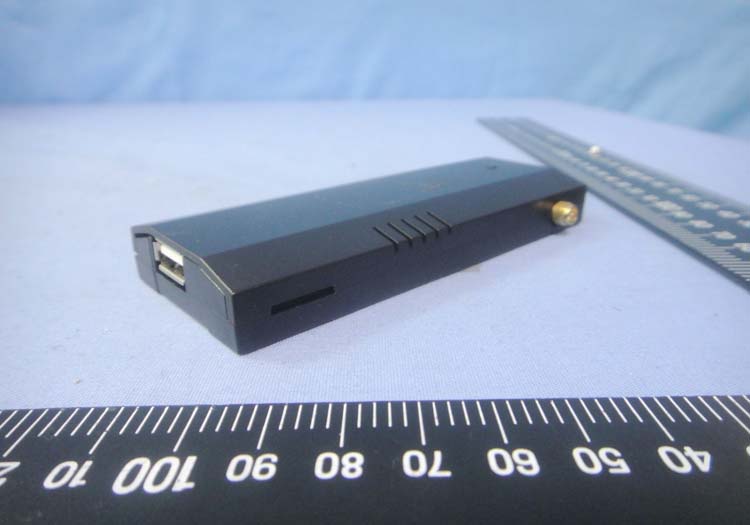

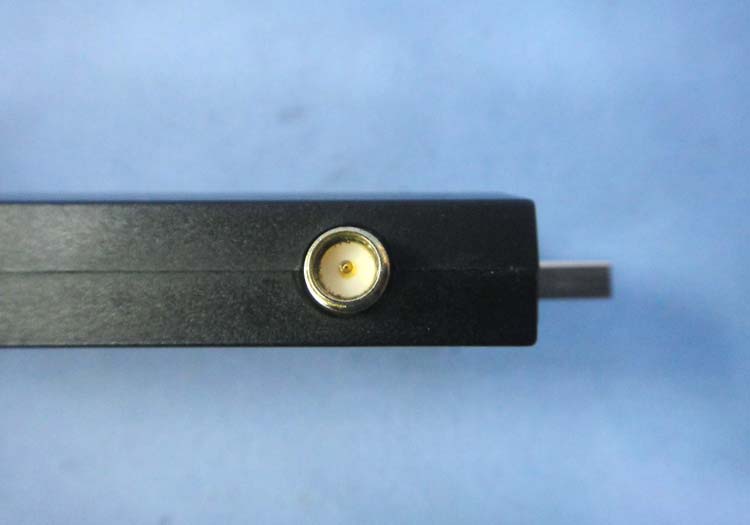

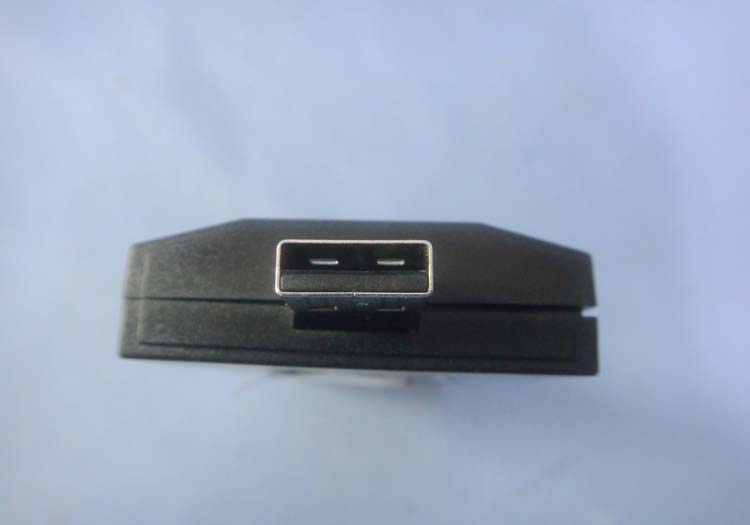

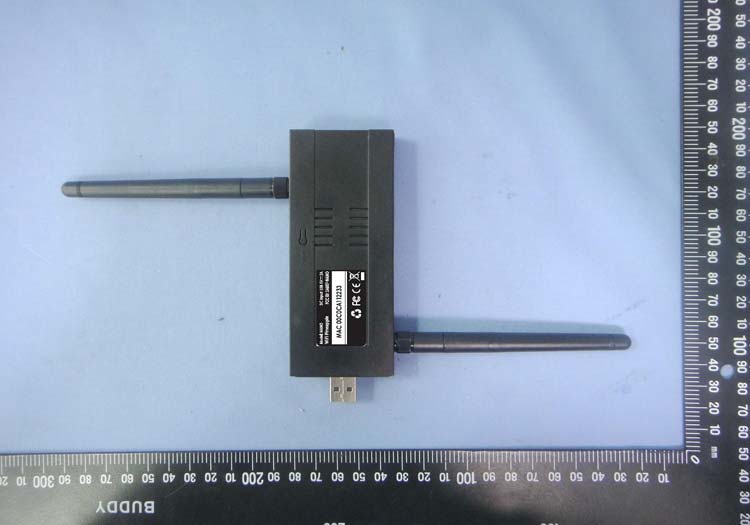

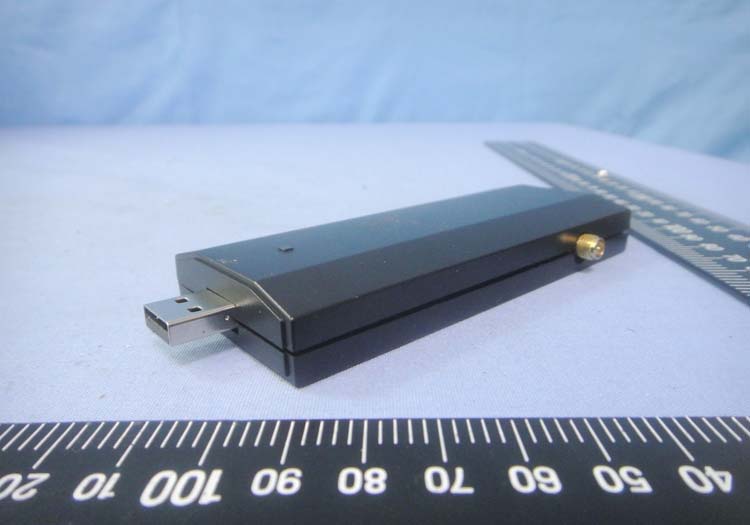

| Ext photo | External Photos | 2016-02-02 | PDF 282.1 KB |
| ID label | ID Label/Location Info | 2016-02-02 | PDF 85.5 KB |

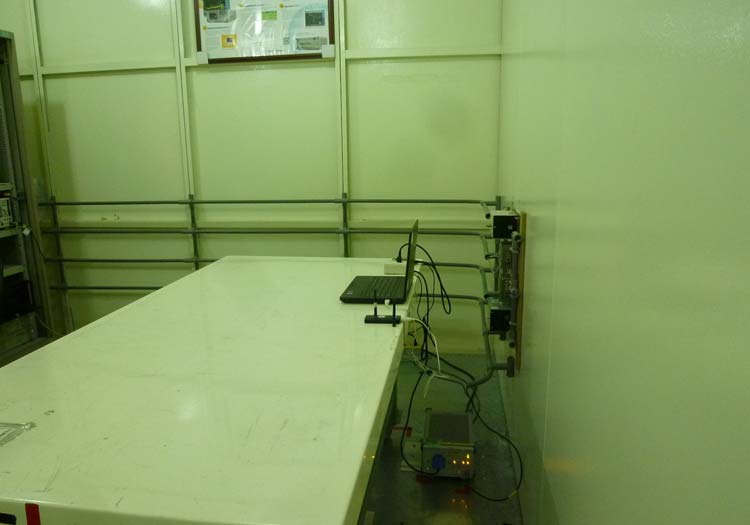

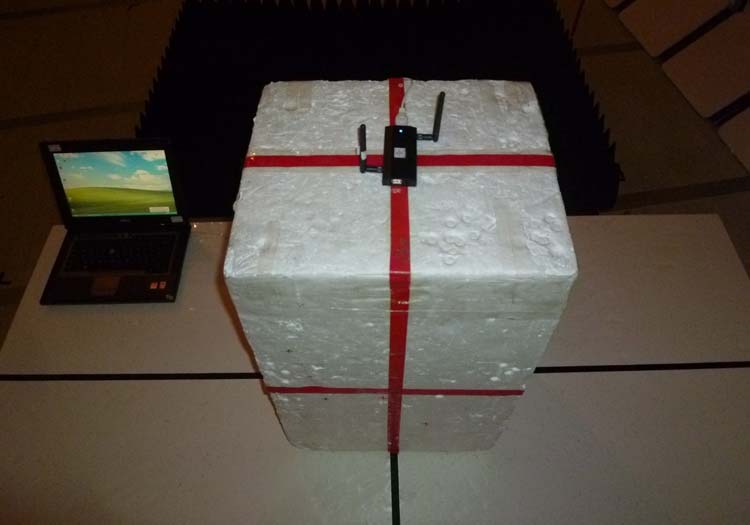

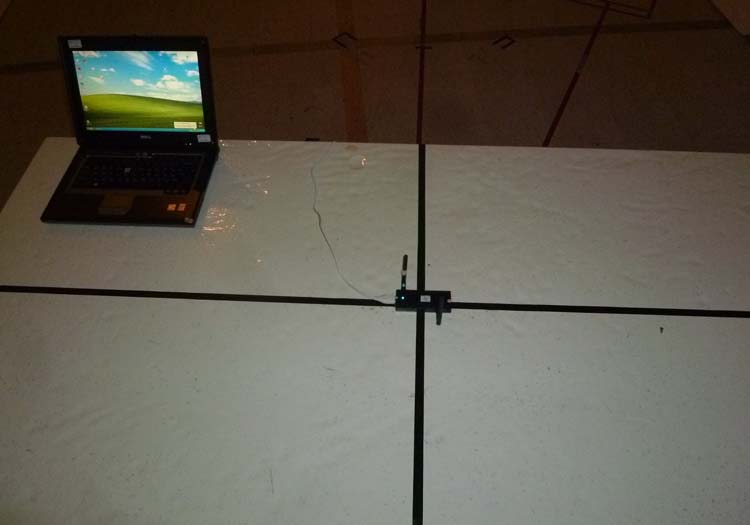

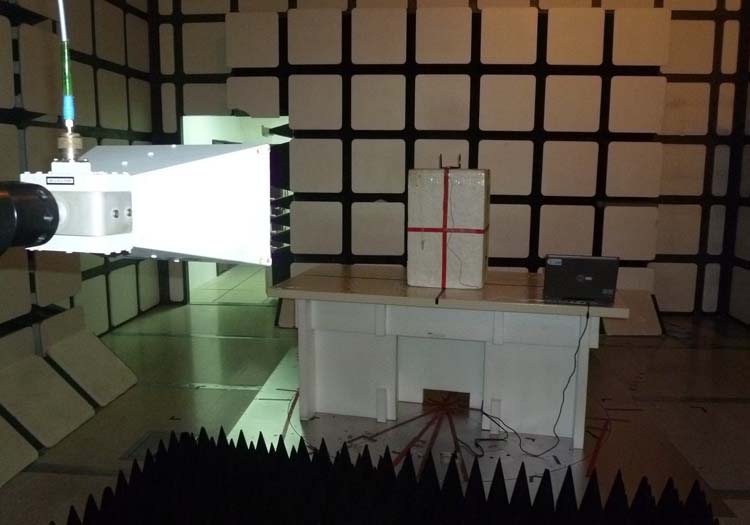

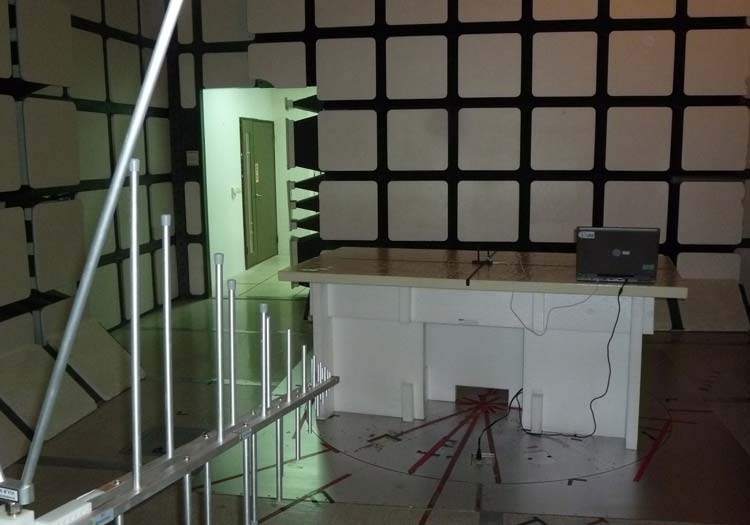

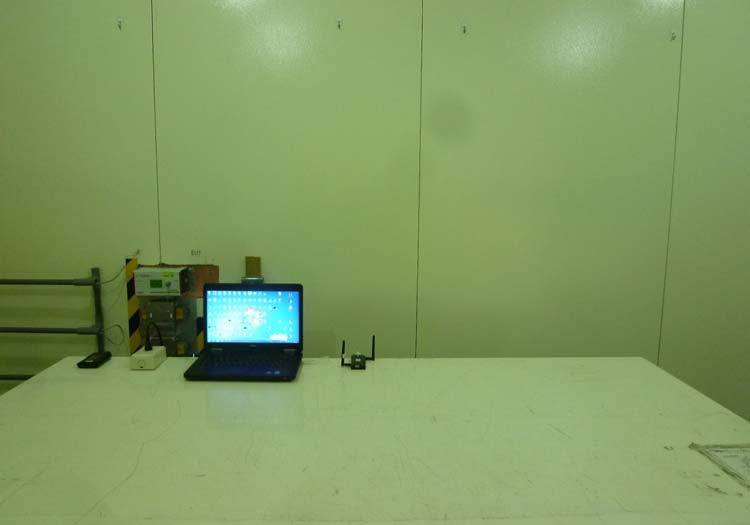

| Test setup photo Metadata only | Test Setup Photos | 2016-02-02 | PDF 636.7 KB |
| Test setup photo_Wi-Fi | Test Setup Photos | 2016-02-02 | PDF 636.7 KB |
| Test report Metadata only | Test Report | 2016-02-02 | PDF 4.2 MB |
| Test report_Wi-Fi | Test Report | 2016-02-02 | PDF 4.2 MB |
| Confidential request letter | Cover Letter(s) | 2016-02-02 | PDF 191.1 KB |
| DoC Letter | Cover Letter(s) | 2016-02-02 | PDF 316.8 KB |
| POA | Cover Letter(s) | 2016-02-02 | PDF 150.7 KB |
| POA for ATL | Cover Letter(s) | 2016-02-02 | PDF 134.4 KB |
| WiFi ch 12-13 letter | Cover Letter(s) | 2016-02-02 | PDF 76.9 KB |
| SAR | RF Exposure Info | 2016-02-02 | PDF 3.7 MB |
| SAR photo | RF Exposure Info | 2016-02-02 | PDF 177.1 KB |
| Block diagram Metadata only | Block Diagram | PDF 22 KB | |
| SCH Metadata only | Schematics | PDF 237.4 KB | |
| OpDes Metadata only | Operational Description | PDF 100.8 KB | |
| OpDes 1 Metadata only | Operational Description | PDF 1.1 MB | |
| OpDes 2 Metadata only | Operational Description | PDF 30.4 KB |
Application Information
| Application ID | x2FJ6HxF5ly97t6COr2izA== |
|---|---|
| Final Action Date | 2016-02-02 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0023545262 |
| Model | NANO |
| Frequency Range | 2412-2462 MHz |
| Equipment Class | DTS - Digital Transmission System |
| Device Description | WiFi Pineapple |
| Responsible Party | Johnson Wang, Manager, admin@iconnect.com.tw , 886-2-27968477 |
| Test Firm | Fly LU, A Test Lab Techno Corp., fly@atl-lab.com.tw  , 886-3-2710188 |
| TCB Email | TCB@siemic.com  |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Listed power is maximum conducted RF power. Device contains 20 and 40 MHz signal bandwidth. The highest reported SAR value is 0.11 W/kg. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| x2FJ6HxF5ly97t6COr2izA== | 2016-02-02 | Original Equipment |
Equipment Authorization
| Frequency | Output | Rules |
|---|---|---|
| 2412-2462 MHz | 0.2540000 | 15C |
Grants
TCB Grant - Application x2FJ6HxF5ly97t6COr2izA==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Bureau Veritas Consumer Products Services, Inc. 775 Montague Expressway Milpitas, CA 95035 |
Date of Grant: 02/02/2016 Application Dated: 01/27/2016 |
| Iconnect |
| No.9, Aly. 58, Ln. 112, Ruiguang Rd., Neihu Dist., |
| Taipei City, 114 Taiwan |
| Attention: Johnson Wang , Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AB87-NANO |
| Name of Grantee: | Iconnect |
| Equipment Class: | Digital Transmission System |
| Notes: | WiFi Pineapple |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 15C | 2412.0 - 2462.0 | 0.254 |
| Listed power is maximum conducted RF power. Device contains 20 and 40 MHz signal bandwidth. The highest reported SAR value is 0.11 W/kg. |
EAS Grant - Application x2FJ6HxF5ly97t6COr2izA==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Iconnect No.9, Aly. 58, Ln. 112, Ruiguang Rd., Neihu Dist., Taipei City, 114 Taiwan |
Date of Grant: 02/02/2016 Application Dated: 01/27/2016 |
| Attention: Johnson Wang , Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AB87-NANO |
| Name of Grantee: | Iconnect |
| Equipment Class: | Digital Transmission System |
| Notes: | WiFi Pineapple |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 15C | 2412.0 - 2462.0 | 0.254 |
| Listed power is maximum conducted RF power. Device contains 20 and 40 MHz signal bandwidth. The highest reported SAR value is 0.11 W/kg. |
