FCC ID A28AM4000DB43
LTE Outdoor CPE
by KZ Broadband Technologies, Ltd.
Grantee Code: A28 Product Code: AM4000DB43
Latest application date: 2016-08-05
Device Images
FCC ID Device Details
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 3652.5-3697.5 MHz | Original Equipment | 2016-08-05 |
| 3652.5-3697.5 MHz | Original Equipment | 2016-07-26 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| Users Manual | Users Manual | 2016-08-05 | PDF 966.6 KB |
| Users Manual | Users Manual | 2016-06-16 | PDF 966.6 KB |
| Internal Photos | Internal Photos | 2016-08-05 | PDF 1.7 MB |
| External Photos | External Photos | 2016-08-05 | PDF 492.9 KB |
| Label & Label Location | ID Label/Location Info | 2016-08-05 | PDF 196.4 KB |

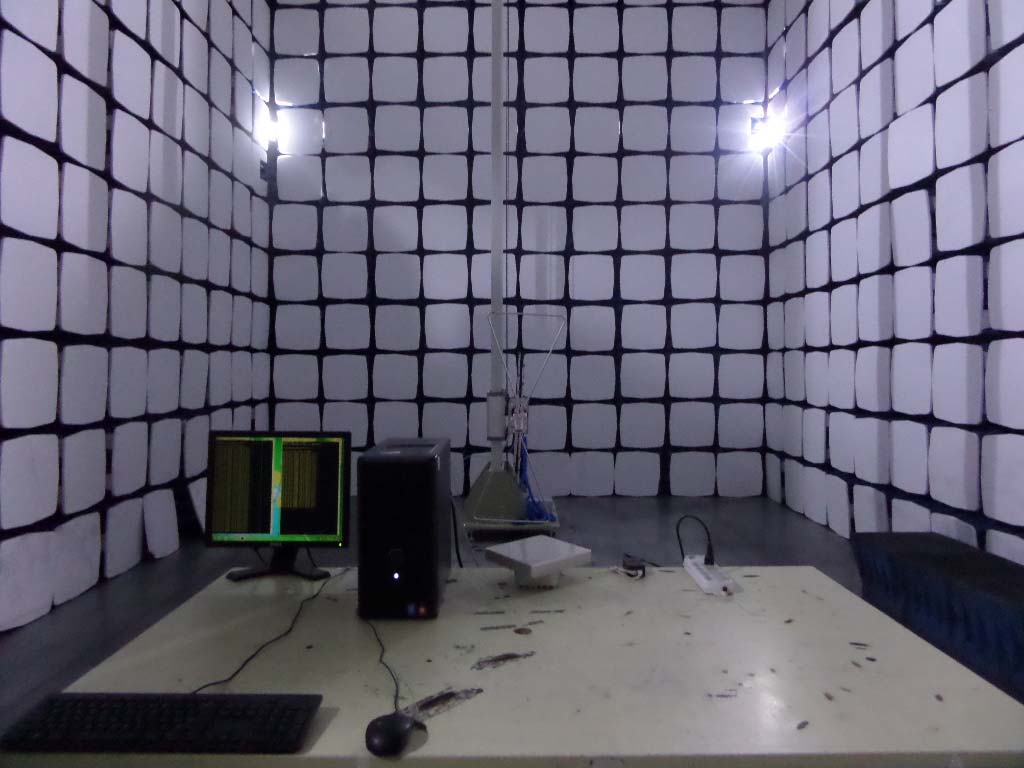

| Test Setup Photos | Test Setup Photos | 2016-08-05 | PDF 239.5 KB |
| Test Setup Photos | Test Setup Photos | 2016-08-05 | PDF 125.8 KB |
| Test Report JBP | Test Report | 2016-08-05 | PDF 131.1 KB |
| Test Report TNB | Test Report | 2016-08-05 | PDF 1.1 MB |
| Test Report TNB | Test Report | 2016-06-16 | PDF 1.1 MB |
| Test Report TNB Metadata only | Test Report | PDF 1.1 MB | |
| Confidentiality Request Letter | Cover Letter(s) | 2016-08-05 | PDF 41.9 KB |
| Power Of Attorney | Cover Letter(s) | 2016-08-05 | PDF 53.6 KB |
| RF Exposure | RF Exposure Info | 2016-08-05 | PDF 31.2 KB |
| RF Exposure | RF Exposure Info | 2016-08-05 | PDF 31.2 KB |
| Block Diagram Metadata only | Block Diagram | PDF 60.8 KB | |
| Schematics Metadata only | Schematics | PDF 149.9 KB | |
| Operational Description Metadata only | Operational Description | PDF 49 KB | |
| Protocol Description Metadata only | Operational Description | PDF 196.9 KB | |
| Parts List Metadata only | Parts List/Tune Up Info | PDF 186.7 KB | |
| Tune Up Procedure Metadata only | Parts List/Tune Up Info | PDF 81.8 KB | |
| Tune Up Procedure Metadata only | Parts List/Tune Up Info | PDF 125.4 KB |
Application Information
| Application ID | LZHSv4dJHBFb3sja0e0tbg== |
|---|---|
| Final Action Date | 2016-08-05 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0021297635 |
| Model | AM4000DB43 |
| Frequency Range | 3652.5-3697.5 MHz |
| Equipment Class | TNB - Licensed Non-Broadcast Station Transmitter |
| Device Description | LTE Outdoor CPE |
| Responsible Party | Xiaoru Liao, Presales Support Engineer, info@kztech.cn  , (86) 755-33639088 |
| Test Firm | Jandy So, Shenzhen SEM.Test Technology Co., Ltd., jandyso@semtest.com.cn  , 086-755-33663308 |
| TCB Email | TEI@TIMCOENGR.COM  |
| TCB Scope | B2: General Mobile Radio And Broadcast Services equipment in the following 47 CFR Parts 22 (non-cellular) 73, 74, 90, 95, 97, & 101 (all below 3 GHz) |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | Yes |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | Yes |
| Grant Comments | Output power listed is EIRP. Professional installation required. This transmitter must be fixed-mounted on outdoor permanent structures with a separation distance of at least 50 cm from all persons, and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device supports LTE of 5, 10, 15, and 20MHz bandwidth modes for TDD LTE Band 43. This device contains functions that are not operational in U.S. Territories; this filing is applicable only for U.S. operations. |
