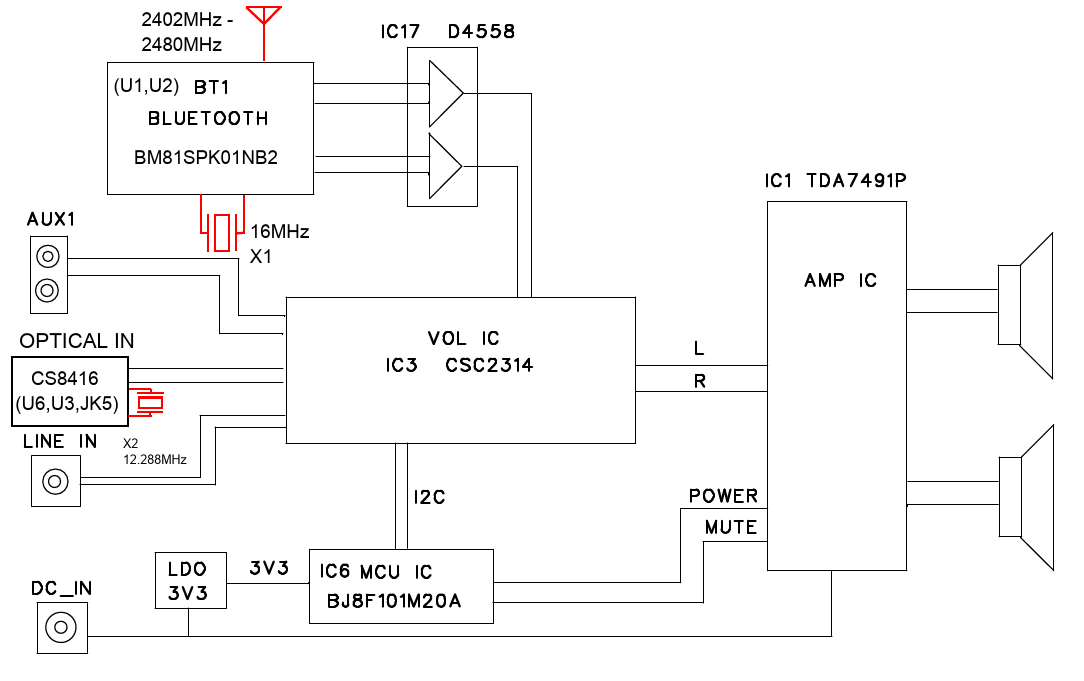

RTS7220B2 Home Theater Sound Bar Block Diagram - FCC ID A2HRTS7220B2

FCC ID A2HRTS7220B2

Block Diagram

Home Theater Sound Bar

by Alco Electronics Ltd

Document preview loads when visible.

Document Details

FCC IDA2HRTS7220B2
Document ID1937645
Document TypeBlock Diagram
DescriptionBlock Diagram
Document TitleSBT17220B(20130105)+Optical+ISSC BM81
ApplicantAlco Electronics Ltd
Equipment ClassHome Theater Sound Bar
Product CodeRTS7220B2
Application IDzjwzzfUlwW//atZ7y0kqBg==
Application PurposeOriginal Equipment
Application Date2013-04-12
Frequency Range2402-2480 MHz
FRN0021262878
Test FirmIntertek Testing Services Hong Kong Ltd.
Certified ByTerry Chan Assistant Supervisor
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2013-04-12
Available2013-04-12
Created2013-03-23
Modified2013-03-25
Pages2
File TypeAdobe Acrobat PDF
File Size849787
File SHA-2562fd3ba99ad02c9d74a21cc4ced8150825385144d8a2aa3ccb6845531b0651e33
PDF Metadata Authorszegezdw
PDF Metadata CreatorPScript5.dll Version 5.2.2
PDF Metadata ProducerGPL Ghostscript 8.15
FCC.gov SourcesFCC.gov 1937645
