M144 LCD TV Block Diagram - FCC ID A3KM144
FCC ID A3KM144

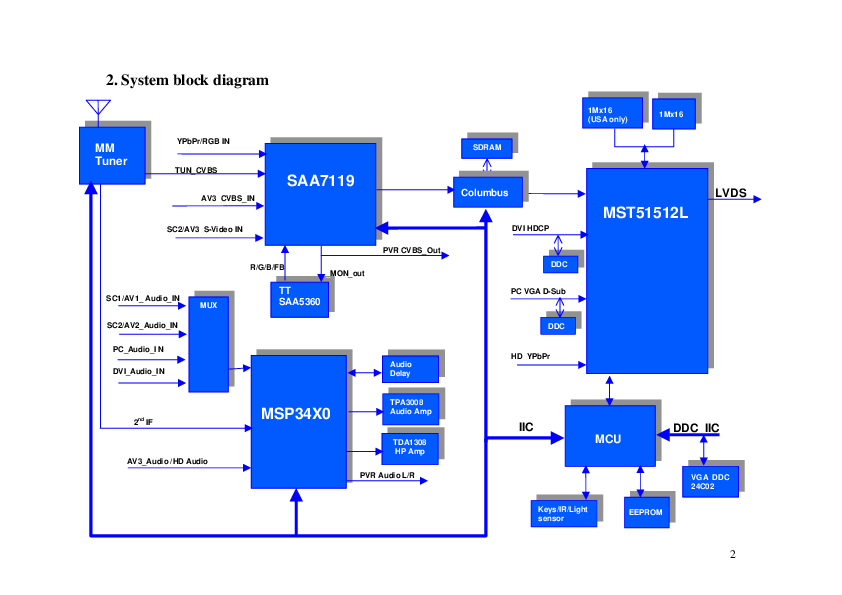

Block Diagram
LCD TV
Document preview loads when visible.
Document Details
| FCC ID | A3KM144 |
|---|---|
| Document ID | 563860 |
| Document Type | Block Diagram |
| Description | Block Diagram |
| Applicant | Philips Electronics Industries (Taiwan) Ltd |
| Equipment Class | LCD TV |
| Product Code | M144 |
| Application ID | PULPMLs+Y2pq3lVeW8HsGw== |
| Application Purpose | Original Equipment |
| Application Date | 2005-07-20 |
| FRN | 0008231482 |
| Test Firm | Audix Technology Corporation |
| Certified By | Ronnie Yang Manager, Safety/DEV |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Submitted | 2005-07-20 |
| Available | 2005-07-20 |
| Created | 2005-07-19 |
| Modified | 2005-07-19 |
| Pages | 3 |
| File Type | Adobe Acrobat PDF |
| File Size | 31926 |
| File SHA-256 | c7a468a5c288a9c8b7e716a3578cfc796e15005d8fe95ec6b66b7d7c8871e7be |
| PDF Metadata Producer | Acrobat Distiller 4.0 for Windows |
| FCC.gov Sources | FCC.gov 563860 |
