3RD7896 Microwave Oven Schematics - FCC ID A3L3RD7896
FCC ID A3L3RD7896

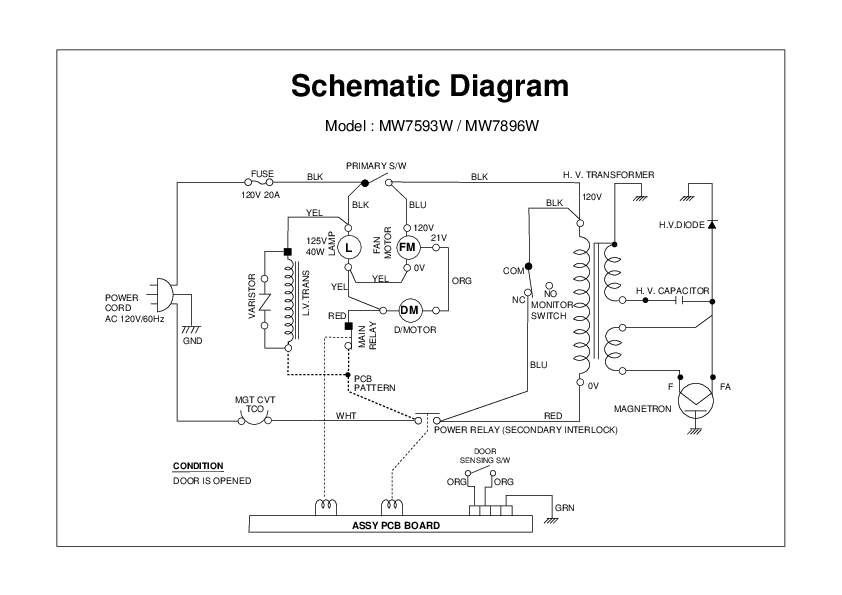

SCHEMATIC
Microwave Oven
Document preview loads when visible.
Document Details
| FCC ID | A3L3RD7896 |
|---|---|
| Document ID | 13285 |
| Document Type | Schematics |
| Description | SCHEMATIC |
| Applicant | Samsung Electronics Co Ltd |
| Equipment Class | Microwave Oven |
| Product Code | 3RD7896 |
| Application ID | 7Bb1118TdeV6EMqfQgcmWA== |
| Application Purpose | Original Equipment |
| Application Date | 1999-01-25 |
| Frequency Range | 2450 MHz |
| FRN | 0005810205 |
| Test Firm | Underwriters Laboratories Inc. |
| Certified By | Ben Kim Engineering Manager |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Submitted | 1998-11-18 |
| Available | 1999-01-25 |
| Created | 1998-10-16 |
| Modified | 1998-10-16 |
| Pages | 2 |
| File Type | Adobe Acrobat PDF |
| File Size | 1247090 |
| File SHA-256 | 4a35f4a61c8be3955085f8d163a481d23eebcf45d648fdd5e8442a0e48a1ddb9 |
| PDF Metadata Producer | Acrobat Distiller 3.0 for Power Macintosh |
| FCC.gov Sources | FCC.gov 13285 |
