FCC ID A3LLS22E310
LCD monitor
by Samsung Electronics Co Ltd
Grantee Code: A3L Product Code: LS22E310
Latest application date: 2015-09-17
Device Images
FCC ID Device Details
| FCC ID | A3LLS22E310 |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | A3L |
| Product Code | LS22E310 |
| Applicant Business | Samsung Electronics Co Ltd 🇺🇸 |
| Related Domains |  samsung.com |
| Equipment Class | LCD monitor |
| Test Firm | CHINA SAMSUNG QUALITY ASSURANCE LABORATORY |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| users manual_v1 | Users Manual | 2015-01-13 | PDF 1.3 MB |

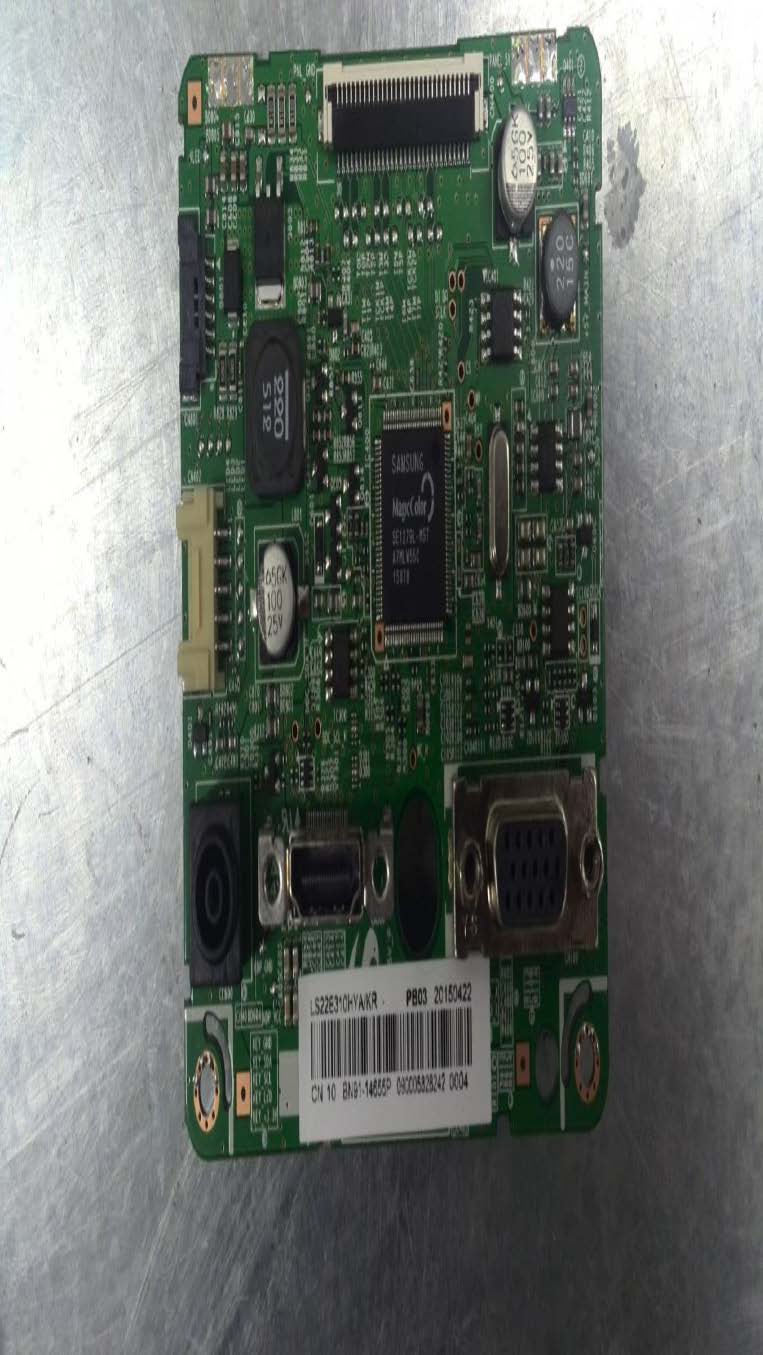

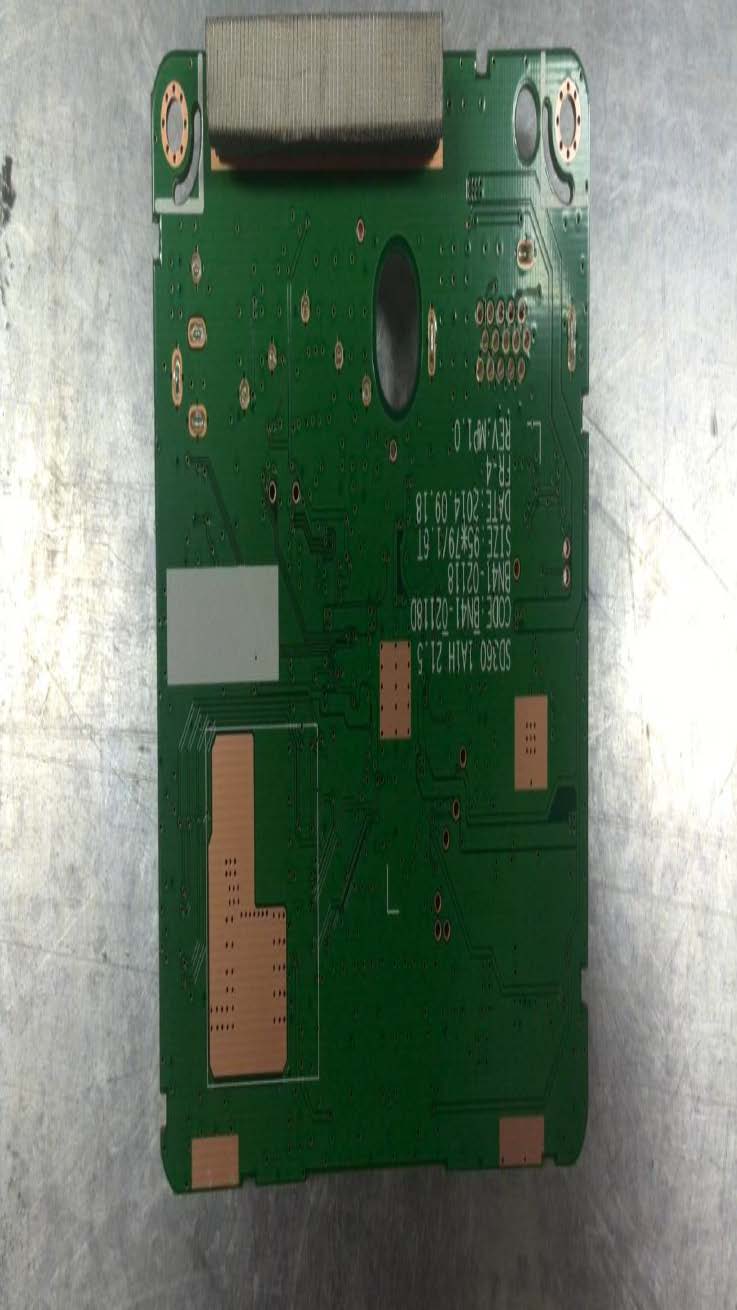

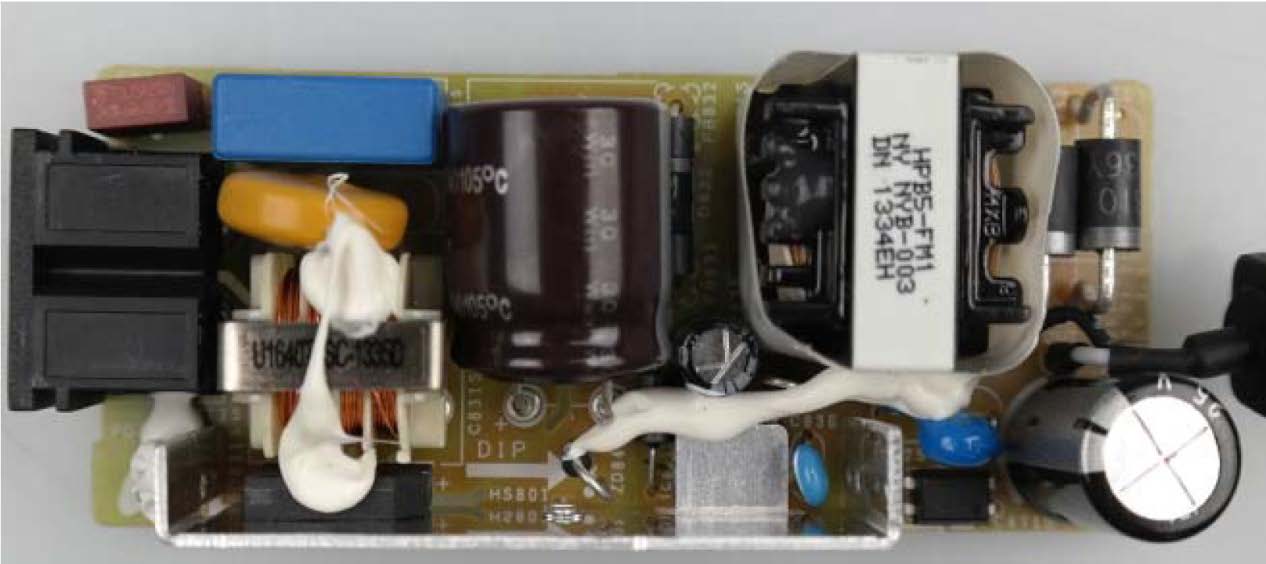

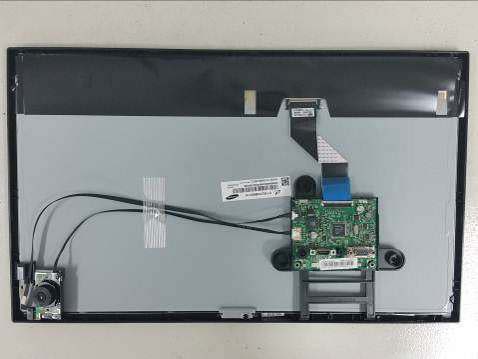

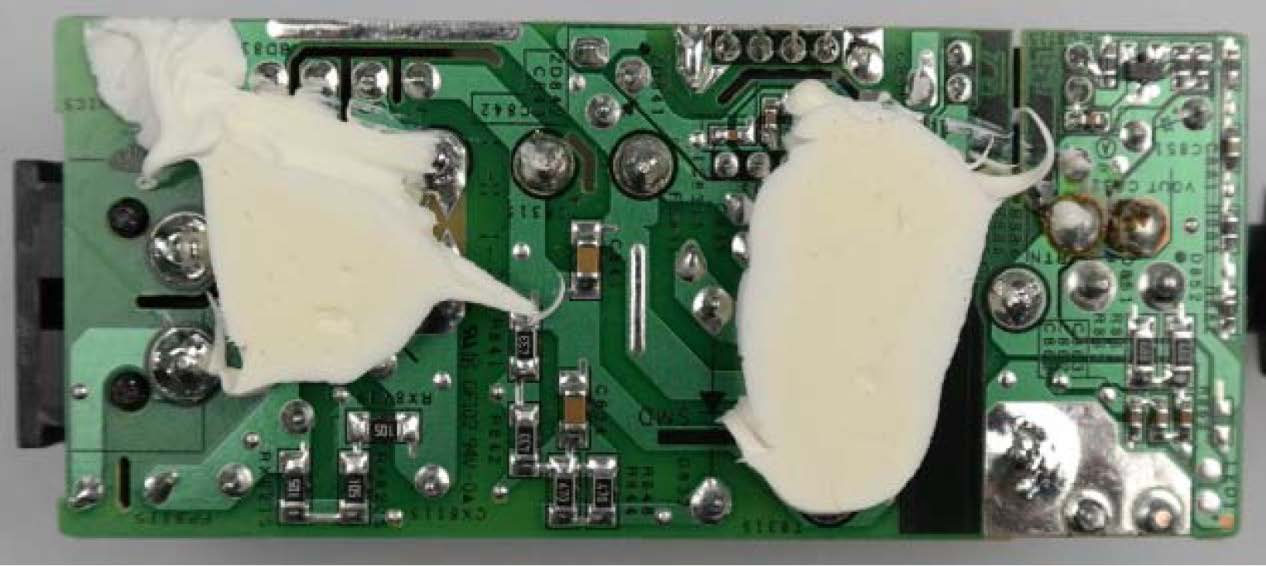

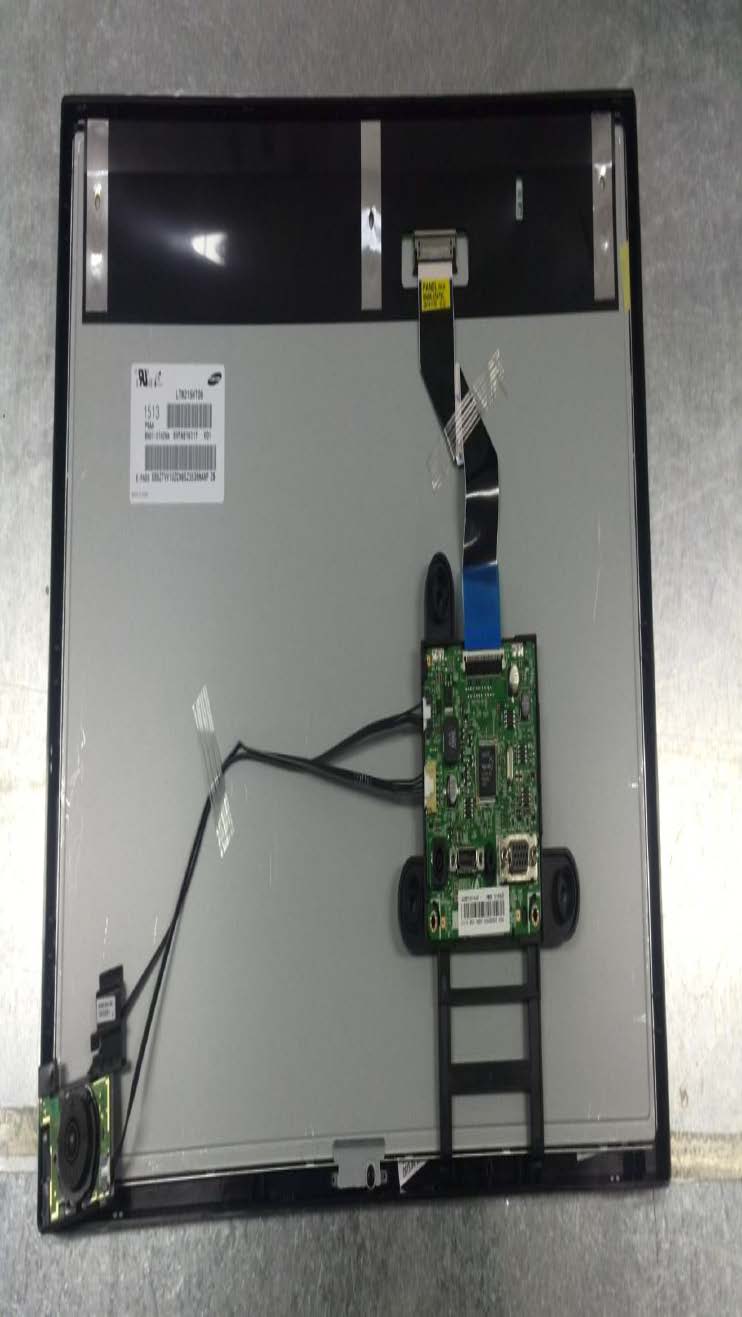

| internal photos | Internal Photos | 2015-09-17 | PDF 403.6 KB |
| internal photos | Internal Photos | 2015-01-13 | PDF 323.8 KB |

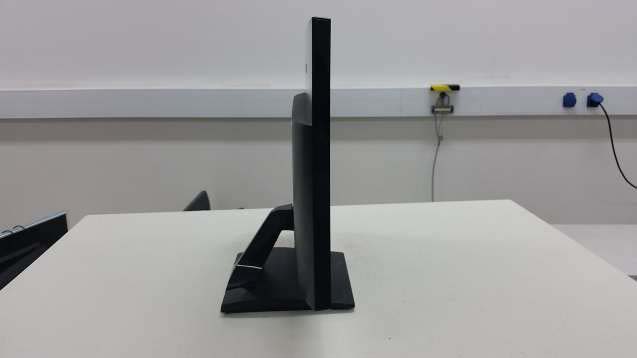

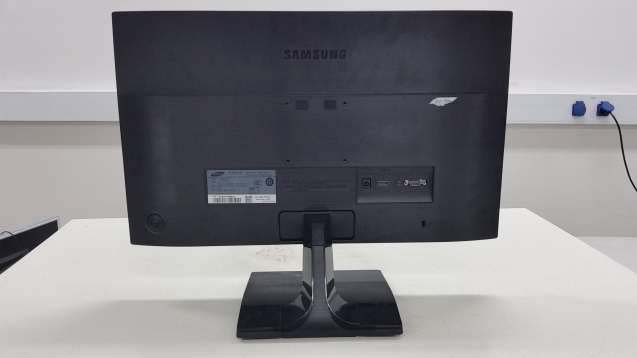

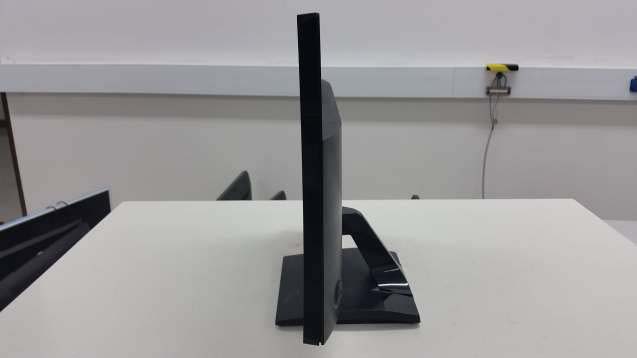

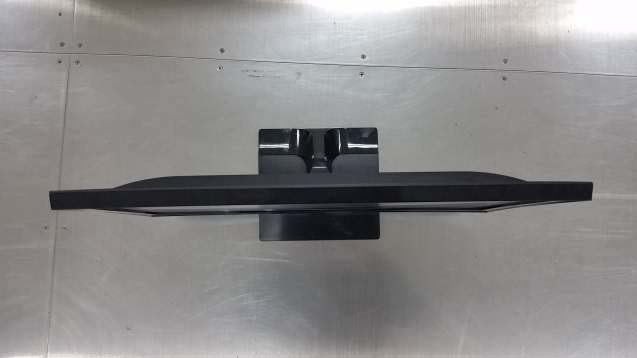

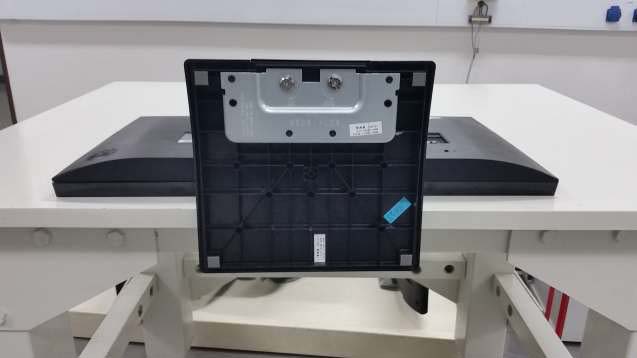

| external photos | External Photos | 2015-09-17 | PDF 101.2 KB |
| label location | ID Label/Location Info | 2015-01-13 | PDF 159.2 KB |

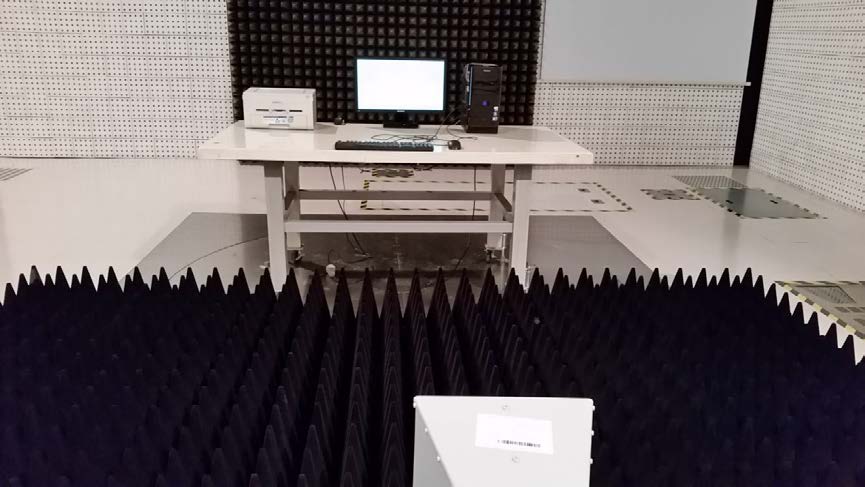

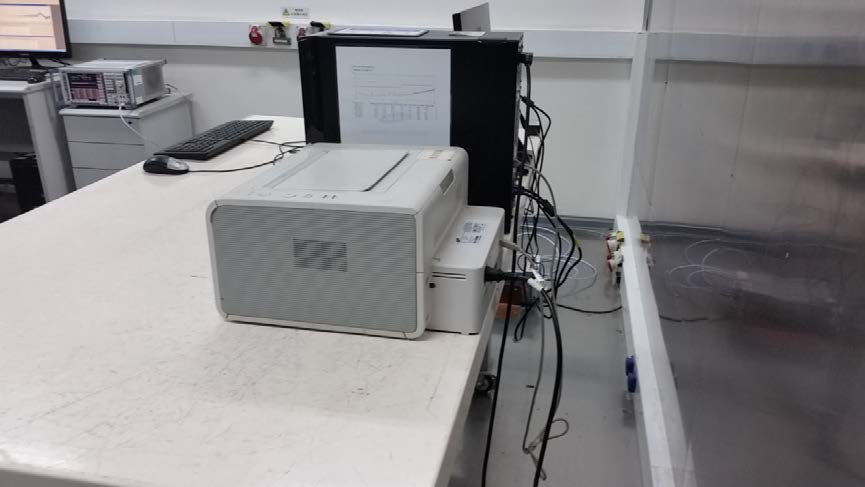

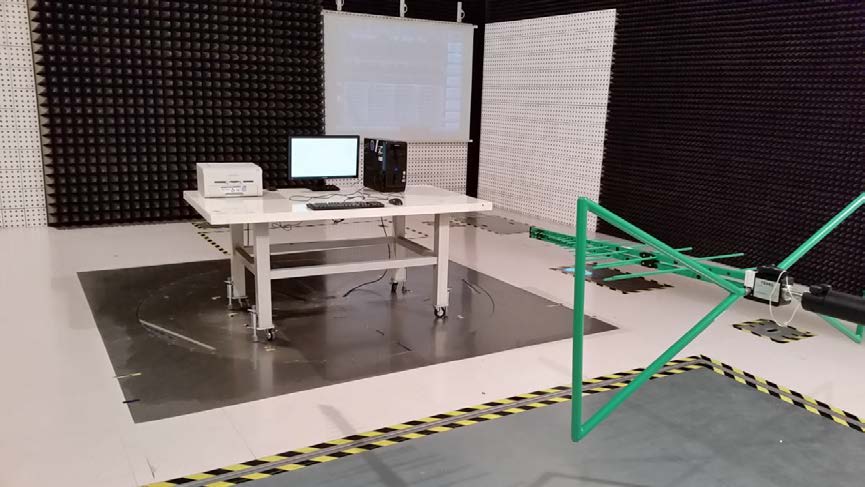

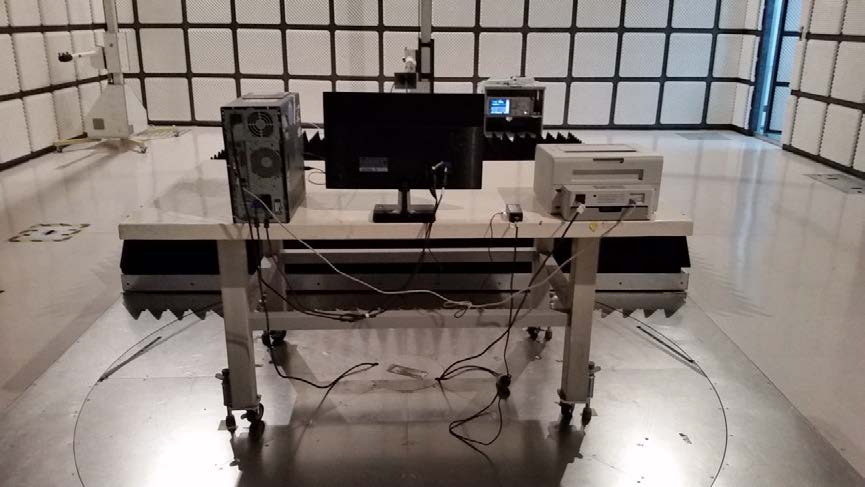

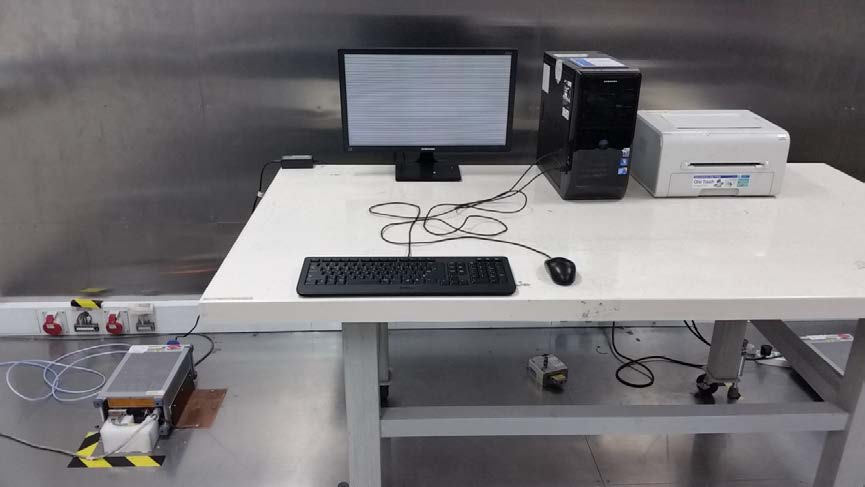

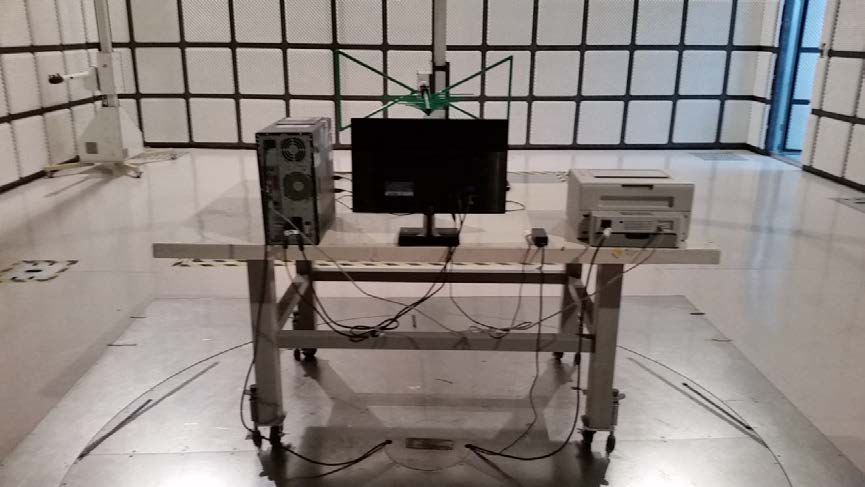

| test setup photos | Test Setup Photos | 2015-09-17 | PDF 504.5 KB |
| test setup photos | Test Setup Photos | 2015-01-13 | PDF 183.7 KB |
| LBE20153381_S22E31_FCC | Test Report | 2015-09-17 | PDF 2.8 MB |
| LBE20153504_S22E31_FCC | Test Report | 2015-09-17 | PDF 1.5 MB |
| LBE20146299_LS22E31_FCC | Test Report | 2015-01-13 | PDF 3 MB |
| LBE20146303_LS22E31_FCC | Test Report | 2015-01-13 | PDF 1.3 MB |
| LBE20146307_LS22E31_FCC | Test Report | 2015-01-13 | PDF 2.3 MB |
| ACB-Form-FCC-Application-Letters A3LLS22E310_v1 | Cover Letter(s) | 2015-09-17 | PDF 251.2 KB |
| FCC Cover Letter | Cover Letter(s) | 2015-09-17 | PDF 1.5 MB |
| ACB-Form-FCC-Application-Letters A3LLS22E310 | Cover Letter(s) | 2015-01-13 | PDF 241.1 KB |
| FCC Clarify Letter | Cover Letter(s) | 2015-01-13 | PDF 217.5 KB |
| Confidential_SE310_ Block Metadata only | Block Diagram | PDF 177.1 KB | |
| A2514_DSM circuit diagram Metadata only | Schematics | PDF 66.8 KB | |
| Confidential_A2514_FPN(BN44-00797A)circuit diagram Metadata only | Schematics | PDF 177.1 KB | |
| Confidential_SE310_21.5_27_2118C Metadata only | Schematics | PDF 416.4 KB | |
| Confidential_Operational Description Metadata only | Operational Description | PDF 310.8 KB |
Application Information
| Application ID | kpZfl1Fh+qVsNqoheUAAVQ== |
|---|---|
| Final Action Date | 2015-09-17 |
| Application Purpose | Class II permissive change or modification of presently authorized equipment |
| Applicant FRN | 0005810205 |
| Model | LS22E310 |
| Equipment Class | JBP - Part 15 Class B Computing Device Peripheral |
| Device Description | LCD monitor |
| Responsible Party | Jenni Chun, General Manager, j1.chun@samsung.com , 973-808-6375 |
| Agent | Xiao Xiao Xiao, China Samsung Quality Assurance Laboratory, xiao.li@samsung.com , 022-23961234 |
| Technical Contact | Xiao Li, China Samsung Quality Assurance Laboratory, xiao.li@samsung.com , 022-23961234 |
| Non-Technical Contact | Zhang Qi, Tianjin Samsung Electronics Co., LTD., qi00.zhang@samsung.com , 022-66531234 |
| Test Firm | Zhongyuan Gao, CHINA SAMSUNG QUALITY ASSURANCE LABORATORY, zhongyuan.gao@samsung.com , 86-22-2396-1234 |
| TCB Email | hotline@acbcert.com  |
| TCB Scope | A1: Low Power Transmitters below 1 GHz (except Spread Spectrum), Unintentional Radiators, EAS (Part 11) & Consumer ISM devices |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Maximum resolution: 1920 x 1080@60Hz This permissive change II is to add a new panel and a adapter. |
