FCC ID A3LLS22E360
LCD monitor
by Samsung Electronics Co Ltd
Grantee Code: A3L Product Code: LS22E360
Latest application date: 2016-08-01
Device Images
FCC ID Device Details
| FCC ID | A3LLS22E360 |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | A3L |
| Product Code | LS22E360 |
| Applicant Business | Samsung Electronics Co Ltd 🇺🇸 |
| Related Domains |  samsung.com |
| Equipment Class | LCD monitor |
| Test Firm | CHINA SAMSUNG QUALITY ASSURANCE LABORATORY |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| user manual | Users Manual | 2014-12-08 | PDF 4.6 MB |
| users manual_v1 | Users Manual | 2014-12-08 | PDF 1.3 MB |
| internal photos | Internal Photos | 2016-08-01 | PDF 289.7 KB |
| internal photos | Internal Photos | 2015-01-07 | PDF 208.2 KB |
| internal photos | Internal Photos | 2014-12-08 | PDF 217.5 KB |

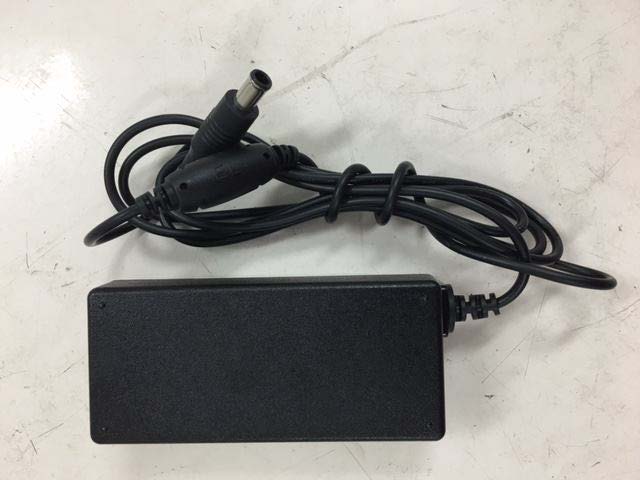

| external photos_v1 | External Photos | 2016-08-01 | PDF 187.9 KB |
| external photos | External Photos | 2015-01-07 | PDF 87.4 KB |
| external photos | External Photos | 2014-12-08 | PDF 87.3 KB |
| label location | ID Label/Location Info | 2014-12-08 | PDF 241.3 KB |

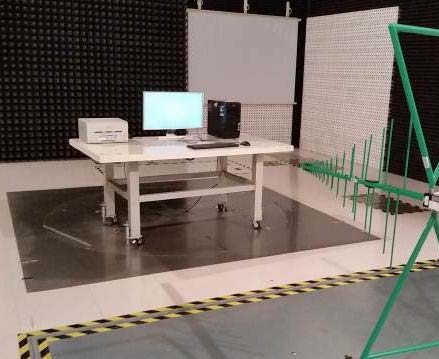

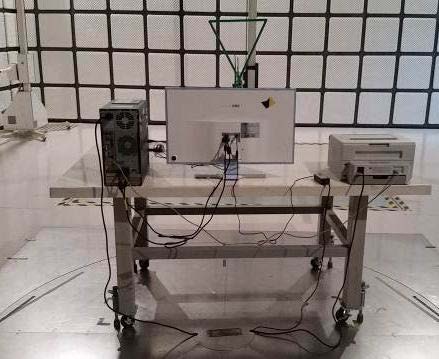

| test setup photos | Test Setup Photos | 2016-08-01 | PDF 196.9 KB |
| testing setup photos | Test Setup Photos | 2015-01-07 | PDF 134.1 KB |

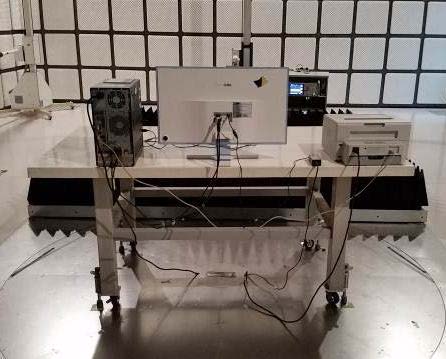

| test setup photos | Test Setup Photos | 2014-12-08 | PDF 134.1 KB |
| LBE20161563_LS27E36_FCC | Test Report | 2016-08-01 | PDF 2 MB |
| LBE20146232_LS22E36_FCC | Test Report | 2015-01-07 | PDF 1.7 MB |
| LBE20145737_LS22E36_FCC | Test Report | 2014-12-08 | PDF 1.5 MB |
| ACB-Form-FCC-Application-Letters A3LLS27E360_v1 | Cover Letter(s) | 2016-08-01 | PDF 256.7 KB |
| FCC Cover Letter-LS27E360_v1 | Cover Letter(s) | 2016-08-01 | PDF 479.6 KB |
| Confidentiality-Letters A3LLS22E360 | Cover Letter(s) | 2015-01-07 | PDF 331.5 KB |
| FCC Cover Letter | Cover Letter(s) | 2015-01-07 | PDF 578.7 KB |
| ACB-Form-FCC-Application-Letters A3LLS22E360 | Cover Letter(s) | 2014-12-08 | PDF 202.3 KB |
| SE360-SE390_ Block Metadata only | Block Diagram | PDF 177.1 KB | |
| A2514_FPN(BN44-00797A)circuit diagram Metadata only | Schematics | PDF 177.1 KB | |
| Confidential_A2514_DPN Metadata only | Schematics | PDF 143 KB | |
| Confidential_[3rd approval][R.D]A2514_KSM(BN44-00865A)_CIRCUIT DRAWING Metadata only | Schematics | PDF 78.3 KB | |
| circuit diagram Metadata only | Schematics | PDF 416.4 KB | |
| Operational Description Metadata only | Operational Description | PDF 499.1 KB |
Application Information
| Application ID | 4YJltdNGh5Cs7NxJ0nkJeg== |
|---|---|
| Final Action Date | 2016-08-01 |
| Application Purpose | Class II permissive change or modification of presently authorized equipment |
| Applicant FRN | 0027908797 |
| Model | LS22E360 |
| Equipment Class | JBP - Part 15 Class B Computing Device Peripheral |
| Device Description | LCD monitor |
| Responsible Party | Jenni Chun, General Manager, j1.chun@samsung.com , 973-808-6375 |
| Technical Contact | li xiao, China Samsung Quality Assurance Laboratory, xiao.li@samsung.com , 022-23961234 |
| Test Firm | Zhongyuan Gao, CHINA SAMSUNG QUALITY ASSURANCE LABORATORY, zhongyuan.gao@samsung.com , 86-22-2396-1234 |
| TCB Email | hotline@acbcert.com  |
| TCB Scope | A1: Low Power Transmitters below 1 GHz (except Spread Spectrum), Unintentional Radiators, EAS (Part 11) & Consumer ISM devices |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Maximum resolution: 1920 x 1080 @ 60Hz Class II Permissive Change for changing power adaptor as documented in this filing. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| 4YJltdNGh5Cs7NxJ0nkJeg== | 2016-08-01 | Class II permissive change or modification of presently authorized equipment |
| YApmzT4J0KGnV2mOPnB+OA== | 2015-01-07 | Class II permissive change or modification of presently authorized equipment |
| qjzlbv+rlbQ5SnT0rQdw5Q== | 2014-12-08 | Original Equipment |
Grants
TCB Grant - Application YApmzT4J0KGnV2mOPnB+OA==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
ACB, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 |
Date of Grant: 01/07/2015 Application Dated: 01/06/2015 |
| Samsung Electronics Co Ltd |
| 19 Chapin Rd., Building D |
| Pine Brook, NJ 07058 |
| Attention: Jenni Chun , General Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | A3LLS22E360 |
| Name of Grantee: | Samsung Electronics Co Ltd |
| Equipment Class: | Part 15 Class B Computing Device Peripheral |
| Notes: | LCD monitor |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 19 | 15B | - |
| Maximum resolution: 1920 x 1080 @ 60Hz Class II Permissive Change for changing the adaptor as documented in this filing. |
| 19: | This device must be marketed with a shielded interface cable which incorporates ferrite cores equal in quantity and type to those used during Certification testing. |
