FCC ID A3LLS27E390
LCD monitor
by Samsung Electronics Co Ltd
Grantee Code: A3L Product Code: LS27E390
Latest application date: 2016-04-26
Device Images
FCC ID Device Details
| FCC ID | A3LLS27E390 |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | A3L |
| Product Code | LS27E390 |
| Applicant Business | Samsung Electronics Co Ltd 🇺🇸 |
| Related Domains |  samsung.com |
| Equipment Class | LCD monitor |
| Test Firm | CHINA SAMSUNG QUALITY ASSURANCE LABORATORY |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| user manual | Users Manual | 2014-12-15 | PDF 4.6 MB |
| user manual_v1 | Users Manual | 2014-12-15 | PDF 1.3 MB |
| internal photos | Internal Photos | 2016-04-26 | PDF 311.9 KB |
| internal photos | Internal Photos | 2015-09-15 | PDF 389.9 KB |
| internal photos | Internal Photos | 2015-05-03 | PDF 301.8 KB |
| Internal Photos | Internal Photos | 2015-01-07 | PDF 314.3 KB |
| internal photos | Internal Photos | 2014-12-15 | PDF 323.6 KB |

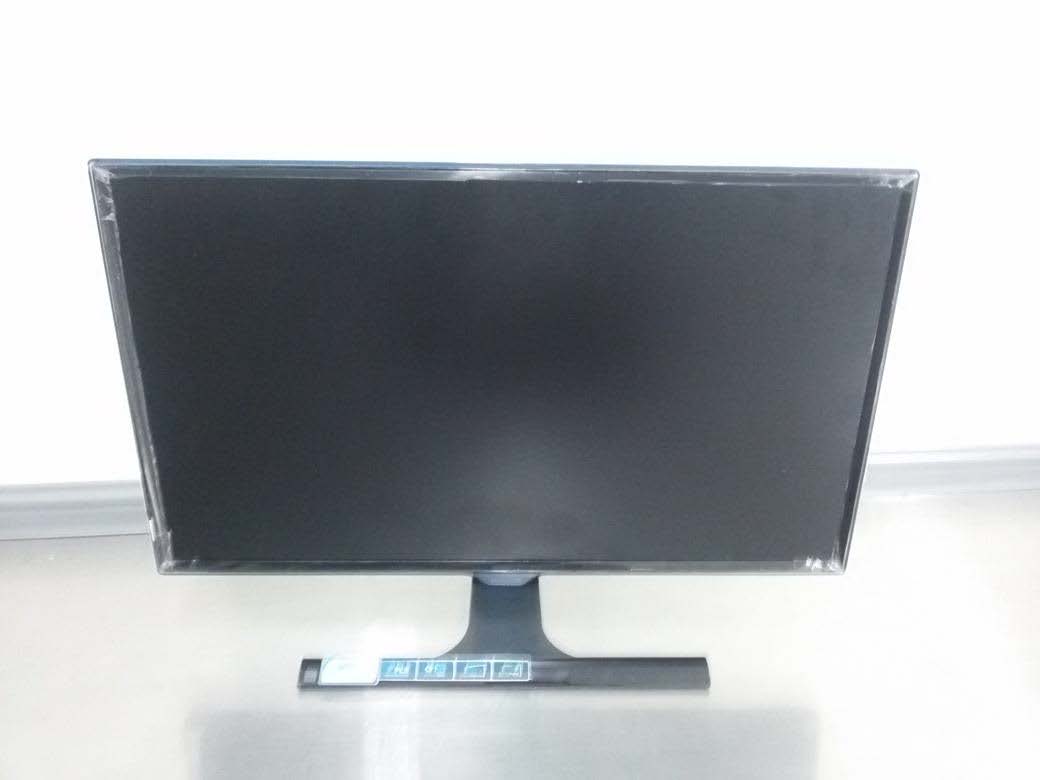

| external photos | External Photos | 2016-04-26 | PDF 207.7 KB |
| external photos | External Photos | 2015-09-15 | PDF 357.3 KB |
| external photos_v1 | External Photos | 2015-05-03 | PDF 357.3 KB |
| external photos | External Photos | 2015-01-07 | PDF 242.7 KB |
| external photos | External Photos | 2014-12-15 | PDF 242.7 KB |
| label location | ID Label/Location Info | 2014-12-15 | PDF 265.8 KB |
| testing setup photos | Test Setup Photos | 2016-04-26 | PDF 404.2 KB |
| test setup photos | Test Setup Photos | 2015-09-15 | PDF 388.4 KB |
| testing setup photos | Test Setup Photos | 2015-05-03 | PDF 427.6 KB |
| testing setup photos | Test Setup Photos | 2015-01-07 | PDF 422.9 KB |
| test setup photos | Test Setup Photos | 2014-12-15 | PDF 422.9 KB |
| LBE20161290_LS27E39_FCC | Test Report | 2016-04-26 | PDF 2.5 MB |
| LBE20154565_LS27E39_FCC | Test Report | 2015-09-15 | PDF 4 MB |
| LBE20150775_S27E39_FCC | Test Report | 2015-05-03 | PDF 1.9 MB |
| LBE20146253_LS27E39_FCC | Test Report | 2015-01-07 | PDF 2.2 MB |
| LBE20145834_LS27E39_FCC | Test Report | 2014-12-15 | PDF 2.5 MB |
| FCC Cover Letter | Cover Letter(s) | 2016-04-26 | PDF 532.4 KB |
| FCC Cover Letter | Cover Letter(s) | 2015-09-15 | PDF 782.2 KB |
| ACB-Form-FCC-confidentiality-Letters A3LLS27E390_v1 | Cover Letter(s) | 2015-05-03 | PDF 33.9 KB |
| FCC Cover Letter | Cover Letter(s) | 2015-05-03 | PDF 817.8 KB |
| Confidentiality-Letters A3LLS27E390 | Cover Letter(s) | 2015-01-07 | PDF 444.5 KB |
| FCC Cover Letter | Cover Letter(s) | 2015-01-07 | PDF 578.7 KB |
| ACB-Form-FCC-Application-Letters A3LLS27E390 | Cover Letter(s) | 2014-12-15 | PDF 202.9 KB |
| Confidential_SE360-SE390_ Block Metadata only | Block Diagram | PDF 177.1 KB | |
| Confidential_A2514_DPN Metadata only | Schematics | PDF 143 KB | |
| Confidential_A2514_DSM circuit diagram Metadata only | Schematics | PDF 66.8 KB | |
| Confidential_A2514_FPN(BN44-00797A)circuit diagram Metadata only | Schematics | PDF 177.1 KB | |
| Confidential_circuit diagram Metadata only | Schematics | PDF 510 KB | |
| Confidential_Operational Description Metadata only | Operational Description | PDF 495.5 KB |
Application Information
| Application ID | +rj2d5yyxV1xNyH3bFcEIg== |
|---|---|
| Final Action Date | 2016-04-26 |
| Application Purpose | Class II permissive change or modification of presently authorized equipment |
| Applicant FRN | 0027908797 |
| Model | LS27E390 |
| Equipment Class | JBP - Part 15 Class B Computing Device Peripheral |
| Device Description | LCD monitor |
| Responsible Party | Jenni Chun, General Manager, j1.chun@samsung.com , 973-808-6375 |
| Technical Contact | Li xiao, China Samsung Quality Assurance Laboratory, xiao.li@samsung.com , 86-22-23961234 |
| Test Firm | Zhongyuan Gao, CHINA SAMSUNG QUALITY ASSURANCE LABORATORY, zhongyuan.gao@samsung.com , 86-22-2396-1234 |
| TCB Email | hotline@acbcert.com  |
| TCB Scope | A1: Low Power Transmitters below 1 GHz (except Spread Spectrum), Unintentional Radiators, EAS (Part 11) & Consumer ISM devices |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Class II Permissive Change for changing the power adapter as documented in this filing. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| +rj2d5yyxV1xNyH3bFcEIg== | 2016-04-26 | Class II permissive change or modification of presently authorized equipment |
| GWqUw7XY4C0Jz9D/DqgHnQ== | 2015-09-15 | Class II permissive change or modification of presently authorized equipment |
| dOffBXlamENls2BphNAS+g== | 2015-05-03 | Class II permissive change or modification of presently authorized equipment |
| m44aHV+Ihwtjb+GsG4JHRQ== | 2015-01-07 | Class II permissive change or modification of presently authorized equipment |
| RXsXUqxq0x5xgN87Un3U7A== | 2014-12-15 | Original Equipment |
Grants
TCB Grant - Application RXsXUqxq0x5xgN87Un3U7A==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
