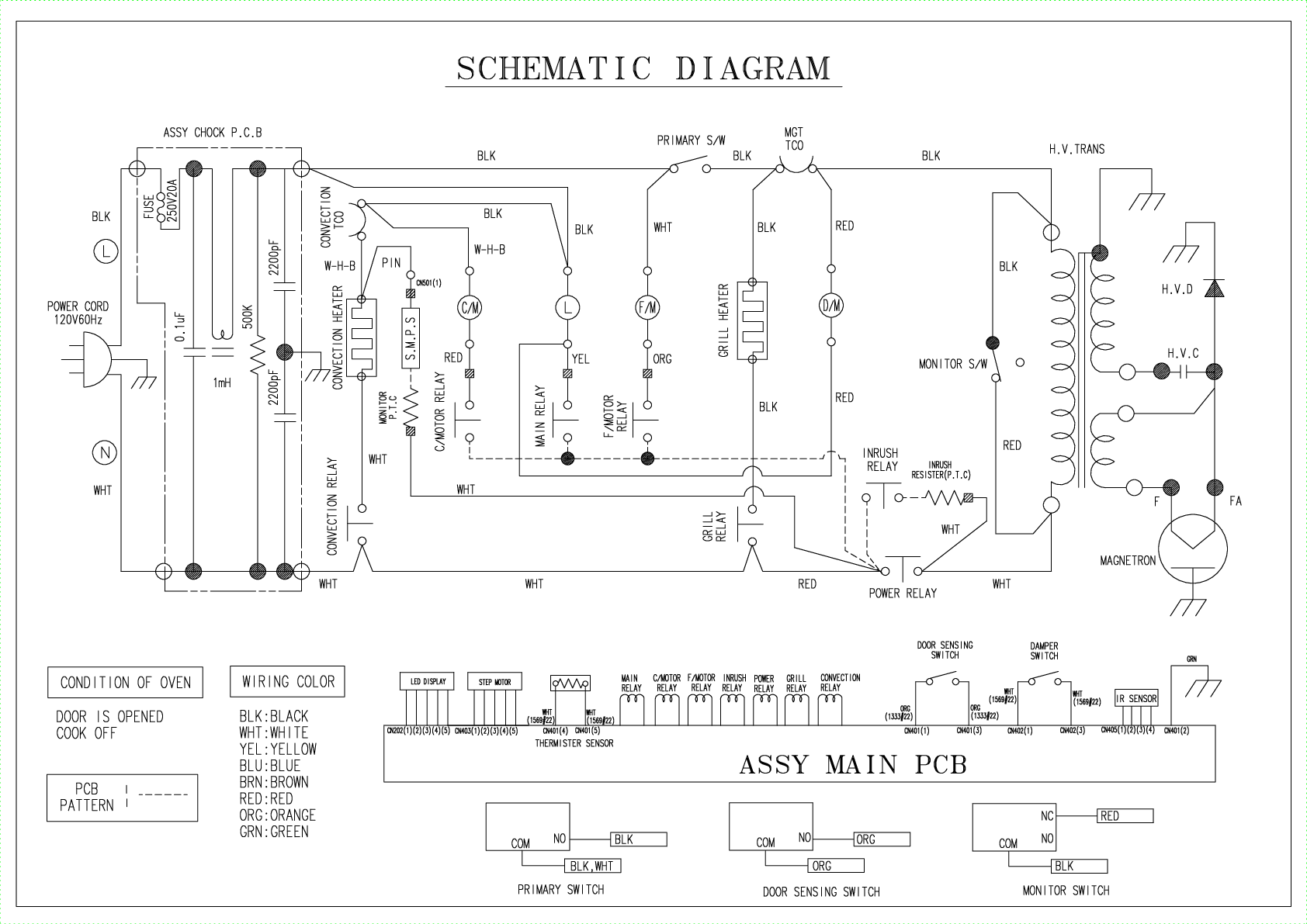

MC11H6033 Microwave Oven Schematics - FCC ID A3LMC11H6033

FCC ID A3LMC11H6033

Schematics

Microwave Oven

by Samsung Electronics Co Ltd

Document preview loads when visible.

Document Details

FCC IDA3LMC11H6033
Document ID2317079
Document TypeSchematics
DescriptionSchematics
ApplicantSamsung Electronics Co Ltd
Equipment ClassMicrowave Oven
Product CodeMC11H6033
Application IDGVfAJifbW8stLjfDGSGptQ==
Application PurposeOriginal Equipment
Application Date2014-07-07
Frequency Range2400-2500 MHz
FRN0027908797
Test FirmNemko Korea Co., Ltd
Certified ByGilryeong Koh Engineer
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2014-07-07
Available2014-07-07
Created2014-06-09
Modified2014-06-09
Pages1
File TypeAdobe Acrobat PDF
File Size88783
File SHA-256d5964c8a2c96939d63de6f5aa98a1e0b668ba93cdf71befb977dfaa3a760846a
PDF Metadata AuthorNX
PDF Metadata Producercgm2pdf PDFlib+PDI 8.0.0 (C++/Win32)
FCC.gov SourcesFCC.gov 2317079
