MC769N Microwave Oven Schematics - FCC ID A3LMC769N
FCC ID A3LMC769N
Schematics
Microwave Oven
Document preview loads when visible.
Document Details
| FCC ID | A3LMC769N |
|---|---|
| Document ID | 507902 |
| Document Type | Schematics |

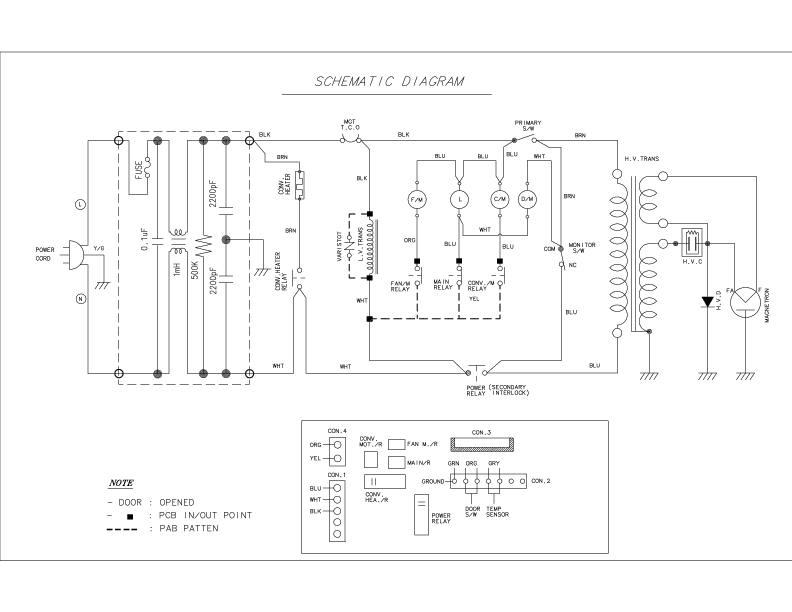

| Description | Schematics |
| Document Title | C:\mySPDM\Ideas2D\DM050111-0029\DM050111-0029.plt |
| Applicant | Samsung Electronics Co Ltd |
| Equipment Class | Microwave Oven |
| Product Code | MC769N |
| Application ID | crVud2jkA2SsoiOFJ9QBxQ== |
| Application Purpose | Original Equipment |
| Application Date | 2005-01-20 |
| Frequency Range | 2450 MHz |
| FRN | 0027908797 |
| Test Firm | SAMSUNG ELECTRONICS CO., LTD. |
| Certified By | Randy Ortanez President |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Submitted | 2005-01-20 |
| Available | 2005-01-20 |
| Created | 2005-01-11 |
| Modified | 2005-01-17 |
| Pages | 2 |
| File Type | Adobe Acrobat PDF |
| File Size | 104658 |
| File SHA-256 | edda170af16220f9b3fc00f7f592a9f910cf2d238596305dbee527e03330bab8 |
| PDF Metadata Author | NT213 |
| PDF Metadata Producer | Acrobat Distiller 6.0 (Windows) NT213 |
| FCC.gov Sources | FCC.gov 507902 |
