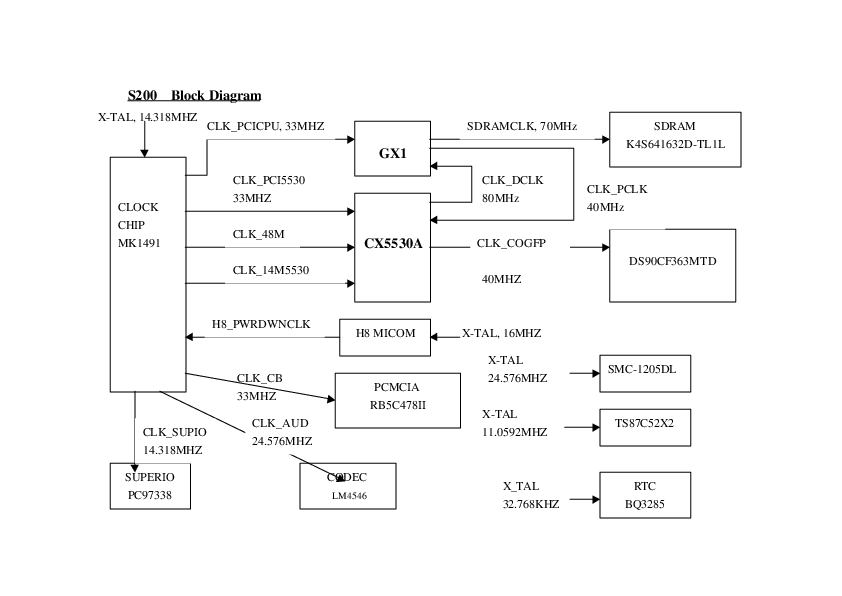

S200 Web Pad Block Diagram - FCC ID A3LS200

FCC ID A3LS200

Block Diagram

Web Pad

by Samsung Electronics Co Ltd

Document preview loads when visible.

Document Details

FCC IDA3LS200
Document ID133705
Document TypeBlock Diagram
DescriptionBlock Diagram
Document Title.歯.DIAGRAM.PDF
ApplicantSamsung Electronics Co Ltd
Equipment ClassWeb Pad
Product CodeS200
Application ID3ENJleHeoXgeWY9rJKnYDg==
Application PurposeOriginal Equipment
Application Date2001-01-23
FRN0027908797
Test FirmSamsung Electronics Co., Ltd.
Certified ByJohn SC Lee Engineer
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2001-01-23
Available2001-01-23
Created2000-12-09
Modified2000-12-09
Pages1
File TypeAdobe Acrobat PDF
File Size5949
File SHA-256648f57cd408f12053f2f683bb859d3e58ab8086ccaeca2c0d99441b25d6b7c8f
PDF Metadata Author.歯.상청
PDF Metadata Producer.歯.Microsoft Word Acrobat PDFWriter 4.0 for Windows
FCC.gov SourcesFCC.gov 133705
