FCC ID A3LS22E200B
LCD Monitor
by Samsung Electronics Co Ltd
Grantee Code: A3L Product Code: S22E200B
Latest application date: 2015-10-27
Device Images
FCC ID Device Details
| FCC ID | A3LS22E200B |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | A3L |
| Product Code | S22E200B |
| Applicant Business | Samsung Electronics Co Ltd 🇺🇸 |
| Related Domains |  samsung.com |
| Equipment Class | LCD Monitor |
| Test Firm | CHINA SAMSUNG QUALITY ASSURANCE LABORATORY |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| USER MANUAL | Users Manual | 2015-04-01 | PDF 3.6 MB |
| user manual-2 | Users Manual | 2015-04-01 | PDF 1.3 MB |
| internal photos | Internal Photos | 2015-10-27 | PDF 375.1 KB |
| internal photos_v1 | Internal Photos | 2015-04-01 | PDF 552.3 KB |

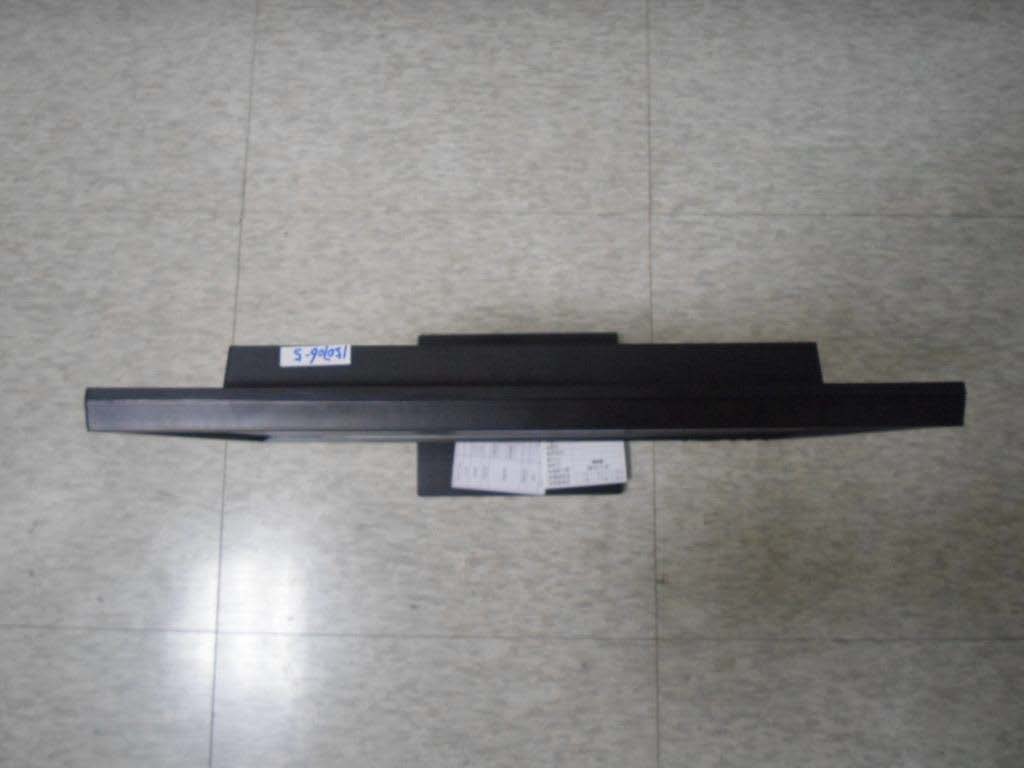

| external photos | External Photos | 2015-10-27 | PDF 220.4 KB |
| external photos | External Photos | 2015-04-01 | PDF 188.7 KB |
| label artwork and label location | ID Label/Location Info | 2015-04-01 | PDF 293.3 KB |
| test setup photos | Test Setup Photos | 2015-10-27 | PDF 742.9 KB |
| test setup photos | Test Setup Photos | 2015-04-01 | PDF 415.1 KB |
| LBE20154454_S22E20_FCC | Test Report | 2015-10-27 | PDF 2.8 MB |
| LBE20154458_S22E20_FCC | Test Report | 2015-10-27 | PDF 2.1 MB |
| LBE20151476_xS22E20xxx_ITE_FCC Report | Test Report | 2015-04-01 | PDF 2.6 MB |
| LBE20151480_S22E20_FCC | Test Report | 2015-04-01 | PDF 1.5 MB |
| LBE20151484_S22E20_FCC | Test Report | 2015-04-01 | PDF 2.2 MB |
| LBE20151488_S22E20_FCC | Test Report | 2015-04-01 | PDF 2.3 MB |
| FCC Cover Letter | Cover Letter(s) | 2015-10-27 | PDF 2 MB |
| ACB-Form-FCC-Confidentiality-Letters A3LS22E200B | Cover Letter(s) | 2015-04-01 | PDF 251.2 KB |
| FCC Clarify Letter_2 | Cover Letter(s) | 2015-04-01 | PDF 1.8 MB |
| Confidential_SE200-450_Refresh_Block_v1 Metadata only | Block Diagram | PDF 198.1 KB | |
| Confidential_SD25 circuit diagram Metadata only | Schematics | PDF 110 KB | |
| Confidential_circuit diagram Metadata only | Schematics | PDF 510.4 KB | |
| Confidential_Operational Description-1_v1 Metadata only | Operational Description | PDF 316.9 KB | |
| Confidential_Operational Description-2_v1 Metadata only | Operational Description | PDF 318.4 KB |
Application Information
| Application ID | RZjukcJOeYlIHmfF+3f5dA== |
|---|---|
| Final Action Date | 2015-10-27 |
| Application Purpose | Class II permissive change or modification of presently authorized equipment |
| Applicant FRN | 0005810205 |
| Model | S22E200B |
| Equipment Class | JBP - Part 15 Class B Computing Device Peripheral |
| Device Description | LCD Monitor |
| Responsible Party | Jenni Chun, General Manager, j1.chun@samsung.com , 973-808-6375 |
| Technical Contact | li xiao, China Samsung Quality Assurance Laboratory, xiao.li@samsung.com , 022-23961234 |
| Non-Technical Contact | Zhang qi, Tianjin Samsung Electronics Co., LTD., qi00.zhang@samsung.com , 022-23961234 |
| Test Firm | Zhongyuan Gao, CHINA SAMSUNG QUALITY ASSURANCE LABORATORY, zhongyuan.gao@samsung.com , 86-22-2396-1234 |
| TCB Email | hotline@acbcert.com  |
| TCB Scope | A1: Low Power Transmitters below 1 GHz (except Spread Spectrum), Unintentional Radiators, EAS (Part 11) & Consumer ISM devices |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Maximum resolution: 1920 x 1080@60Hz Class II Permissive Change for changing new panels as documented in this filing. |
