FCC ID A3LS22E650D
LCD Monitor
by Samsung Electronics Co Ltd
Grantee Code: A3L Product Code: S22E650D
Latest application date: 2015-11-16
Device Images
FCC ID Device Details
| FCC ID | A3LS22E650D |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | A3L |
| Product Code | S22E650D |
| Applicant Business | Samsung Electronics Co Ltd 🇺🇸 |
| Related Domains |  samsung.com |
| Equipment Class | LCD Monitor |
| Test Firm | CHINA SAMSUNG QUALITY ASSURANCE LABORATORY |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| user manual | Users Manual | 2015-05-12 | PDF 4.7 MB |
| users manual | Users Manual | 2015-05-12 | PDF 1.3 MB |
| internal photos | Internal Photos | 2015-11-16 | PDF 156.3 KB |
| internal photos | Internal Photos | 2015-05-12 | PDF 159.6 KB |
| external photos | External Photos | 2015-11-16 | PDF 104.6 KB |
| external photos | External Photos | 2015-05-12 | PDF 104.8 KB |
| label location | ID Label/Location Info | 2015-05-12 | PDF 151 KB |

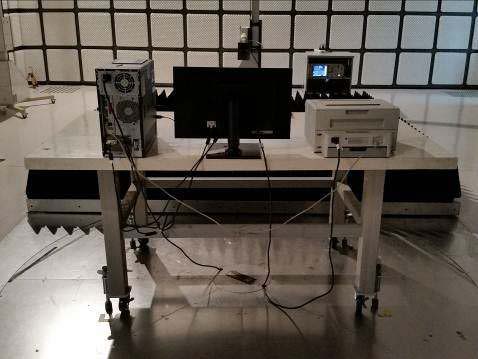

| test setup photos | Test Setup Photos | 2015-11-16 | PDF 174.8 KB |
| test setup photos | Test Setup Photos | 2015-05-12 | PDF 175 KB |
| LBE20154836_S22E65_FCC | Test Report | 2015-11-16 | PDF 1.9 MB |
| LBE20152579_S22E65_FCC | Test Report | 2015-05-12 | PDF 1.8 MB |
| ACB-Form-FCC-Confidentiality-Letters A3LS22E650D | Cover Letter(s) | 2015-11-16 | PDF 33.9 KB |
| FCC Cover Letter | Cover Letter(s) | 2015-11-16 | PDF 347.2 KB |
| ACB-Form-FCC-Application-Letters A3LS27E650D | Cover Letter(s) | 2015-05-12 | PDF 251.2 KB |
| Confidential_SE650D Block_v1 Metadata only | Block Diagram | PDF 1 MB | |
| Confidential_P2514Z_FPN Metadata only | Schematics | PDF 882.9 KB | |
| Confidential_P2514Z_FPN(842A) circuit Metadata only | Schematics | PDF 208.4 KB | |
| Confidential_circuit diagram 2235B Metadata only | Schematics | PDF 222.5 KB | |
| Confidential_Operational Description Metadata only | Operational Description | PDF 303.9 KB |
Application Information
| Application ID | H39Ln0eao53nmXcHOSSPQQ== |
|---|---|
| Final Action Date | 2015-11-16 |
| Application Purpose | Class II permissive change or modification of presently authorized equipment |
| Applicant FRN | 0005810205 |
| Model | S22E650D |
| Equipment Class | JBP - Part 15 Class B Computing Device Peripheral |
| Device Description | LCD Monitor |
| Responsible Party | Jenni Chun, General Manager, j1.chun@samsung.com , 973-808-6375 |
| Technical Contact | li xiao, China Samsung Quality Assurance Laboratory, xiao.li@samsung.com , 022-23961234 |
| Non-Technical Contact | Zhang qi, Tianjin Samsung Electronics Co., LTD., qi00.zhang@samsung.com , 022-23961234 |
| Test Firm | Zhongyuan Gao, CHINA SAMSUNG QUALITY ASSURANCE LABORATORY, zhongyuan.gao@samsung.com , 86-22-2396-1234 |
| TCB Email | hotline@acbcert.com  |
| TCB Scope | A1: Low Power Transmitters below 1 GHz (except Spread Spectrum), Unintentional Radiators, EAS (Part 11) & Consumer ISM devices |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Maximum Resolution: 1920 x 1080@60Hz Class II Permissive Change for changing the power board as documented in this filing. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| H39Ln0eao53nmXcHOSSPQQ== | 2015-11-16 | Class II permissive change or modification of presently authorized equipment |
| cTuDkPoLZDtjf2EDbKTRrQ== | 2015-05-12 | Original Equipment |
Grants
TCB Grant - Application H39Ln0eao53nmXcHOSSPQQ==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
ACB, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 |
Date of Grant: 11/16/2015 Application Dated: 11/12/2015 |
| Samsung Electronics Co Ltd |
| 19 Chapin Rd., Building D |
| Pine Brook, NJ 07058 |
| Attention: Jenni Chun , General Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | A3LS22E650D |
| Name of Grantee: | Samsung Electronics Co Ltd |
| Equipment Class: | Part 15 Class B Computing Device Peripheral |
| Notes: | LCD Monitor |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 19 | 15B | - |
| Maximum Resolution: 1920 x 1080@60Hz Class II Permissive Change for changing the power board as documented in this filing. |
| 19: | This device must be marketed with a shielded interface cable which incorporates ferrite cores equal in quantity and type to those used during Certification testing. |
EAS Grant - Application H39Ln0eao53nmXcHOSSPQQ==
