FCC ID A3LSMC701F

A3L-SMC701F, A3L SMC701F, A3LSMC701F, A3LSMC7O1F, A3LSMC70IF, A3L5MC701F

Samsung Electronics Co Ltd GSM/WCDMA/LTE Phone + BT/BLE, DTS/UNII a/b/g/n, ANT+ and NFC

An FCC ID is the product ID assigned by the FCC to identify wireless products in the market. The FCC chooses 3 or 5 character "Grantee" codes to identify the business that created the product. For example, the grantee code for FCC ID: A3LSMC701F is A3L. The remaining characters of the FCC ID, SMC701F, are often associated with the product model, but they can be random. These letters are chosen by the applicant. In addition to the application, the FCC also publishes internal images, external images, user manuals, and test results for wireless devices. They can be under the "exhibits" tab below.

Purchase on Amazon: GSM/WCDMA/LTE Phone + BT/BLE, DTS/UNII a/b/g/n, ANT+ and NFC

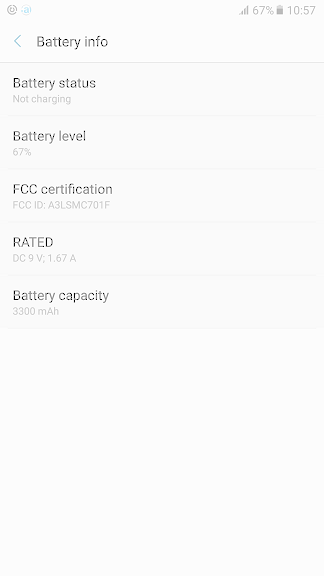

A3LSMC701F ID Label Location Info

*Please Check Individual Documents for more images

App # Purpose Date Unique ID
1 Original Equipment 2017-03-20 /SQ7ND5BuVxF/jAWyTm9YQ==
2 Original Equipment 2017-03-20 GN2ws6u77wShWzDeVhTPnA==
3 Original Equipment 2017-03-20 6JMml+V6G1BNpB0B9j182g==
4 Original Equipment 2017-03-20 EJgQvN+Pke3IpaPXFqEcgw==
5 Original Equipment 2017-03-20 p71OOKTYJyj0aa0g+PdnSw==
6 Original Equipment 2017-03-20 3z4MHQDqD8LRYD1frUNKXw==

Operating Frequencies

Device operates within approved frequencies overlapping with the following cellular bands: LTE 255,Unlicensed NII-3 DOWN | LTE 46,TD Unlicensed DOWN |
Frequency RangePower OutputToleranceEmission DesignatorRule PartsGrant Notes App #
15BCC 6.1
13.56-13.56 MHz Near Field Communication15CCC 5.1
824.2-848.8 MHz233 mW2.5ppm243KG7W22H 1.2
826.4-846.6 MHz83.4 mW2.5ppm4M15F9W22H 1.5
826.5-846.5 MHz39.8 mW2.5ppm4M59D7W22H 1.1
826.5-846.5 MHz50 mW2.5ppm4M51G7W22H 1.9
829-844 MHz45.6 mW2.5ppm8M97G7W22H 1.7
829-844 MHz36.2 mW2.5ppm8M97D7W22H 1.8
1.8502-1.9098 GHz1.22 Watts2.5ppm247KGXW24E 1.3
1.8502-1.9098 GHz470 mW2.5ppm247KG7W24E 1.4
1.8524-1.9076 GHz151 mW2.5ppm4M15F9W24E 1.6
2.402-2.48 GHz Bluetooth11.2 mW15CCC 3.1
2.402-2.48 GHz Bluetooth1.1 mW15CCC 4.1
2.402-2.48 GHz Bluetooth15CCC 5.2
2.412-2.462 GHz 2.4 GHz WiFi44.5 mW15CCC 4.2
2.501-2.685 GHz131 mW2.5ppm8M98G7W27 1.13
2.501-2.685 GHz101 mW2.5ppm8M97D7W27 1.14
2.506-2.68 GHz111 mW2.5ppm17M9G7W27 1.11
2.506-2.68 GHz88.7 mW2.5ppm17M9D7W27 1.12
5.18-5.24 GHz 5 GHz WiFi26.5 mW15E38, CC 2.1
5.26-5.32 GHz 5 GHz WiFi26.4 mW15E38, CC 2.2
5.5-5.7 GHz 5 GHz WiFi26.6 mW15E38, CC 2.3
5.745-5.825 GHz 5 GHz WiFi25.2 mW15E38, CC 2.4
