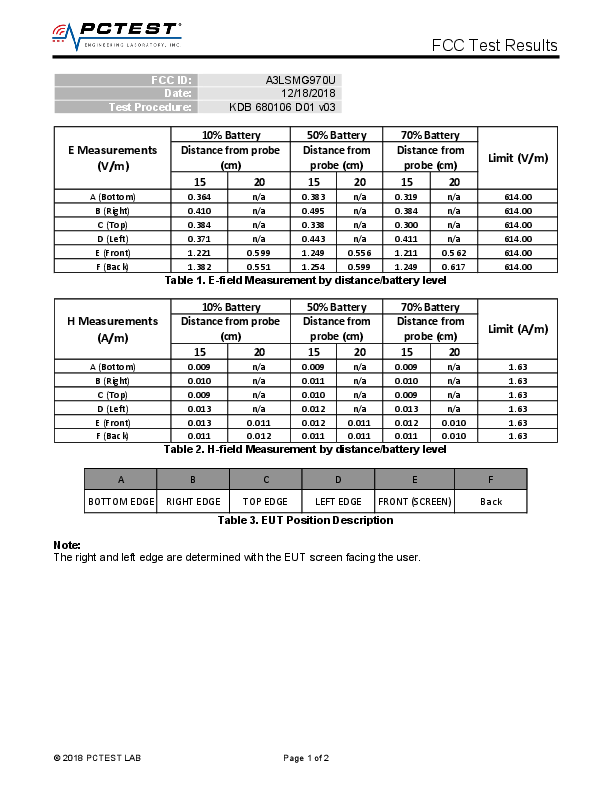

                                                                                     FCC Test Results

                   FCC ID:                 A3LSMG970U
                     Date:                   12/18/2018
           Test Procedure:           KDB 680106 D01 v03

                             10% Battery             50% Battery              70% Battery
  E Measurements         Distance from probe        Distance from            Distance from
                                                                                               Limit (V/m)
      (V/m)                      (cm)                 probe (cm)              probe (cm)
                             15          20          15            20         15       20
       A (Bottom)          0.364         n/a        0.383          n/a       0.319     n/a           614.00
        B (Right)          0.410         n/a        0.495          n/a       0.384     n/a           614.00
         C (Top)           0.384         n/a        0.338          n/a       0.300     n/a           614.00
         D (Left)          0.371         n/a        0.443          n/a       0.411     n/a           614.00
        E (Front)          1.221        0.599       1.249         0.556      1.211    0.562          614.00
        F (Back)           1.382        0.551       1.254         0.599      1.249    0.617          614.00
                      Table 1. E-field Measurement by distance/battery level

                             10% Battery             50% Battery              70% Battery
  H Measurements         Distance from probe        Distance from            Distance from
                                                                                               Limit (A/m)
      (A/m)                      (cm)                 probe (cm)              probe (cm)
                            15         20            15        20             15        20
       A (Bottom)          0.009         n/a        0.009          n/a       0.009     n/a            1.63
        B (Right)          0.010         n/a        0.011          n/a       0.010     n/a            1.63
         C (Top)           0.009         n/a        0.010          n/a       0.009     n/a            1.63
         D (Left)          0.013         n/a        0.012          n/a       0.013     n/a            1.63
        E (Front)          0.013        0.011       0.012         0.011      0.012    0.010           1.63
        F (Back)           0.011        0.012       0.011         0.011      0.011    0.010           1.63
                      Table 2. H-field Measurement by distance/battery level

            A              B               C                  D                 E              F

      BOTTOM EDGE     RIGHT EDGE       TOP EDGE        LEFT EDGE          FRONT (SCREEN)      Back
                                   Table 3. EUT Position Description

Note:
The right and left edge are determined with the EUT screen facing the user.




© 2018 PCTEST LAB                               Page 1 of 2


                                                                             FCC Test Results
Description of Test Setup

   o   Testing was performed with a calibrated field probe.
   o   Measurement was performed on each side of the EUT as described per Table 3.
   o   Testing was performed at the distances and different battery level as indicated on Table 1 and
       Table 2.
   o   Measurement procedure was performed per FCC Guidance.

Test Equipment

 Manufactuer        Model           Description         Cal. Date       Cal Due         Serial No.
 Narda              EHP-200A        EM Field Probe      3/7/2018        3/7/2019        170WX50922




© 2018 PCTEST LAB                             Page 2 of 2
