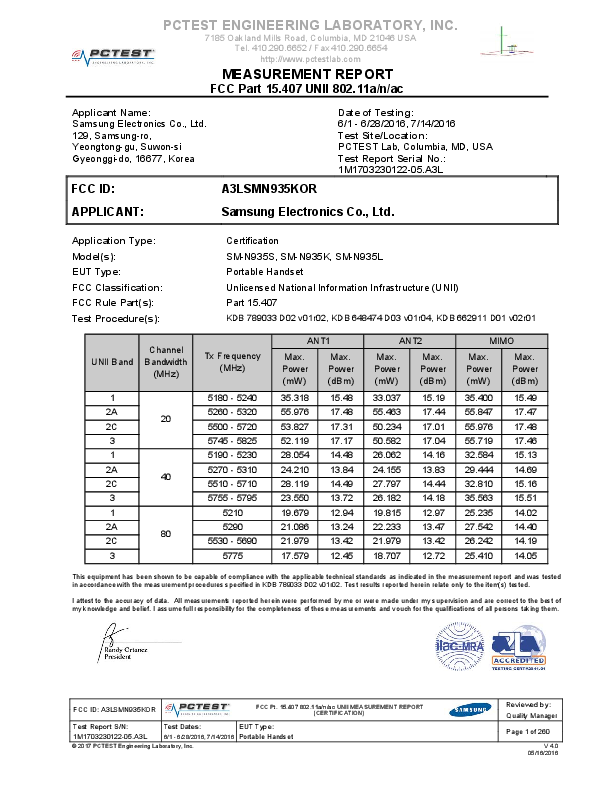

MEASUREMENT REPORT
FCC Part 15.407 UNII 802.11a/n/ac
Applicant Name:
Samsung Electronics Co., Ltd.
129, Samsung-ro,
Yeongtong-gu, Suwon-si
Gyeonggi-do, 16677, Korea
Date of Testing:
6/1 - 6/28/2016, 7/14/2016
Test Site/Location:
PCTEST Lab, Columbia, MD, USA
Test Report Serial No.:
1M1703230122-05.A3L
FCC ID:
A3LSMN935KOR
APPLICANT:
Samsung Electronics Co., Ltd.
Application Type:
Certification
Model(s):
SM-N935S, SM-N935K, SM-N935L
EUT Type:
Portable Handset
FCC Classification:
Unlicensed National Information Infrastructure (UNII)
FCC Rule Part(s):
Part 15.407
Test Procedure(s):
KDB 789033 D02 v01r02, KDB 648474 D03 v01r04, KDB 662911 D01 v02r01
UNII Band
Channel
Bandwidth
(MHz)
ANT1
Tx Frequency
(MHz)
Max.
Power
(mW)
Max.
Power
(dBm)
ANT2
Max.
Power
(mW)
Max.
Power
(dBm)
MIMO
Max.
Power
(mW)
Max.
Power
(dBm)
5180 - 5240
35.318
15.48
33.037
15.19
35.400
15.49
2A
5260 - 5320
55.976
17.48
55.463
17.44
55.847
17.47
2C
20
5500 - 5720
53.827
17.31
50.234
17.01
55.976
17.48
5745 - 5825
52.119
17.17
50.582
17.04
55.719
17.46
5190 - 5230
28.054
14.48
26.062
14.16
32.584
15.13
2A
5270 - 5310
24.210
13.84
24.155
13.83
29.444
14.69
5510 - 5710
28.119
14.49
27.797
14.44
32.810
15.16
5755 - 5795
23.550
13.72
26.182
14.18
35.563
15.51
5210
19.679
12.94
19.815
12.97
25.235
14.02
5290
21.086
13.24
22.233
13.47
27.542
14.40
5530 - 5690
21.979
13.42
21.979
13.42
26.242
14.19
5775
17.579
12.45
18.707
12.72
25.410
14.05
2C
2A
2C
40
80
This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested
in accordance with the measurement procedures specified in KDB 789033 D02 v01r02. Test results reported herein relate only to the item(s) tested.
I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of
my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them.
FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
6/1 - 6/28/2016, 7/14/2016 Portable Handset
1M1703230122-05.A3L
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 1 of 260
V 4.0
05/16/2016
T A B L E
O F
C O N T E N T S
FCC PART 15.407 MEASUREMENT REPORT ......................................................................................................................................................................... 3
1.0
2.0
3.0
INTRODUCTION...........................................................................................................................................................................................................4
1.1
Scope ............................................................................................................................................................................................................4
1.2
PCTEST Test Location ..................................................................................................................................................................................4
PRODUCT INFORMATION ..........................................................................................................................................................................................5
2.1
Equipment Description ..................................................................................................................................................................................5
2.2
Device Capabilities ........................................................................................................................................................................................5
2.3
Test Configuration .........................................................................................................................................................................................8
2.4
EMI Suppression Device(s)/Modifications .....................................................................................................................................................8
DESCRIPTION OF TESTS ...........................................................................................................................................................................................9
3.1
Evaluation Procedure ....................................................................................................................................................................................9
3.2
AC Line Conducted Emissions ......................................................................................................................................................................9
3.3
Radiated Emissions.....................................................................................................................................................................................10
3.4
Environmental Conditions............................................................................................................................................................................10
4.0
ANTENNA REQUIREMENTS .....................................................................................................................................................................................11
5.0
MEASUREMENT UNCERTAINTY ..............................................................................................................................................................................12
6.0
TEST EQUIPMENT CALIBRATION DATA..................................................................................................................................................................13
7.0
TEST RESULTS .........................................................................................................................................................................................................14
7.1
Summary .....................................................................................................................................................................................................14
7.2
26dB Bandwidth Measurement – 802.11a/n/ac ...........................................................................................................................................15
7.3
6dB Bandwidth Measurement – 802.11a/n/ac .............................................................................................................................................48
7.4
UNII Output Power Measurement – 802.11a/n/ac .......................................................................................................................................59
7.5
Maximum Power Spectral Density – 802.11a/n/ac ......................................................................................................................................68
7.6
Frequency Stability .................................................................................................................................................................................... 112
7.7
Radiated Spurious Emission Measurements – Above 1GHz ..................................................................................................................... 116
7.7.1
Antenna-1 Radiated Spurious Emission Measurements .............................................................................................................. 119
7.7.2
Antenna-2 Radiated Spurious Emission Measurements .............................................................................................................. 133
7.7.3
Simultaneous Transmission Radiated Spurious Emissions Measurements (Above 1GHz) .......................................................... 147
7.7.4
Antenna-1 Radiated Band Edge Measurements (20MHz BW) ..................................................................................................... 153
7.7.5
Antenna-1 Radiated Band Edge Measurements (40MHz BW) ..................................................................................................... 161
7.7.6
Antenna-1 Radiated Band Edge Measurements (80MHz BW) ..................................................................................................... 169
7.7.7
Antenna-2 Radiated Band Edge Measurements (20MHz BW) ..................................................................................................... 177
7.7.8
Antenna-2 Radiated Band Edge Measurements (40MHz BW) ..................................................................................................... 185
7.7.9
Antenna-2 Radiated Band Edge Measurements (80MHz BW) ..................................................................................................... 193
7.7.10
8.0
MIMO Radiated Band Edge Measurements (20MHz BW) ......................................................................................................... 201
7.7.11
MIMO Radiated Band Edge Measurements (40MHz BW) ......................................................................................................... 209
7.7.12
MIMO Radiated Band Edge Measurements (80MHz BW) ......................................................................................................... 217
7.8
Radiated Spurious Emissions Measurements – Below 1GHz .................................................................................................................... 225
7.9
Line-Conducted Test Data......................................................................................................................................................................... 230
CONCLUSION .......................................................................................................................................................................................................... 240
Appendix A. 802.11a Dual Tx .................................................................................................................................................................................................. 241
A.3
Power Spectral Density ............................................................................................................................................................................. 243
A.4
Dual Tx Radiated Restricted Band Edge Measurements ........................................................................................................................... 254
FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
6/1 - 6/28/2016, 7/14/2016 Portable Handset
1M1703230122-05.A3L
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 2 of 260
V 4.0
05/16/2016
MEASUREMENT REPORT
FCC Part 15.407
§ 2.1033 General Information
APPLICANT:
Samsung Electronics Co., Ltd.
APPLICANT ADDRESS:
129, Samsung-ro,
Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea
TEST SITE:
PCTEST ENGINEERING LABORATORY, INC.
TEST SITE ADDRESS:
7185 Oakland Mills Road, Columbia, MD 21046 USA
FCC RULE PART(S):
Part 15.407
BASE MODEL:
SM-N935S
FCC ID:
A3LSMN935KOR
FCC CLASSIFICATION:
Unlicensed National Information Infrastructure (UNII)
Test Device Serial No.:
066AA, 05A93,
0548E
DATE(S) OF TEST:
6/3 - 6/28/2016
TEST REPORT S/N:
1M1703230122-05.A3L
Production
Pre-Production
Engineering
Test Facility / Accreditations
Measurements were performed at PCTEST Engineering Lab located in Columbia, MD 21046, U.S.A.


PCTEST facility is an FCC registered (PCTEST Reg. No. 159966) test facility with the site
description report on file and has met all the requirements specified in Section 2.948 of the
FCC Rules and Industry Canada (2451B-1).
PCTEST Lab is accredited to ISO 17025 by U.S. National Institute of Standards and
Technology (NIST) under the National Voluntary Laboratory Accreditation Program (NVLAP
Lab code: 100431-0) in EMC, FCC and Telecommunications.

PCTEST Lab is accredited to ISO 17025-2005 by the American Association for Laboratory
Accreditation (A2LA) in Specific Absorption Rate (SAR) testing, Hearing Aid Compatibility
(HAC) testing, CTIA Test Plans, and wireless testing for FCC and Industry Canada Rules.

PCTEST Lab is a recognized U.S. Conformity Assessment Body (CAB) in EMC and R&TTE
(n.b. 0982) under the U.S.-EU Mutual Recognition Agreement (MRA).
PCTEST TCB is a Telecommunication Certification Body (TCB) accredited to ISO/IEC
Guide 65 by the American National Standards Institute (ANSI) in all scopes of FCC Rules
and Industry Canada Standards (RSS).
PCTEST facility is an IC registered (2451B-1) test laboratory with the site description on file
at Industry Canada.
PCTEST is a CTIA Authorized Test Laboratory (CATL) for AMPS, CDMA, and EvDO
wireless devices and for Over-the-Air (OTA) Antenna Performance testing for AMPS,
CDMA, GSM, GPRS, EGPRS, UMTS (W-CDMA), CDMA 1xEVDO, and CDMA 1xRTT.



FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
6/1 - 6/28/2016, 7/14/2016 Portable Handset
1M1703230122-05.A3L
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 3 of 260
V 4.0
05/16/2016
1.0
1.1
INTRODUCTION
Scope
Measurement and determination of electromagnetic emissions (EMC) of radio frequency devices including
intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal
Communications Commission and the Industry Canada Certification and Engineering Bureau.
1.2
PCTEST Test Location
The map below shows the location of the PCTEST LABORATORY, its proximity to the FCC Laboratory, the
Columbia vicinity, the Baltimore-Washington Internt’l (BWI) airport, the city of Baltimore and the Washington,
DC area. (See Figure 1-1).
These measurement tests were conducted at the PCTEST Engineering Laboratory, Inc. facility located at
7185 Oakland Mills Road, Columbia, MD 21046. The site coordinates are 39o 10’23” N latitude and 76o 49’50”
W longitude. The facility is 0.4 miles North of the FCC laboratory, and the ambient signal and ambient signal
strength are approximately equal to those of the FCC laboratory. The detailed description of the measurement
facility was found to be in compliance with the requirements of § 2.948 according to ANSI C63.4-2014 on
January 22, 2015.
Figure 1-1. Map of the Greater Baltimore and Metropolitan Washington, D.C. area
FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
6/1 - 6/28/2016, 7/14/2016 Portable Handset
1M1703230122-05.A3L
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 4 of 260
V 4.0
05/16/2016
2.0
2.1
PRODUCT INFORMATION
Equipment Description
The Equipment Under Test (EUT) is the Samsung Portable Handset FCC ID: A3LSMN935KOR. The test
data contained in this report pertains only to the emissions due to the EUT’s UNII transmitter.
2.2
Device Capabilities
This device contains the following capabilities:
1900 GPRS/EDGE, 850/1900 WCDMA/HSPA, Multi-band LTE, 802.11b/g/n WLAN, 802.11a/n/ac UNII,
Bluetooth (1x, EDR, LE), NFC, ANT+
Band 1
Ch.
36
42
48
Band 2A
Frequency (MHz)
Ch.
Frequency (MHz)
Band 2C
Ch.
Frequency (MHz)
Band 3
Ch.
Frequency (MHz)
5180
52
5260
100
5500
149
5745
5210
56
5280
120
5600
157
5785
5240
64
5320
144
5720
165
5825
Table 2-1. 802.11a / 802.11n / 802.11ac (20MHz) Frequency / Channel Operations
Band 1
Band 2A
Ch.
Frequency (MHz)
Ch.
Frequency (MHz)
38
46
5190
5230
54
62
5270
5310
Band 2C
Ch.
Frequency (MHz)
Band 3
Ch.
Frequency (MHz)
102
5510
151
118
5590
142
5710
159
Table 2-2. 802.11n / 802.11ac (40MHz BW) Frequency / Channel Operations
Band 1
Band 2A
Ch.
Frequency (MHz)
Ch.
Frequency (MHz)
42
5210
58
5290
Ch.
Frequency (MHz)
FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT
(CERTIFICATION)
Test Dates:
EUT Type:
6/1 - 6/28/2016, 7/14/2016 Portable Handset
1M1703230122-05.A3L
© 2017 PCTEST Engineering Laboratory, Inc.
5795
Band 3
Ch.
106
5530
155
122
5610
138
5690
Table 2-3. 802.11ac (80MHz BW) Frequency / Channel Operations
FCC ID: A3LSMN935KOR
Test Report S/N:
Band 2C
5755
Frequency (MHz)
5775
Reviewed by:
Quality Manager
Page 5 of 260
V 4.0
05/16/2016
Notes:
1. 5GHz NII operation is possible in 20MHz, and 40MHz, and 80MHz channel bandwidths. The maximum
achievable duty cycles for all modes were determined based on measurements performed on a spectrum
analyzer in zero-span mode with RBW = 8MHz, VBW = 50MHz, and detector = peak per the guidance of
Section B)2)b) of KDB 789033 D02 v01r02. The RBW and VBW were both greater than 50/T, where T is
the minimum transmission duration, and the number of sweep points across T was greater than 100. The
duty cycles are as follows:
Ma i u
A hieva le Dut C les
Dut C le [%]
Mode/Ba d
GHz
ANT
ANT
MIMO
N/A
HT
HT
HT
2. The device employs MIMO technology. Below are the possible configurations.
WiFi Configurations
SISO
ANT1
ANT2






SDM
ANT1
ANT2






11a
11n (20MHz)
5GHz
11n (40MHz)
11ac




(80MHz)
Table 2-4. Frequency / Channel Operations
= Support ;  = NOT Support
SISO = Single Input Single Output
SDM = Spatial Diversity Multiplexing – MIMO function
CDD = Cyclic Delay Diversity – 2Tx Function
Data Rate(s) Tested:
CDD
ANT1
ANT2








6, 9, 12, 18, 24, 36, 48, 54Mbps (802.11a)
6.5/7.2, 13/14.4, 19.5/21.7, 26/28.9, 39/43.3, 52/57.8, 58.5/65, 65/72.2 (n – 20MHz)
13.5/15, 27/30, 40.5/45, 54/60, 81/90, 108/120, 121.5/135, 135/150 (n – 40MHz BW)
29.3/32.5, 58.5/65, 87.8/97.5, 117/130, 175.5/195, 234/260, 263.3/292.5, 292.5/325, 351/390, 390/433.3 (ac
– 80MHz BW)
13/14.4, 26.28.9, 39/43.3, 52/57.8, 78/86.7, 104/115.6, 117/130, 130/144.4MBps (MIMO n/ac – 20MHz)
156/173Mbps (MIMO ac – 20MHz)
27/30, 54/60, 81/90, 108/120, 162/180, 216/240, 243,270, 270/300Mbps (MIMO n/ac – 40MHz) 324/360,
360/400Mbps (MIMO ac – 40MHz)
58.5/65, 117/130, 175.5/195, 234/260, 351/390, 468/520, 526.5/585, 585/650, 702/780, 780/866.7Mbps
(MIMO ac – 80MHz)
FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
6/1 - 6/28/2016, 7/14/2016 Portable Handset
1M1703230122-05.A3L
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 6 of 260
V 4.0
05/16/2016
3. In addition, this device supports simultaneous transmission operation, which allows for two SISO
channels to operate independent of one another in the 2.4GHz and 5GHz bands simultaneously on each
antenna. The following tables show the worst case simultaneous transmission configurations determined
during testing.
Scenario A - Simultaneous Transmission Config-1: ANT1 transmitting in 2.4GHz mode and ANT2
in 5GHz mode.
Des riptio
A te a
Cha el
Ope ati g F e ue
Data Rate M ps
Mode
. GHz E issio
GHz E issio
MHz
Table 2-5. Simultaneous Transmission Config-1
Scenario B - Simultaneous Transmission Config-2: ANT1 transmitting in 5GHz mode and ANT2 in
2.4GHz mode.
Des riptio
A te a
Cha el
Ope ati g F e ue
Data Rate M ps
Mode
GHz E issio
. GHz E issio
MHz
Table 2-6. Simultaneous Transmission Config-2
FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
6/1 - 6/28/2016, 7/14/2016 Portable Handset
1M1703230122-05.A3L
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 7 of 260
V 4.0
05/16/2016
2.3
Test Configuration
The Samsung Portable Handset FCC ID: A3LSMN935KOR was tested per the guidance of KDB 789033 D02
v01r02. ANSI C63.10-2013 was used to reference the appropriate EUT setup for radiated spurious emissions
testing and AC line conducted testing. See Sections 3.2 for AC line conducted emissions test setups, 3.3 for
radiated emissions test setups, and 7.2, 7.3, 7.4, and 7.5 for antenna port conducted emissions test setups.
This device supports wireless charging capability and, thus, is subject to the test requirements of KDB 648474
D03 v01r04. Additional radiated spurious emission measurements were performed with the EUT lying flat on a
certified wireless charging pad (WCP) while operating under normal conditions in a simulated call or data
transmission configuration. The worst case radiated emissions data is shown in this report.
2.4
EMI Suppression Device(s)/Modifications
No EMI suppression device(s) were added and/or no modifications were made during testing.
FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
6/1 - 6/28/2016, 7/14/2016 Portable Handset
1M1703230122-05.A3L
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 8 of 260
V 4.0
05/16/2016
3.0
3.1
DESCRIPTION OF TESTS
Evaluation Procedure
The measurement procedures described in the American National Standard of Procedures for Compliance
Testing of Unlicensed Wireless Devices (ANSI C63.10-2013) and the guidance provided in KDB 789033 D02
v01r02 were used in the measurement of Samsung Portable Handset FCC ID: A3LSMN935KOR.
Deviation from measurement procedure……………………………………...……………..........................None
3.2
AC Line Conducted Emissions
The line-conducted facility is located inside a 10'x16'x9' shielded enclosure. The shielded enclosure is
manufactured by ETS Lindgren RF Enclosures. The shielding effectiveness of the shielded room is in
accordance with MIL-Std-285 or NSA 65-5. A 1m x 1.5m wooden table 80cm high is placed 40cm away from
the vertical wall and 80cm away from the sidewall of the shielded room. Two 10kHz-30MHz, 50/50H LineImpedance Stabilization Networks (LISNs) are bonded to the shielded room floor. Power to the LISNs is
filtered by external high-current high-insertion loss power line filters. The external power line filter is an ETS
Lindgren Model LPRX-4X30 (100dB Attenuation, 14kHz-18GHz) and the two EMI/RFI filters are ETS Lindgren
Model LRW-2030-S1 (100dB Minimum Insertion Loss, 14kHz – 10GHz). These filters attenuate ambient signal
noise from entering the measurement lines. These filters are also bonded to the shielded enclosure.
The EUT is powered from one LISN and the support equipment is powered from the second LISN. If the EUT
is a DC-powered device, power will be derived from the source power supply it normally will be powered from
and this supply line(s) will be connected to the second LISN. All interconnecting cables more than 1 meter
were shortened to a 1 meter length by non-inductive bundling (serpentine fashion) and draped over the back
edge of the test table. All cables were at least 40cm above the horizontal reference groundplane. Power
cables for support equipment were routed down to the second LISN while ensuring that that cables were not
draped over the second LISN.
Sufficient time for the EUT, support equipment, and test equipment was allowed in order for them to warm up
to their normal operating condition. The RF output of the LISN was connected to the spectrum analyzer and
exploratory measurements were made to determine the frequencies producing the maximum emission from
the EUT. The spectrum was scanned from 150kHz to 30MHz with a spectrum analyzer. The detector function
was set to peak mode for exploratory measurements while the bandwidth of the analyzer was set to 10kHz.
The EUT, support equipment, and interconnecting cables were arranged and manipulated to maximize each
emission. Once the worst case emissions have been identified, the one EUT cable configuration/arrangement
and mode of operation that produced these emissions is used for final measurements on the same test site.
The analyzer is set to CISPR quasi-peak and average detectors with a 9kHz resolution bandwidth for final
measurements.
Line conducted emissions test results are shown in Section 7.9. The EMI Receiver mode of the Agilent MXE
was used to perform AC line conducted emissions testing.
FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
6/1 - 6/28/2016, 7/14/2016 Portable Handset
1M1703230122-05.A3L
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 9 of 260
V 4.0
05/16/2016
3.3
Radiated Emissions
The radiated test facilities consisted of an indoor 3 meter semi-anechoic chamber used for final measurements
and exploratory measurements, when necessary. The measurement area is contained within the semianechoic chamber which is shielded from any ambient interference. The test site inside the chamber is a 6m x
5.2m elliptical, obstruction-free area in accordance with Figure 5.7 of Clause 5 in ANSI C63.4-2014. A raised
turntable is used for radiated measurement. It is a continuously rotatable, remote-controlled, metallic turntable
and 2 meters (6.56 ft.) in diameter. The turn table is flush with the raised floor of the chamber in order to
maintain its function as a ground plane. Absorbers are arranged on the floor between the turn table and the
antenna mast in such a way so as to maximize the reduction of reflections for measurements above 1GHz. A
72.4cm high PVC support structure is placed on top of the turntable. A 3” (~7.6cm) sheet of high density
polystyrene is used as the table top and is placed on top of the PVC supports to bring the total height of the
table to 80cm. For measurements above 1GHz, a high density expanded polystyrene block is placed on top of
the test table to bring the total table height to 1.5m.
For all measurements, the spectrum was scanned through all EUT azimuths and from 1 to 4 meter receive
antenna height using a broadband antenna from 30MHz up to the upper frequency shown in 15.33(b)(1)
depending on the highest frequency generated or used in the device or on which the device operates or tunes.
For frequencies above 1GHz, linearly polarized double ridge horn antennas were used. For frequencies below
30MHz, a calibrated loop antenna was used. When exploratory measurements were necessary, they were
performed at 1 meter test distance inside the semi-anechoic chamber using broadband antennas, broadband
amplifiers, and spectrum analyzers to determine the frequencies and modes producing the maximum
emissions. Sufficient time for the EUT, support equipment, and test equipment was allowed in order for them
to warm up to their normal operating condition. The test set-up was placed on top of the 1 x 1.5 meter table.
The EUT, support equipment, and interconnecting cables were arranged and manipulated to maximize each
emission. Appropriate precaution was taken to ensure that all emissions from the EUT were maximized and
investigated. The system configuration, mode of operation, turntable azimuth, and receive antenna height was
noted for each frequency found.
Final measurements were made in the semi-anechoic chamber using calibrated, linearly polarized broadband
and horn antennas. The test setup was configured to the setup that produced the worst case emissions. The
spectrum analyzer was set to investigate all frequencies required for testing to compare the highest radiated
disturbances with respect to the specified limits. The turntable containing the EUT was rotated through 360
degrees and the height of the receive antenna was varied 1 to 4 meters and stopped at the azimuth and height
producing the maximum emission. Each emission was maximized by changing the orientation of the EUT
through three orthogonal planes and changing the polarity of the receive antenna, whichever produced the
worst-case emissions.
3.4
Environmental Conditions
The temperature is controlled within range of 15oC to 35oC. The relative humidity is controlled within range of
10% to 75%. The atmospheric pressure is monitored within the range 86-106kPa (860-1060mbar).
FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
6/1 - 6/28/2016, 7/14/2016 Portable Handset
1M1703230122-05.A3L
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 10 of 260
V 4.0
05/16/2016
4.0
ANTENNA REQUIREMENTS
Excerpt from §15.203 of the FCC Rules/Regulations:
“An intentional radiator antenna shall be designed to ensure that no antenna other than that furnished by the
responsible party can be used with the device. The use of a permanently attached antenna or of an antenna
that uses a unique coupling to the intentional radiator shall be considered sufficient to comply with the
provisions of this section.”

The antennas of the Portable Handset are permanently attached.

There are no provisions for connection to an external antenna.
Conclusion:
The Samsung Portable Handset FCC ID: A3LSMN935KOR unit complies with the requirement of §15.203.
FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
6/1 - 6/28/2016, 7/14/2016 Portable Handset
1M1703230122-05.A3L
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 11 of 260
V 4.0
05/16/2016
5.0
MEASUREMENT UNCERTAINTY
The measurement uncertainties shown below were calculated in accordance with the requirements of
ANSI C63.4-2014. All measurement uncertainty values are shown with a coverage factor of k = 2 to indicate a
95% level of confidence. The measurement data shown herein meets or exceeds the UCISPR measurement
uncertainty values specified in CISPR 16-4-2 and, thus, can be compared directly to specified limits to
determine compliance.
Contribution
Expanded Uncertainty (±dB)
Conducted Bench Top
Measurements
1.13
Line Conducted Disturbance
3.09
Radiated Disturbance (<1GHz)
4.98
Radiated Disturbance (>1GHz)
5.07
Radiated Disturbance (>18GHz)
5.09
FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
6/1 - 6/28/2016, 7/14/2016 Portable Handset
1M1703230122-05.A3L
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 12 of 260
V 4.0
05/16/2016
6.0
TEST EQUIPMENT CALIBRATION DATA
Test Equipment Calibration is traceable to the National Institute of Standards and Technology (NIST).
Manufacturer
Model
Description
‐
‐
Agile t
Agile t
Agile t
Agile t
A itsu
A itsu
Co ‐Po e
E o
Espe
ETS Li dg e
ETS Li dg e
ETS Li dg e
ETS‐Li dg e
Hu e +Suh e
K&L
K&L
Paste a k
Rhode & S h a z
Rohde & S h a z
Rohde & S h a z
Rohde & S h a z
Rohde & S h a z
Rohde & S h a z
Rohde & S h a z
Sola Ele t o i s
Su ol
RE
WL ‐
ML
MA
AL‐
Radiated E issio s Ca le Set UHF/EHF
Co du ted Ca le Set
GHz
B oad a d A plifie
MXA Sig al A al ze
MXE EMI Re ei e
PXA Sig al A al ze
GHz
Po e Mete
Pulse Po e Se so
kHz ‐ MHz Loop A te a
Ho A te a ‐ GHz
E i o e tal Cha e
‐ GHz DRG Ho Mediu
‐ . GHz Sta da d Gai Ho
. ‐ GHz Sta da d Gai Ho
Li e I peda e Sta ilizatio Net o k
GHz Radiated Ca le
High Pass Filte
High Pass Filte
Li e Co du ted E issio s Ca le NM
P e‐A plifie
‐ GHz P e‐A plifie
‐ . GHz P e‐A plifie
EMI Test Re ei e
. GHz
. ‐ GHz P e‐A plifie
EMI Test Re ei e
GHz
Sig al / Spe t u A al ze
Li e I peda e Sta ilizatio Net o k
Bi‐Log A te a
M ‐ GHz
ESX‐ CA
‐
‐
/ NM
Su ofle
SH ‐
/T
SH ‐
/U
NMLC‐
TS‐PR
TS‐PR
TS‐PR
ESU
TS‐PR
ESU
FSW
‐ ‐R‐ ‐BNC
JB
Cal Date
/ /
/ /
/ /
/ /
/ /
/ /
/ /
/ /
/ /
/ /
/ /
/ /
/ /
/ /
/ /
/ /
/ /
/ /
/ /
/ /
/ /
/ /
/ /
/ /
/ /
/ /
/ /
/ /
Cal Interval
Bie
Bie
Bie
Bie
Bie
Bie
Bie
Bie
Bie
Bie
ual
ual
ual
ual
ual
ual
ial
ial
ial
ial
ual
ial
ial
ial
ial
ual
ual
ual
ual
ual
ual
ual
ual
ual
ual
ual
ial
ial
Cal Due
/ /
/ /
/ /
/ /
/ /
/ /
/ /
/ /
/ /
/ /
/ /
/ /
/ /
/ /
/ /
/ /
/ /
/ /
/ /
/ /
/ /
/ /
/ /
/ /
/ /
/ /
/ /
/ /
Table 6-1. Annual Test Equipment Calibration Schedule
Serial Number
RE
WL ‐
US
MY
MY
‐
SH ‐
/T
SH ‐
/U
NMLC‐
‐
‐
Note:
For equipment listed above that has a calibration date or calibration due date that falls within the test date
range, care was taken to ensure that this equipment was used after the calibration date and before the
calibration due date.
FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
6/1 - 6/28/2016, 7/14/2016 Portable Handset
1M1703230122-05.A3L
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 13 of 260
V 4.0
05/16/2016
7.0
TEST RESULTS
7.1
Summary
Company Name:
FCC ID:
Method/System:
FCC Part
Section(s)
Samsung Electronics Co., Ltd.
A3LSMN935KOR
Unlicensed National Information Infrastructure (UNII)
Test Description
Test Limit
Test
Condition
Test
Result
Reference
TRANSMITTER MODE (TX)
N/A
26dB Bandwidth
N/A
PASS
Section 7.2
15.407(e)
6dB Bandwidth
>500kHz(5725-5850MHz)
PASS
Section 7.3
15.407 (a.1)
< 250mW (23.98dBm) (5150-5250MHz)
Maximum Conducted Output < 250mW (23.98dBm) (5250-5350MHz)
< 250mW (23.98dBm) (5470-5725MHz)
Power
CONDUCTED
< 1W (30dBm) (5725-5850MHz)
PASS
Section 7.4
15.407 (a.1), (5)
Maximum Power Spectral
Density
< 11 dBm/MHz (5150-5250MHz, 52505350MHz, 5470-5725MHz)
< 30 dBm/500kHz (5725-5850MHz)
PASS
Section 7.5
15.407(g)
Frequency Stability
N/A
PASS
Section 7.6
15.407(h)
Dynamic Frequency
Selection
See DFS Test Report
PASS
See DFS
Test Report
Undesirable Emissions
< -27 dBm/MHz EIRP
(outside 5150-5350MHz, 54705725MHz, 5715-5860MHz)
< -17 dBm/MHz EIRP (within 57155725MHz and 5850-5860MHz)
PASS
Section 7.7
PASS
Section 7.7,
7.8
PASS
Section 7.9
15.407(b.1), (2),(3)
General Field Strength
Limits (Restricted Bands
15.205,
15.407(b.1), (5), (6) and Radiated Emission
Limits)
15.407
AC Conducted Emissions
150kHz – 30MHz
RADIATED
Emissions in restricted bands must
meet the radiated limits detailed in
15.209
< FCC 15.207 limits
LINE
CONDUCTED
Table 7-1. Summary of Test Results
Notes:
1) All channels, modes, and modulations/data rates were investigated among all UNII bands. The test results
shown in the following sections represent the worst case emissions.
2) The analyzer plots shown in this section were all taken with a correction table loaded into the analyzer.
The correction table was used to account for the losses of the cables and attenuators used as part of the
system to connect the EUT to the analyzer at all frequencies of interest.
3) All antenna port conducted emissions testing was performed on a test bench with the antenna port of the
EUT connected to the spectrum analyzer through calibrated cables and attenuators.
4) For conducted spurious emissions, automated test software was used to measure emissions and capture
the corresponding plots necessary to show compliance. The measurement software utilized is PCTEST
“UNII Automation,” Version 4.2.
5) For radiated band edge, automated test software was used to measure emissions and capture the
corresponding plots necessary to show compliance. The measurement software utilized is PCTEST
“Chamber Automation,” Version 1.1.2.
FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
6/1 - 6/28/2016, 7/14/2016 Portable Handset
1M1703230122-05.A3L
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 14 of 260
V 4.0
05/16/2016
7.2
26dB Bandwidth Measurement – 802.11a/n/ac
Test Overview and Limit
The bandwidth at 26dB down from the highest in-band spectral density is measured with a spectrum analyzer
connected to the antenna terminal while the EUT is operating at its maximum duty cycle, at its maximum
power control level, as defined in KDB 789033 D02 v01r02, and at the appropriate frequencies. The spectrum
analyzer’s bandwidth measurement function is configured to measure the 26dB bandwidth.
The 26dB bandwidth is used to determine the conducted power limits.
Test Procedure Used
KDB 789033 D02 v01r02 – Section C
Test Settings
1. The signal analyzers’ automatic bandwidth measurement capability was used to perform the 26dB
bandwidth measurement. The “X” dB bandwidth parameter was set to X = 26. The automatic
bandwidth measurement function also has the capability of simultaneously measuring the 99%
occupied bandwidth. The bandwidth measurement was not influenced by any intermediate power nulls
in the fundamental emission.
2. RBW = approximately 1% of the emission bandwidth
3. VBW > 3 x RBW
4. Detector = Peak
5. Trace mode = max hold
Test Setup
The EUT and measurement equipment were set up as shown in the diagram below.
Figure 7-1. Test Instrument & Measurement Setup
Test Notes
None.
FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
6/1 - 6/28/2016, 7/14/2016 Portable Handset
1M1703230122-05.A3L
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 15 of 260
V 4.0
05/16/2016
Antenna-1 26 dB Bandwidth Measurements
5180
36
Measured 26dB
Bandwidth
[MHz]
21.43
5200
40
21.33
5240
48
20.84
5180
36
n (20MHz)
6.5/7.2 (MCS0)
21.19
5200
40
n (20MHz)
6.5/7.2 (MCS0)
21.32
5240
48
n (20MHz)
6.5/7.2 (MCS0)
21.40
5190
38
n (40MHz)
13.5/15 (MCS0)
39.50
5230
46
n (40MHz)
13.5/15 (MCS0)
39.30
5210
42
ac (80MHz)
29.3/32.5 (MCS0)
81.32
5260
52
21.38
5280
56
21.91
5320
64
21.21
5260
52
n (20MHz)
6.5/7.2 (MCS0)
21.99
5280
56
n (20MHz)
6.5/7.2 (MCS0)
22.47
5320
64
n (20MHz)
6.5/7.2 (MCS0)
22.15
5270
54
n (40MHz)
13.5/15 (MCS0)
39.62
5310
62
n (40MHz)
13.5/15 (MCS0)
39.30
5290
58
ac (80MHz)
29.3/32.5 (MCS0)
81.19
5500
100
20.71
5600
120
21.21
5720
144
20.99
5500
100
n (20MHz)
6.5/7.2 (MCS0)
21.21
5600
120
n (20MHz)
6.5/7.2 (MCS0)
22.35
5720
144
n (20MHz)
6.5/7.2 (MCS0)
23.48
5510
102
n (40MHz)
13.5/15 (MCS0)
39.81
5590
118
n (40MHz)
13.5/15 (MCS0)
40.51
5710
142
n (40MHz)
13.5/15 (MCS0)
39.97
5530
106
ac (80MHz)
29.3/32.5 (MCS0)
80.48
5610
122
ac (80MHz)
29.3/32.5 (MCS0)
81.25
5690
138
ac (80MHz)
29.3/32.5 (MCS0)
80.78
Band 2C
Band 2A
Band 1
Frequency Channel
802.11 Mode Data Rate [Mbps]
[MHz]
No.
Table 7-2. Conducted Bandwidth Measurements
FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
6/1 - 6/28/2016, 7/14/2016 Portable Handset
1M1703230122-05.A3L
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 16 of 260
V 4.0
05/16/2016
Plot 7-1. 26dB Bandwidth Plot (802.11a (UNII Band 1) – Ch. 36)
Plot 7-2. 26dB Bandwidth Plot (802.11a (UNII Band 1) – Ch. 40)
FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
6/1 - 6/28/2016, 7/14/2016 Portable Handset
1M1703230122-05.A3L
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 17 of 260
V 4.0
05/16/2016
Plot 7-3. 26dB Bandwidth Plot (802.11a (UNII Band 1) – Ch. 48)
Plot 7-4. 26dB Bandwidth Plot (20MHz BW 802.11n (UNII Band 1) – Ch. 36)
FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
6/1 - 6/28/2016, 7/14/2016 Portable Handset
1M1703230122-05.A3L
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 18 of 260
V 4.0
05/16/2016
Plot 7-5. 26dB Bandwidth Plot (20MHz BW 802.11n (UNII Band 1) – Ch. 40)
Plot 7-6. 26dB Bandwidth Plot (20MHz BW 802.11n (UNII Band 1) – Ch. 48)
FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
6/1 - 6/28/2016, 7/14/2016 Portable Handset
1M1703230122-05.A3L
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 19 of 260
V 4.0
05/16/2016
Plot 7-7. 26dB Bandwidth Plot (40MHz BW 802.11n (UNII Band 1) – Ch. 38)
Plot 7-8. 26dB Bandwidth Plot (40MHz BW 802.11n (UNII Band 1) – Ch. 46)
FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
6/1 - 6/28/2016, 7/14/2016 Portable Handset
1M1703230122-05.A3L
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 20 of 260
V 4.0
05/16/2016
Plot 7-9. 26dB Bandwidth Plot (80MHz BW 802.11ac (UNII Band 1) – Ch. 42)
Plot 7-10. 26dB Bandwidth Plot (802.11a (UNII Band 2A) – Ch. 52)
FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
6/1 - 6/28/2016, 7/14/2016 Portable Handset
1M1703230122-05.A3L
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 21 of 260
V 4.0
05/16/2016
Plot 7-11. 26dB Bandwidth Plot (802.11a (UNII Band 2A) – Ch. 56)
Plot 7-12. 26dB Bandwidth Plot (802.11a (UNII Band 2A) – Ch. 64)
FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
6/1 - 6/28/2016, 7/14/2016 Portable Handset
1M1703230122-05.A3L
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 22 of 260
V 4.0
05/16/2016
Plot 7-13. 26dB Bandwidth Plot (20MHz BW 802.11n (UNII Band 2A) – Ch. 52)
Plot 7-14. 26dB Bandwidth Plot (20MHz BW 802.11n (UNII Band 2A) – Ch. 56)
FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
6/1 - 6/28/2016, 7/14/2016 Portable Handset
1M1703230122-05.A3L
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 23 of 260
V 4.0
05/16/2016
Plot 7-15. 26dB Bandwidth Plot (20MHz BW 802.11n (UNII Band 2A) – Ch. 64)
Plot 7-16. 26dB Bandwidth Plot (40MHz BW 802.11n (UNII Band 2A) – Ch. 54)
FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
6/1 - 6/28/2016, 7/14/2016 Portable Handset
1M1703230122-05.A3L
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 24 of 260
V 4.0
05/16/2016
Plot 7-17. 26dB Bandwidth Plot (40MHz BW 802.11n (UNII Band 2A) – Ch. 62)
Plot 7-18. 26dB Bandwidth Plot (80MHz BW 802.11ac (UNII Band 2A) – Ch. 58)
FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
6/1 - 6/28/2016, 7/14/2016 Portable Handset
1M1703230122-05.A3L
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 25 of 260
V 4.0
05/16/2016
Plot 7-19. 26dB Bandwidth Plot (802.11a (UNII Band 2C) – Ch. 100)
Plot 7-20. 26dB Bandwidth Plot (802.11a (UNII Band 2C) – Ch. 120)
FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
6/1 - 6/28/2016, 7/14/2016 Portable Handset
1M1703230122-05.A3L
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 26 of 260
V 4.0
05/16/2016
Plot 7-21. 26dB Bandwidth Plot (802.11a (UNII Band 2C) – Ch. 144)
Plot 7-22. 26dB Bandwidth Plot (20MHz BW 802.11n (UNII Band 2C) – Ch. 100)
FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
6/1 - 6/28/2016, 7/14/2016 Portable Handset
1M1703230122-05.A3L
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 27 of 260
V 4.0
05/16/2016
Plot 7-23. 26dB Bandwidth Plot (20MHz BW 802.11n (UNII Band 2C) – Ch. 120)
Plot 7-24. 26dB Bandwidth Plot (20MHz BW 802.11n (UNII Band 2C) – Ch. 144)
FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
6/1 - 6/28/2016, 7/14/2016 Portable Handset
1M1703230122-05.A3L
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 28 of 260
V 4.0
05/16/2016
Plot 7-25. 26dB Bandwidth Plot (40MHz BW 802.11n (UNII Band 2C) – Ch. 102)
Plot 7-26. 26dB Bandwidth Plot (40MHz BW 802.11n (UNII Band 2C) – Ch. 118)
FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
6/1 - 6/28/2016, 7/14/2016 Portable Handset
1M1703230122-05.A3L
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 29 of 260
V 4.0
05/16/2016
Plot 7-27. 26dB Bandwidth Plot (40MHz BW 802.11n (UNII Band 2C) – Ch. 142)
Plot 7-28. 26dB Bandwidth Plot (80MHz BW 802.11ac (UNII Band 2C) – Ch. 106)
FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
6/1 - 6/28/2016, 7/14/2016 Portable Handset
1M1703230122-05.A3L
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 30 of 260
V 4.0
05/16/2016
Plot 7-29. 26dB Bandwidth Plot (80MHz BW 802.11ac (UNII Band 2C) – Ch. 122)
Plot 7-30. 26dB Bandwidth Plot (80MHz BW 802.11ac (UNII Band 2C) – Ch. 138)
FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
6/1 - 6/28/2016, 7/14/2016 Portable Handset
1M1703230122-05.A3L
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 31 of 260
V 4.0
05/16/2016
Antenna-2 26dB Bandwidth Measurements
5180
36
Measured 26dB
Bandwidth
[MHz]
21.09
5200
40
21.04
5240
48
20.71
5180
36
n (20MHz)
6.5/7.2 (MCS0)
21.35
5200
40
n (20MHz)
6.5/7.2 (MCS0)
20.33
Band 2C
Band 2A
Band 1
Frequency Channel
802.11 Mode Data Rate [Mbps]
[MHz]
No.
5240
48
n (20MHz)
6.5/7.2 (MCS0)
21.39
5190
38
n (40MHz)
13.5/15 (MCS0)
39.38
5230
46
n (40MHz)
13.5/15 (MCS0)
39.31
5210
42
ac (80MHz)
29.3/32.5 (MCS0)
80.86
5260
52
22.88
5280
56
24.18
5320
64
23.05
5260
52
n (20MHz)
6.5/7.2 (MCS0)
21.58
5280
56
n (20MHz)
6.5/7.2 (MCS0)
21.53
5320
64
n (20MHz)
6.5/7.2 (MCS0)
23.10
5270
54
n (40MHz)
13.5/15 (MCS0)
39.82
5310
62
n (40MHz)
13.5/15 (MCS0)
39.78
5290
58
ac (80MHz)
29.3/32.5 (MCS0)
80.51
5500
100
21.47
5600
120
23.01
5720
144
23.09
5500
100
n (20MHz)
6.5/7.2 (MCS0)
21.63
5600
120
n (20MHz)
6.5/7.2 (MCS0)
21.18
5720
144
n (20MHz)
6.5/7.2 (MCS0)
22.73
5510
102
n (40MHz)
13.5/15 (MCS0)
39.89
5590
118
n (40MHz)
13.5/15 (MCS0)
40.07
5710
142
n (40MHz)
13.5/15 (MCS0)
39.65
5530
106
ac (80MHz)
29.3/32.5 (MCS0)
81.09
5610
122
ac (80MHz)
29.3/32.5 (MCS0)
81.27
5690
FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
138
ac (80MHz) 29.3/32.5 (MCS0)
Table 7-3. Conducted Bandwidth Measurements
Test Dates:
EUT Type:
6/1 - 6/28/2016, 7/14/2016 Portable Handset
1M1703230122-05.A3L
© 2017 PCTEST Engineering Laboratory, Inc.
80.52
Reviewed by:
Quality Manager
Page 32 of 260
V 4.0
05/16/2016
Plot 7-29. 26dB Bandwidth Plot (802.11a (UNII Band 1) – Ch. 36)
Plot 7-30. 26dB Bandwidth Plot (802.11a (UNII Band 1) – Ch. 40)
FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
6/1 - 6/28/2016, 7/14/2016 Portable Handset
1M1703230122-05.A3L
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 33 of 260
V 4.0
05/16/2016
Plot 7-31. 26dB Bandwidth Plot (802.11a (UNII Band 1) – Ch. 48)
Plot 7-32. 26dB Bandwidth Plot (20MHz BW 802.11n (UNII Band 1) – Ch. 36)
FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
6/1 - 6/28/2016, 7/14/2016 Portable Handset
1M1703230122-05.A3L
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 34 of 260
V 4.0
05/16/2016
Plot 7-33. 26dB Bandwidth Plot (20MHz BW 802.11n (UNII Band 1) – Ch. 40)
Plot 7-34. 26dB Bandwidth Plot (20MHz BW 802.11n (UNII Band 1) – Ch. 48)
FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
6/1 - 6/28/2016, 7/14/2016 Portable Handset
1M1703230122-05.A3L
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 35 of 260
V 4.0
05/16/2016
Plot 7-35. 26dB Bandwidth Plot (40MHz BW 802.11n (UNII Band 1) – Ch. 38)
Plot 7-36. 26dB Bandwidth Plot (40MHz BW 802.11n (UNII Band 1) – Ch. 46)
FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
6/1 - 6/28/2016, 7/14/2016 Portable Handset
1M1703230122-05.A3L
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 36 of 260
V 4.0
05/16/2016
Plot 7-37. 26dB Bandwidth Plot (80MHz BW 802.11ac (UNII Band 1) – Ch. 42)
Plot 7-38. 26dB Bandwidth Plot (802.11a (UNII Band 2A) – Ch. 52)
FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
6/1 - 6/28/2016, 7/14/2016 Portable Handset
1M1703230122-05.A3L
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 37 of 260
V 4.0
05/16/2016
Plot 7-39. 26dB Bandwidth Plot (802.11a (UNII Band 2A) – Ch. 56)
Plot 7-40. 26dB Bandwidth Plot (802.11a (UNII Band 2A) – Ch. 64)
FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
6/1 - 6/28/2016, 7/14/2016 Portable Handset
1M1703230122-05.A3L
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 38 of 260
V 4.0
05/16/2016
Plot 7-41. 26dB Bandwidth Plot (20MHz BW 802.11n (UNII Band 2A) – Ch. 52)
Plot 7-42. 26dB Bandwidth Plot (20MHz BW 802.11n (UNII Band 2A) – Ch. 56)
FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
6/1 - 6/28/2016, 7/14/2016 Portable Handset
1M1703230122-05.A3L
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 39 of 260
V 4.0
05/16/2016
Plot 7-43. 26dB Bandwidth Plot (20MHz BW 802.11n (UNII Band 2A) – Ch. 64)
Plot 7-44. 26dB Bandwidth Plot (40MHz BW 802.11n (UNII Band 2A) – Ch. 54)
FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
6/1 - 6/28/2016, 7/14/2016 Portable Handset
1M1703230122-05.A3L
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 40 of 260
V 4.0
05/16/2016
Plot 7-45. 26dB Bandwidth Plot (40MHz BW 802.11n (UNII Band 2A) – Ch. 62)
Plot 7-46. 26dB Bandwidth Plot (80MHz BW 802.11ac (UNII Band 2A) – Ch. 58)
FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
6/1 - 6/28/2016, 7/14/2016 Portable Handset
1M1703230122-05.A3L
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 41 of 260
V 4.0
05/16/2016
Plot 7-47. 26dB Bandwidth Plot (802.11a (UNII Band 2C) – Ch. 100)
Plot 7-48. 26dB Bandwidth Plot (802.11a (UNII Band 2C) – Ch. 120)
FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
6/1 - 6/28/2016, 7/14/2016 Portable Handset
1M1703230122-05.A3L
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 42 of 260
V 4.0
05/16/2016
Plot 7-49. 26dB Bandwidth Plot (802.11a (UNII Band 2C) – Ch. 144)
Plot 7-50. 26dB Bandwidth Plot (20MHz BW 802.11n (UNII Band 2C) – Ch. 100)
FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
6/1 - 6/28/2016, 7/14/2016 Portable Handset
1M1703230122-05.A3L
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 43 of 260
V 4.0
05/16/2016
Plot 7-51. 26dB Bandwidth Plot (20MHz BW 802.11n (UNII Band 2C) – Ch. 120)
Plot 7-52. 26dB Bandwidth Plot (20MHz BW 802.11n (UNII Band 2C) – Ch. 144)
FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
6/1 - 6/28/2016, 7/14/2016 Portable Handset
1M1703230122-05.A3L
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 44 of 260
V 4.0
05/16/2016
Plot 7-53. 26dB Bandwidth Plot (40MHz BW 802.11n (UNII Band 2C) – Ch. 102)
Plot 7-54. 26dB Bandwidth Plot (40MHz BW 802.11n (UNII Band 2C) – Ch. 118)
FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
6/1 - 6/28/2016, 7/14/2016 Portable Handset
1M1703230122-05.A3L
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 45 of 260
V 4.0
05/16/2016
Plot 7-55. 26dB Bandwidth Plot (40MHz BW 802.11n (UNII Band 2C) – Ch. 142)
Plot 7-56. 26dB Bandwidth Plot (80MHz BW 802.11ac (UNII Band 2C) – Ch. 106)
FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
6/1 - 6/28/2016, 7/14/2016 Portable Handset
1M1703230122-05.A3L
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 46 of 260
V 4.0
05/16/2016
Plot 7-29. 26dB Bandwidth Plot (80MHz BW 802.11ac (UNII Band 2C) – Ch. 122)
Plot 7-30. 26dB Bandwidth Plot (80MHz BW 802.11ac (UNII Band 2C) – Ch. 138)
FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
6/1 - 6/28/2016, 7/14/2016 Portable Handset
1M1703230122-05.A3L
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 47 of 260
V 4.0
05/16/2016
7.3
6dB Bandwidth Measurement – 802.11a/n/ac
§15.407 (e)
Test Overview and Limit
The bandwidth at 6dB down from the highest in-band spectral density is measured with a spectrum analyzer
connected to the antenna terminal while the EUT is operating at its maximum duty cycle, at its maximum
power control level, as defined in KDB 789033 D02 v01r02, and at the appropriate frequencies. The spectrum
analyzer’s bandwidth measurement function is configured to measure the 6dB bandwidth.
In the 5.725 – 5.850GHz band, the 6dB bandwidth must be ≥ 500 kHz.
Test Procedure Used
KDB 789033 D02 v01r02 – Section C
Test Settings
1. The signal analyzers’ automatic bandwidth measurement capability was used to perform the 6dB
bandwidth measurement. The “X” dB bandwidth parameter was set to X = 6. The automatic bandwidth
measurement function also has the capability of simultaneously measuring the 99% occupied
bandwidth. The bandwidth measurement was not influenced by any intermediate power nulls in the
fundamental emission.
2. RBW = 100 kHz
3. VBW > 3 x RBW
4. Detector = Peak
5. Trace mode = max hold
6. Sweep = auto couple
Test Setup
The EUT and measurement equipment were set up as shown in the diagram below.
Figure 7-2. Test Instrument & Measurement Setup
Test Notes
None.
FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
6/1 - 6/28/2016, 7/14/2016 Portable Handset
1M1703230122-05.A3L
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 48 of 260
V 4.0
05/16/2016
Antenna-1 6 dB Bandwidth Measurements
5745
149
Measured 6dB
Bandwidth
[MHz]
16.31
5785
157
16.32
5825
165
16.32
5745
149
n (20MHz)
6.5/7.2 (MCS0)
17.53
5785
157
n (20MHz)
6.5/7.2 (MCS0)
17.54
5825
165
n (20MHz)
6.5/7.2 (MCS0)
17.28
5755
151
n (40MHz)
13.5/15 (MCS0)
35.71
5795
159
n (40MHz)
13.5/15 (MCS0)
35.74
5775
155
ac (80MHz)
29.3/32.5 (MCS0)
75.49
Band 3
Frequency Channel
802.11 Mode Data Rate [Mbps]
No.
[MHz]
Table 7-4. Conducted Bandwidth Measurements
Plot 7-57. 6dB Bandwidth Plot (802.11a (UNII Band 3) – Ch. 149)
FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
6/1 - 6/28/2016, 7/14/2016 Portable Handset
1M1703230122-05.A3L
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 49 of 260
V 4.0
05/16/2016
Plot 7-58. 6dB Bandwidth Plot (802.11a (UNII Band 3) – Ch. 157)
Plot 7-59. 6dB Bandwidth Plot (802.11a (UNII Band 3) – Ch. 165)
FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
6/1 - 6/28/2016, 7/14/2016 Portable Handset
1M1703230122-05.A3L
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 50 of 260
V 4.0
05/16/2016
Plot 7-60. 6dB Bandwidth Plot (20MHz BW 802.11n (UNII Band 3) – Ch. 149)
Plot 7-61. 6dB Bandwidth Plot (20MHz BW 802.11n (UNII Band 3) – Ch. 157)
FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
6/1 - 6/28/2016, 7/14/2016 Portable Handset
1M1703230122-05.A3L
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 51 of 260
V 4.0
05/16/2016
Plot 7-62. 6dB Bandwidth Plot (20MHz BW 802.11n (UNII Band 3) – Ch. 165)
Plot 7-63. 6dB Bandwidth Plot (40MHz BW 802.11n (UNII Band 3) – Ch. 151)
FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
6/1 - 6/28/2016, 7/14/2016 Portable Handset
1M1703230122-05.A3L
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 52 of 260
V 4.0
05/16/2016
Plot 7-64. 6dB Bandwidth Plot (40MHz BW 802.11n (UNII Band 3) – Ch. 159)
Plot 7-65. 6dB Bandwidth Plot (80MHz BW 802.11ac (UNII Band 3) – Ch. 155)
FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
6/1 - 6/28/2016, 7/14/2016 Portable Handset
1M1703230122-05.A3L
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 53 of 260
V 4.0
05/16/2016
Antenna-2 6dB Bandwidth Measurements
5745
149
Measured 6dB
Bandwidth
[MHz]
16.29
5785
157
16.06
5825
165
16.05
5745
149
n (20MHz)
6.5/7.2 (MCS0)
17.14
5785
157
n (20MHz)
6.5/7.2 (MCS0)
16.63
5825
165
n (20MHz)
6.5/7.2 (MCS0)
17.06
5755
151
n (40MHz)
13.5/15 (MCS0)
35.51
5795
159
n (40MHz)
13.5/15 (MCS0)
35.54
5775
155
ac (80MHz)
29.3/32.5 (MCS0)
75.31
Band 3
Frequency Channel
802.11 Mode Data Rate [Mbps]
[MHz]
No.
Table 7-5. Conducted Bandwidth Measurements
Plot 7-66. 6dB Bandwidth Plot (802.11a (UNII Band 3) – Ch. 149)
FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
6/1 - 6/28/2016, 7/14/2016 Portable Handset
1M1703230122-05.A3L
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 54 of 260
V 4.0
05/16/2016
Plot 7-67. 6dB Bandwidth Plot (802.11a (UNII Band 3) – Ch. 157)
Plot 7-68. 6dB Bandwidth Plot (802.11a (UNII Band 3) – Ch. 165)
FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
6/1 - 6/28/2016, 7/14/2016 Portable Handset
1M1703230122-05.A3L
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 55 of 260
V 4.0
05/16/2016
Plot 7-69. 6dB Bandwidth Plot (20MHz BW 802.11n (UNII Band 3) – Ch. 149)
Plot 7-70. 6dB Bandwidth Plot (20MHz BW 802.11n (UNII Band 3) – Ch. 157)
FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
6/1 - 6/28/2016, 7/14/2016 Portable Handset
1M1703230122-05.A3L
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 56 of 260
V 4.0
05/16/2016
Plot 7-71. 6dB Bandwidth Plot (20MHz BW 802.11n (UNII Band 3) – Ch. 165)
Plot 7-72. 6dB Bandwidth Plot (40MHz BW 802.11n (UNII Band 3) – Ch. 151)
FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
6/1 - 6/28/2016, 7/14/2016 Portable Handset
1M1703230122-05.A3L
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 57 of 260
V 4.0
05/16/2016
Plot 7-73. 6dB Bandwidth Plot (40MHz BW 802.11n (UNII Band 3) – Ch. 159)
Plot 7-74. 6dB Bandwidth Plot (80MHz BW 802.11ac (UNII Band 3) – Ch. 155)
FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
6/1 - 6/28/2016, 7/14/2016 Portable Handset
1M1703230122-05.A3L
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 58 of 260
V 4.0
05/16/2016
7.4
UNII Output Power Measurement – 802.11a/n/ac
§15.407 (a.1)
Test Overview and Limits
A transmitter antenna terminal of the EUT is connected to the input of an RF pulse power sensor.
Measurement is made using a broadband average power meter while the EUT is operating at its maximum
duty cycle, at its maximum power control level, as defined in KDB 789033 D02 v01r02, and at the appropriate
frequencies.
In the 5.15 – 5.25GHz band, the maximum permissible conducted output power is 250mW (23.98dBm).
In the 5.25 – 5.35GHz band, the maximum permissible conducted output power is the lesser of 250mW
(23.98dBm) and 11 dBm + 10log10(26dB BW) = 11 dBm + 10log10(21.21) = 24.27dBm.
In the 5.47 – 5.725GHz band, the maximum permissible conducted output power is the lesser of
250mW (23.98dBm) and 11 dBm + 10log10(26dB BW) = 11 dBm + 10log10(20.71) = 24.16dBm.
In the 5.725 – 5.850GHz band, the maximum permissible conducted output power is 1W (30dBm).
Test Procedure Used
KDB 789033 D02 v01r02 – Section E)3)b) Method PM-G
KDB 662911 v02r01 – Section E)1) Measure-and-Sum Technique
Test Settings
Average power measurements were performed only when the EUT was transmitting at its maximum
power control level using a broadband power meter with a pulse sensor. The power meter
implemented triggering and gating capabilities which were set up such that power measurements
were recorded only during the ON time of the transmitter. The trace was averaged over 100 traces to
obtain the final measured average power.
Test Setup
The EUT and measurement equipment were set up as shown in the diagram below.
Figure 7-3. Test Instrument & Measurement Setup
Test Notes
None
FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
6/1 - 6/28/2016, 7/14/2016 Portable Handset
1M1703230122-05.A3L
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 59 of 260
V 4.0
05/16/2016
Antenna-1 Conducted Output Power Measurements
5GHz (20MHz) Conducted Power [dBm]
Freq [MHz]
Channel
Detector
IEEE Transmission Mode
802.11a
802.11n
802.11ac
5180
36
AVG
15.44
14.45
14.50
5200
40
AVG
15.32
14.51
15.48
5220
44
AVG
15.26
15.48
15.46
5240
48
AVG
15.07
15.46
15.48
5260
52
AVG
16.83
17.33
17.40
5280
56
AVG
17.19
17.36
17.29
5300
60
AVG
17.22
17.39
17.33
5320
64
AVG
16.53
17.48
17.45
5500
100
AVG
16.43
17.25
17.23
5520
104
AVG
16.44
17.21
17.24
5540
108
AVG
17.27
17.08
17.11
5560
112
AVG
17.31
17.10
17.13
5580
116
AVG
17.20
17.00
17.09
5600
120
AVG
17.00
16.95
17.01
5620
124
AVG
17.03
16.88
16.96
5640
128
AVG
17.02
16.96
16.77
5660
132
AVG
16.78
16.71
16.82
5680
136
AVG
16.87
16.78
16.72
5700
140
AVG
16.79
16.73
16.76
5720
144
AVG
16.75
16.57
16.78
5745
149
AVG
17.17
17.13
17.07
5765
153
AVG
17.11
16.94
16.90
5785
157
AVG
17.16
17.00
16.89
5805
161
AVG
17.07
16.86
16.86
5825
165
AVG
16.89
16.79
16.69
Table 7-6. 20MHz BW (UNII) Maximum Conducted Output Power
FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
6/1 - 6/28/2016, 7/14/2016 Portable Handset
1M1703230122-05.A3L
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 60 of 260
V 4.0
05/16/2016
Freq [MHz]
Channel
Detector
5GHz (40MHz) Conducted
Power [dBm]
IEEE Transmission Mode
802.11n
802.11ac
5190
38
AVG
13.52
14.47
5230
46
AVG
13.51
14.48
5270
54
AVG
13.69
13.84
5310
62
AVG
13.68
13.68
5510
102
AVG
13.44
13.40
5550
110
AVG
14.45
14.49
5590
118
AVG
14.46
14.47
5630
126
AVG
14.27
14.14
5670
134
AVG
14.09
14.06
5710
142
AVG
13.90
13.98
5755
151
AVG
13.64
13.72
5795
159
AVG
13.55
13.51
Table 7-7. 40MHz BW (UNII) Maximum Conducted Output Power
5GHz (80MHz) Conducted Power [dBm]
Freq [MHz]
Channel
Detector
IE E E
T ra ns m is s io n
M o de
5210
42
AVG
802.11ac
12.94
5290
58
AVG
13.24
5530
106
AVG
13.42
5610
122
AVG
13.07
5690
138
AVG
12.75
5775
155
AVG
12.45
Table 7-8. 80MHz BW (UNII) Maximum Conducted Output Power
FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
6/1 - 6/28/2016, 7/14/2016 Portable Handset
1M1703230122-05.A3L
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 61 of 260
V 4.0
05/16/2016
Antenna-2 Conducted Output Power Measurements
5GHz (20MHz) Conducted Power [dBm]
Freq [MHz]
Channel
Detector
IEEE Transmission Mode
802.11a
802.11n
802.11ac
5180
36
AVG
14.63
15.19
15.08
5200
40
AVG
14.53
15.04
15.11
5220
44
AVG
14.43
15.02
15.06
5240
48
AVG
14.60
14.89
15.00
5260
52
AVG
17.44
16.71
16.69
5280
56
AVG
17.40
16.57
16.63
5300
60
AVG
17.32
16.57
16.41
5320
64
AVG
17.17
16.52
16.53
5500
100
AVG
16.77
16.78
17.01
5520
104
AVG
16.63
16.83
16.87
5540
108
AVG
16.76
16.72
16.80
5560
112
AVG
16.56
16.71
16.56
5580
116
AVG
16.57
16.60
16.60
5600
120
AVG
16.49
16.54
16.50
5620
124
AVG
16.51
16.53
16.43
5640
128
AVG
16.38
16.44
16.35
5660
132
AVG
16.54
16.41
16.41
5680
136
AVG
16.53
16.47
16.39
5700
140
AVG
16.33
16.30
16.25
5720
144
AVG
16.48
16.26
16.39
5745
149
AVG
16.93
16.96
17.04
5765
153
AVG
16.90
16.89
16.86
5785
157
AVG
16.77
16.84
16.93
5805
161
AVG
16.83
16.78
16.87
5825
165
AVG
16.73
16.84
16.74
Table 7-9. 20MHz BW (UNII) Maximum Conducted Output Power
FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
6/1 - 6/28/2016, 7/14/2016 Portable Handset
1M1703230122-05.A3L
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 62 of 260
V 4.0
05/16/2016
Channel
Freq [MHz]
Detector
5GHz (40MHz) Conducted
Power [dBm]
IEEE Transmission Mode
802.11n
802.11ac
5190
38
AVG
14.04
14.16
5230
46
AVG
13.97
13.98
5270
54
AVG
13.83
13.80
5310
62
AVG
13.70
13.63
5510
102
AVG
14.44
14.43
5550
110
AVG
14.33
14.20
5590
118
AVG
14.01
14.03
5630
126
AVG
13.93
13.89
5670
134
AVG
13.97
14.00
5710
142
AVG
13.81
13.82
5755
151
AVG
14.18
14.00
5795
159
AVG
14.11
14.06
Table 7-10. 40MHz BW (UNII) Maximum Conducted Output Power
5GHz (80MHz) Conducted Power [dBm]
Freq [MHz]
Channel
Detector
IE E E
T ra ns m is s io n
M o de
802.11ac
5210
42
AVG
12.97
5290
58
AVG
13.47
5530
106
AVG
12.85
5610
122
AVG
12.42
5690
138
AVG
13.42
5775
155
AVG
12.72
Table 7-11. 80MHz BW (UNII) Maximum Conducted Output Power
FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
6/1 - 6/28/2016, 7/14/2016 Portable Handset
1M1703230122-05.A3L
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 63 of 260
V 4.0
05/16/2016
MIMO Maximum Conducted Output Power Measurements
5GHz (20MHz) Conducted Power
[dBm]
Detector
Freq [MHz]
Channel
ANT1
ANT2
MIMO
5180
36
12.63
12.26
15.46
AVG
5200
40
12.61
12.24
15.44
AVG
5220
44
12.62
12.33
15.49
AVG
5240
48
12.73
12.14
15.46
AVG
5260
52
14.45
14.02
17.25
AVG
5280
56
14.40
14.12
17.27
AVG
5300
60
14.31
14.51
17.42
AVG
5320
64
14.37
14.46
17.43
AVG
5500
100
14.42
14.06
17.25
AVG
5520
104
14.37
13.93
17.17
AVG
5540
108
14.30
13.81
17.07
AVG
5560
112
14.31
13.95
17.14
AVG
5580
116
14.18
13.90
17.05
AVG
5600
120
14.21
13.80
17.02
AVG
5620
124
14.04
13.81
16.94
AVG
5640
128
14.11
13.80
16.97
AVG
5660
132
14.12
13.95
17.05
AVG
5680
136
13.95
13.66
16.82
AVG
5700
140
13.96
13.80
16.89
AVG
5720
144
14.02
13.98
17.01
AVG
5745
149
14.24
13.54
16.91
AVG
5765
153
14.29
13.36
16.86
AVG
5785
157
14.42
13.28
16.90
AVG
5805
161
14.39
13.23
16.86
AVG
5825
165
14.35
13.14
16.80
AVG
Table 7-12. MIMO 20MHz BW 802.11n (UNII) Maximum Conducted Output Power
FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
6/1 - 6/28/2016, 7/14/2016 Portable Handset
1M1703230122-05.A3L
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 64 of 260
V 4.0
05/16/2016
Freq [MHz]
Channel
5GHz (20MHz) Conducted Power
[dBm]
ANT1
ANT2
MIMO
Detector
5180
36
12.07
12.62
15.36
AVG
5200
40
12.36
12.46
15.42
AVG
5220
44
12.57
12.30
15.45
AVG
5240
48
12.25
12.20
15.24
AVG
5260
52
14.40
14.27
17.35
AVG
5280
56
14.45
14.19
17.33
AVG
5300
60
14.93
13.94
17.47
AVG
5320
64
14.48
14.04
17.28
AVG
5500
100
14.45
14.48
17.48
AVG
5520
104
14.40
14.46
17.44
AVG
5540
108
14.46
14.36
17.42
AVG
5560
112
14.65
14.13
17.41
AVG
5580
116
14.09
14.20
17.16
AVG
5600
120
14.53
14.06
17.31
AVG
5620
124
14.53
13.94
17.26
AVG
5640
128
14.35
13.92
17.15
AVG
5660
132
14.38
13.99
17.20
AVG
5680
136
14.28
13.99
17.15
AVG
5700
140
14.30
13.80
17.07
AVG
5720
144
14.28
13.90
17.10
AVG
5745
149
14.41
14.23
17.33
AVG
5765
153
14.41
14.38
17.41
AVG
5785
157
14.44
14.45
17.46
AVG
5805
161
14.39
14.44
17.43
AVG
5825
165
14.20
14.33
17.28
AVG
Table 7-13. MIMO 20MHz BW 802.11ac (UNII) Maximum Conducted Output Power
FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
6/1 - 6/28/2016, 7/14/2016 Portable Handset
1M1703230122-05.A3L
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 65 of 260
V 4.0
05/16/2016
Freq [MHz]
Channel
5GHz (40MHz) Conducted Power
[dBm]
ANT1
ANT2
MIMO
Detector
5190
38
12.01
12.22
15.13
AVG
5230
46
12.05
11.94
15.01
AVG
5270
54
11.46
11.89
14.69
AVG
5310
62
11.41
11.77
14.60
AVG
5510
102
12.14
12.16
15.16
AVG
5550
110
11.90
11.94
14.93
AVG
5590
118
11.89
11.88
14.90
AVG
5630
126
11.70
11.87
14.80
AVG
5670
134
11.40
11.68
14.55
AVG
5710
142
11.87
11.59
14.74
AVG
5755
151
12.53
12.15
15.35
AVG
5795
159
12.86
12.02
15.47
AVG
Table 7-14. MIMO 40MHz BW 802.11n (UNII) Maximum Conducted Output Power
Freq [MHz]
Channel
5GHz (40MHz) Conducted Power
[dBm]
ANT1
ANT2
MIMO
Detector
5190
38
11.97
11.71
14.85
AVG
5230
46
12.02
11.50
14.78
AVG
5270
54
11.35
11.32
14.35
AVG
5310
62
11.21
11.16
14.20
AVG
5510
102
10.91
11.97
14.48
AVG
5550
110
12.04
11.75
14.91
AVG
5590
118
11.97
11.57
14.78
AVG
5630
126
11.66
11.40
14.54
AVG
5670
134
11.59
11.52
14.57
AVG
5710
142
11.52
11.36
14.45
AVG
5755
151
11.26
11.51
14.40
AVG
5795
159
11.01
11.59
14.32
AVG
Table 7-15. MIMO 40MHz BW 802.11ac (UNII) Maximum Conducted Output Power
FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
6/1 - 6/28/2016, 7/14/2016 Portable Handset
1M1703230122-05.A3L
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 66 of 260
V 4.0
05/16/2016
Freq [MHz]
Channel
5GHz (80MHz) Conducted Power
[dBm]
Detector
ANT1
ANT2
MIMO
42
10.95
11.07
14.02
AVG
5290
58
11.29
11.49
14.40
AVG
5530
106
11.45
10.89
14.19
AVG
5610
122
10.44
11.45
13.98
AVG
5690
138
10.79
11.46
14.15
AVG
5210
5775
155
10.48
11.53
14.05
AVG
Table 7-16. MIMO 80MHz BW 802.11ac (UNII) Maximum Conducted Output Power
Note:
Per KDB 662911 v02r01 Section E)1), the conducted powers at Antenna 1 and Antenna 2 were first measured
separately during MIMO transmission as shown in the section above. The measured values were then
summed in linear power units then converted back to dBm.
Sample MIMO Calculation:
At 5180MHz the average conducted output power was measured to be 12.63 dBm for Antenna-1 and 12.26
dBm for Antenna-2.
Antenna 1 + Antenna 2 = MIMO
(12.63 dBm + 12.26 dBm) = (18.32 mW + 16.83 mW) = 35.15 mW = 15.46 dBm
FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
6/1 - 6/28/2016, 7/14/2016 Portable Handset
1M1703230122-05.A3L
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 67 of 260
V 4.0
05/16/2016
7.5
Maximum Power Spectral Density – 802.11a/n/ac
§15.407(a.1)(2.5)
Test Overview and Limit
The spectrum analyzer was connected to the antenna terminal while the EUT was operating at its maximum
duty cycle, at its maximum power control level, as defined in KDB 789033 D02 v01r02, and at the appropriate
frequencies. Method SA-1, as defined in KDB 789033 D02 v01r02, was used to measure the power spectral
density.
In the 5.15 – 5.25GHz, 5.25 – 5.35GHz, 5.47 – 5.725GHz bands, the maximum permissible power
spectral density is 11dBm/MHz.
In the 5.725 – 5.850GHz band, the maximum permissible power spectral density is 30dBm/500kHz.
Test Procedure Used
KDB 789033 D02 v01r02 – Section F
KDB 662911 v02r01 – Section E)2) Measure-and-Sum Technique
Test Settings
1. Analyzer was set to the center frequency of the UNII channel under investigation
2. Span was set to encompass the entire emission bandwidth of the signal
3. RBW = 1MHz
4. VBW = 3MHz
5. Number of sweep points > 2 x (span/RBW)
6. Sweep time = auto
7. Detector = power averaging (RMS)
8. Trigger was set to free run for all modes
9. Trace was averaged over 100 sweeps
10. The peak search function of the spectrum analyzer was used to find the peak of the spectrum.
Test Setup
The EUT and measurement equipment were set up as shown in the diagram below.
Figure 7-4. Test Instrument & Measurement Setup
Test Notes
None
FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
6/1 - 6/28/2016, 7/14/2016 Portable Handset
1M1703230122-05.A3L
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 68 of 260
V 4.0
05/16/2016
Antenna-1 Power Spectral Density Measurements
Band 2C
Band 2A
Band 1
Measured Max Permissible
Frequency Channel
802.11 Mode Data Rate [Mbps] Power Density Power Density
[MHz]
No.
[dBm]
[dBm/MHz]
5180
36
8.01
11.0
8.12
11.0
Margin
[dB]
Pass / Fail
-2.99
Pass
-2.88
Pass
5200
40
5240
48
8.30
11.0
-2.70
Pass
5180
36
n (20MHz)
6.5/7.2 (MCS0)
5.95
11.0
-5.06
Pass
5200
40
n (20MHz)
6.5/7.2 (MCS0)
5.81
11.0
-5.19
Pass
5240
48
n (20MHz)
6.5/7.2 (MCS0)
6.53
11.0
-4.47
Pass
5190
38
n (40MHz)
13.5/15 (MCS0)
2.03
11.0
-8.97
Pass
5230
46
n (40MHz)
13.5/15 (MCS0)
2.27
11.0
-8.73
Pass
5210
42
ac (80MHz)
29.3/32.5 (MCS0)
0.15
11.0
-10.85
Pass
5260
52
9.31
11.0
-1.69
Pass
5280
56
9.10
11.0
-1.90
Pass
5320
64
8.05
11.0
-2.95
Pass
5260
52
n (20MHz)
6.5/7.2 (MCS0)
8.64
11.0
-2.36
Pass
5280
56
n (20MHz)
6.5/7.2 (MCS0)
8.41
11.0
-2.59
Pass
5320
64
n (20MHz)
6.5/7.2 (MCS0)
8.73
11.0
-2.27
Pass
5270
54
n (40MHz)
13.5/15 (MCS0)
2.56
11.0
-8.44
Pass
5310
62
n (40MHz)
13.5/15 (MCS0)
2.01
11.0
-8.99
Pass
5290
58
ac (80MHz)
29.3/32.5 (MCS0)
-0.82
11.0
-11.82
Pass
5500
100
7.91
11.0
-3.09
Pass
5600
120
8.14
11.0
-2.86
Pass
5720
144
8.36
11.0
-2.64
Pass
5500
100
n (20MHz)
6.5/7.2 (MCS0)
8.15
11.0
-2.85
Pass
5600
120
n (20MHz)
6.5/7.2 (MCS0)
8.27
11.0
-2.73
Pass
5720
144
n (20MHz)
6.5/7.2 (MCS0)
8.49
11.0
-2.51
Pass
5510
102
n (40MHz)
13.5/15 (MCS0)
2.34
11.0
-8.66
Pass
5590
118
n (40MHz)
13.5/15 (MCS0)
1.16
11.0
-9.84
Pass
5710
142
n (40MHz)
13.5/15 (MCS0)
2.35
11.0
-8.65
Pass
5530
106
ac (80MHz)
29.3/32.5 (MCS0)
-0.47
11.0
-11.47
Pass
5610
122
ac (80MHz)
29.3/32.5 (MCS0)
-1.15
11.0
-12.15
Pass
5690
138
ac (80MHz)
29.3/32.5 (MCS0)
-3.65
11.0
-14.65
Pass
Table 7-17. Bands 1, 2A, 2C Conducted Power Spectral Density Measurements
FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
6/1 - 6/28/2016, 7/14/2016 Portable Handset
1M1703230122-05.A3L
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 69 of 260
V 4.0
05/16/2016
Plot 7-75. Power Spectral Density Plot (802.11a (UNII Band 1) – Ch. 36)
Plot 7-76. Power Spectral Density Plot (802.11a (UNII Band 1) – Ch. 40)
FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
6/1 - 6/28/2016, 7/14/2016 Portable Handset
1M1703230122-05.A3L
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 70 of 260
V 4.0
05/16/2016
Plot 7-77. Power Spectral Density Plot (802.11a (UNII Band 1) – Ch. 48)
Plot 7-78. Power Spectral Density Plot (20MHz BW 802.11n (UNII Band 1) – Ch. 36)
FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
6/1 - 6/28/2016, 7/14/2016 Portable Handset
1M1703230122-05.A3L
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 71 of 260
V 4.0
05/16/2016
Plot 7-79. Power Spectral Density Plot (20MHz BW 802.11n (UNII Band 1) – Ch. 40)
Plot 7-80. Power Spectral Density Plot (20MHz BW 802.11n (UNII Band 1) – Ch. 48)
FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
6/1 - 6/28/2016, 7/14/2016 Portable Handset
1M1703230122-05.A3L
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 72 of 260
V 4.0
05/16/2016
Plot 7-81. Power Spectral Density Plot (40MHz BW 802.11n (UNII Band 1) – Ch. 38)
Plot 7-82. Power Spectral Density Plot (40MHz BW 802.11n (UNII Band 1) – Ch. 46)
FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
6/1 - 6/28/2016, 7/14/2016 Portable Handset
1M1703230122-05.A3L
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 73 of 260
V 4.0
05/16/2016
Plot 7-83. Power Spectral Density Plot (80MHz BW 802.11ac (UNII Band 1) – Ch. 42)
Plot 7-84. Power Spectral Density Plot (802.11a (UNII Band 2A) – Ch. 52)
FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
6/1 - 6/28/2016, 7/14/2016 Portable Handset
1M1703230122-05.A3L
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 74 of 260
V 4.0
05/16/2016
Plot 7-85. Power Spectral Density Plot (802.11a (UNII Band 2A) – Ch. 56)
Plot 7-86. Power Spectral Density Plot (802.11a (UNII Band 2A) – Ch. 64)
FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
6/1 - 6/28/2016, 7/14/2016 Portable Handset
1M1703230122-05.A3L
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 75 of 260
V 4.0
05/16/2016
Plot 7-87. Power Spectral Density Plot (20MHz BW 802.11n (UNII Band 2A) – Ch. 52)
Plot 7-88. Power Spectral Density Plot (20MHz BW 802.11n (UNII Band 2A) – Ch. 56)
FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
6/1 - 6/28/2016, 7/14/2016 Portable Handset
1M1703230122-05.A3L
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 76 of 260
V 4.0
05/16/2016
Plot 7-89. Power Spectral Density Plot (20MHz BW 802.11n (UNII Band 2A) – Ch. 64)
Plot 7-90. Power Spectral Density Plot (40MHz BW 802.11n (UNII Band 2A) – Ch. 54)
FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
6/1 - 6/28/2016, 7/14/2016 Portable Handset
1M1703230122-05.A3L
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 77 of 260
V 4.0
05/16/2016
Plot 7-91. Power Spectral Density Plot (40MHz BW 802.11n (UNII Band 2A) – Ch. 62)
Plot 7-92. Power Spectral Density Plot (80MHz BW 802.11ac (UNII Band 2A) – Ch. 58)
FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
6/1 - 6/28/2016, 7/14/2016 Portable Handset
1M1703230122-05.A3L
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 78 of 260
V 4.0
05/16/2016
Plot 7-93. Power Spectral Density Plot (802.11a (UNII Band 2C) – Ch. 100)
Plot 7-94. Power Spectral Density Plot (802.11a (UNII Band 2C) – Ch. 120)
FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
6/1 - 6/28/2016, 7/14/2016 Portable Handset
1M1703230122-05.A3L
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 79 of 260
V 4.0
05/16/2016
Plot 7-95. Power Spectral Density Plot (802.11a (UNII Band 2C) – Ch. 144)
Plot 7-96. Power Spectral Density Plot (20MHz BW 802.11n (UNII Band 2C) – Ch. 100)
FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
6/1 - 6/28/2016, 7/14/2016 Portable Handset
1M1703230122-05.A3L
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 80 of 260
V 4.0
05/16/2016
Plot 7-97. Power Spectral Density Plot (20MHz BW 802.11n (UNII Band 2C) – Ch. 120)
Plot 7-98. Power Spectral Density Plot (20MHz BW 802.11n (UNII Band 2C) – Ch. 144)
FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
6/1 - 6/28/2016, 7/14/2016 Portable Handset
1M1703230122-05.A3L
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 81 of 260
V 4.0
05/16/2016
Plot 7-99. Power Spectral Density Plot (40MHz BW 802.11n (UNII Band 2C) – Ch. 102)
Plot 7-100. Power Spectral Density Plot (40MHz BW 802.11n (UNII Band 2C) – Ch. 118)
FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
6/1 - 6/28/2016, 7/14/2016 Portable Handset
1M1703230122-05.A3L
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 82 of 260
V 4.0
05/16/2016
Plot 7-101. Power Spectral Density Plot (40MHz BW 802.11n (UNII Band 2C) – Ch. 142)
Plot 7-102. Power Spectral Density Plot (80MHz BW 802.11ac (UNII Band 2C) – Ch. 106)
FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
6/1 - 6/28/2016, 7/14/2016 Portable Handset
1M1703230122-05.A3L
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 83 of 260
V 4.0
05/16/2016
Plot 7-103. Power Spectral Density Plot (80MHz BW 802.11n (UNII Band 2C) – Ch. 122)
Plot 7-104. Power Spectral Density Plot (80MHz BW 802.11ac (UNII Band 2C) – Ch. 138)
FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
6/1 - 6/28/2016, 7/14/2016 Portable Handset
1M1703230122-05.A3L
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 84 of 260
V 4.0
05/16/2016
Band 3
Measured Max Permissible
Frequency Channel
802.11 Mode Data Rate [Mbps] Power Density Power Density
[MHz]
No.
[dBm]
[dBm/500kHz]
5745
149
6.43
30.0
5.87
30.0
Margin
[dB]
Pass / Fail
-23.57
Pass
-24.13
Pass
5785
157
5825
165
5.36
30.0
-24.64
Pass
5745
149
n (20MHz)
6.5/7.2 (MCS0)
6.45
30.0
-23.55
Pass
5785
157
n (20MHz)
6.5/7.2 (MCS0)
5.72
30.0
-24.28
Pass
5825
165
n (20MHz)
6.5/7.2 (MCS0)
4.98
30.0
-25.02
Pass
5755
151
n (40MHz)
13.5/15 (MCS0)
-0.20
30.0
-30.20
Pass
5795
159
n (40MHz)
13.5/15 (MCS0)
-0.49
30.0
-30.49
Pass
5775
155
ac (80MHz)
29.3/32.5 (MCS0)
-1.35
30.0
-31.35
Pass
Table 7-18. Band 3 Conducted Power Spectral Density Measurements
Plot 7-105. Power Spectral Density Plot (802.11a (UNII Band 3) – Ch. 149)
FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
6/1 - 6/28/2016, 7/14/2016 Portable Handset
1M1703230122-05.A3L
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 85 of 260
V 4.0
05/16/2016
Plot 7-106. Power Spectral Density Plot (802.11a (UNII Band 3) – Ch. 157)
Plot 7-107. Power Spectral Density Plot (802.11a (UNII Band 3) – Ch. 165)
FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
6/1 - 6/28/2016, 7/14/2016 Portable Handset
1M1703230122-05.A3L
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 86 of 260
V 4.0
05/16/2016
Plot 7-108. Power Spectral Density Plot (20MHz BW 802.11n (UNII Band 3) – Ch. 149)
Plot 7-109. Power Spectral Density Plot (20MHz BW 802.11n (UNII Band 3) – Ch. 157)
FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
6/1 - 6/28/2016, 7/14/2016 Portable Handset
1M1703230122-05.A3L
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 87 of 260
V 4.0
05/16/2016
Plot 7-110. Power Spectral Density Plot (20MHz BW 802.11n (UNII Band 3) – Ch. 165)
Plot 7-111. Power Spectral Density Plot (40MHz BW 802.11n (UNII Band 3) – Ch. 151)
FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
6/1 - 6/28/2016, 7/14/2016 Portable Handset
1M1703230122-05.A3L
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 88 of 260
V 4.0
05/16/2016
Plot 7-112. Power Spectral Density Plot (40MHz BW 802.11n (UNII Band 3) – Ch. 159)
Plot 7-113. Power Spectral Density Plot (80MHz BW 802.11ac (UNII Band 3) – Ch. 155)
FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
6/1 - 6/28/2016, 7/14/2016 Portable Handset
1M1703230122-05.A3L
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 89 of 260
V 4.0
05/16/2016
Antenna-2 Power Spectral Density Measurements
Band 2C
Band 2A
Band 1
Measured Max Permissible
Frequency Channel
802.11 Mode Data Rate [Mbps] Power Density Power Density
No.
[MHz]
[dBm]
[dBm/MHz]
5180
36
7.17
11.0
6.82
11.0
Margin
[dB]
Pass / Fail
-3.83
Pass
-4.18
Pass
5200
40
5240
48
6.93
11.0
-4.07
Pass
5180
36
n (20MHz)
6.5/7.2 (MCS0)
6.80
11.0
-4.20
Pass
5200
40
n (20MHz)
6.5/7.2 (MCS0)
6.42
11.0
-4.58
Pass
5240
48
n (20MHz)
6.5/7.2 (MCS0)
7.48
11.0
-3.52
Pass
5190
38
n (40MHz)
13.5/15 (MCS0)
2.61
11.0
-8.39
Pass
5230
46
n (40MHz)
13.5/15 (MCS0)
2.47
11.0
-8.53
Pass
5210
42
ac (80MHz)
29.3/32.5 (MCS0)
-1.78
11.0
-12.78
Pass
5260
52
9.69
11.0
-1.31
Pass
5280
56
9.07
11.0
-1.93
Pass
5320
64
8.20
11.0
-2.80
Pass
5260
52
n (20MHz)
6.5/7.2 (MCS0)
8.84
11.0
-2.16
Pass
5280
56
n (20MHz)
6.5/7.2 (MCS0)
8.15
11.0
-2.85
Pass
5320
64
n (20MHz)
6.5/7.2 (MCS0)
6.96
11.0
-4.04
Pass
5270
54
n (40MHz)
13.5/15 (MCS0)
2.42
11.0
-8.58
Pass
5310
62
n (40MHz)
13.5/15 (MCS0)
1.50
11.0
-9.50
Pass
5290
58
ac (80MHz)
29.3/32.5 (MCS0)
-1.08
11.0
-12.08
Pass
5500
100
7.89
11.0
-3.11
Pass
5600
120
7.52
11.0
-3.48
Pass
5720
144
7.94
11.0
-3.06
Pass
5500
100
n (20MHz)
6.5/7.2 (MCS0)
7.05
11.0
-3.95
Pass
5600
120
n (20MHz)
6.5/7.2 (MCS0)
6.12
11.0
-4.88
Pass
5720
144
n (20MHz)
6.5/7.2 (MCS0)
7.77
11.0
-3.23
Pass
5510
102
n (40MHz)
13.5/15 (MCS0)
3.24
11.0
-7.76
Pass
5590
118
n (40MHz)
13.5/15 (MCS0)
2.15
11.0
-8.85
Pass
5710
142
n (40MHz)
13.5/15 (MCS0)
1.91
11.0
-9.09
Pass
5530
106
ac (80MHz)
29.3/32.5 (MCS0)
-2.10
11.0
-13.10
Pass
5610
122
ac (80MHz)
29.3/32.5 (MCS0)
-3.65
11.0
-14.65
Pass
5690
138
ac (80MHz)
29.3/32.5 (MCS0)
-5.97
11.0
-16.97
Pass
Table 7-19. Conducted Power Spectral Density Measurements
FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMN935KOR
Test Report S/N:
Test Dates:
EUT Type:
6/1 - 6/28/2016, 7/14/2016 Portable Handset
1M1703230122-05.A3L
© 2017 PCTEST Engineering Laboratory, Inc.
Reviewed by:
Quality Manager
Page 90 of 260
V 4.0
05/16/2016
Download: SMN935KOR Multi-band GSM/EDGE/UMTS/LTE Phone with Bluetooth, WLAN, RFID and ANT+ Test Report UNII  1 Samsung Electronics Co Ltd
Mirror Download [FCC.gov]SMN935KOR Multi-band GSM/EDGE/UMTS/LTE Phone with Bluetooth, WLAN, RFID and ANT+ Test Report UNII  1 Samsung Electronics Co Ltd
Document ID3382761
Application IDCxCdEm40RzXpMYzqLeV0kw==
Document DescriptionUNII Test Report 1
Short Term ConfidentialNo
Permanent ConfidentialNo
SupercedeNo
Document TypeTest Report
Display FormatAdobe Acrobat PDF - pdf
Filesize499.29kB (6241095 bits)
Date Submitted2017-05-08 00:00:00
Date Available2017-06-12 00:00:00
Creation Date2017-10-25 08:37:10
Producing SoftwareGPL Ghostscript 9.18
Document Lastmod2017-10-25 08:37:10
Document TitleUNII Test Report 1
Document CreatorPScript5.dll Version 5.2.2

Source Exif Data:
File Type                       : PDF
File Type Extension             : pdf
MIME Type                       : application/pdf
PDF Version                     : 1.5
Linearized                      : No
Page Count                      : 1
XMP Toolkit                     : XMP toolkit 2.9.1-13, framework 1.6
About                           : uuid:90f6d282-9bc1-11f2-0000-02c7314339d4
Producer                        : GPL Ghostscript 9.18
Modify Date                     : 2017:07:08 06:16:45Z
Create Date                     : 2017:07:08 06:16:45Z
Creator Tool                    : UnknownApplication
Document ID                     : uuid:90f6d282-9bc1-11f2-0000-02c7314339d4
Format                          : application/pdf
Title                           : Untitled

Facebook Twitter Google+ RSS © FCCID.io 2017
