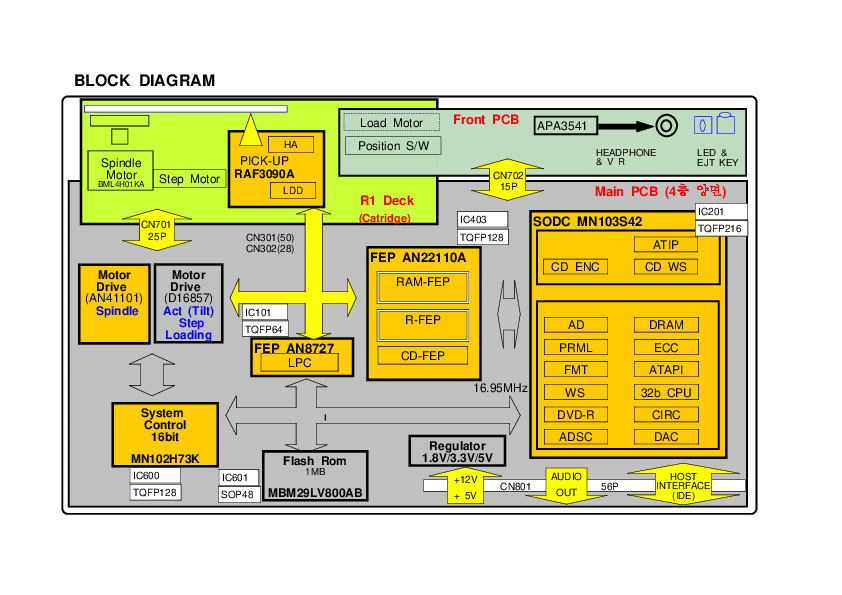

SRT03 DVD Multi Drive Block Diagram - FCC ID A3LSRT03

FCC ID A3LSRT03

Block Diagram

DVD Multi Drive

by Samsung Electronics Co Ltd

Document preview loads when visible.

Document Details

FCC IDA3LSRT03
Document ID287995
Document TypeBlock Diagram
DescriptionBlock Diagram
ApplicantSamsung Electronics Co Ltd
Equipment ClassDVD Multi Drive
Product CodeSRT03
Application IDgOZei6RUNNHxOE9KxfUMLg==
Application PurposeOriginal Equipment
Application Date2002-12-06
FRN0027908797
Test FirmSAMSUNG ELECTRONICS CO., LTD.
Certified ByRandy Ortanez President
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2002-12-06
Available2002-12-06
Created2002-10-28
Modified2002-11-18
Pages1
File TypeAdobe Acrobat PDF
File Size114688
File SHA-25602b2c2edc56f3d06ba9a75e49267762a2ac9d3740ecfa64a446e570e9d258bd4
PDF Metadata ProducerAcrobat Distiller 4.05 for Windows
FCC.gov SourcesFCC.gov 287995
