FCC ID A3LSWL-CQ52
Wi-Fi Full Module
by Samsung Electronics Co Ltd
Grantee Code: A3L Product Code: SWLCQ52
Latest application date: 2015-10-28
Device Images
FCC ID Device Details
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 2412-2462 MHz | Original Equipment | 2015-10-28 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| User Manual | Users Manual | 2015-10-28 | PDF 844.4 KB |
| Internal Photos | Internal Photos | 2015-10-28 | PDF 162.4 KB |
| External Photos | External Photos | 2015-10-28 | PDF 157.3 KB |
| Label Location | ID Label/Location Info | 2015-10-28 | PDF 108.4 KB |

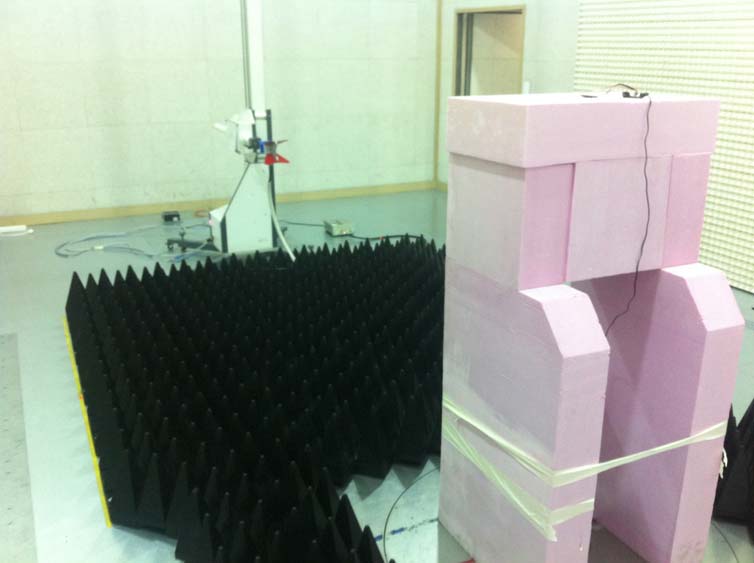

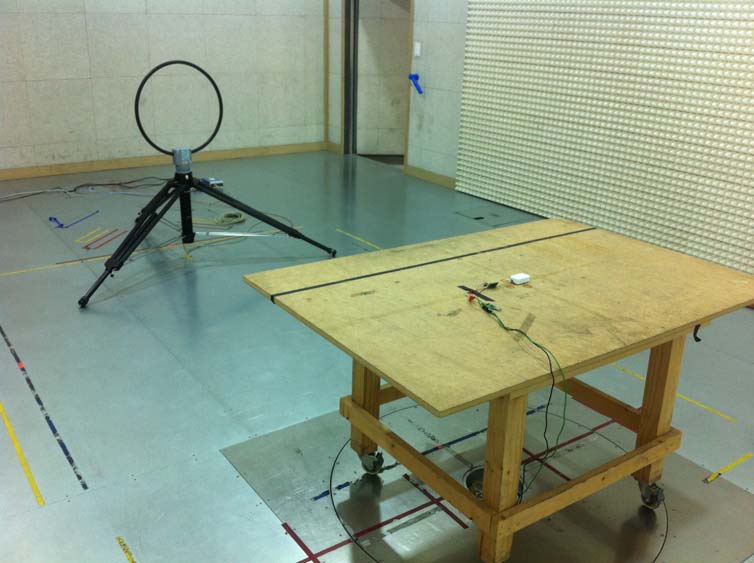

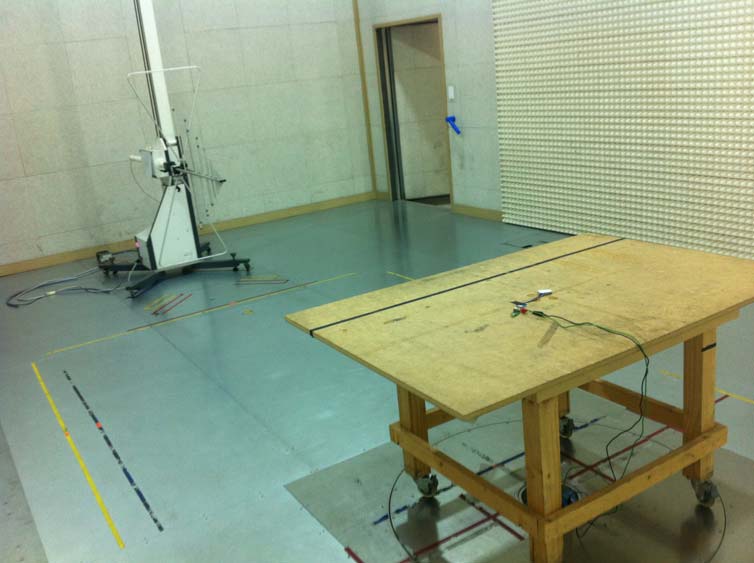

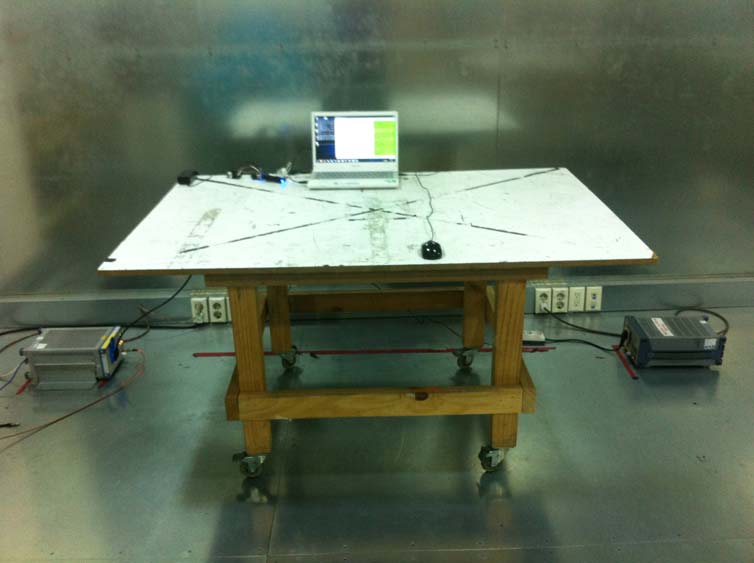

| Test Setup Photos | Test Setup Photos | 2015-10-28 | PDF 209.2 KB |
| Test Report | Test Report | 2015-10-28 | PDF 2 MB |
| Confidentiality Request Letter | Cover Letter(s) | 2015-10-28 | PDF 102.9 KB |
| Modular Approval Letter | Cover Letter(s) | 2015-10-28 | PDF 139.5 KB |
| Product Certification Representative Auth Letter | Cover Letter(s) | 2015-10-28 | PDF 103.2 KB |
| WIFI ch 12 -13 Declaration letter | Cover Letter(s) | 2015-10-28 | PDF 146.5 KB |
| RF Exposure | RF Exposure Info | 2015-10-28 | PDF 118.5 KB |
| Block Diagram Metadata only | Block Diagram | PDF 37.1 KB | |
| Schematics Metadata only | Schematics | PDF 202.3 KB | |
| Operational Description Metadata only | Operational Description | PDF 245.1 KB |
Application Information
| Application ID | xRyPNt/7VImZwdA+sw2GbA== |
|---|---|
| Final Action Date | 2015-10-28 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0005810205 |
| Model | SWL-CQ52 |
| Frequency Range | 2412-2462 MHz |
| Equipment Class | DTS - Digital Transmission System |
| Device Description | Wi-Fi Full Module |
| Responsible Party | Jenni Chun, General Manager, j1.chun@samsung.com  , 973-808-6375 |
| Test Firm | Sung-Su Lim, KCTL INC, sungsu.lim@kctl.co.kr  , +82-31-326-6713 |
| TCB Email | tcb@siemic.com  |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Single Modular Approval |
| Composite Device | No |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Single Modular Approval for mobile host platform. Power listed is the maximum conducted output power. Device has 20MHz & 40MHz bandwidth signal. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter, except in accordance with FCC multi- transmitter product procedures. OEM integrators must be provided with antenna installation instructions and operation conditions for satisfying RF exposure compliance. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| xRyPNt/7VImZwdA+sw2GbA== | 2015-10-28 | Original Equipment |
Equipment Authorization
| Frequency | Output | Rules |
|---|---|---|
| 2412-2462 MHz | 0.0570000 | 15C |
Grants
TCB Grant - Application xRyPNt/7VImZwdA+sw2GbA==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Bureau Veritas Consumer Products Services, Inc. 775 Montague Expressway Milpitas, CA 95035 |
Date of Grant: 10/28/2015 Application Dated: 10/28/2015 |
| Samsung Electronics Co Ltd |
| 19 Chapin Rd., Building D |
| Pine Brook, NJ 07058 |
| Attention: Jenni Chun , General Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | A3LSWL-CQ52 |
| Name of Grantee: | Samsung Electronics Co Ltd |
| Equipment Class: | Digital Transmission System |
| Notes: | Wi-Fi Full Module |
| Modular Type: | Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 15C | 2412.0 - 2462.0 | 0.057 |
| Single Modular Approval for mobile host platform. Power listed is the maximum conducted output power. Device has 20MHz & 40MHz bandwidth signal. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter, except in accordance with FCC multi- transmitter product procedures. OEM integrators must be provided with antenna installation instructions and operation conditions for satisfying RF exposure compliance. |
EAS Grant - Application xRyPNt/7VImZwdA+sw2GbA==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Samsung Electronics Co Ltd 19 Chapin Rd., Building D Pine Brook, NJ 07058 United States |
Date of Grant: 10/28/2015 Application Dated: 10/28/2015 |
| Attention: Jenni Chun , General Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | A3LSWL-CQ52 |
| Name of Grantee: | Samsung Electronics Co Ltd |
| Equipment Class: | Digital Transmission System |
| Notes: | Wi-Fi Full Module |
| Modular Type: | Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 15C | 2412.0 - 2462.0 | 0.057 |
| Single Modular Approval for mobile host platform. Power listed is the maximum conducted output power. Device has 20MHz & 40MHz bandwidth signal. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter, except in accordance with FCC multi- transmitter product procedures. OEM integrators must be provided with antenna installation instructions and operation conditions for satisfying RF exposure compliance. |
| Mail To: |
