FCC ID A3LWDF710Q
Wifi Module
by Samsung Electronics Co Ltd
Grantee Code: A3L Product Code: WDF710Q
Latest application date: 2016-05-31
Device Images
FCC ID Device Details
| FCC ID | A3LWDF710Q |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | A3L |
| Product Code | WDF710Q |
| Applicant Business | Samsung Electronics Co Ltd 🇺🇸 |
| Related Domains |  samsung.com |
| Equipment Class | Wifi Module |
| Test Firm | Compliance Certification Services Inc. |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 5180-5240 MHz | Class II permissive change or modification of presently authorized equipment | 2016-05-31 |
| 5180-5240 MHz | Original Equipment | 2013-09-04 |
| 2412-2462 MHz | Original Equipment | 2013-09-04 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| Users manual | Users Manual | 2013-09-04 | PDF 213.1 KB |
| Internal photos | Internal Photos | 2013-09-04 | PDF 272.4 KB |
| External photos | External Photos | 2013-09-04 | PDF 166.9 KB |
| Label | ID Label/Location Info | 2013-09-04 | PDF 97.5 KB |

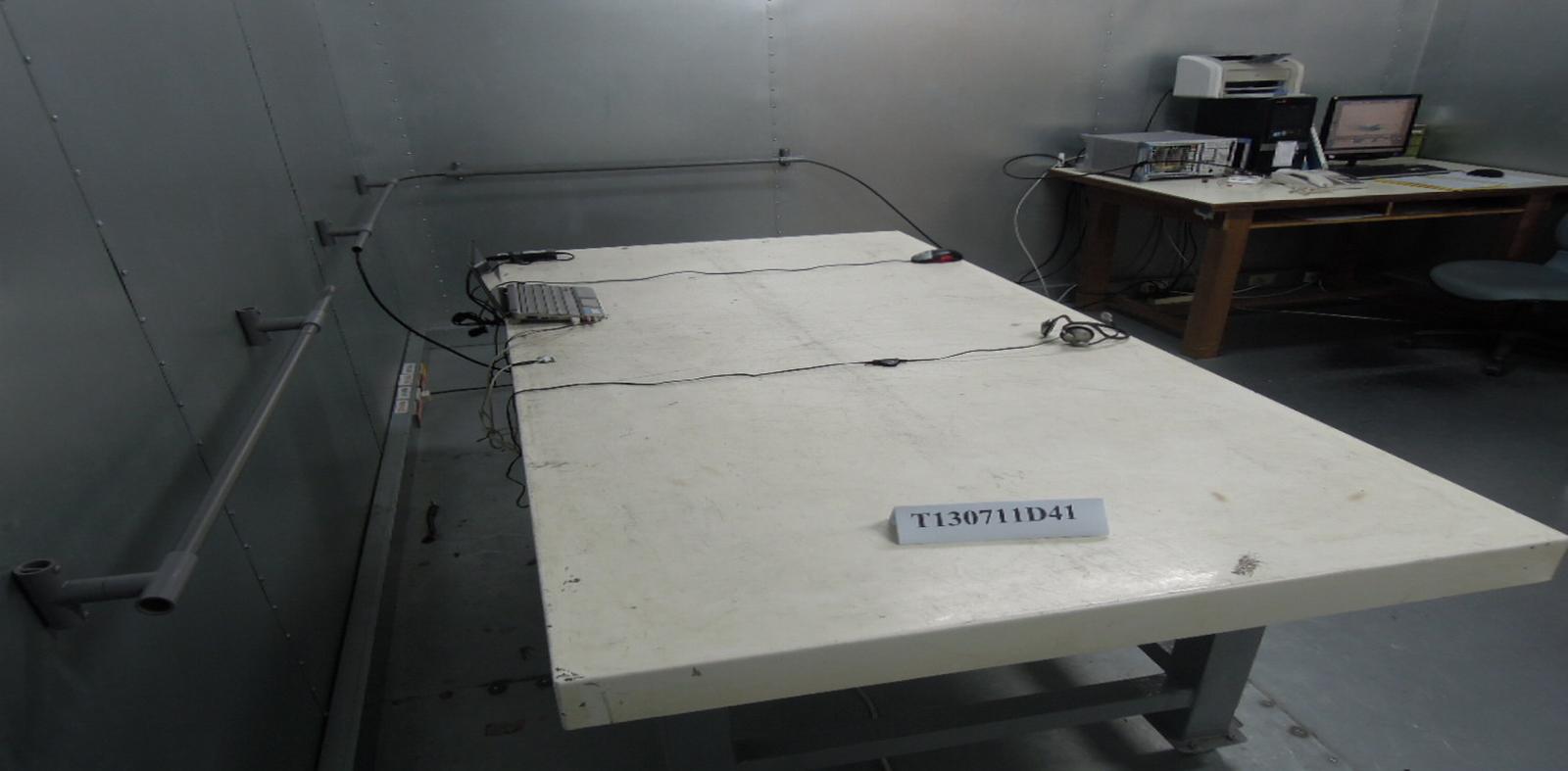

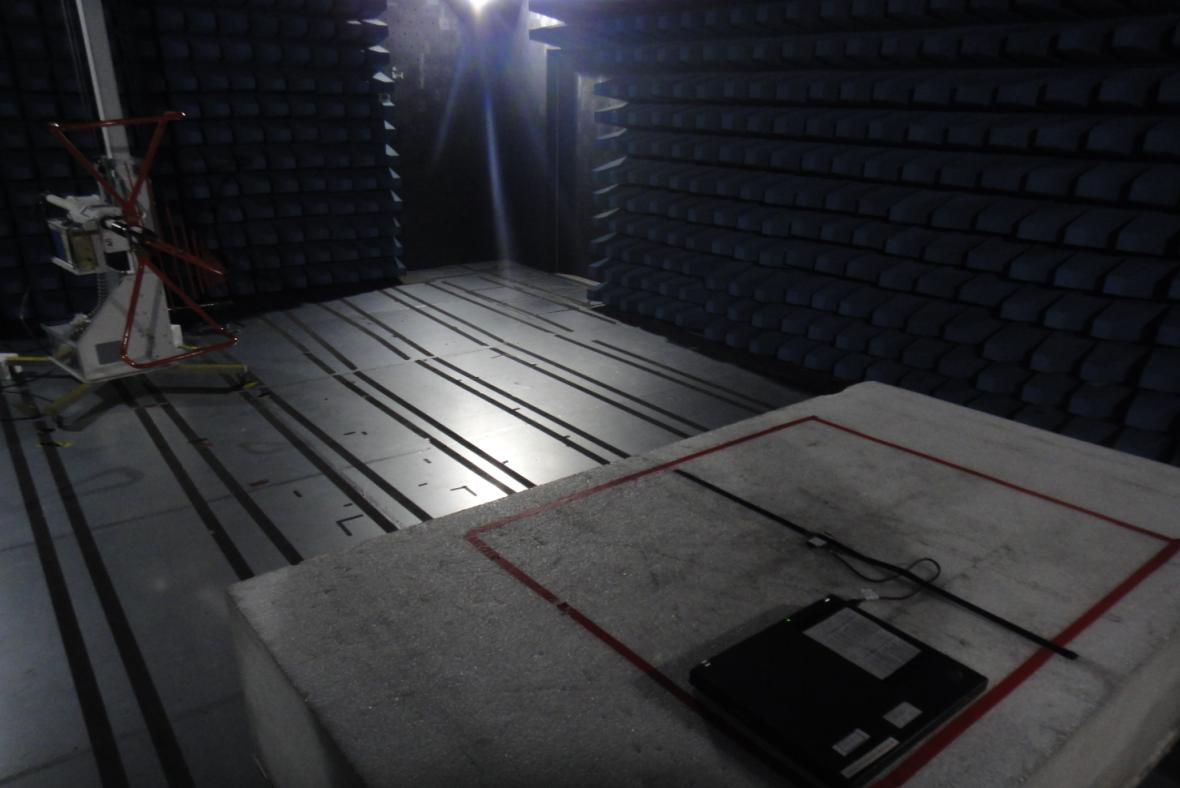

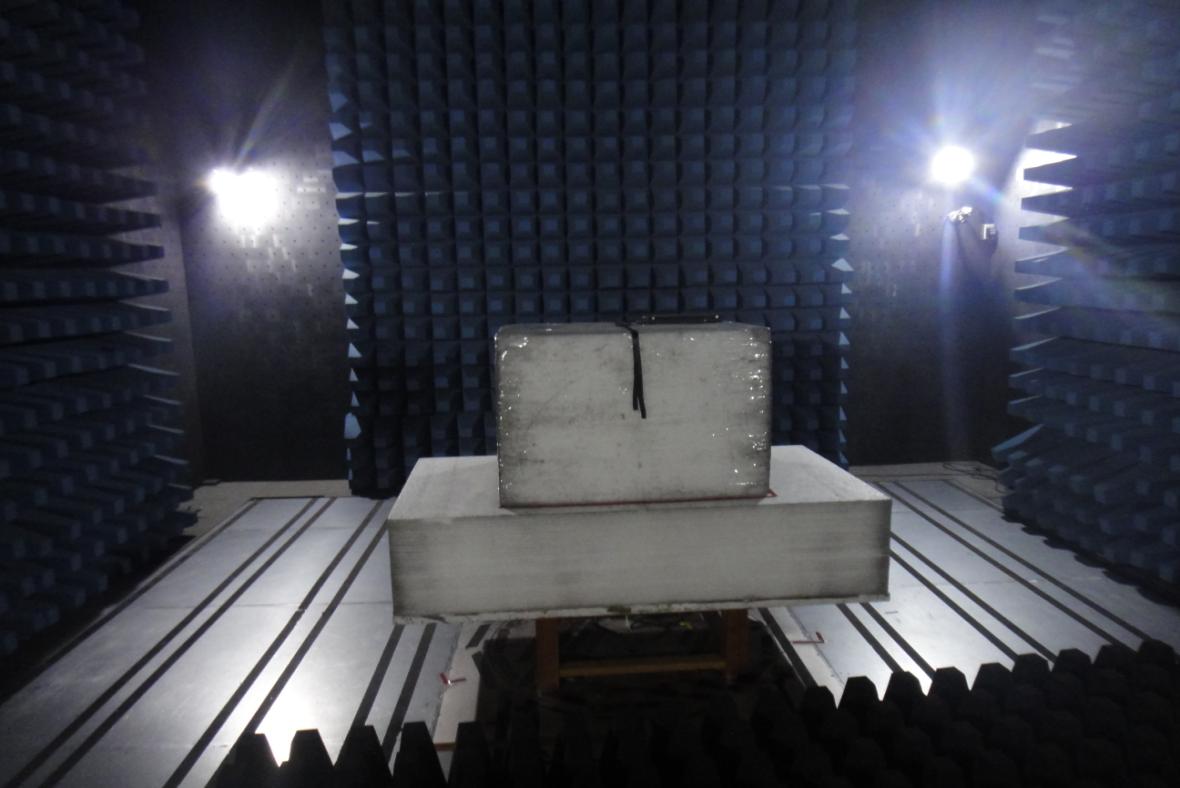

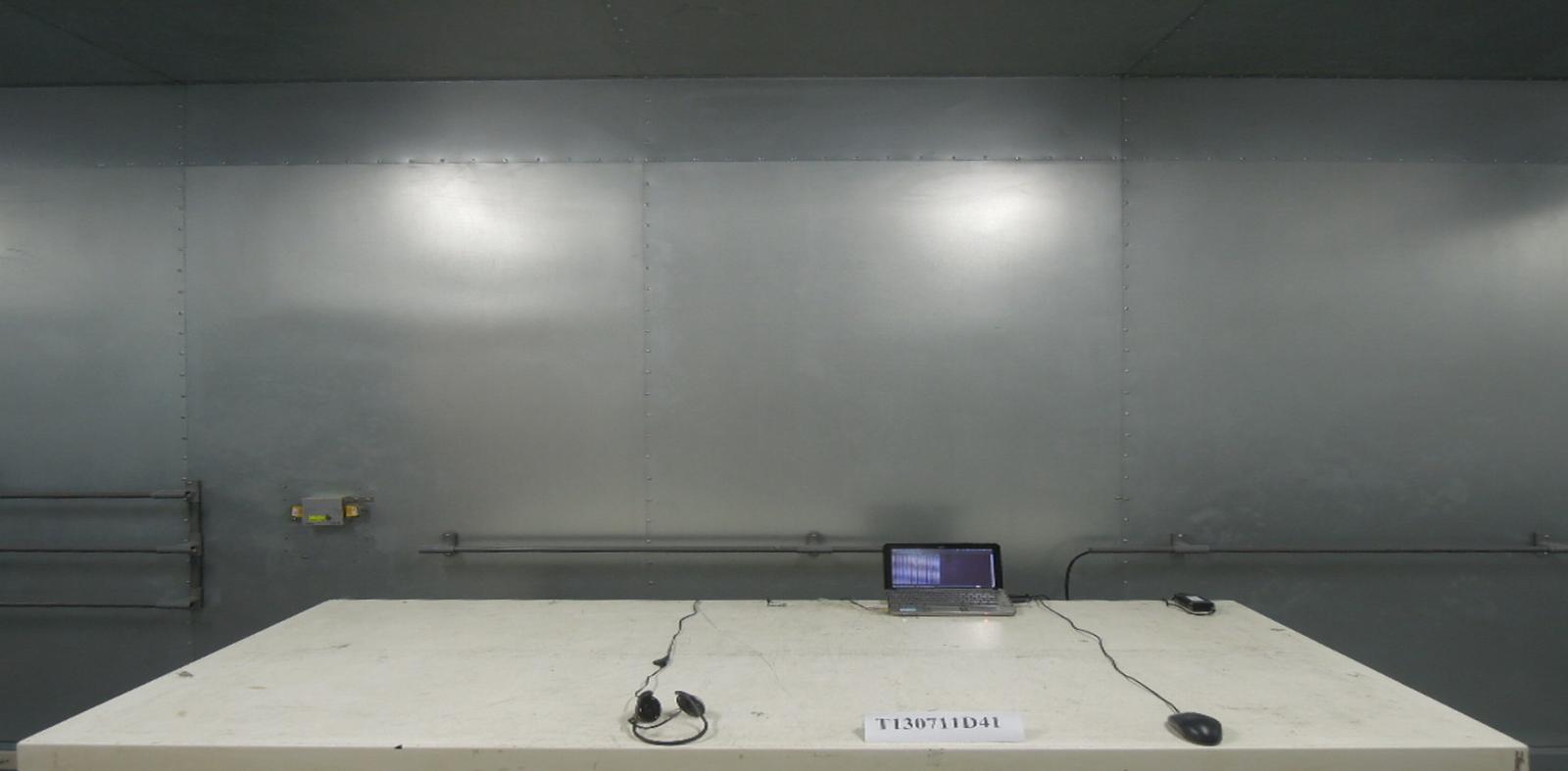

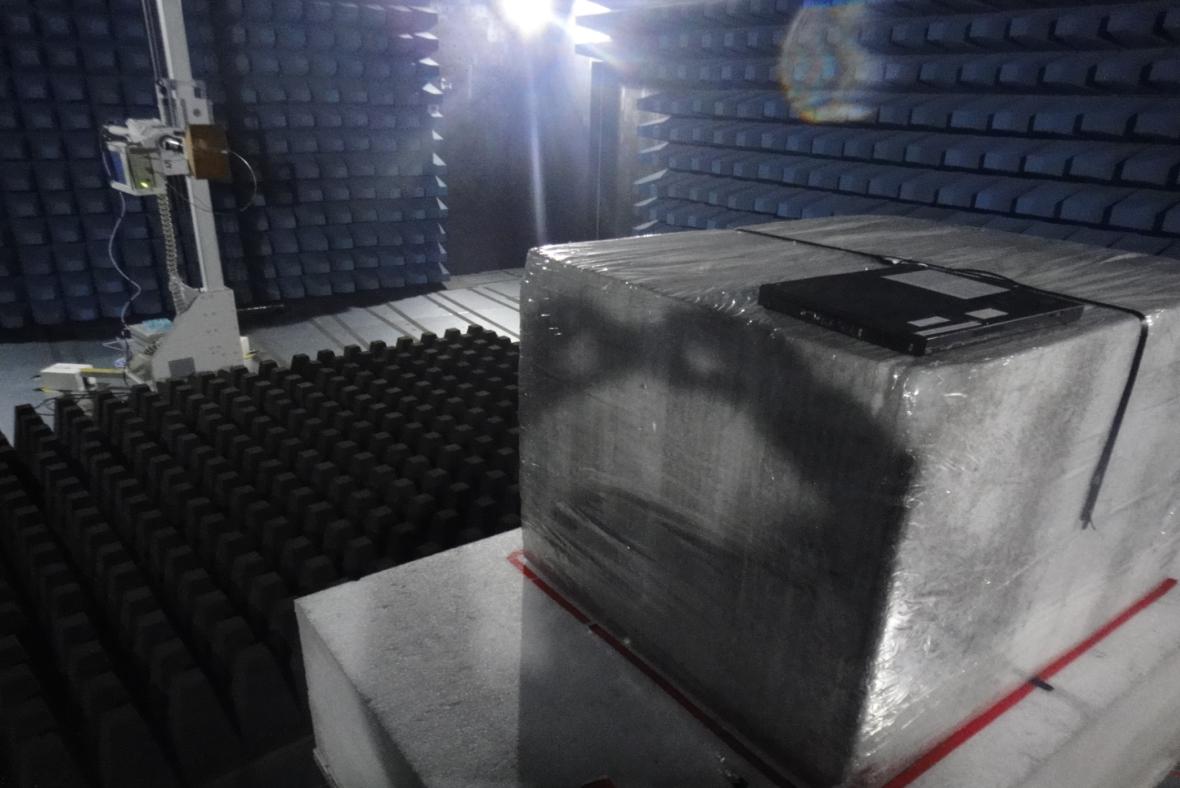

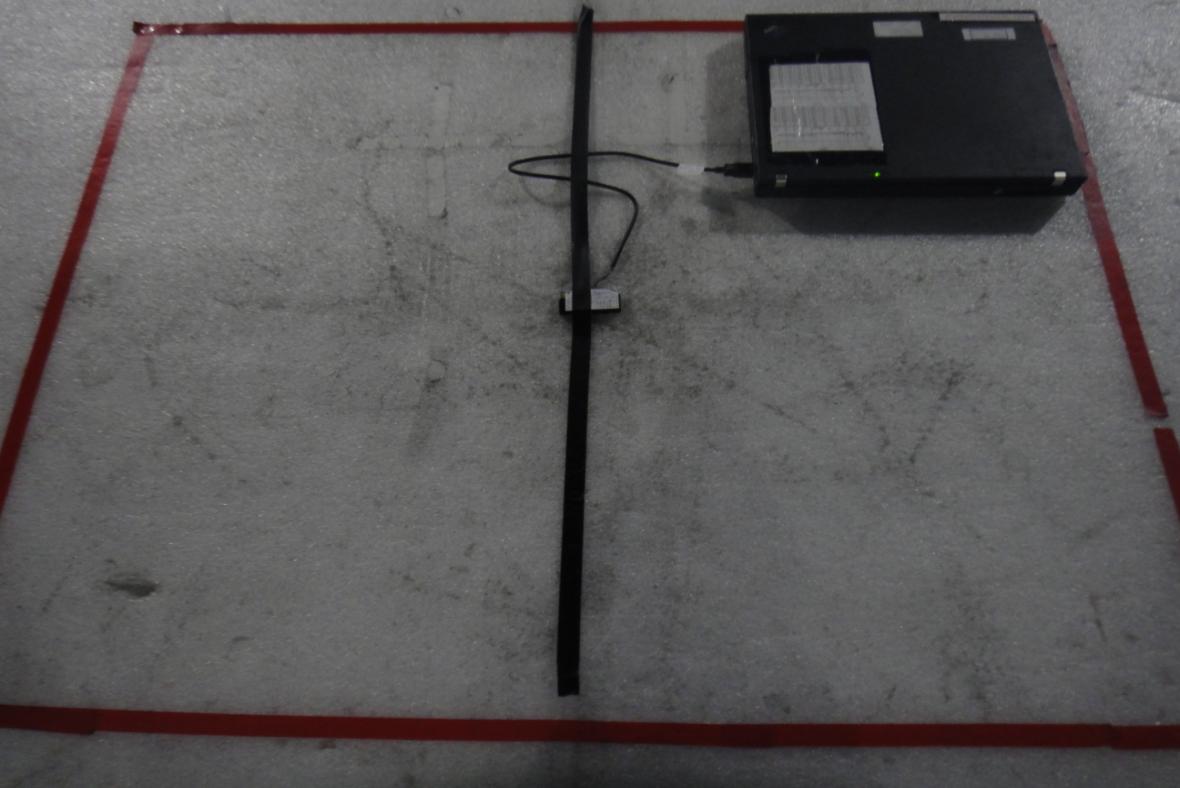

| Test Setup Photos | Test Setup Photos | 2016-05-31 | PDF 603.4 KB |
| Test setup photos - DTS | Test Setup Photos | 2013-09-04 | PDF 284.2 KB |
| Test setup photos - NII | Test Setup Photos | 2013-09-04 | PDF 342.2 KB |
| Test Report | Test Report | 2016-05-31 | PDF 1.8 MB |
| Test report - DTS | Test Report | 2013-09-04 | PDF 1,008.4 KB |
| Test report - NII | Test Report | 2013-09-04 | PDF 3.7 MB |
| WDF710Q Modular Approval letter | Attestation Statements | 2013-09-04 | PDF 107.4 KB |
| Class II Premissive Change Letter | Cover Letter(s) | 2016-05-31 | PDF 26.3 KB |
| Confidentiality Request Letter | Cover Letter(s) | 2016-05-31 | PDF 31.7 KB |
| POA | Cover Letter(s) | 2016-05-31 | PDF 32.7 KB |
| Agents letter | Cover Letter(s) | 2013-09-04 | PDF 24.1 KB |
| Confidentiality letter | Cover Letter(s) | 2013-09-04 | PDF 75.5 KB |
| RF exposure report | RF Exposure Info | 2013-09-04 | PDF 45.7 KB |
| Operational Description Software Security Metadata only | Operational Description | PDF 109.6 KB |
Application Information
| Application ID | rZzP8kVWXTgsM5n58vmD2g== |
|---|---|
| Final Action Date | 2016-05-31 |
| Application Purpose | Class II permissive change or modification of presently authorized equipment |
| Applicant FRN | 0027908797 |
| Model | WDF710Q |
| Frequency Range | 5180-5240 MHz |
| Equipment Class | NII - Unlicensed National Information Infrastructure TX |
| Device Description | Wifi Module |
| Responsible Party | Jenni Chun, General Manager, j1.chun@samsung.com , 973-808-6375 |
| Test Firm | Hank Lee, Compliance Certification Services Inc., hank.lee@sgs.com  , 886-2-22999720 |
| TCB Email | TEI@TIMCOENGR.COM  |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Single Modular Approval |
| Composite Device | Yes |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Single Modular Approval. Power listed is conducted. The antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons to satisfy the requirements of 2.1091 and must not be co-located or operated in conjunction with any other antenna or transmitter not described in this application. Only those antenna(s) tested with the device or similar antenna(s) with equal or lesser gain maybe used with this transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| rZzP8kVWXTgsM5n58vmD2g== | 2016-05-31 | Class II permissive change or modification of presently authorized equipment |
| Zt1KhHuKYljoDgyZy4Ga7Q== | 2013-09-04 | Original Equipment |
| OdL2KpenhiL8z/QQ9nOleA== | 2013-09-04 | Original Equipment |
Equipment Authorization
| Frequency | Output | Rules | Grant Notes |
|---|---|---|---|
| 2412-2462 MHz | 0.344 | 15C | CC, MO |
| 2422-2452 MHz | 0.321 | 15C | CC, MO |
| 5180-5240 MHz | 0.0454 | 15E | 38, CC |
| 5180-5240 MHz | 0.0454 | 15E | CC, MO |
| 5190-5230 MHz | 0.0272 | 15E | CC, MO |
| 5260-5320 MHz | 0.0327 | 15E | 38, CC |
| 5260-5320 MHz | 0.0327 | 15E | CC, MO |
| 5270-5310 MHz | 0.0262 | 15E | CC, MO |
| 5500-5700 MHz | 0.0307 | 15E | 38, CC |
| 5500-5700 MHz | 0.0307 | 15E | CC, MO |
| 5510-5670 MHz | 0.0274 | 15E | CC, MO |
| 5745-5825 MHz | 0.149 | 15C | CC, MO |
| 5745-5825 MHz | 0.0308 | 15E | 38, CC |
| 5755-5795 MHz | 0.149 | 15C | CC, MO |
Grants
TCB Grant - Application Zt1KhHuKYljoDgyZy4Ga7Q==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
TUV SUD BABT Octagon House, Concorde Way, Segensworth North, Fareham, PO15 5RL United Kingdom |
Date of Grant: 09/04/2013 Application Dated: 09/04/2013 |
| Samsung Electronics Co Ltd |
| 19 Chapin Rd., Building D |
| Pine Brook, NJ 07058 |
| Attention: Chan Ho Youn , General Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | A3LWDF710Q |
| Name of Grantee: | Samsung Electronics Co Ltd |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | Wifi Module |
| Modular Type: | Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC MO | 15E | 5180.0 - 5240.0 | 0.0454 | ||
| CC MO | 15E | 5190.0 - 5230.0 | 0.0272 | ||
| CC MO | 15E | 5260.0 - 5320.0 | 0.0327 | ||
| CC MO | 15E | 5270.0 - 5310.0 | 0.0262 | ||
| CC MO | 15E | 5500.0 - 5700.0 | 0.0307 | ||
| CC MO | 15E | 5510.0 - 5670.0 | 0.0274 |
| Modular Approval. Power listed is conducted. Operations in the band 5.15-5.25GHz is restricted to indoor usage only. The antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons to satisfy the requirements of 2.1091 and must not be co-located or operated in conjunction with any other antenna or transmitter not described in this application. Only those antenna(s) tested with the device or similar antenna(s) with equal or lesser gain maybe used with this transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
EAS Grant - Application Zt1KhHuKYljoDgyZy4Ga7Q==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Samsung Electronics Co Ltd 19 Chapin Rd., Building D Pine Brook, NJ 07058 United States |
Date of Grant: 09/04/2013 Application Dated: 09/04/2013 |
| Attention: Chan Ho Youn , General Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | A3LWDF710Q |
| Name of Grantee: | Samsung Electronics Co Ltd |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | Wifi Module |
| Modular Type: | Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC MO | 15E | 5180.0 - 5240.0 | 0.0454 | ||
| CC MO | 15E | 5190.0 - 5230.0 | 0.0272 | ||
| CC MO | 15E | 5260.0 - 5320.0 | 0.0327 | ||
| CC MO | 15E | 5270.0 - 5310.0 | 0.0262 | ||
| CC MO | 15E | 5500.0 - 5700.0 | 0.0307 | ||
| CC MO | 15E | 5510.0 - 5670.0 | 0.0274 |
| Modular Approval. Power listed is conducted. Operations in the band 5.15-5.25GHz is restricted to indoor usage only. The antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons to satisfy the requirements of 2.1091 and must not be co-located or operated in conjunction with any other antenna or transmitter not described in this application. Only those antenna(s) tested with the device or similar antenna(s) with equal or lesser gain maybe used with this transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
| Mail To: | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Timco Engineering, Inc. 849 NW State Road 45 Newberry, FL 32669 |
Date of Grant: 05/31/2016 Application Dated: 05/31/2016 |
| Samsung Electronics Co Ltd |
| 19 Chapin Rd., Building D |
| Pine Brook, NJ 07058 |
| Attention: Jenni Chun , General Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | A3LWDF710Q |
| Name of Grantee: | Samsung Electronics Co Ltd |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | Wifi Module |
| Modular Type: | Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 38 CC | 15E | 5180.0 - 5240.0 | 0.0454 | ||
| 38 CC | 15E | 5260.0 - 5320.0 | 0.0327 | ||
| 38 CC | 15E | 5500.0 - 5700.0 | 0.0307 | ||
| 38 CC | 15E | 5745.0 - 5825.0 | 0.0308 |
| Single Modular Approval. Power listed is conducted. The antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons to satisfy the requirements of 2.1091 and must not be co-located or operated in conjunction with any other antenna or transmitter not described in this application. Only those antenna(s) tested with the device or similar antenna(s) with equal or lesser gain maybe used with this transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. |
| 38: | This device has shown compliance, in all grant-listed U-NII sub-bands, with the new rules for U-NII devices adopted under Docket No. 13-49 and may be marketed, manufactured or imported after the June 1, 2016 transition deadline. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
EAS Grant - Application rZzP8kVWXTgsM5n58vmD2g==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Samsung Electronics Co Ltd 19 Chapin Rd., Building D Pine Brook, NJ 07058 United States |
Date of Grant: 05/31/2016 Application Dated: 05/31/2016 |
| Attention: Jenni Chun , General Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | A3LWDF710Q |
| Name of Grantee: | Samsung Electronics Co Ltd |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | Wifi Module |
| Modular Type: | Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 38 CC | 15E | 5180.0 - 5240.0 | 0.0454 | ||
| 38 CC | 15E | 5260.0 - 5320.0 | 0.0327 | ||
| 38 CC | 15E | 5500.0 - 5700.0 | 0.0307 | ||
| 38 CC | 15E | 5745.0 - 5825.0 | 0.0308 |
| Single Modular Approval. Power listed is conducted. The antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons to satisfy the requirements of 2.1091 and must not be co-located or operated in conjunction with any other antenna or transmitter not described in this application. Only those antenna(s) tested with the device or similar antenna(s) with equal or lesser gain maybe used with this transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. |
| 38: | This device has shown compliance, in all grant-listed U-NII sub-bands, with the new rules for U-NII devices adopted under Docket No. 13-49 and may be marketed, manufactured or imported after the June 1, 2016 transition deadline. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| Mail To: | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
