FCC ID A3LWEG720B
WiFi Transmitter
by Samsung Electronics Co Ltd
Grantee Code: A3L Product Code: WEG720B
Latest application date: 2016-05-28
Device Images
FCC ID Device Details
| FCC ID | A3LWEG720B |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | A3L |
| Product Code | WEG720B |
| Applicant Business | Samsung Electronics Co Ltd 🇺🇸 |
| Related Domains |  samsung.com |
| Equipment Class | WiFi Transmitter |
| Test Firm | DT&C; Co., Ltd. |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 5180-5240 MHz | Class II permissive change or modification of presently authorized equipment | 2016-05-28 |
| 2412-2462 MHz | Original Equipment | 2014-03-10 |
| 5180-5240 MHz | Original Equipment | 2014-03-10 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| User Manual | Users Manual | 2014-09-06 | PDF 68.5 KB |
| Internal Photos | Internal Photos | 2014-09-06 | PDF 363 KB |
| External Photos | External Photos | 2014-09-06 | PDF 288.9 KB |
| ID Label | ID Label/Location Info | 2014-03-10 | PDF 117.7 KB |

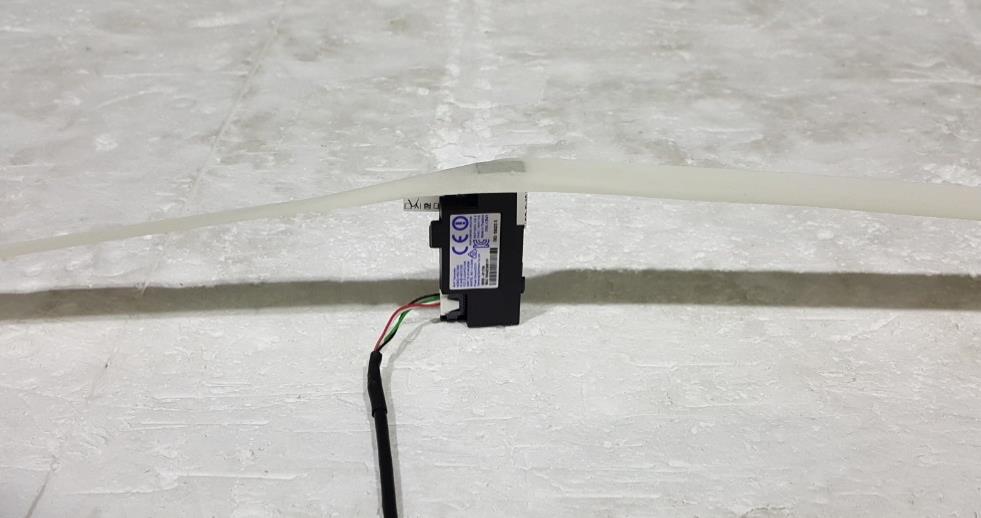

| Test setup photos | Test Setup Photos | 2016-05-28 | PDF 584.5 KB |
| Test Photo(DFS) | Test Setup Photos | 2014-09-06 | PDF 177.9 KB |
| Test Photo(NII) | Test Setup Photos | 2014-09-06 | PDF 185.5 KB |
| Test report 1 of 2 | Test Report | 2016-05-28 | PDF 3.5 MB |
| Test report 2 of 2 | Test Report | 2016-05-28 | PDF 3.5 MB |
| Test Report(DFS) | Test Report | 2014-03-10 | PDF 1.5 MB |
| Test Report(DTS)_Part1 | Test Report | 2014-03-10 | PDF 3.2 MB |
| Test Report(DTS)_Part2 | Test Report | 2014-03-10 | PDF 3.6 MB |
| Test Report(DTS)_Part3 | Test Report | 2014-03-10 | PDF 4.1 MB |
| Test Report(DTS)_Part4 | Test Report | 2014-03-10 | PDF 2.1 MB |
| Test Report(DTS)_Part5 | Test Report | 2014-03-10 | PDF 3 MB |
| Test Report(NII)_part1 | Test Report | 2014-03-10 | PDF 3.3 MB |
| Test Report(NII)_part2 | Test Report | 2014-03-10 | PDF 2.4 MB |
| Attestation letter | Attestation Statements | 2016-05-28 | PDF 64.7 KB |
| Agent authorization 1 of 2 | Cover Letter(s) | 2016-05-28 | PDF 90.2 KB |
| Agent authorization 2 of 2 | Cover Letter(s) | 2016-05-28 | PDF 288 KB |
| C2PC Cover letter | Cover Letter(s) | 2016-05-28 | PDF 54.1 KB |
| Authorization Letter | Cover Letter(s) | 2014-03-10 | PDF 79.3 KB |
| Authorization Letter for FCC application | Cover Letter(s) | 2014-03-10 | PDF 271.5 KB |
| Confidentiality Request Letter | Cover Letter(s) | 2014-03-10 | PDF 15.9 KB |
| module letter | Cover Letter(s) | 2014-03-10 | PDF 180.6 KB |
| RF exposure info | RF Exposure Info | 2016-05-28 | PDF 147.5 KB |
| RF Exposure | RF Exposure Info | 2014-03-10 | PDF 46.4 KB |
| Block Diagram Metadata only | Block Diagram | PDF 975.5 KB | |
| Schematics Metadata only | Schematics | PDF 118.1 KB | |
| Antenna Spec Metadata only | Operational Description | PDF 118.5 KB | |
| Operation description Metadata only | Operational Description | PDF 101.5 KB | |
| Software security Metadata only | SDR Software/Security Inf | PDF 72.2 KB | |
| Part List Metadata only | Parts List/Tune Up Info | PDF 48.6 KB | |
| Parts List Metadata only | Parts List/Tune Up Info | PDF 48.6 KB |
Application Information
| Application ID | Ju4YPhGLF65Gk3LIJnw4xA== |
|---|---|
| Final Action Date | 2016-05-28 |
| Application Purpose | Class II permissive change or modification of presently authorized equipment |
| Applicant FRN | 0027908797 |
| Model | WEG720B |
| Frequency Range | 5180-5240 MHz |
| Equipment Class | NII - Unlicensed National Information Infrastructure TX |
| Device Description | WiFi Transmitter |
| Responsible Party | Jenni Chun, General Manager, j1.chun@samsung.com , 973-808-6375 |
| Test Firm | WonJung Lee, DT&C; Co., Ltd., leewj@dtnc.net  , 82-31-321-2664 |
| TCB Email | LST.FRE.CertNotice@ul.com  |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Single Modular Approval |
| Composite Device | Yes |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Class II permissive change to show compliance with new UNII rules. Modular approval. Output power listed is conducted. This module supports bandwidths of 20MHz, 40MHz and 80MHz. This module may only be installed by the OEM or an OEM integrator. Only antenna(s) documented in this filings may be used with this transmitter. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be collocated or operating in conjunction with any other antenna or transmitter within a host device, except in accordance with FCC multi-transmitter product procedures. OEM integrators and End users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| Ju4YPhGLF65Gk3LIJnw4xA== | 2016-05-28 | Class II permissive change or modification of presently authorized equipment |
| w70OT3LCz07mWO56OlNY3g== | 2014-03-10 | Original Equipment |
| svZ1nOJFiCB9qtnFSEjT8Q== | 2014-03-10 | Original Equipment |
Equipment Authorization
Grants
TCB Grant - Application w70OT3LCz07mWO56OlNY3g==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
UL Verification Services Inc. (formerly UL CCS) 47173 Benicia Street Fremont, CA 94538 |
Date of Grant: 03/10/2014 Application Dated: 03/10/2014 |
| Samsung Electronics Co Ltd |
| 19 Chapin Rd., Building D |
| Pine Brook, NJ 07058 |
| Attention: Jenni Chun , General Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | A3LWEG720B |
| Name of Grantee: | Samsung Electronics Co Ltd |
| Equipment Class: | Digital Transmission System |
| Notes: | Wi-Fi Transmitter |
| Modular Type: | Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC MO | 15C | 2412.0 - 2462.0 | 0.226 | ||
| CC MO | 15C | 5745.0 - 5825.0 | 0.183 |
| Modular approval. Output power listed is conducted. This module supports 802.11 bandwidths of 20MHz and 40MHz in the 2.4GHz band and 20MHz, 40MHz and 80MHz in the 5.8GHz band. This module may only be installed by the OEM or an OEM integrator. Only antenna(s) documented in this filings may be used with this transmitter. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be collocated or operating in conjunction with any other antenna or transmitter within a host device, except in accordance with FCC multi-transmitter product procedures. OEM integrators and End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
EAS Grant - Application w70OT3LCz07mWO56OlNY3g==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Samsung Electronics Co Ltd 19 Chapin Rd., Building D Pine Brook, NJ 07058 United States |
Date of Grant: 03/10/2014 Application Dated: 03/10/2014 |
| Attention: Jenni Chun , General Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | A3LWEG720B |
| Name of Grantee: | Samsung Electronics Co Ltd |
| Equipment Class: | Digital Transmission System |
| Notes: | Wi-Fi Transmitter |
| Modular Type: | Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC MO | 15C | 2412.0 - 2462.0 | 0.226 | ||
| CC MO | 15C | 5745.0 - 5825.0 | 0.183 |
| Modular approval. Output power listed is conducted. This module supports 802.11 bandwidths of 20MHz and 40MHz in the 2.4GHz band and 20MHz, 40MHz and 80MHz in the 5.8GHz band. This module may only be installed by the OEM or an OEM integrator. Only antenna(s) documented in this filings may be used with this transmitter. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be collocated or operating in conjunction with any other antenna or transmitter within a host device, except in accordance with FCC multi-transmitter product procedures. OEM integrators and End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
| Mail To: | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
UL Verification Services Inc. (formerly UL CCS) 47173 Benicia Street Fremont, CA 94538 |
Date of Grant: 03/10/2014 Application Dated: 03/10/2014 |
| Samsung Electronics Co Ltd |
| 19 Chapin Rd., Building D |
| Pine Brook, NJ 07058 |
| Attention: Jenni Chun , General Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | A3LWEG720B |
| Name of Grantee: | Samsung Electronics Co Ltd |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | Wi-Fi Transmitter |
| Modular Type: | Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC MO | 15E | 5180.0 - 5240.0 | 0.031 | ||
| CC MO | 15E | 5260.0 - 5320.0 | 0.03 | ||
| CC MO | 15E | 5500.0 - 5700.0 | 0.028 |
| Modular approval. Output power listed is conducted. This module supports bandwidths of 20MHz, 40MHz and 80MHz. Operations in the 5150-5250 MHz are limited to indoor use only. This module may only be installed by the OEM or an OEM integrator. Only antenna(s) documented in this filings may be used with this transmitter. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be collocated or operating in conjunction with any other antenna or transmitter within a host device, except in accordance with FCC multi-transmitter product procedures. OEM integrators and End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
EAS Grant - Application svZ1nOJFiCB9qtnFSEjT8Q==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Samsung Electronics Co Ltd 19 Chapin Rd., Building D Pine Brook, NJ 07058 United States |
Date of Grant: 03/10/2014 Application Dated: 03/10/2014 |
| Attention: Jenni Chun , General Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | A3LWEG720B |
| Name of Grantee: | Samsung Electronics Co Ltd |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | Wi-Fi Transmitter |
| Modular Type: | Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC MO | 15E | 5180.0 - 5240.0 | 0.031 | ||
| CC MO | 15E | 5260.0 - 5320.0 | 0.03 | ||
| CC MO | 15E | 5500.0 - 5700.0 | 0.028 |
| Modular approval. Output power listed is conducted. This module supports bandwidths of 20MHz, 40MHz and 80MHz. Operations in the 5150-5250 MHz are limited to indoor use only. This module may only be installed by the OEM or an OEM integrator. Only antenna(s) documented in this filings may be used with this transmitter. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be collocated or operating in conjunction with any other antenna or transmitter within a host device, except in accordance with FCC multi-transmitter product procedures. OEM integrators and End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
| Mail To: | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
UL Verification Services Inc. (formerly UL CCS) 47173 Benicia Street Fremont, CA 94538 |
Date of Grant: 05/28/2016 Application Dated: 05/27/2016 |
| Samsung Electronics Co Ltd |
| 19 Chapin Rd., Building D |
| Pine Brook, NJ 07058 |
| Attention: Jenni Chun , General Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | A3LWEG720B |
| Name of Grantee: | Samsung Electronics Co Ltd |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | WiFi Transmitter |
| Modular Type: | Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 38 CC MO | 15E | 5180.0 - 5240.0 | 0.031 | ||
| 38 CC MO | 15E | 5260.0 - 5320.0 | 0.03 | ||
| 38 CC MO | 15E | 5500.0 - 5700.0 | 0.028 | ||
| 38 CC MO | 15E | 5745.0 - 5825.0 | 0.022 |
| Class II permissive change to show compliance with new UNII rules. Modular approval. Output power listed is conducted. This module supports bandwidths of 20MHz, 40MHz and 80MHz. This module may only be installed by the OEM or an OEM integrator. Only antenna(s) documented in this filings may be used with this transmitter. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be collocated or operating in conjunction with any other antenna or transmitter within a host device, except in accordance with FCC multi-transmitter product procedures. OEM integrators and End users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. |
| 38: | This device has shown compliance, in all grant-listed U-NII sub-bands, with the new rules for U-NII devices adopted under Docket No. 13-49 and may be marketed, manufactured or imported after the June 1, 2016 transition deadline. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
EAS Grant - Application Ju4YPhGLF65Gk3LIJnw4xA==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Samsung Electronics Co Ltd 19 Chapin Rd., Building D Pine Brook, NJ 07058 United States |
Date of Grant: 05/28/2016 Application Dated: 05/27/2016 |
| Attention: Jenni Chun , General Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | A3LWEG720B |
| Name of Grantee: | Samsung Electronics Co Ltd |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | WiFi Transmitter |
| Modular Type: | Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 38 CC MO | 15E | 5180.0 - 5240.0 | 0.031 | ||
| 38 CC MO | 15E | 5260.0 - 5320.0 | 0.03 | ||
| 38 CC MO | 15E | 5500.0 - 5700.0 | 0.028 | ||
| 38 CC MO | 15E | 5745.0 - 5825.0 | 0.022 |
| Class II permissive change to show compliance with new UNII rules. Modular approval. Output power listed is conducted. This module supports bandwidths of 20MHz, 40MHz and 80MHz. This module may only be installed by the OEM or an OEM integrator. Only antenna(s) documented in this filings may be used with this transmitter. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be collocated or operating in conjunction with any other antenna or transmitter within a host device, except in accordance with FCC multi-transmitter product procedures. OEM integrators and End users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. |
| 38: | This device has shown compliance, in all grant-listed U-NII sub-bands, with the new rules for U-NII devices adopted under Docket No. 13-49 and may be marketed, manufactured or imported after the June 1, 2016 transition deadline. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
| Mail To: |
