4005029T 900MHz Transmitter for Wireless... - FCC ID AAO4005029T

FCC ID AAO4005029T

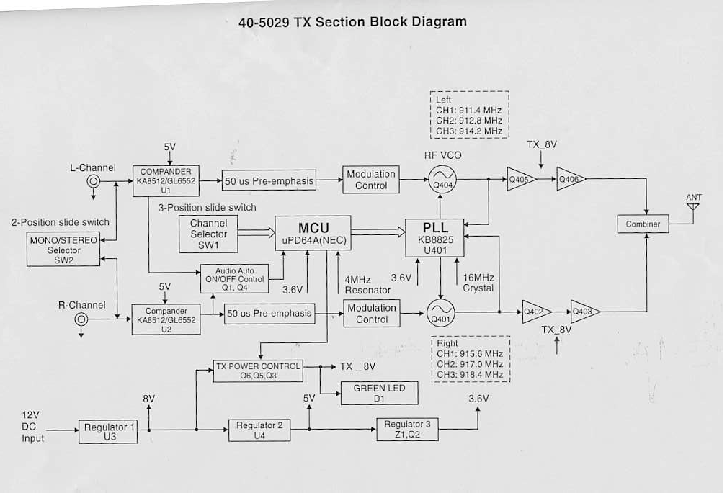

Block Diagram

900MHz Transmitter for Wireless Headphone

by RadioShack Corporation

Document preview loads when visible.

Document Details

FCC IDAAO4005029T
Document ID282609
Document TypeBlock Diagram
DescriptionBlock Diagram
ApplicantRadioShack Corporation
Equipment Class900MHz Transmitter for Wireless Headphone
Product Code4005029T
Application IDYAr64Ao8u7scK+odGQdpgg==
Application PurposeOriginal Equipment
Application Date2002-11-11
Frequency Range911.4-918.4 MHz
FRN0027478072
Test FirmIntertek Testing Services Hong Kong
Certified ByAlfred Lo Senior Technical Supervisor
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2002-11-11
Available2002-11-11
Created2002-09-18
Modified2002-11-04
Pages1
File TypeAdobe Acrobat PDF
File Size51701
File SHA-2561faf94de00da777720ba482758f0a9c2fa86597fdf80367835d41a9d2d22cded
PDF Metadata AuthorHFDENG [ CONNIE ]
PDF Metadata ProducerHewlett-Packard Intelligent Scanning Technology.3 HFDENG [ CONNIE ]
FCC.gov SourcesFCC.gov 282609
