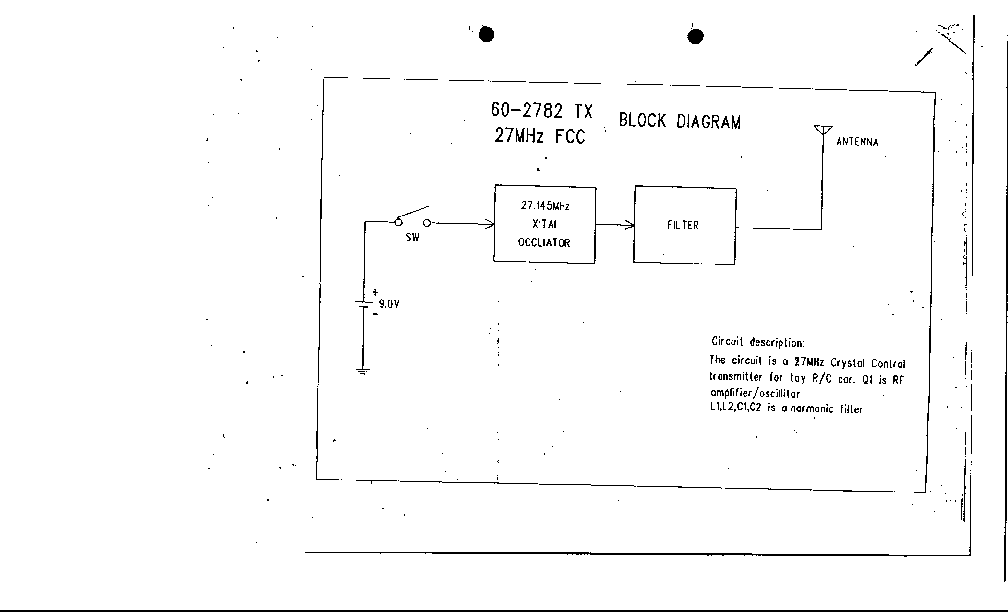

6002782 Remote Control Toy Block Diagram - FCC ID AAO6002782

FCC ID AAO6002782

Block diagram

Remote Control Toy

by RadioShack Corporation

Document preview loads when visible.

Document Details

FCC IDAAO6002782
Document ID167666
Document TypeBlock Diagram
DescriptionBlock diagram
ApplicantRadioShack Corporation
Equipment ClassRemote Control Toy
Product Code6002782
Application IDLtNKnHgUQ5bz9F954gahKA==
Application PurposeOriginal Equipment
Application Date2001-09-05
Frequency Range27.145 MHz
FRN0027478072
Test FirmIntertek Testing Services Hong Kong
Certified ByWilbur Ng Manager
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2001-09-05
Available2001-09-05
Created2001-08-03
Modified2001-08-03
Pages1
File TypeAdobe Acrobat PDF
File Size20151
File SHA-25672833bf90942cc2a37ecbfa3f693cfa08fa39819f8c56809cdb9bc7c30e75a09
PDF Metadata ProducerAcrobat 4.0 Scan Plug-in for Windows Acrobat 4.0 Scan Plug-in for Windows
FCC.gov SourcesFCC.gov 167666
