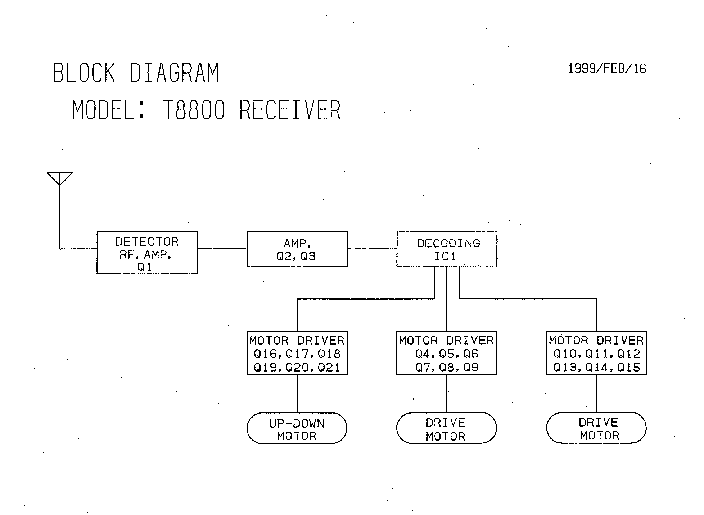

6004241RX49 Block Diagram - FCC ID AAO6004241RX49

FCC ID AAO6004241RX49

Block diagram

6004241RX49

by RadioShack Corporation

Document preview loads when visible.

Document Details

FCC IDAAO6004241RX49
Document ID37140
Document TypeBlock Diagram
DescriptionBlock diagram
ApplicantRadioShack Corporation
Equipment Class6004241RX49
Product Code6004241RX49
Application IDD4g03wtW/IwgcwrJ++9rCQ==
Application PurposeOriginal Equipment
Application Date1999-06-16
Frequency Range49.86 MHz
FRN0027478072
Test FirmIntertek Testing Services Hong Kong
Certified ByC. K. Lam Technical Manager
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartYes
Submitted1999-05-12
Available1999-06-16
Created1999-04-24
Modified1999-04-24
Pages1
File TypeAdobe Acrobat PDF
File Size22344
File SHA-256eeb9c4d06f81bfafbf3bce2221fd38beca3bc05b9ca048cba4d544de386b4dda
PDF Metadata ProducerAcrobat 3.0 Scan Plug-in Acrobat 3.0 Scan Plug-in
FCC.gov SourcesFCC.gov 37140
