6301123 Remote Door Bell (Receiver) Block... - FCC ID AAO6301123
FCC ID AAO6301123

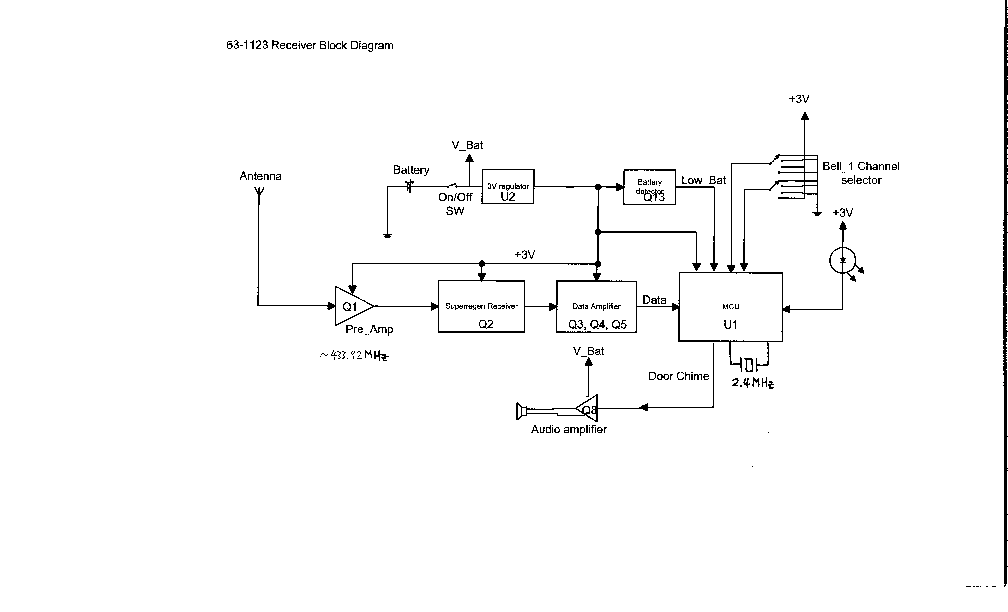

Block Diagram
Remote Door Bell (Receiver)
Document preview loads when visible.
Document Details
| FCC ID | AAO6301123 |
|---|---|
| Document ID | 253842 |
| Document Type | Block Diagram |
| Description | Block Diagram |
| Applicant | RadioShack Corporation |
| Equipment Class | Remote Door Bell (Receiver) |
| Product Code | 6301123 |
| Application ID | YvuZBbVd0dqd41n5ZkO1OA== |
| Application Purpose | Original Equipment |
| Application Date | 2002-07-01 |
| Frequency Range | 433.92 MHz |
| FRN | 0027478072 |
| Test Firm | Intertek Testing Services Hong Kong |
| Certified By | Wilson Loke Manager |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Submitted | 2002-07-01 |
| Available | 2002-07-01 |
| Created | 2002-06-14 |
| Modified | 2002-06-14 |
| Pages | 2 |
| File Type | Adobe Acrobat PDF |
| File Size | 97936 |
| File SHA-256 | 8bb4e420df7fe5e629cd7e2f13d2bd74fefd1967756db9afe886c0f8295f1ca7 |
| PDF Metadata Producer | Acrobat 4.0 Scan Plug-in for Windows Acrobat 4.0 Scan Plug-in for Windows |
| FCC.gov Sources | FCC.gov 253842 |
