932AN2301 Car Audio with Bluetooth Test... - FCC ID ACJ932AN2301
FCC ID ACJ932AN2301

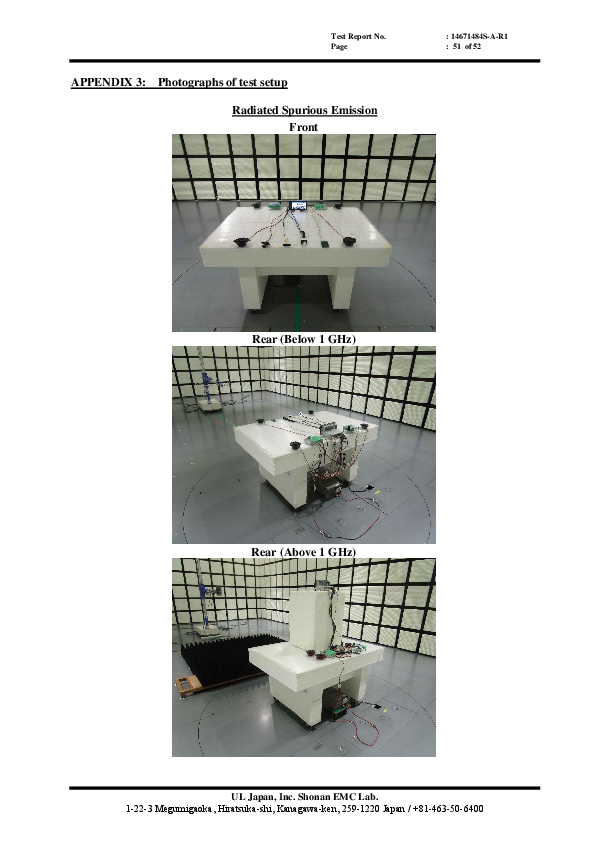

03 FCC Test Setup Photo_DSS
Car Audio with Bluetooth
Document preview loads when visible.
Document Details
| FCC ID | ACJ932AN2301 |
|---|---|
| Document ID | 6566554 |
| Document Type | Test Setup Photos |
| Description | 03 FCC Test Setup Photo_DSS |
| Applicant | Panasonic Corporation of North America |
| Equipment Class | Car Audio with Bluetooth |
| Product Code | 932AN2301 |
| Application ID | aan9witeswVO5IMobMkJ7Q== |
| Application Purpose | Original Equipment |
| Application Date | 2023-06-01 |
| Frequency Range | 2402-2480 MHz |
| FRN | 0003762242 |
| Test Firm | UL Japan, Inc. SHONAN EMC LABORATORY |
| Certified By | Rie Fujiwara Project Coordinator |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Submitted | 2023-06-01 |
| Available | 2023-06-01 |
| Created | 2023-04-13 |
| Modified | 2023-04-13 |
| Pages | 2 |
| File Type | Adobe Acrobat PDF |
| File Size | 326395 |
| File SHA-256 | b7e86c2f01fd9c8c3c52ffff2658eb21665e7948f8f66ea0856a53ce1a65adee |
| PDF Metadata Producer | PScript5.dll Version 5.2.2 Acrobat Distiller 23.0 (Windows) |
| FCC.gov Sources | FCC.gov 6566554 |
