FCC ID ACQ-DCX3635
Cable Set Top Box
by ARRIS
Grantee Code: ACQ Product Code: DCX3635
Latest application date: 2015-10-22
Device Images
FCC ID Device Details
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 2425-2475 MHz | Original Equipment | 2015-10-22 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| Provisioning and Installation Guide | Users Manual | 2015-10-22 | PDF 1.5 MB |
| User Manual Statements | Users Manual | 2015-10-22 | PDF 203.4 KB |

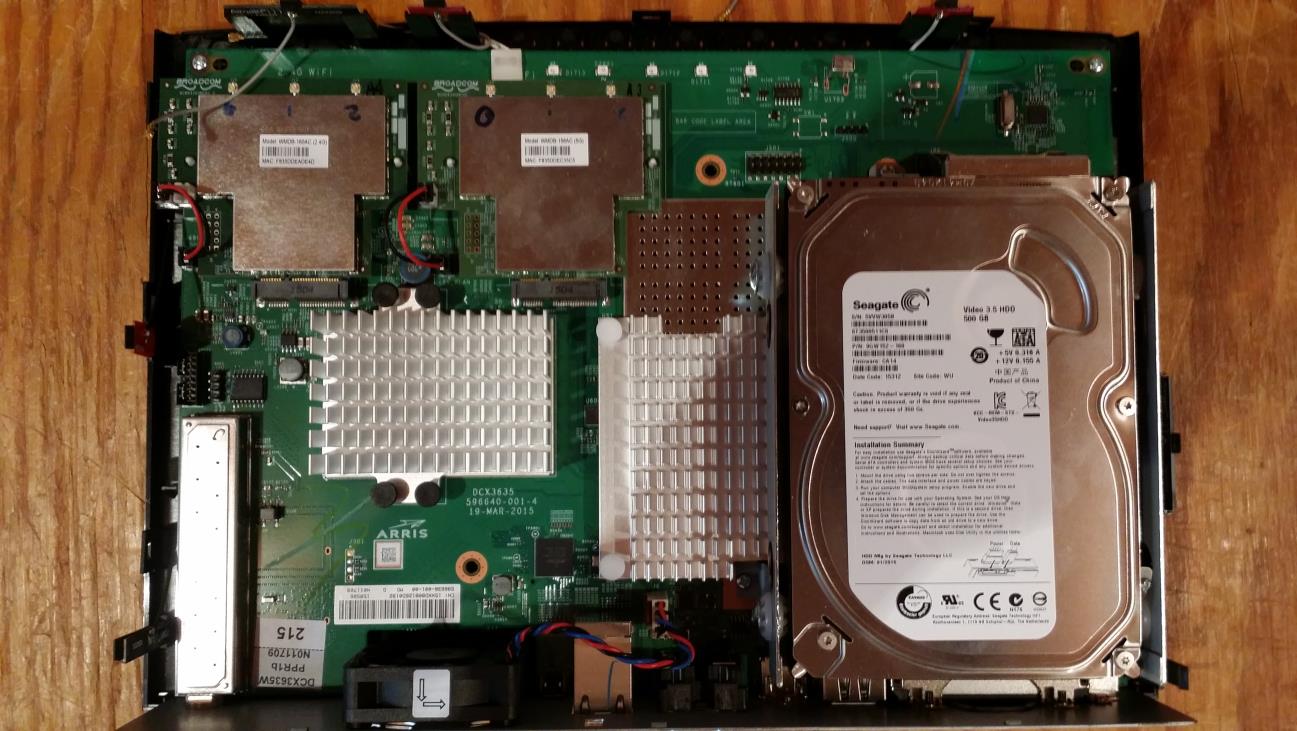

| Internal Photos | Internal Photos | 2015-10-22 | PDF 928.1 KB |
| External Photos | External Photos | 2015-10-22 | PDF 563.8 KB |
| Label - DCX3635 6400 0522 0500 | ID Label/Location Info | 2015-10-22 | PDF 212.8 KB |
| Label - DCX3635 6480 0522 0500 | ID Label/Location Info | 2015-10-22 | PDF 212.7 KB |
| Label - DCX3635 6480 0522 1000 | ID Label/Location Info | 2015-10-22 | PDF 213.2 KB |

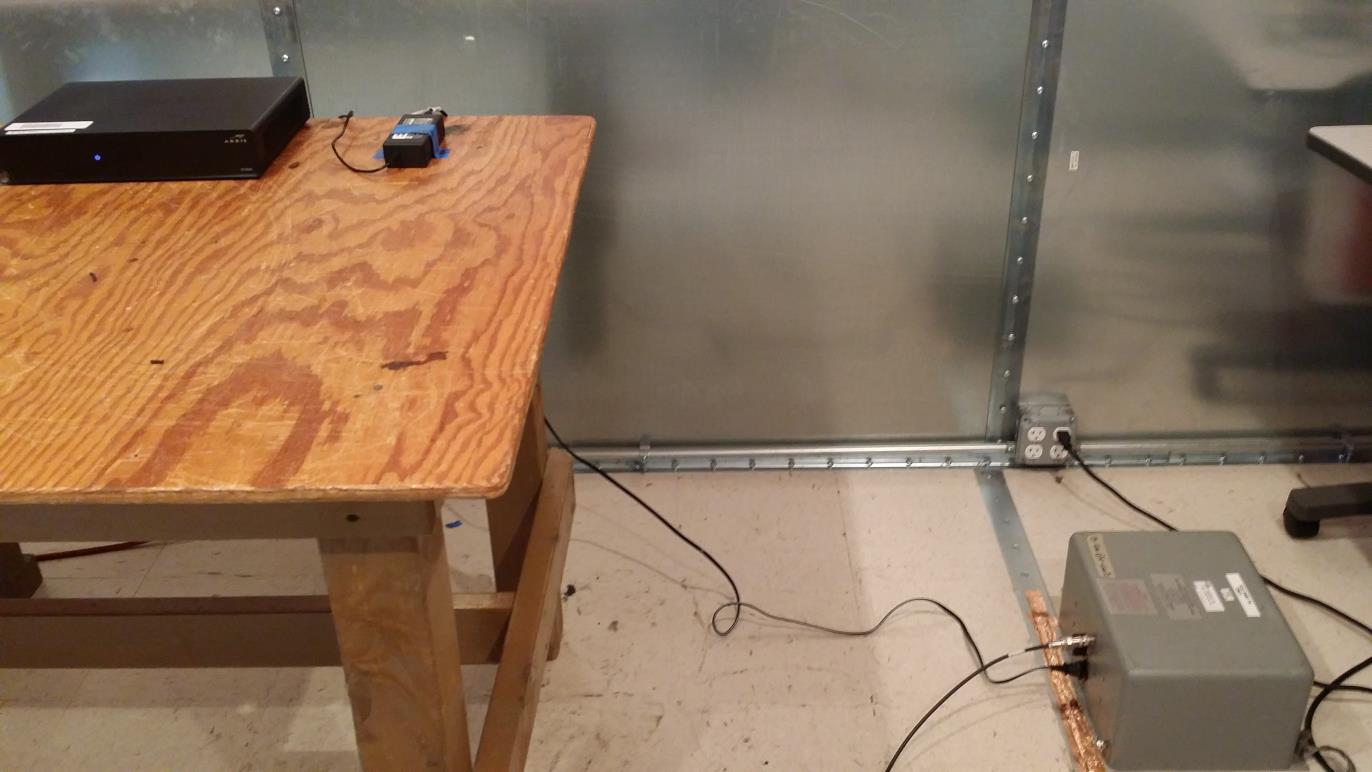

| Test Setup Photos | Test Setup Photos | 2015-10-22 | PDF 187.4 KB |
| Test Report | Test Report | 2015-10-22 | PDF 1.4 MB |
| Long Term Confidentiality | Cover Letter(s) | 2015-10-22 | PDF 14.9 KB |
| MPE - ZigBee | RF Exposure Info | 2015-10-22 | PDF 89 KB |
| Block Diagram Metadata only | Block Diagram | PDF 18 KB | |
| Block Diagram DCX Metadata only | Block Diagram | PDF 34.4 KB | |
| Schematics Metadata only | Schematics | PDF 1.3 MB | |
| Operational Description Metadata only | Operational Description | PDF 925.8 KB | |
| Operational Description DCX Metadata only | Operational Description | PDF 98.4 KB | |
| Operations and Monitoring Guide Metadata only | Operational Description | PDF 4.9 MB |
Application Information
| Application ID | LeJXNkLnKArPkN5L4zvGPw== |
|---|---|
| Final Action Date | 2015-10-22 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0007379399 |
| Model | DCX3635 |
| Frequency Range | 2425-2475 MHz |
| Equipment Class | DTS - Digital Transmission System |
| Device Description | Cable Set Top Box |
| Responsible Party | Jorge Villarreal, Jorge.Villarreal@arris.com  , 215-323-1697 |
| Technical Contact | Michael Welty, ARRIS Group, Inc., Michael.welty@arris.com , 215-323-2117 |
| Test Firm | Greg Kovolenko, EUROFINS ELECTRICAL AND ELECTRONIC TESTING NA, INC, greg.kovolenko@metlabs.com  , 4108444071 |
| TCB Email | tcbinfo@metlabs.com |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Output power is conducted. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| LeJXNkLnKArPkN5L4zvGPw== | 2015-10-22 | Original Equipment |
Equipment Authorization
| Frequency | Output | Rules |
|---|---|---|
| 2425-2475 MHz | 0.0020000 | 15C |
Grants
TCB Grant - Application LeJXNkLnKArPkN5L4zvGPw==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Eurofins Electrical and Electronic Testing NA, Inc 914 W. Patapsco Avenue Baltimore, MD 21230-3432 |
Date of Grant: 10/22/2015 Application Dated: 10/22/2015 |
| ARRIS |
| 101 Tournament Drive |
| Horsham, PA 19044 |
| Attention: Jorge Villarreal |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | ACQ-DCX3635 |
| Name of Grantee: | ARRIS |
| Equipment Class: | Digital Transmission System |
| Notes: | Cable Set Top Box |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 15C | 2425.0 - 2475.0 | 0.002 |
| Output power is conducted. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. |
EAS Grant - Application LeJXNkLnKArPkN5L4zvGPw==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
ARRIS 101 Tournament Drive Horsham, PA 19044 United States |
Date of Grant: 10/22/2015 Application Dated: 10/22/2015 |
| Attention: Jorge Villarreal |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | ACQ-DCX3635 |
| Name of Grantee: | ARRIS |
| Equipment Class: | Digital Transmission System |
| Notes: | Cable Set Top Box |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 15C | 2425.0 - 2475.0 | 0.002 |
| Output power is conducted. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. |
| Mail To: |
