DSR800 Satellite Set-Top Box Label Diagram - FCC ID ACQ-DSR800
FCC ID ACQ-DSR800

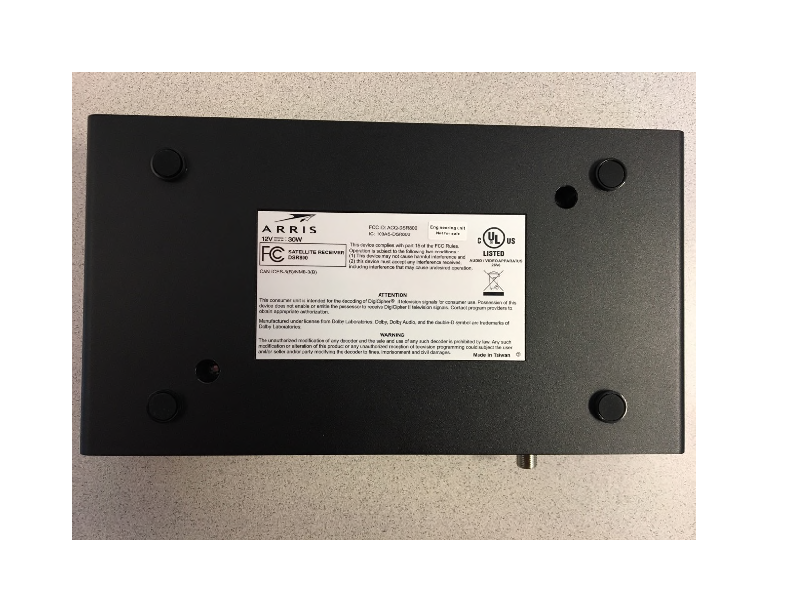

Label Sample & Label Location.pdf
Satellite Set-Top Box
by ARRIS
Document preview loads when visible.
Document Details
| FCC ID | ACQ-DSR800 |
|---|---|
| Document ID | 3413214 |
| Document Type | ID Label/Location Info |
| Description | Label Sample & Label Location.pdf |
| Document Title | 1 |
| Applicant | ARRIS |
| Equipment Class | Satellite Set-Top Box |
| Product Code | DSR800 |
| Application ID | 5rXx50D6jawSjq60k5lnig== |
| Application Purpose | Original Equipment |
| Application Date | 2017-06-05 |
| Frequency Range | 5180-5240 MHz |
| FRN | 0007379399 |
| Test Firm | Bureau Veritas CPS (H.K.) Ltd., Taoyuan Branch |
| Certified By | Andrea Hsia Senior Specialist |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Short-Term Confidentiality Date | 12/02/2017 |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | Yes |
| Composite Part | No |
| Submitted | 2017-06-05 |
| Available | 2017-06-05 |
| Created | 2017-01-27 |
| Modified | 2017-05-11 |
| Pages | 1 |
| File Type | Adobe Acrobat PDF |
| File Size | 168266 |
| File SHA-256 | 39093efa6cef7e47b844adf85c5d1d2d53272c9c2b26061c16e6dfea803801f2 |
| PDF Metadata Author | rdoyle |
| PDF Metadata Producer | rdoyle Nuance PDF Create 8 |
| FCC.gov Sources | FCC.gov 3413214, FCC.gov 3413184 |
