9ZWRTR085A Marine Radar Block Diagram - FCC ID ADB9ZWRTR085A
FCC ID ADB9ZWRTR085A

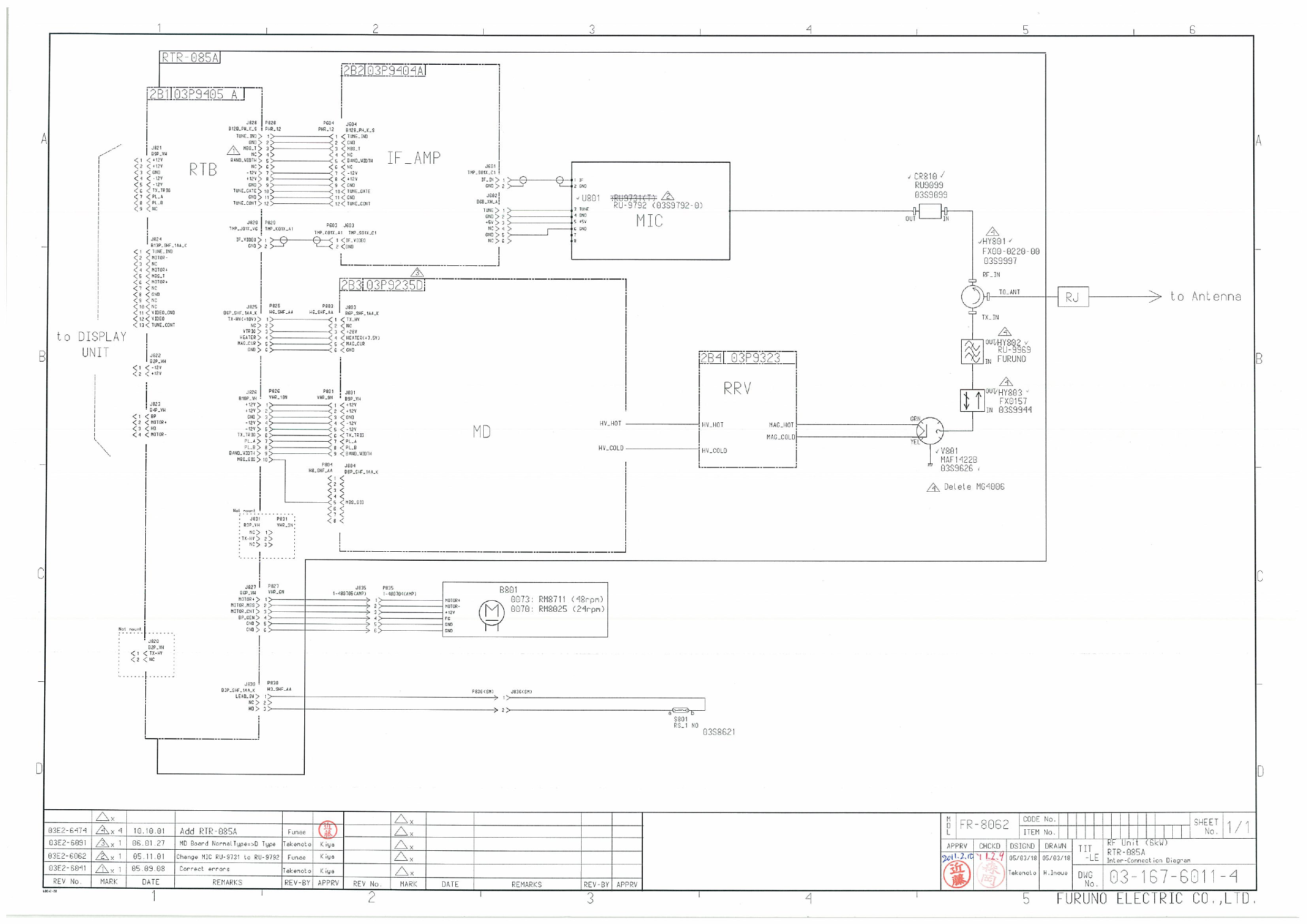

block diagram
Marine Radar
Document preview loads when visible.
Document Details
| FCC ID | ADB9ZWRTR085A |
|---|---|
| Document ID | 1472894 |
| Document Type | Block Diagram |
| Description | block diagram |
| Document Title | None |
| Applicant | Furuno USA Inc |
| Equipment Class | Marine Radar |
| Product Code | 9ZWRTR085A |
| Application ID | 1RDTbEoTw7ORJ+Js75hG6A== |
| Application Purpose | Original Equipment |
| Application Date | 2011-06-07 |
| Frequency Range | 9300-9500 MHz |
| FRN | 0005903604 |
| Certified By | Shane Ryan Deep Sea Type Acceptance |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Submitted | 2011-05-26 |
| Available | 2011-06-07 |
| Created | 2011-03-16 |
| Modified | 2011-03-16 |
| Pages | 1 |
| File Type | Adobe Acrobat PDF |
| File Size | 496803 |
| File SHA-256 | cf72b6cff921bbedcf8bfb7253c10f43830151d0c7a22554771da81beb42f7fe |
| PDF Metadata Author | None |
| PDF Metadata Creator | ApeosPort-III C4400 |
| PDF Metadata Producer | ApeosPort-III C4400 |
| FCC.gov Sources | FCC.gov 1472894 |
