U9W33 WiFi Module External Photos - FCC ID ADTU9W33
FCC ID ADTU9W33

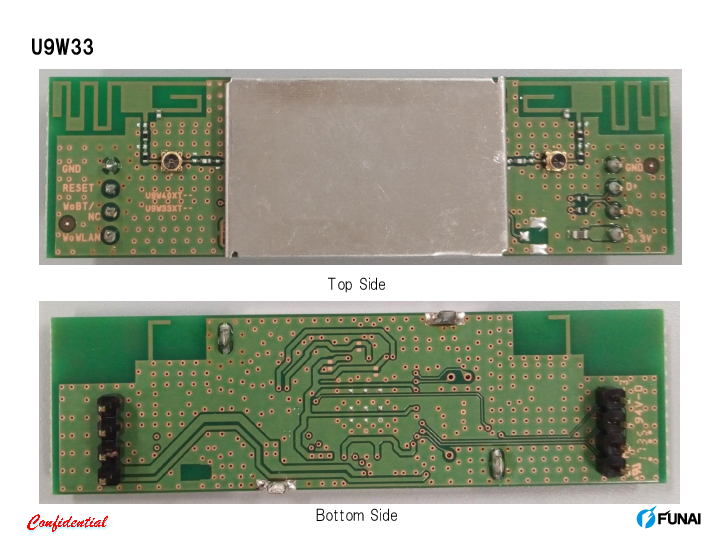

External Photo
WiFi Module
Document preview loads when visible.
Document Details
| FCC ID | ADTU9W33 |
|---|---|
| Document ID | 3774576 |
| Document Type | External Photos |
| Description | External Photo |
| Document Title | Folie 1 |
| Applicant | Funai Electric Co Ltd |
| Equipment Class | WiFi Module |
| Product Code | U9W33 |
| Application ID | EmK/uzavXn/ZLbvzwX3Uqg== |
| Application Purpose | Original Equipment |
| Application Date | 2018-03-09 |
| Frequency Range | 5180-5240 MHz |
| FRN | 0024682353 |
| Test Firm | KEC Electronic Industry Development Center |
| Certified By | Yoshihisa Maeda Project Engineer |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Single Modular Approval |
| Composite Device | Yes |
| Composite Part | No |
| Submitted | 2018-03-09 |
| Available | 2018-03-09 |
| Created | 2018-01-23 |
| Modified | 2018-01-23 |
| Pages | 1 |
| File Type | Adobe Acrobat PDF |
| File Size | 364912 |
| File SHA-256 | 0ac285c6a876bf6ca05b9410b98390af614ccbc754ca5fb2ef4bca4e6514e4b8 |
| PDF Metadata Author | edp |
| PDF Metadata Producer | edp Microsoft® PowerPoint® 2010 |
| FCC.gov Sources | FCC.gov 3774576 |
