XHC00UH SOUNDBAR Label Diagram - FCC ID ADTXHC00UH
FCC ID ADTXHC00UH

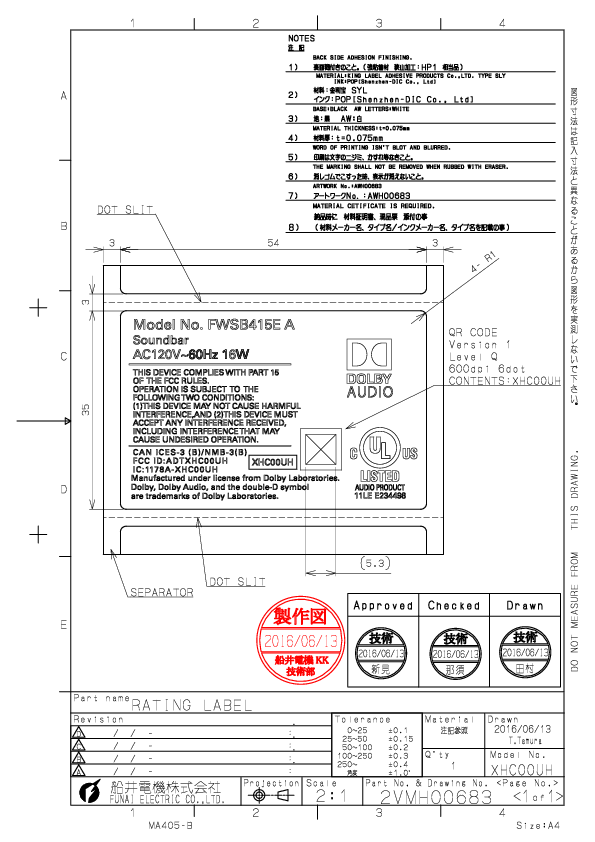

ID label
SOUNDBAR
Document preview loads when visible.
Document Details
| FCC ID | ADTXHC00UH |
|---|---|
| Document ID | 3090607 |
| Document Type | ID Label/Location Info |
| Description | ID label |
| Applicant | Funai Electric Co Ltd |
| Equipment Class | SOUNDBAR |
| Product Code | XHC00UH |
| Application ID | qbTxC2XZ7M4v8m3g4iApXg== |
| Application Purpose | Original Equipment |
| Application Date | 2016-08-07 |
| Frequency Range | 2402-2480 MHz |
| FRN | 0024682353 |
| Test Firm | UL Japan, Inc. Head office EMC Lab. |
| Certified By | Yoshihisa Maeda Project Engineer |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Short-Term Confidentiality Date | 02/03/2017 |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Submitted | 2016-08-07 |
| Available | 2016-08-07 |
| Created | 2016-06-13 |
| Modified | 2016-08-03 |
| Pages | 2 |
| File Type | Adobe Acrobat PDF |
| File Size | 674424 |
| File SHA-256 | 40f86705ee5daeb113decd91da3ff015561d37cd662fe351ada19dda9fe85afe |
| PDF Metadata Author | NX |
| PDF Metadata Producer | NX PDFlib+PDI 8.0.1p3 (C++/Win64) |
| FCC.gov Sources | FCC.gov 3090607 |
