M903 Microwave Oven Schematics - FCC ID AEZM903
FCC ID AEZM903

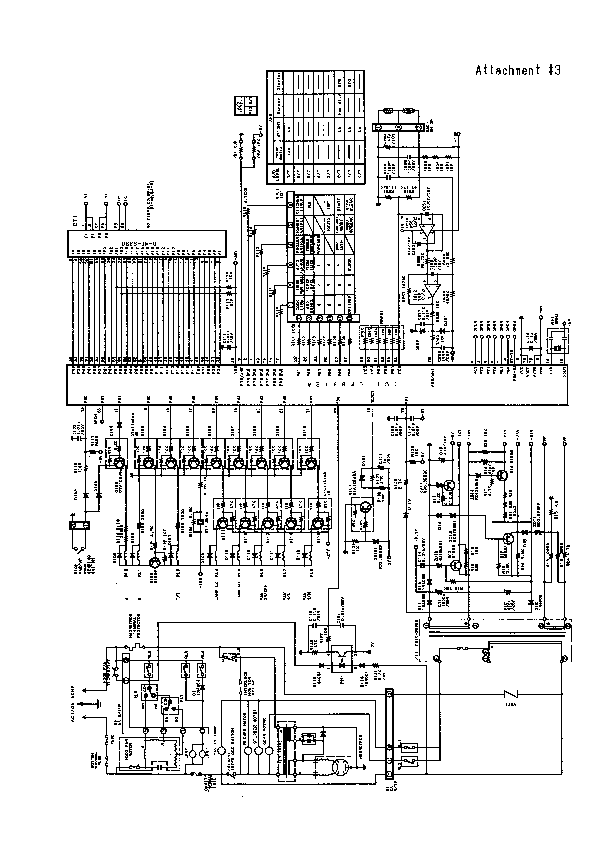

Circuit Diagram
Microwave Oven
Document preview loads when visible.
Document Details
| FCC ID | AEZM903 |
|---|---|
| Document ID | 123035 |
| Document Type | Schematics |
| Description | Circuit Diagram |
| Document Title | .橡.M903 Attach #3 |
| Applicant | Sanyo Electric Co Ltd |
| Equipment Class | Microwave Oven |
| Product Code | M903 |
| Application ID | 7G5trhUyecIMauTlwNTQOQ== |
| Application Purpose | Original Equipment |
| Application Date | 2000-11-08 |
| Frequency Range | 2450 MHz |
| FRN | 0005810585 |
| Test Firm | Kansai Electronic Industry Dev. Ct. |
| Certified By | James M. Roach Technical Consultant |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Submitted | 2000-10-27 |
| Available | 2000-11-08 |
| Created | 2000-10-05 |
| Modified | 2000-10-05 |
| Pages | 1 |
| File Type | Adobe Acrobat PDF |
| File Size | 34702 |
| File SHA-256 | 69a50a8c17cf60dd6495a4d8b4e9781703bb79ebc16f452643c62fb377ce3b53 |
| PDF Metadata Author | .橡.電子レンジ技術部 |
| PDF Metadata Producer | .橡.M903 Attach #3 Acrobat PDFWriter 3.0J Windows |
| FCC.gov Sources | FCC.gov 123035 |
