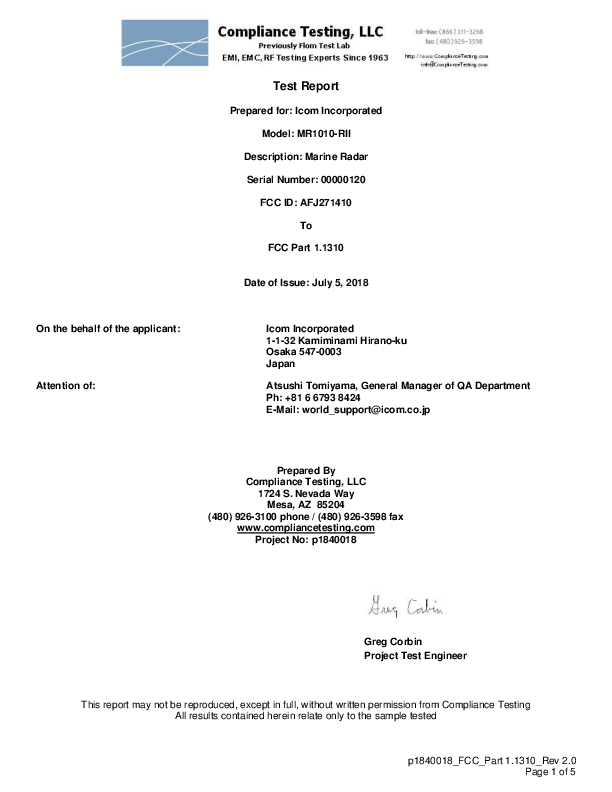

Test Report
Prepared for: Icom Incorporated
Model: MR1010-RII
Description: Marine Radar
Serial Number: 00000120
FCC ID: AFJ271410
To
FCC Part 1.1310
Date of Issue: July 5, 2018
On the behalf of the applicant:
Icom Incorporated
1-1-32 Kamiminami Hirano-ku
Osaka 547-0003
Japan
Attention of:
Atsushi Tomiyama, General Manager of QA Department
Ph: +81 6 6793 8424
E-Mail: world_support@icom.co.jp
Prepared By
Compliance Testing, LLC
1724 S. Nevada Way
Mesa, AZ 85204
(480) 926-3100 phone / (480) 926-3598 fax
www.compliancetesting.com
Project No: p1840018
Greg Corbin
Project Test Engineer
This report may not be reproduced, except in full, without written permission from Compliance Testing
All results contained herein relate only to the sample tested
p1840018_FCC_Part 1.1310_Rev 2.0
Page 1 of 5
Test Report Revision History
Revision
Date
Revised By
Reason for Revision
1.0
June 26, 2018
Greg Corbin
Original Document
2.0
July 3, 2018
Greg Corbin
Changed portable to mobile device on page 4
Revised calculations for antenna gain of 27 dBi.
p1840018_FCC_Part 1.1310_Rev 2.0
Page 2 of 5
ILAC / A2LA
Compliance Testing, LLC, has been accredited in accordance with the recognized International Standard
ISO/IEC 17025:2005. This accreditation demonstrates technical competence for a defined scope and the
operation of a laboratory quality management system (refer joint ISO-ILAC-IAF CommuniquĂŠ dated
January 2009)
The tests results contained within this test report all fall within our scope of accreditation, unless below
Please refer to http://www.compliancetesting.com/labscope.html for current scope of accreditation.
Testing Certificate Number: 2152.01
FCC Site Reg. #349717
IC Site Reg. #2044A-2
Non-accredited tests contained in this report:
N/A
EUT Description
Model: MR1010-RII
Description: Marine Radar
Serial Number: 00000120
Additional Information:
The EUT is a 4kW Radome Scanner Marine Radar operating at 9.4 GHz.
The radar operates from 10.2 – 42 volts DC.
There is a 10 inch color TFT display that is used to control the radar and display the radar images.
The RF output going to the antenna port is WR90 waveguide.
Due to the wide bandwidth (10 – 27 MHz, dependent on PW and PRR) of the radar signal, the channel
power was measured using the channel power tool on the spectrum analyzer.
The channel power was measured for all combinations of PW and PRR and the combination with the
highest output was used to calculate the RF exposure.
p1840018_FCC_Part 1.1310_Rev 2.0
Page 3 of 5
MPE Evaluation
This is a mobile device used in Uncontrolled Exposure environment.
Limits Uncontrolled Exposure
47 CFR 1.1310
Table 1, (B)
0.3-1.234 MHz:
1.34-30 MHz:
30-300 MHz:
300-1500 MHz:
1500-100,000 MHz
Limit [mW/cm²] = 100
Limit [mW/cm²] = (180/f²)
Limit [mW/cm²] = 0.2
Limit [mW/cm²] = f/1500
Limit [mW/cm²] = 1.0
Test Data
Test Frequency, MHz
Power, Conducted, mW (P)
Antenna Gain Isotropic
Antenna Gain Numeric (G)
Antenna Type
Distance (R)
9419
1291.2
27 dBi
501.18
Slotted Waveguide Array
20 cm
𝑃∗𝐺
4𝜋𝑟 2
Power Density (S) mw/cm2
𝑆=
128.7 mw/cm2
Power Density (S) = 128.7 mw/cm2
Limit = (from above table) = 1.0 mw/cm2
The power density at 128.7 mw/cm2 is over the 1.0 mw/cm2 limit so the minimum safe distance was
calculated.
p1840018_FCC_Part 1.1310_Rev 2.0
Page 4 of 5
Minimum Safe Distance Evaluation
This is a mobile device used in Uncontrolled Exposure environment.
Limits Uncontrolled Exposure
47 CFR 1.1310
Table 1, (B)
0.3-1.234 MHz:
1.34-30 MHz:
30-300 MHz:
300-1500 MHz:
1500-100,000 MHz
Limit [mW/cm²] = 100
Limit [mW/cm²] = (180/f²)
Limit [mW/cm²] = 0.2
Limit [mW/cm²] = f/1500
Limit [mW/cm²] = 1.0
Test Data
Test Frequency, MHz
Power, Conducted, mW (P)
Antenna Gain Isotropic
Antenna Gain Numeric (G)
Antenna Type
Limit (L)
9419
1291.2
27 dBi
501.18
Slotted Waveguide Array
20 cm
R=√(PG/4πL)
Distance (R) cm
227
Power mW (P)
Numeric Gain (G)
1291.2
501.18
Limit (L)
1.0
The minimum safe distance is 227 cm with a 27 dBi gain antenna.
END OF TEST REPORT
