FCC ID AFJ297410
VHF Air Band Transceiver
by ICOM Incorporated
Grantee Code: AFJ Product Code: 297410
Latest application date: 2016-06-07
Device Images
FCC ID Device Details
| FCC ID | AFJ297410 |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | AFJ |
| Product Code | 297410 |
| Applicant Business | ICOM Incorporated 🇯🇵 |
| Related Domains |  icom.co.jp |
| Equipment Class | VHF Air Band Transceiver |
| Test Firm | UltraTech Engineering Labs Inc. |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 118-136.975 MHz | Class II permissive change or modification of presently authorized equipment | 2016-06-07 |
| 118-136.975 MHz | Original Equipment | 2015-03-11 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| User Manual | Users Manual | 2015-07-01 | PDF 1.9 MB |
| Internal Photos | Internal Photos | 2016-06-07 | PDF 1.3 MB |
| Internal Photos | Internal Photos | 2015-07-01 | PDF 156.4 KB |
| External Photos | External Photos | 2015-07-01 | PDF 85.5 KB |
| ID label & Location | ID Label/Location Info | 2016-06-07 | PDF 284.2 KB |
| Label & Location | ID Label/Location Info | 2015-03-11 | PDF 272.5 KB |

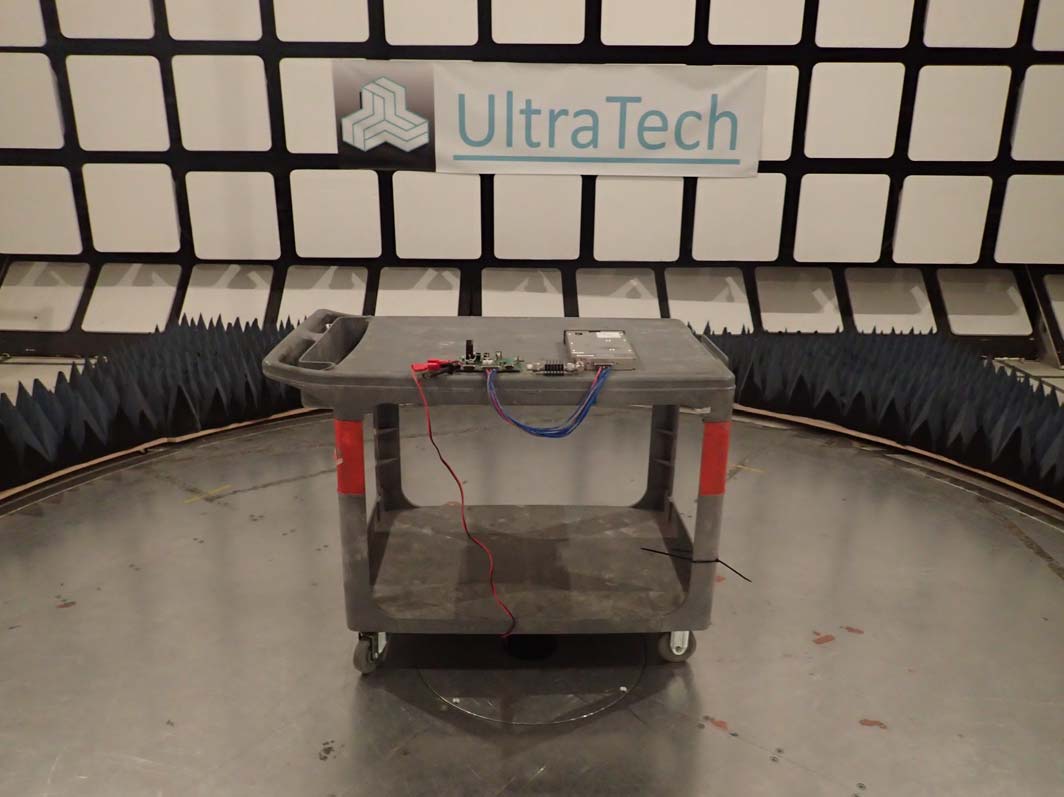

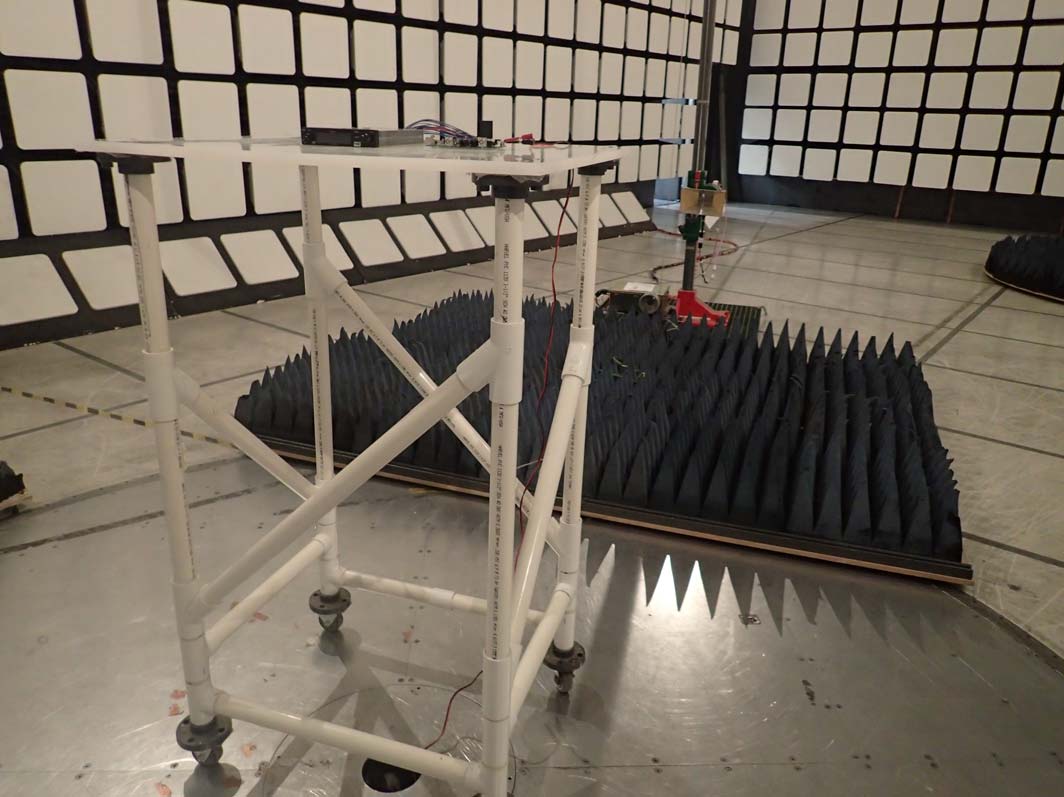

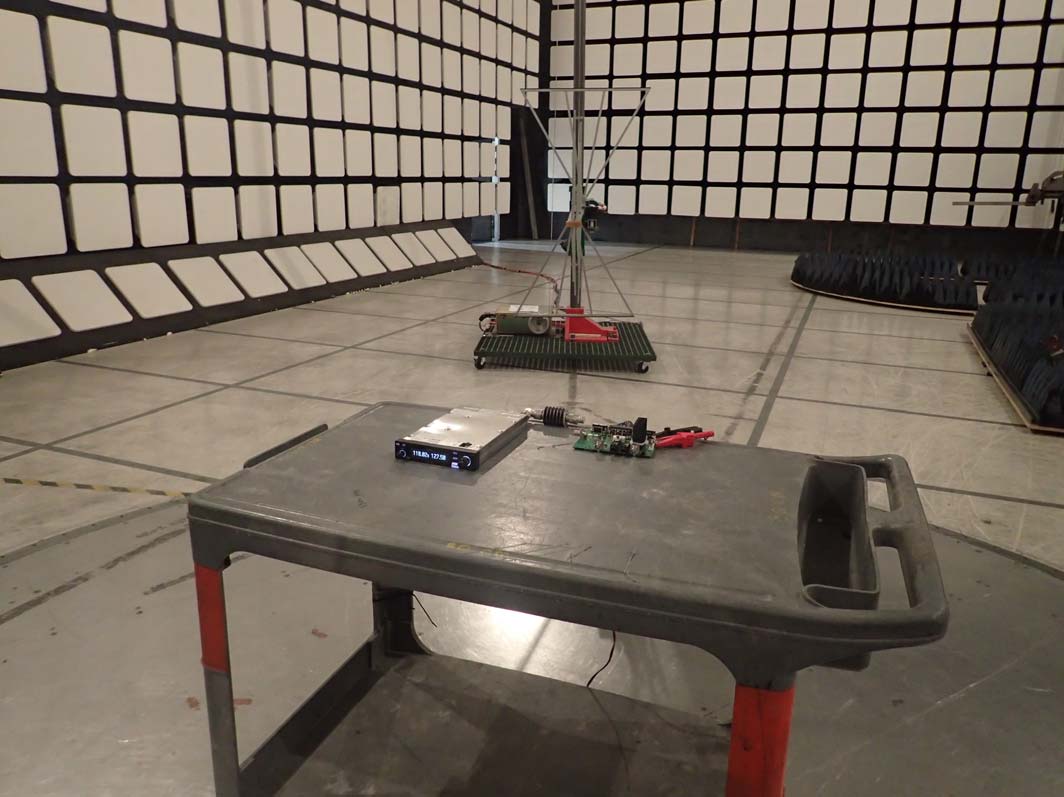

| Test Setup | Test Setup Photos | 2016-06-07 | PDF 253.7 KB |
| Test Setup Photos | Test Setup Photos | 2015-03-11 | PDF 360.2 KB |
| Test Report | Test Report | 2016-06-07 | PDF 182.8 KB |
| Test Report | Test Report | 2015-03-11 | PDF 748.3 KB |
| FAA Approval | Attestation Statements | 2015-03-11 | PDF 43 KB |
| FAA Submission | Attestation Statements | 2015-03-11 | PDF 297.3 KB |
| Manufacturer Attestation | Attestation Statements | 2015-03-11 | PDF 20.9 KB |
| Part 87 Attestation | Attestation Statements | 2015-03-11 | PDF 18.6 KB |
| Agent Authorization Letter | Cover Letter(s) | 2016-06-07 | PDF 39 KB |
| C2PC | Cover Letter(s) | 2016-06-07 | PDF 25.6 KB |
| Confidentiality Request | Cover Letter(s) | 2016-06-07 | PDF 35.4 KB |
| Cover Letter | Cover Letter(s) | 2016-06-07 | PDF 60.7 KB |
| Authority Letter | Cover Letter(s) | 2015-03-11 | PDF 32.3 KB |
| Confidentiality Letter | Cover Letter(s) | 2015-03-11 | PDF 31.7 KB |
| Cover Letter | Cover Letter(s) | 2015-03-11 | PDF 89.1 KB |
| RF Exposure | RF Exposure Info | 2015-03-11 | PDF 186.1 KB |
| Block Diagram Metadata only | Block Diagram | PDF 44.5 KB | |
| Block Diagram Metadata only | Block Diagram | PDF 33.8 KB | |
| D-CONNECT-A Metadata only | Schematics | PDF 108.4 KB | |
| FRONT-C Metadata only | Schematics | PDF 149.6 KB | |
| MAIN-C Metadata only | Schematics | PDF 357.5 KB | |
| PA-C Metadata only | Schematics | PDF 106.4 KB | |
| Schematics Metadata only | Schematics | PDF 250.3 KB | |
| Operational Description Metadata only | Operational Description | PDF 85.1 KB | |
| Parts List Metadata only | Parts List/Tune Up Info | PDF 686.3 KB | |
| Parts List Metadata only | Parts List/Tune Up Info | PDF 78.5 KB | |
| Tune-up Procedure Metadata only | Parts List/Tune Up Info | PDF 36.8 KB |
Application Information
| Application ID | aHlF6LPW2NG0l7K9CoEq/A== |
|---|---|
| Final Action Date | 2016-06-07 |
| Application Purpose | Class II permissive change or modification of presently authorized equipment |
| Applicant FRN | 0005855366 |
| Model | 297410 |
| Frequency Range | 118-136.975 MHz |
| Equipment Class | TNB - Licensed Non-Broadcast Station Transmitter |
| Device Description | VHF Air Band Transceiver |
| Responsible Party | Atsushi Tomiyama, General Manager, world_support@icom.co.jp , +81667938424 |
| Agent | Dan Dan Dan, UltraTech Engineering Labs Inc, dan@ultratech-labs.com  , 905-829-1570 |
| Test Firm | Tri Luu, UltraTech Engineering Labs Inc., tri@ultratech-labs.com , 905-829-1570 |
| TCB Email | vic@ultratech-labs.com |
| TCB Scope | B3: Maritime & Aviation Radio Services equipment in 47 CFR parts 80 & 87 |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Power output listed is at the antenna connector. The antenna used for this transmitter shall not exceed 0 dBi in gain, and shall be installed to provide separation distance of at least 40 cm away from people and used for Occupational/Controlled RF exposure environment only. Users and installers must be provided with antenna installation instructions and transmitter operating conditions to satisfy RF exposure requirements in the applicable RF exposure compliance standards. Class II Permissive Change: The electronic parts (MAIN-C unit, FRONT-C unit, PA-C unit, D-CONNECT-A unit, VOLUME-B unit) are replaced. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| aHlF6LPW2NG0l7K9CoEq/A== | 2016-06-07 | Class II permissive change or modification of presently authorized equipment |
| 6t/8ht4eBiSuW3oZsWhPYQ== | 2015-03-11 | Original Equipment |
Equipment Authorization
Grants
TCB Grant - Application aHlF6LPW2NG0l7K9CoEq/A==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Ultratech Engineering Labs Inc. 3000 Bristol Circle Oakville Ontario, L6H 6G4 Canada |
Date of Grant: 06/07/2016 Application Dated: 06/07/2016 |
| ICOM Incorporated |
| 1-1-32 Kamiminami |
| Hirano-ku |
| Osaka, 547-0003 Japan |
| Attention: Atsushi Tomiyama , General Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | AFJ297410 |
| Name of Grantee: | ICOM Incorporated |
| Equipment Class: | Licensed Non-Broadcast Station Transmitter |
| Notes: | VHF Air Band Transceiver |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 87 | 118.0 - 136.975 | 8.0 | 5.0 PM | 6K00A3E | |
| 87 | 118.0 - 136.9917 | 8.0 | 5.0 PM | 5K60A3E |
| Power output listed is at the antenna connector. The antenna used for this transmitter shall not exceed 0 dBi in gain, and shall be installed to provide separation distance of at least 40 cm away from people and used for Occupational/Controlled RF exposure environment only. Users and installers must be provided with antenna installation instructions and transmitter operating conditions to satisfy RF exposure requirements in the applicable RF exposure compliance standards. Class II Permissive Change: The electronic parts (MAIN-C unit, FRONT-C unit, PA-C unit, D-CONNECT-A unit, VOLUME-B unit) are replaced. |
