FCC ID AFJ376902
UHF Digital Transceiver
by ICOM Incorporated
Grantee Code: AFJ Product Code: 376902
Latest application date: 2022-02-15
Device Images
FCC ID Device Details
| FCC ID | AFJ376902 |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | AFJ |
| Product Code | 376902 |
| Applicant Business | ICOM Incorporated 🇯🇵 |
| Related Domains |  icom.co.jp |
| Equipment Class | UHF Digital Transceiver |
| Test Firm | UltraTech Engineering Labs Inc |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 450-512 MHz | Class II permissive change or modification of presently authorized equipment | 2022-02-15 |
| 450-512 MHz | Original Equipment | 2016-10-19 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| User Manual | Users Manual | 2022-02-15 | PDF 585 KB |
| User Manual Precautions | Users Manual | 2017-01-31 | PDF 536.4 KB |
| User manual Instructions | Users Manual | 2017-01-31 | PDF 1 MB |
| Internal photos | Internal Photos | 2022-02-15 | PDF 1.3 MB |
| Internal photos | Internal Photos | 2017-01-31 | PDF 708.2 KB |
| External Photos | External Photos | 2022-02-15 | PDF 701.1 KB |
| External photos | External Photos | 2017-01-31 | PDF 399.9 KB |
| Label | ID Label/Location Info | 2022-02-15 | PDF 127.7 KB |
| Label and location | ID Label/Location Info | 2016-10-19 | PDF 652.6 KB |

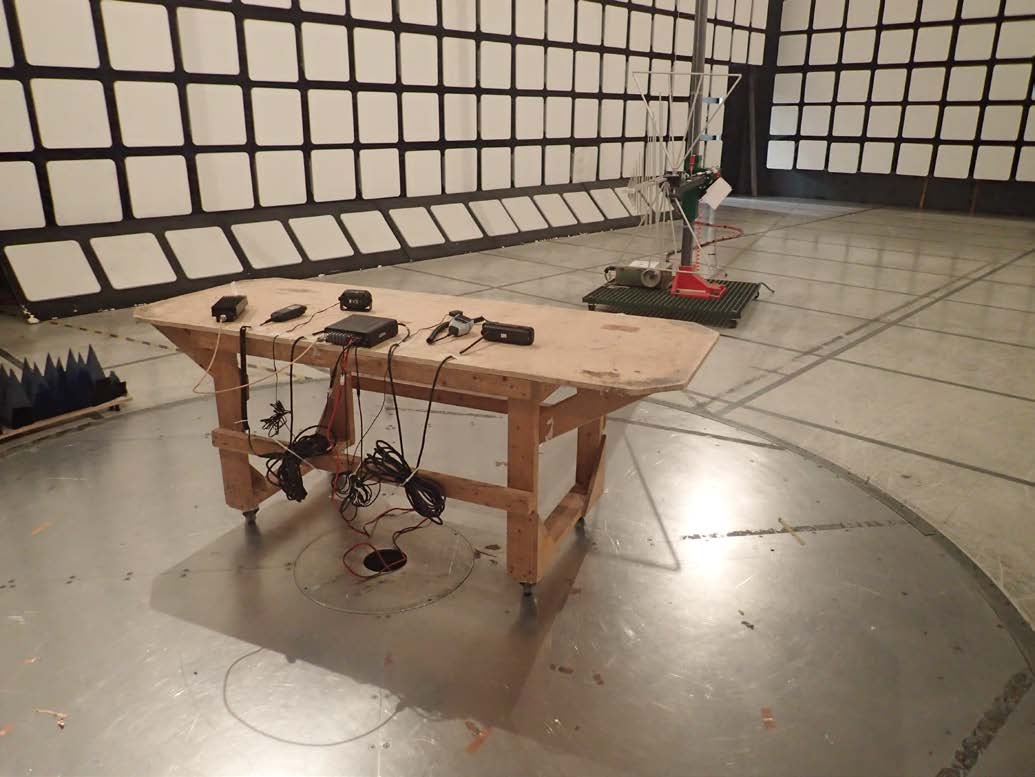

| Test Setup photos | Test Setup Photos | 2022-02-15 | PDF 138.8 KB |

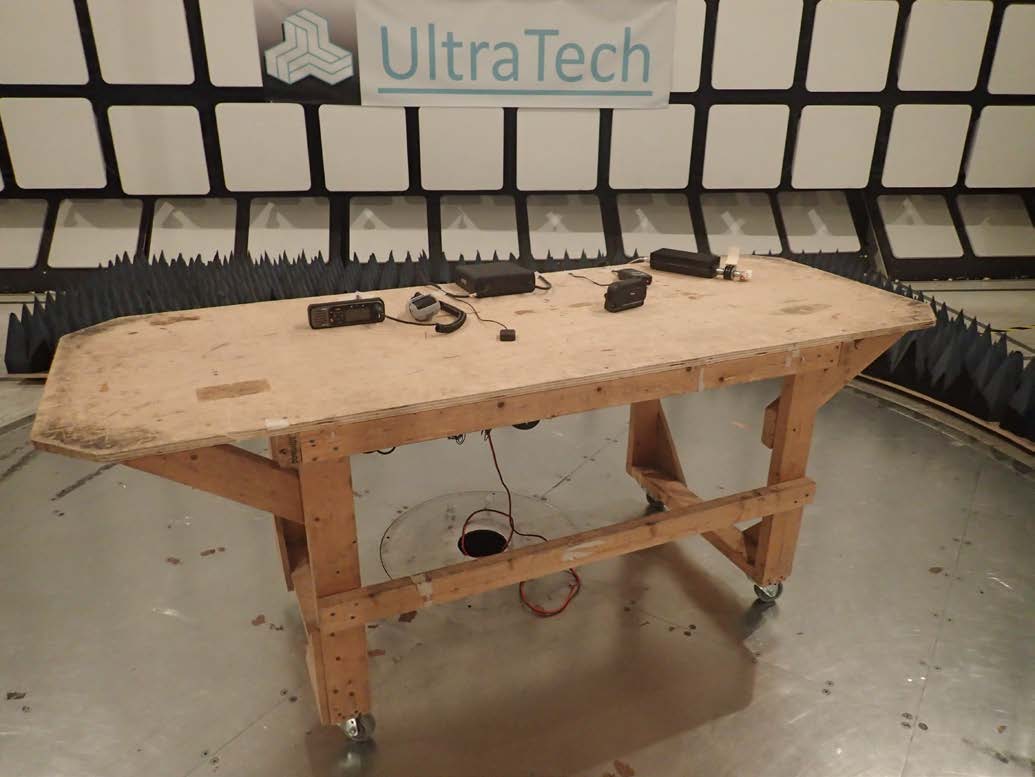

| Test Setup photos | Test Setup Photos | 2016-10-19 | PDF 215.4 KB |
| Test Report | Test Report | 2022-02-15 | PDF 1.5 MB |
| Test Report | Test Report | 2016-10-19 | PDF 1.6 MB |
| SDoC for Unintentional | Attestation Statements | 2022-02-15 | PDF 60.9 KB |
| Justification letter | Attestation Statements | 2016-10-19 | PDF 54 KB |
| Manufacturers letter | Attestation Statements | 2016-10-19 | PDF 24.2 KB |
| Part 15 B Attestation leter | Attestation Statements | 2016-10-19 | PDF 21.7 KB |
| Part 90 use letter | Attestation Statements | 2016-10-19 | PDF 23 KB |
| Part 90.203 letter | Attestation Statements | 2016-10-19 | PDF 28.5 KB |
| Verification Authorization letter | Attestation Statements | 2016-10-19 | PDF 24.6 KB |
| Agent Authority letter | Cover Letter(s) | 2022-02-15 | PDF 29.2 KB |
| C2PC Letter | Cover Letter(s) | 2022-02-15 | PDF 18.2 KB |
| Confidentiality Request | Cover Letter(s) | 2022-02-15 | PDF 26.3 KB |
| Cover Letter | Cover Letter(s) | 2022-02-15 | PDF 131.5 KB |
| Agent Authority letter | Cover Letter(s) | 2016-10-19 | PDF 39.1 KB |
| Confidentiality letter | Cover Letter(s) | 2016-10-19 | PDF 38.1 KB |
| Cover letter | Cover Letter(s) | 2016-10-19 | PDF 87.8 KB |
| RF Exposure warning | RF Exposure Info | 2016-10-19 | PDF 537.6 KB |
| RF exposure info | RF Exposure Info | 2016-10-19 | PDF 58.8 KB |
| Block Diagram Metadata only | Block Diagram | PDF 473.5 KB | |
| Schematics Metadata only | Schematics | PDF 764.1 KB | |
| Schematics Metadata only | Schematics | PDF 5.3 MB | |
| Operational Description Metadata only | Operational Description | PDF 64.5 KB | |
| Parts List Metadata only | Parts List/Tune Up Info | PDF 796.3 KB | |
| Parts List Change info Metadata only | Parts List/Tune Up Info | PDF 914.4 KB | |
| Parts list Metadata only | Parts List/Tune Up Info | PDF 90 KB | |
| Tune up info Metadata only | Parts List/Tune Up Info | PDF 273.3 KB |
Application Information
| Application ID | fnev63huL8bu+KXJrX88cw== |
|---|---|
| Final Action Date | 2022-02-15 |
| Application Purpose | Class II permissive change or modification of presently authorized equipment |
| Applicant FRN | 0005855366 |
| Model | 376902 |
| Frequency Range | 450-512 MHz |
| Equipment Class | TNB - Licensed Non-Broadcast Station Transmitter |
| Device Description | UHF Digital Transceiver |
| Responsible Party | Atsushi Tomiyama, General Manager, world_support@icom.co.jp , +81667938424 |
| Agent | Santhosh Santhosh Santhosh, Ultratech Engineering Labs Inc., santhosh@ultratech-labs.com  , 9058291570 |
| Test Firm | Tri Luu, UltraTech Engineering Labs Inc, tri@ultratech-labs.com , 905-829-1570 |
| TCB Email | vic@ultratech-labs.com |
| TCB Scope | B2: General Mobile Radio And Broadcast Services equipment in the following 47 CFR Parts 22 (non-cellular) 73, 74, 90, 95, 97, & 101 (all below 3 GHz) |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Power output listed is at the antenna connector. The antenna used for this transmitter shall not exceed 0 dBi in gain, and shall be installed to provide separation distance of at least 77.3 cm away from people for General Population/Uncontrolled exposure environment or at least 34.6 cm away from people for Occupational/Controlled RF exposure environment. Users and installers must be provided with antenna installation instructions and transmitter operating conditions to satisfy RF exposure requirements in the applicable RF exposure compliance standards. Class II permissive change to change TCXO, IC to equivalent part and changes in receiver Parts. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| fnev63huL8bu+KXJrX88cw== | 2022-02-15 | Class II permissive change or modification of presently authorized equipment |
| jsE0Yf0Fvnb40UOYhBw2HA== | 2016-10-19 | Original Equipment |
Equipment Authorization
| Frequency | Output | Tolerance | Emission | Rules | Grant Notes |
|---|---|---|---|---|---|
| 450-512 MHz | 4.5 | 1ppm | 11K0F3E | 22, 74, 80, 9 | EF |
| 450-512 MHz | 45 | 1ppm | 16K0F3E | 22, 74, 8 | EF |
| 450-512 MHz | 4.5 | 1ppm | 16K0F3E | 22, 74, 8 | EF |
| 450-512 MHz | 4.5 | 1ppm | 4K00F1D | 22, 74, 80, 9 | EF, ES |
| 450-512 MHz | 45 | 1ppm | 4K00F1E | 22, 74, 80, 9 | EF, ES |
| 450-512 MHz | 4.5 | 1ppm | 4K00F1E | 22, 74, 80, 9 | EF, ES |
| 450-512 MHz | 45 | 1ppm | 8K30F1D | 22, 74, 80, 9 | EF, ES |
| 450-512 MHz | 4.5 | 1ppm | 8K30F1D | 22, 74, 80, 9 | EF, ES |
| 450-512 MHz | 45 | 1ppm | 8K30F1E | 22, 74, 80, 9 | EF, ES |
| 450-512 MHz | 4.5 | 1ppm | 8K30F1E | 22, 74, 80, 9 | EF, ES |
| 450-512 MHz | 45 | 1ppm | 11K0F3E | 22, 74, 80, 9 | EF |
Grants
TCB Grant - Application jsE0Yf0Fvnb40UOYhBw2HA==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Ultratech Engineering Labs Inc. 3000 Bristol Circle Oakville Ontario, L6H 6G4 Canada |
Date of Grant: 10/19/2016 Application Dated: 10/19/2016 |
| ICOM Incorporated |
| 1-1-32 Kamiminami |
| Hirano-ku |
| Osaka, 547-0003 Japan |
| Attention: Atsushi Tomiyama , General Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | AFJ376902 |
| Name of Grantee: | ICOM Incorporated |
| Equipment Class: | Licensed Non-Broadcast Station Transmitter |
| Notes: | UHF Digital Transceiver |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| EF ES | 22, 74, 80, 90 | 450.0 - 512.0 | 45.0 | 1.0 PM | 4K00F1D |
| EF ES | 22, 74, 80, 90 | 450.0 - 512.0 | 4.5 | 1.0 PM | 4K00F1D |
| EF ES | 22, 74, 80, 90 | 450.0 - 512.0 | 45.0 | 1.0 PM | 4K00F1E |
| EF ES | 22, 74, 80, 90 | 450.0 - 512.0 | 4.5 | 1.0 PM | 4K00F1E |
| EF ES | 22, 74, 80, 90 | 450.0 - 512.0 | 45.0 | 1.0 PM | 8K30F1D |
| EF ES | 22, 74, 80, 90 | 450.0 - 512.0 | 4.5 | 1.0 PM | 8K30F1D |
| EF ES | 22, 74, 80, 90 | 450.0 - 512.0 | 45.0 | 1.0 PM | 8K30F1E |
| EF ES | 22, 74, 80, 90 | 450.0 - 512.0 | 4.5 | 1.0 PM | 8K30F1E |
| EF | 22, 74, 80, 90 | 450.0 - 512.0 | 45.0 | 1.0 PM | 11K0F3E |
| EF | 22, 74, 80, 90 | 450.0 - 512.0 | 4.5 | 1.0 PM | 11K0F3E |
| EF | 22, 74, 80 | 450.0 - 512.0 | 45.0 | 1.0 PM | 16K0F3E |
| EF | 22, 74, 80 | 450.0 - 512.0 | 4.5 | 1.0 PM | 16K0F3E |
| Power output listed is at the antenna connector. The antenna used for this transmitter shall not exceed 0 dBi in gain, and shall be installed to provide separation distance of at least 77.3 cm away from people for General Population/Uncontrolled exposure environment or at least 34.6 cm away from people for Occupational/Controlled RF exposure environment. Users and installers must be provided with antenna installation instructions and transmitter operating conditions to satisfy RF exposure requirements in the applicable RF exposure compliance standards. |
| EF: | This device may contain functions that are not operational in U.S Territories except as noted in the filing. This grant has extended frequencies as noted in the filing and Section 2.927(b) applies to this authorization. |
| ES: | This equipment is capable of supporting a minimum data rate of 4800 bits per second per 6.25 kHz of channel bandwidth. |
