FCC ID AFJ384400
VHF Digital Transceiver
by ICOM Incorporated
Grantee Code: AFJ Product Code: 384400
Latest application date: 2021-12-23
Device Images
FCC ID Device Details
| FCC ID | AFJ384400 |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | AFJ |
| Product Code | 384400 |
| Applicant Business | ICOM Incorporated 🇯🇵 |
| Related Domains |  icom.co.jp |
| Equipment Class | VHF Digital Transceiver |
| Test Firm | UltraTech Engineering Labs Inc |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 136-174 MHz | Class II permissive change or modification of presently authorized equipment | 2021-12-23 |
| 136-174 MHz | Original Equipment | 2017-03-30 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| User manual | Users Manual | 2017-07-01 | PDF 527.9 KB |
| User manual cut antenna | Users Manual | 2017-07-01 | PDF 49 KB |
| Internal Photos | Internal Photos | 2021-12-23 | PDF 2.7 MB |
| Internal photos | Internal Photos | 2017-07-01 | PDF 285.1 KB |
| External photos | External Photos | 2017-07-01 | PDF 253.3 KB |
| Label and location | ID Label/Location Info | 2017-03-30 | PDF 170 KB |

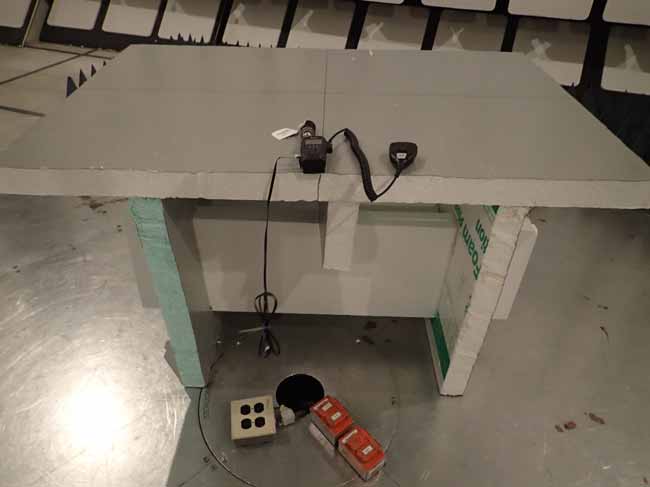

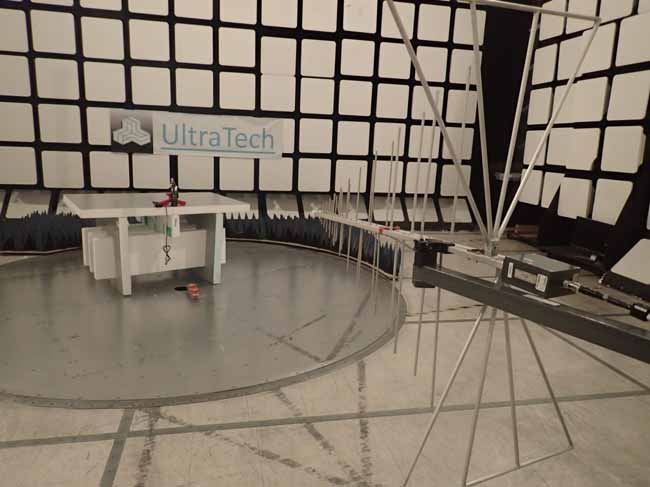

| Test Setup Photos | Test Setup Photos | 2021-12-23 | PDF 2.8 MB |
| Test setup photos | Test Setup Photos | 2017-03-30 | PDF 142 KB |
| RF Test report | Test Report | 2021-12-23 | PDF 1,019.6 KB |
| SAR Test Report | RF Exposure Info | 2017-03-30 | PDF 1.4 MB |
| SAR Test report | RF Exposure Info | 2017-03-30 | PDF 1.4 MB |
| Test report Part90 | Test Report | 2017-03-30 | PDF 1.5 MB |
| FCC Part 15B attestation | Attestation Statements | 2017-03-30 | PDF 21.5 KB |
| Manufacturers Attestation | Attestation Statements | 2017-03-30 | PDF 24.4 KB |
| Part 90 use Attestation | Attestation Statements | 2017-03-30 | PDF 22.9 KB |
| Part 90.203 letter | Attestation Statements | 2017-03-30 | PDF 28.9 KB |
| Verification Authorization Attestation | Attestation Statements | 2017-03-30 | PDF 24.9 KB |
| Agent Authorization | Cover Letter(s) | 2021-12-23 | PDF 28.8 KB |
| C2PC Letter | Cover Letter(s) | 2021-12-23 | PDF 18.7 KB |
| Confidentiality request | Cover Letter(s) | 2021-12-23 | PDF 26.4 KB |
| Cover letter | Cover Letter(s) | 2021-12-23 | PDF 75.2 KB |
| Agent authority letter | Cover Letter(s) | 2017-03-30 | PDF 38.6 KB |
| Confidentiality Letter | Cover Letter(s) | 2017-03-30 | PDF 38.2 KB |
| Cover letter | Cover Letter(s) | 2017-03-30 | PDF 76.8 KB |
| Extended frequencies letter | Cover Letter(s) | 2017-03-30 | PDF 57.1 KB |
| SAR report | RF Exposure Info | 2021-12-23 | PDF 3.1 MB |
| SAR report Appendix 1 | RF Exposure Info | 2021-12-23 | PDF 264.3 KB |
| SAR report Appendix 2 | RF Exposure Info | 2021-12-23 | PDF 3.4 MB |
| SAR report Appendix 3 | RF Exposure Info | 2021-12-23 | PDF 822.5 KB |
| RF exposure warning | RF Exposure Info | 2017-03-30 | PDF 126.3 KB |
| SAR Appendix 1 | RF Exposure Info | 2017-03-30 | PDF 3.4 MB |
| SAR Appendix 2 | RF Exposure Info | 2017-03-30 | PDF 1.9 MB |
| SAR Appendix 3 | RF Exposure Info | 2017-03-30 | PDF 290.3 KB |
| Block Diagram Metadata only | Block Diagram | PDF 36.9 KB | |
| Schematics Metadata only | Schematics | PDF 448.2 KB | |
| Schematics Metadata only | Schematics | PDF 915.2 KB | |
| FCC Correspondence Metadata only | Operational Description | PDF 24.1 KB | |
| Operational Description Metadata only | Operational Description | PDF 78.2 KB | |
| Parts List Metadata only | Parts List/Tune Up Info | PDF 50.2 KB | |
| Parts list Metadata only | Parts List/Tune Up Info | PDF 65 KB | |
| Parts list change info Metadata only | Parts List/Tune Up Info | PDF 640.1 KB | |
| Tune up info Metadata only | Parts List/Tune Up Info | PDF 116 KB |
Application Information
| Application ID | SO7hQqQZMGJOzzH+LU/ChA== |
|---|---|
| Final Action Date | 2021-12-23 |
| Application Purpose | Class II permissive change or modification of presently authorized equipment |
| Applicant FRN | 0005855366 |
| Model | 384400 |
| Frequency Range | 136-174 MHz |
| Equipment Class | TNF - Licensed Non-Broadcast Transmitter Held to Face |
| Device Description | VHF Digital Transceiver |
| Responsible Party | Atsushi Tomiyama, General Manager, world_support@icom.co.jp , +81667938424 |
| Agent | Santhosh Santhosh Santhosh, Ultratech Engineering Labs Inc., santhosh@ultratech-labs.com  , 9058291570 |
| Test Firm | Tri Luu, UltraTech Engineering Labs Inc, tri@ultratech-labs.com , 905-829-1570 |
| TCB Email | vic@ultratech-labs.com |
| TCB Scope | B2: General Mobile Radio And Broadcast Services equipment in the following 47 CFR Parts 22 (non-cellular) 73, 74, 90, 95, 97, & 101 (all below 3 GHz) |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Output is at the antenna terminal of the device. SAR for body worn operation has been tested and meets the FCC RF exposure guidelines when used with the ICOM listed accessories designated for this product as shown in the filing. End users must be informed of the body worn requirements for satisfying RF exposure compliance. This transmitter may operate only with antennas as described in this filing. This device must transmit with a source-based time-averaging duty factor not exceeding 50%. This device must be restricted to work related operations in an occupational/controlled RF exposure environment. SAR was evaluated for body worn and held-to-face operating modes and found not to exceed the SAR 1g average limit of 8 W/Kg for occupational/controlled environments. Maximum SAR values reported are: Body 0.88 W/Kg and Head 1.30 W/Kg. Class II permissive change to add Hand Mic option and Change TCXO, IC to equivalent parts. SAR was evaluated at hot spot for body worn and held-to-face operating modes and found not to exceed the SAR 1g average limit of 8 W/kg for occupational/controlled environments. Maximum SAR values reported are: head 1.819 W/kg. |
