419500 VHF Marine Transceiver Label Diagram - FCC ID AFJ419500
FCC ID AFJ419500

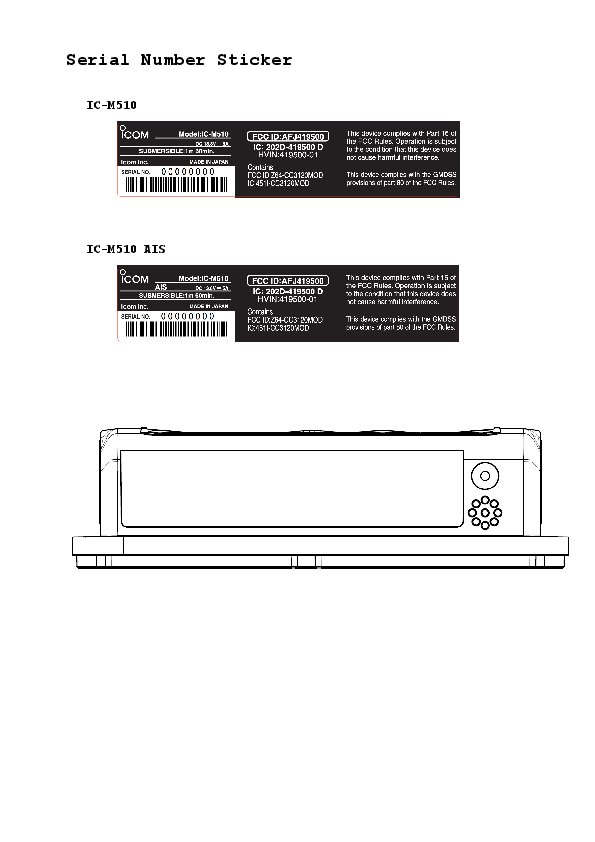

Label and location
VHF Marine Transceiver
Document preview loads when visible.
Document Details
| FCC ID | AFJ419500 |
|---|---|
| Document ID | 5230511 |
| Document Type | ID Label/Location Info |
| Description | Label and location |
| Document Title | Serial |
| Applicant | ICOM Incorporated |
| Equipment Class | VHF Marine Transceiver |
| Product Code | 419500 |
| Application ID | +48wk4z26+R9tOAzlpFRCQ== |
| Application Purpose | Original Equipment |
| Application Date | 2021-04-30 |
| Frequency Range | 156.025-157.425 MHz |
| FRN | 0005855366 |
| Test Firm | UltraTech Engineering Labs Inc |
| Certified By | Santhosh Fernandez Authorized Agent |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Short-Term Confidentiality Date | 08/31/2021 |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Submitted | 2021-04-30 |
| Available | 2021-04-30 |
| Created | 2021-04-23 |
| Modified | 2021-04-23 |
| Pages | 2 |
| File Type | Adobe Acrobat PDF |
| File Size | 526262 |
| File SHA-256 | 23d577da4a5014ccceef22c38e9504e84f1b49b398158fbbffc007f911863832 |
| PDF Metadata Author | i24600 |
| PDF Metadata Producer | i24600 Acrobat Distiller 17.0 (Windows) |
| FCC.gov Sources | FCC.gov 5230511 |
