ICA23 Handheld Aircraft Transceiver Held to... - FCC ID AFJIC-A23

FCC ID AFJIC-A23

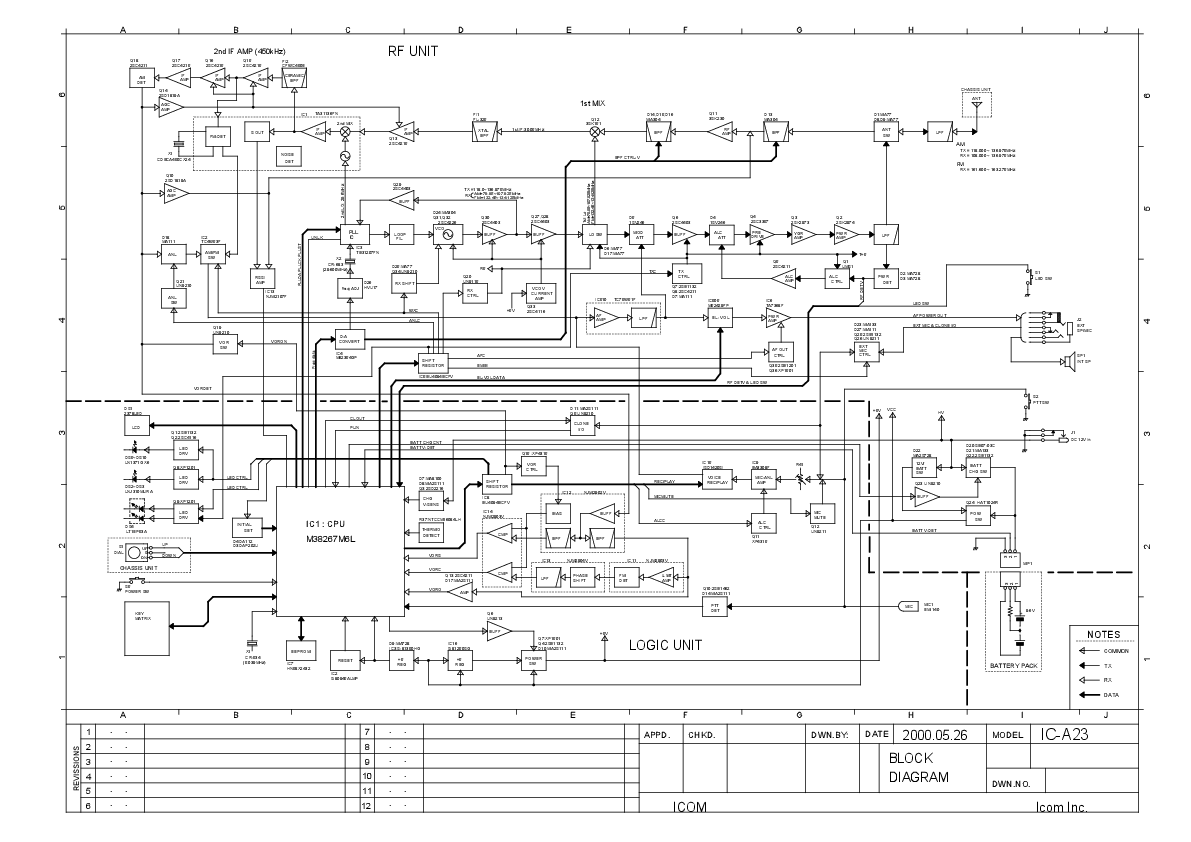

Block Diagram

Handheld Aircraft Transceiver Held to Face

by ICOM Incorporated

Document preview loads when visible.

Document Details

FCC IDAFJIC-A23
Document ID107412
Document TypeBlock Diagram
DescriptionBlock Diagram
Document TitleA23_block
ApplicantICOM Incorporated
Equipment ClassHandheld Aircraft Transceiver Held to Face
Product CodeICA23
Application IDbAEmvOP5nEyeHpueGPLJqA==
Application PurposeOriginal Equipment
Application Date2000-07-25
Frequency Range118-136.975 MHz
FRN0005855366
Test FirmM. Flom Associates, Inc.
Certified ByMort Flom President
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2000-06-30
Available2000-07-25
Created2000-05-01
Modified2000-05-31
Pages1
File TypeAdobe Acrobat PDF
File Size614252
File SHA-256c0732464faa2f03a0ea00772ea5ee8678708bc328d7a90a33ff7eee9a4b1b76d
PDF Metadata ProducerAdobe Illustrator 8.0 …g…›…C…A…E…g Acrobat PDFWriter 4.0 Windows
FCC.gov SourcesFCC.gov 107412
