FCC ID AMWON525
Portable PTT FRS Transceiver
by Uniden America Corporation
Grantee Code: AMW Product Code: ON525
Latest application date: 2019-08-08
Device Images
FCC ID Device Details
| FCC ID | AMWON525 |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | AMW |
| Product Code | ON525 |
| Applicant Business | Uniden America Corporation 🇺🇸 |
| Related Domains |  uniden.com |
| Equipment Class | Portable PTT FRS Transceiver |
| Test Firm | CELLTECH LABS INC. |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 161.65-162.55 MHz | Class II permissive change or modification of presently authorized equipment | 2019-08-08 |
| 462.55-462.725 MHz | Class II permissive change or modification of presently authorized equipment | 2019-08-08 |
| 161.65-162.55 MHz | Original Equipment | 2015-09-29 |
| 462.55-462.725 MHz | Original Equipment | 2015-09-29 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| GMR3050 Users Manual | Users Manual | 2019-08-08 | PDF 326.2 KB |
| GMR3055 Users Manual | Users Manual | 2019-08-08 | PDF 352.4 KB |
| User Manual | Users Manual | 2015-09-29 | PDF 341.8 KB |

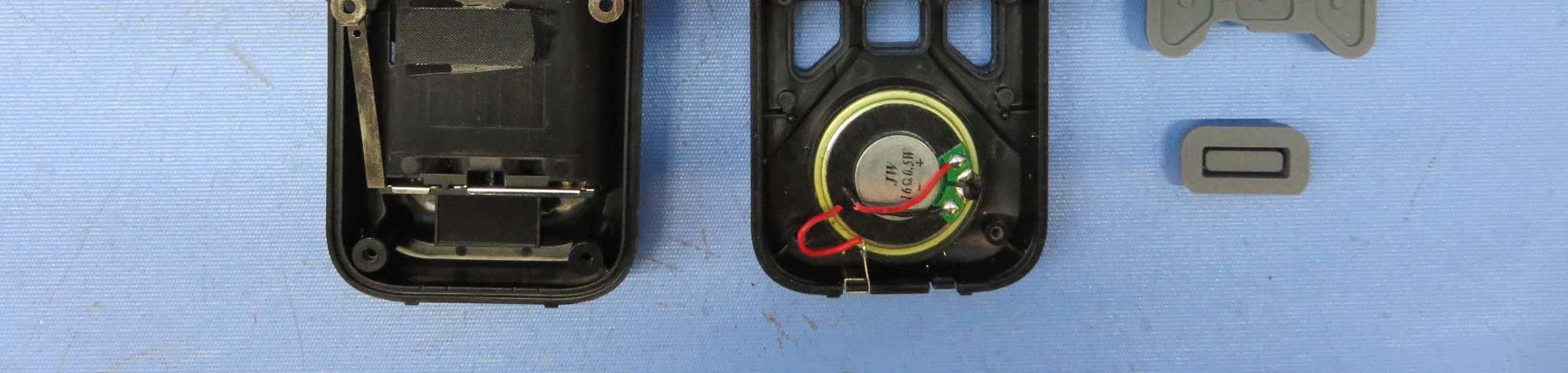

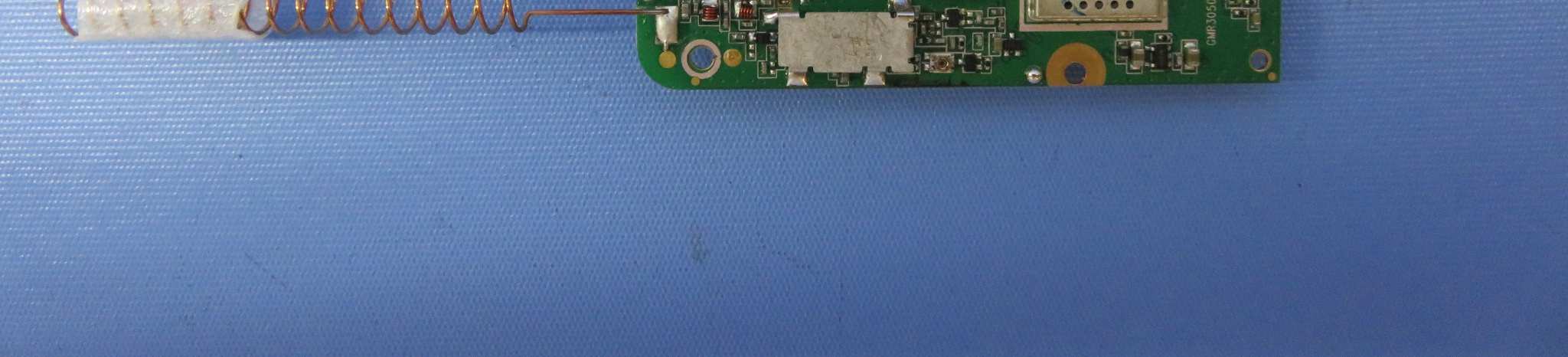

| Internal Photos | Internal Photos | 2015-09-29 | PDF 2.8 MB |

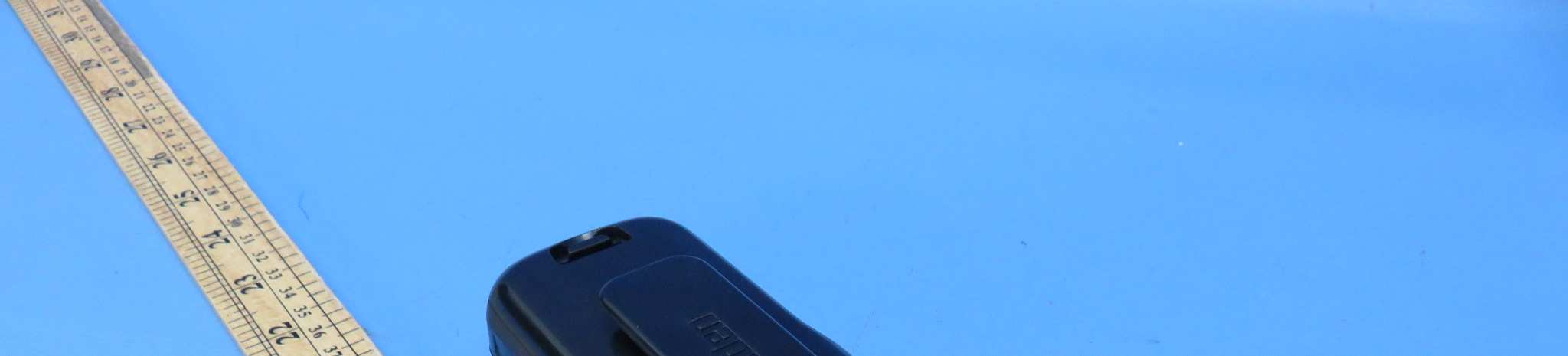

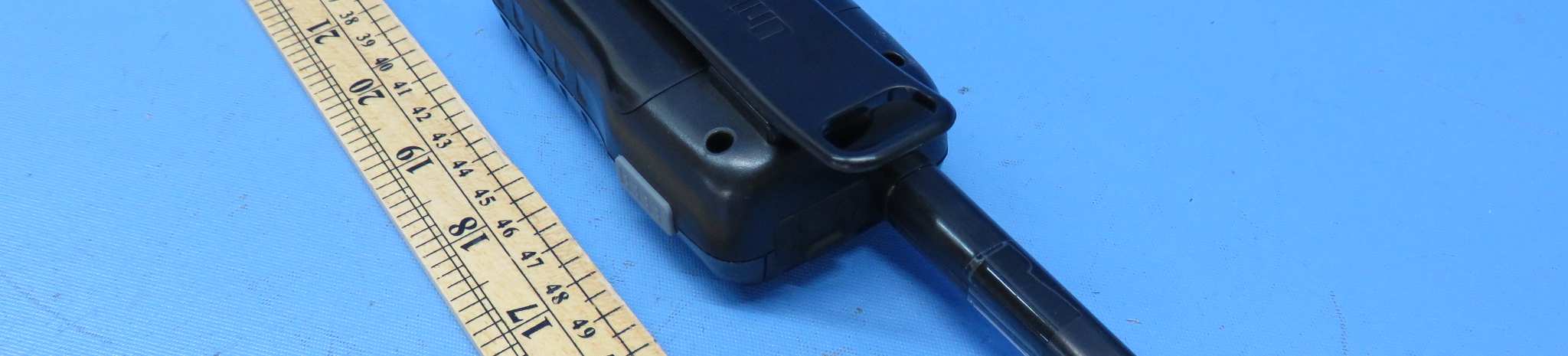

| External Photos | External Photos | 2015-09-29 | PDF 389.9 KB |
| Label Artwork and Location | ID Label/Location Info | 2015-09-29 | PDF 751 KB |
| Config Photos | Test Setup Photos | 2015-09-29 | PDF 815.7 KB |
| Test Report | Test Report | 2015-09-29 | PDF 767 KB |
| Agent Authority Letter | Cover Letter(s) | 2019-08-08 | PDF 126 KB |
| C2PC | Cover Letter(s) | 2019-08-08 | PDF 169.2 KB |
| Confidentiality Request | Cover Letter(s) | 2015-09-29 | PDF 19.1 KB |
| Justification Letter | Cover Letter(s) | 2015-09-29 | PDF 26 KB |
| Letter of Agency | Cover Letter(s) | 2015-09-29 | PDF 16.8 KB |
| Block Diagram Metadata only | Block Diagram | PDF 31.3 KB | |
| Circuit Diagram Metadata only | Schematics | PDF 431.4 KB | |
| Technical Description Metadata only | Operational Description | PDF 731.9 KB | |
| BOM Metadata only | Parts List/Tune Up Info | PDF 73.4 KB | |
| Tune Up Procedure Metadata only | Parts List/Tune Up Info | PDF 12.8 KB |
Application Information
| Application ID | eqY5tHIIFCZkIaTDqgcbNQ== |
|---|---|
| Final Action Date | 2019-08-08 |
| Application Purpose | Class II permissive change or modification of presently authorized equipment |
| Applicant FRN | 0001657303 |
| Model | ON525 |
| Frequency Range | 161.65-162.55 MHz |
| Equipment Class | CXX - Communications Rcvr for use w/ licensed Tx and CBs |
| Device Description | Portable PTT FRS Transceiver |
| Responsible Party | Paul Roby, sroby@uniden.com , 817-858-3624 |
| Test Firm | Ben Hewson, CELLTECH LABS INC., ben.hewson@celltechlabs.com  , 250-765-7650 |
| TCB Email | tei@timcoengr.com  |
| TCB Scope | A1: Low Power Transmitters below 1 GHz (except Spread Spectrum), Unintentional Radiators, EAS (Part 11) & Consumer ISM devices |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | Yes |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| eqY5tHIIFCZkIaTDqgcbNQ== | 2019-08-08 | Class II permissive change or modification of presently authorized equipment |
| AdbkKXSKVm6AVxT/4INwrg== | 2019-08-08 | Class II permissive change or modification of presently authorized equipment |
| 8SUOcu4tozdffC+mBxKIZw== | 2015-09-29 | Original Equipment |
| 7hbEcSzMOIht0cngPxzaig== | 2015-09-29 | Original Equipment |
Equipment Authorization
Grants
TCB Grant - Application eqY5tHIIFCZkIaTDqgcbNQ==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Timco Engineering, Inc. 849 NW State Road 45 Newberry, FL 32669 |
Date of Grant: 08/08/2019 Application Dated: 08/08/2019 |
| Uniden America Corporation |
| 6225 N. State Highway 161 |
| Suite 300 |
| Irving, TX 75038 |
| Attention: Paul Roby |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | AMWON525 |
| Name of Grantee: | Uniden America Corporation |
| Equipment Class: | Communications Rcvr for use w/ licensed Tx and CBs |
| Notes: | Portable PTT FRS Transceiver |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 15B | 161.65 - 162.55 |
EAS Grant - Application eqY5tHIIFCZkIaTDqgcbNQ==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Uniden America Corporation 6225 N. State Highway 161 Suite 300 Irving, TX 75038 United States |
Date of Grant: 08/08/2019 Application Dated: 08/08/2019 |
| Attention: Paul Roby |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | AMWON525 |
| Name of Grantee: | Uniden America Corporation |
| Equipment Class: | Communications Rcvr for use w/ licensed Tx and CBs |
| Notes: | Portable PTT FRS Transceiver |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 15B | 161.65 - 162.55 |
| Mail To: | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Timco Engineering, Inc. 849 NW State Road 45 Newberry, FL 32669 |
Date of Grant: 08/08/2019 Application Dated: 08/08/2019 |
| Uniden America Corporation |
| 6225 N. State Highway 161 |
| Suite 300 |
| Irving, TX 75038 |
| Attention: Paul Roby |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | AMWON525 |
| Name of Grantee: | Uniden America Corporation |
| Equipment Class: | Part 95 Family Radio Face Held Transmitter |
| Notes: | Portable PTT FRS Transceiver |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 95B | 462.55 - 462.725 | 0.88 | 1.12 PM | 5K64F3E | |
| 95B | 467.5625 - 467.7125 | 0.44 | 0.39 PM | 5K64F3E | |
| 95B | 462.5625 - 462.7125 | 0.44 | 0.39 PM | 5K64F3E |
| The output power listed is ERP. The operation may not exceed a maximum transmitting duty factor of 50%. This device has been tested for SAR compliance for head and body-worn configurations. SAR compliance for body-worn operating configurations is limited to the specific belt-clip tested for this filing. The end-users must be informed of the operating requirements for satisfying RF exposure compliance. This device is authorized to operate in the following radio service, FRS (Part 95B). The highest reported SAR values for head, and body-worn accessory use conditions are 0.77 W/kg, and 0.63 W/kg, respectively. |
EAS Grant - Application AdbkKXSKVm6AVxT/4INwrg==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Uniden America Corporation 6225 N. State Highway 161 Suite 300 Irving, TX 75038 United States |
Date of Grant: 08/08/2019 Application Dated: 08/08/2019 |
| Attention: Paul Roby |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | AMWON525 |
| Name of Grantee: | Uniden America Corporation |
| Equipment Class: | Part 95 Family Radio Face Held Transmitter |
| Notes: | Portable PTT FRS Transceiver |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 95B | 462.55 - 462.725 | 0.88 | 1.12 PM | 5K64F3E | |
| 95B | 467.5625 - 467.7125 | 0.44 | 0.39 PM | 5K64F3E | |
| 95B | 462.5625 - 462.7125 | 0.44 | 0.39 PM | 5K64F3E |
| The output power listed is ERP. The operation may not exceed a maximum transmitting duty factor of 50%. This device has been tested for SAR compliance for head and body-worn configurations. SAR compliance for body-worn operating configurations is limited to the specific belt-clip tested for this filing. The end-users must be informed of the operating requirements for satisfying RF exposure compliance. This device is authorized to operate in the following radio service, FRS (Part 95B). The highest reported SAR values for head, and body-worn accessory use conditions are 0.77 W/kg, and 0.63 W/kg, respectively. |
| Mail To: | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Intertek Testing Services NA, Inc. 70 Codman Hill Road Boxborough, MA 01719 |
Date of Grant: 09/29/2015 Application Dated: 09/29/2015 |
| Uniden America Corporation |
| 6225 N. State Highway 161 |
| Suite 300 |
| Irving, TX 75038 |
| Attention: Paul Roby |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | AMWON525 |
| Name of Grantee: | Uniden America Corporation |
| Equipment Class: | Communications Rcvr for use w/ licensed Tx and CBs |
| Notes: | Two Ways Radio of GMRS, FRS, Weather receiver |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 15B | 161.65 - 162.55 |
EAS Grant - Application 8SUOcu4tozdffC+mBxKIZw==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Uniden America Corporation 6225 N. State Highway 161 Suite 300 Irving, TX 75038 United States |
Date of Grant: 09/29/2015 Application Dated: 09/29/2015 |
| Attention: Paul Roby |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | AMWON525 |
| Name of Grantee: | Uniden America Corporation |
| Equipment Class: | Communications Rcvr for use w/ licensed Tx and CBs |
| Notes: | Two Ways Radio of GMRS, FRS, Weather receiver |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 15B | 161.65 - 162.55 |
| Mail To: | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Intertek Testing Services NA, Inc. 70 Codman Hill Road Boxborough, MA 01719 |
Date of Grant: 09/29/2015 Application Dated: 09/29/2015 |
| Uniden America Corporation |
| 6225 N. State Highway 161 |
| Suite 300 |
| Irving, TX 75038 |
| Attention: Paul Roby |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | AMWON525 |
| Name of Grantee: | Uniden America Corporation |
| Equipment Class: | Part 95 Family Radio Face Held Transmitter |
| Notes: | Two Ways Radio of GMRS, FRS, Weather receiver |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 95A | 462.55 - 462.725 | 0.88 | 1.12 PM | 5K64F3E | |
| 95B | 467.5625 - 467.7125 | 0.44 | 0.39 PM | 5K64F3E | |
| 95B | 462.5625 - 462.7125 | 0.44 | 0.39 PM | 5K64F3E |
| The output power listed is ERP. The operation may not exceed a maximum transmitting duty factor of 50%. This device has been tested for SAR compliance for head and body-worn configurations. SAR compliance for body-worn operating configurations is limited to the specific belt-clip tested for this filing. The end-users must be informed of the operating requirements for satisfying RF exposure compliance. This device is authorized to operate in the following radio services: FRS (Part 95B) or GMRS (Part 95A). There must be an informational insert inside the box(product package) or the Users Manual must include information that clearly informs the customer (buyer/owner) when the radio is transmitting on GMRS frequencies, that operation on GMRS frequencies requires an FCC license and such operation is subject to additional rules specified in 47 C.F.R. Part 95. The highest reported SAR values for head, and body-worn accessory use conditions are 0.77 W/kg, and 0.63 W/kg, respectively. |
EAS Grant - Application 7hbEcSzMOIht0cngPxzaig==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Uniden America Corporation 6225 N. State Highway 161 Suite 300 Irving, TX 75038 United States |
Date of Grant: 09/29/2015 Application Dated: 09/29/2015 |
| Attention: Paul Roby |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | AMWON525 |
| Name of Grantee: | Uniden America Corporation |
| Equipment Class: | Part 95 Family Radio Face Held Transmitter |
| Notes: | Two Ways Radio of GMRS, FRS, Weather receiver |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 95A | 462.55 - 462.725 | 0.88 | 1.12 PM | 5K64F3E | |
| 95B | 467.5625 - 467.7125 | 0.44 | 0.39 PM | 5K64F3E | |
| 95B | 462.5625 - 462.7125 | 0.44 | 0.39 PM | 5K64F3E |
| The output power listed is ERP. The operation may not exceed a maximum transmitting duty factor of 50%. This device has been tested for SAR compliance for head and body-worn configurations. SAR compliance for body-worn operating configurations is limited to the specific belt-clip tested for this filing. The end-users must be informed of the operating requirements for satisfying RF exposure compliance. This device is authorized to operate in the following radio services: FRS (Part 95B) or GMRS (Part 95A). There must be an informational insert inside the box(product package) or the Users Manual must include information that clearly informs the customer (buyer/owner) when the radio is transmitting on GMRS frequencies, that operation on GMRS frequencies requires an FCC license and such operation is subject to additional rules specified in 47 C.F.R. Part 95. The highest reported SAR values for head, and body-worn accessory use conditions are 0.77 W/kg, and 0.63 W/kg, respectively. |
