UC717 900 MHz Spread Spectrum Cordless Phone... - FCC ID AMWUC717

FCC ID AMWUC717

Corrected processing gain data

900 MHz Spread Spectrum Cordless Phone

by Uniden America Corporation

Document preview loads when visible.

Document Details

FCC IDAMWUC717
Document ID152770
Document TypeTest Report

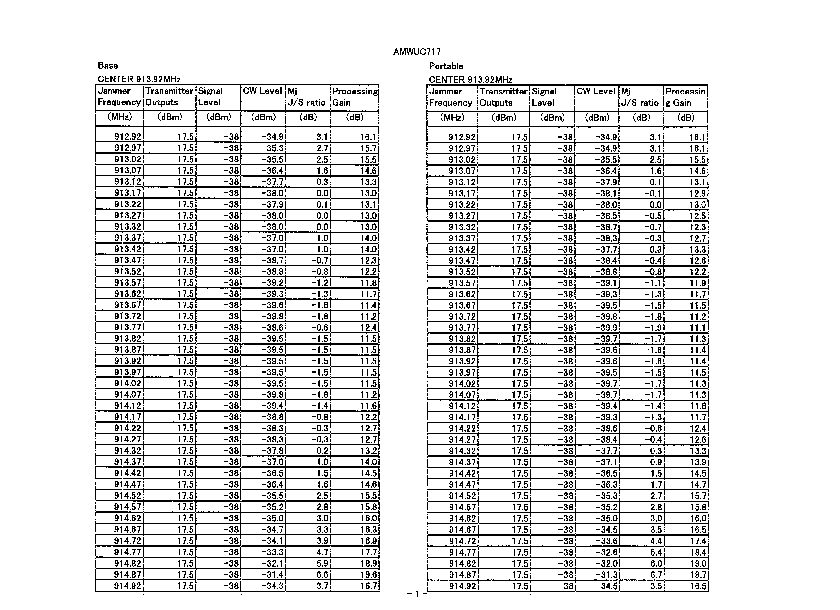

DescriptionCorrected processing gain data
ApplicantUniden America Corporation
Equipment Class900 MHz Spread Spectrum Cordless Phone
Product CodeUC717
Application IDhnrbOpfFOQBPqlve+9CEhg==
Application PurposeOriginal Equipment
Application Date2002-09-06
Frequency Range905.7-924.16 MHz
FRN0001657303
Test FirmTimco Engineering, Inc.
Certified ByMario R. de Aranzeta Engineer
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2001-06-01
Available2002-09-06
Created2001-05-28
Modified2001-05-28
Pages3
File TypeAdobe Acrobat PDF
File Size354137
File SHA-256fdfc27ca6fe3740e5dcdba59da9f73033674ca71a2a18241f22084f53aac5667
PDF Metadata ProducerAcrobat 4.0 Scan Plug-in for Windows Acrobat 4.0 Scan Plug-in for Windows
FCC.gov SourcesFCC.gov 152770
