UT024 PORTABLE FRS/GMRS RADIO External Photos - FCC ID AMWUT024
FCC ID AMWUT024

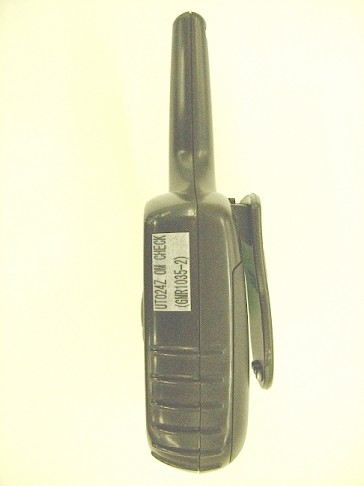

EXTERNAL PHOTOS 6 OF 6
PORTABLE FRS/GMRS RADIO
Document Details
| FCC ID | AMWUT024 |
|---|---|
| Document ID | 742160 |
| Document Type | External Photos |
| Description | EXTERNAL PHOTOS 6 OF 6 |
| Applicant | Uniden America Corporation |
| Equipment Class | PORTABLE FRS/GMRS RADIO |
| Product Code | UT024 |
| Application ID | FPNgptZbwlV70adCIagwxA== |
| Application Purpose | Original Equipment |
| Application Date | 2006-12-26 |
| Frequency Range | 462.55-462.725 MHz |
| FRN | 0001657303 |
| Test Firm | Uniden Corporation |
| Certified By | JIM HAYNES |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Submitted | 2006-12-26 |
| Available | 2006-12-26 |
| Pages | 0 |
| File Type | JPEG Image |
| File Size | 19653 |
| File SHA-256 | 4b185a8e4b649c372cbff661ff421f725607d77cb2fb7aa2bb3fbe507e4e3b52 |
| FCC.gov Sources | FCC.gov 742160 |
