4799902A2T Remote Control Toy... - FCC ID APB47999-02A2T
FCC ID APB47999-02A2T

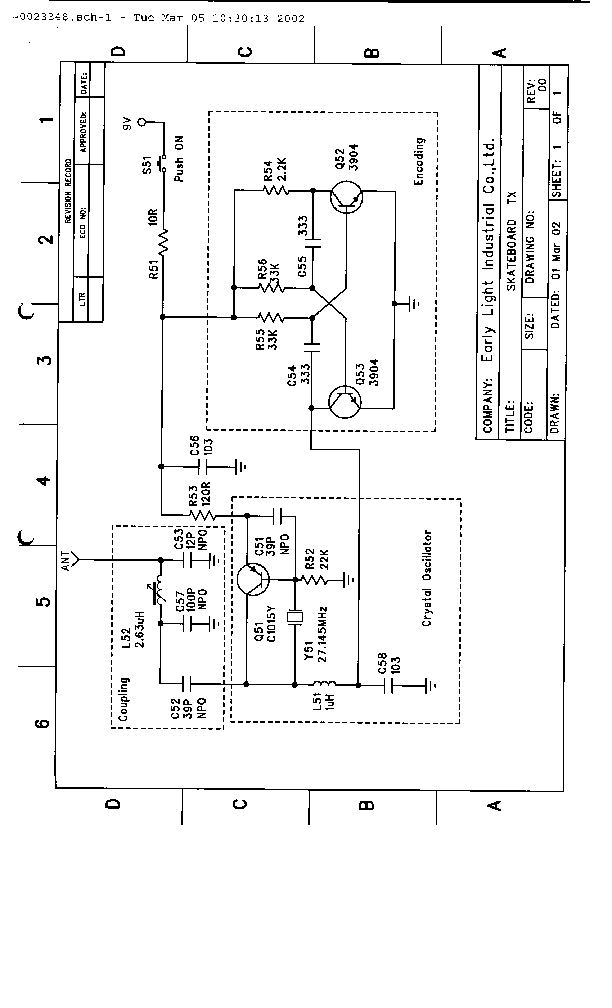

Schematic Diagram
Remote Control Toy Transmitter
Document preview loads when visible.
Document Details
| FCC ID | APB47999-02A2T |
|---|---|
| Document ID | 239088 |
| Document Type | Schematics |
| Description | Schematic Diagram |
| Applicant | Mattel Toys A Division of Mattel Inc |
| Equipment Class | Remote Control Toy Transmitter |
| Product Code | 4799902A2T |
| Application ID | Qhkf57vKyOHYEpxoW3OZlw== |
| Application Purpose | Original Equipment |
| Application Date | 2002-04-25 |
| Frequency Range | 27.145 MHz |
| FRN | 0006850614 |
| Test Firm | Compliance Certification Services Inc |
| Certified By | Steve Cheng EMC Engineering Manager ( AGENT) |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Submitted | 2002-04-25 |
| Available | 2002-04-25 |
| Created | 2002-03-20 |
| Modified | 2002-03-20 |
| Pages | 1 |
| File Type | Adobe Acrobat PDF |
| File Size | 40495 |
| File SHA-256 | 32a991fe7c8b24b3852562d468c7e9498c8d508dcbdbf5a69ccd718577d8f760 |
| PDF Metadata Producer | Acrobat 4.05 Scan Plug-in for Windows Acrobat 4.05 Scan Plug-in for Windows |
| FCC.gov Sources | FCC.gov 239088 |
