FCC ID APIMLNO519
No.519
by Harman International Industries, Inc
Grantee Code: API Product Code: MLNO519
Latest application date: 2016-09-20
Device Images
FCC ID Device Details
| FCC ID | APIMLNO519 |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | API |
| Product Code | MLNO519 |
| Applicant Business | Harman International Industries, Inc 🇺🇸 |
| Related Domains |  harman.com |
| Equipment Class | No.519 |
| Test Firm | TUV Rheinland of North America Inc. |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 5180-5240 MHz | Original Equipment | 2016-09-20 |
| 2412-2462 MHz | Original Equipment | 2016-09-20 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| Compliance Statement insert | Users Manual | 2017-03-15 | PDF 3 MB |
| Harman Compliance Statement Insert | Users Manual | 2017-03-15 | PDF 3 MB |
| Harman Manual | Users Manual | 2017-03-15 | PDF 803.4 KB |
| Harmon Manual | Users Manual | 2017-03-15 | PDF 803.4 KB |
| Internal Photos | Internal Photos | 2017-03-15 | PDF 386.1 KB |

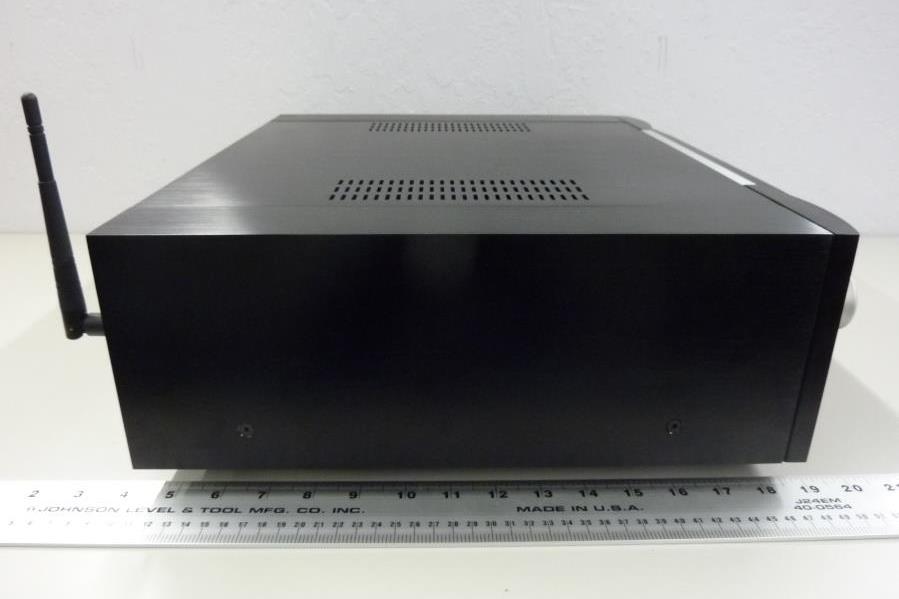

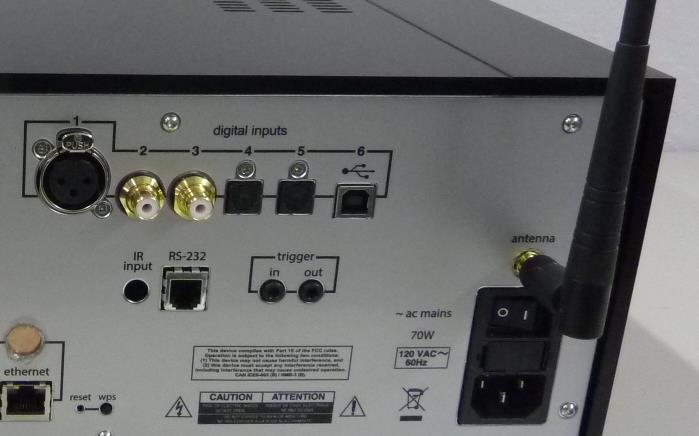

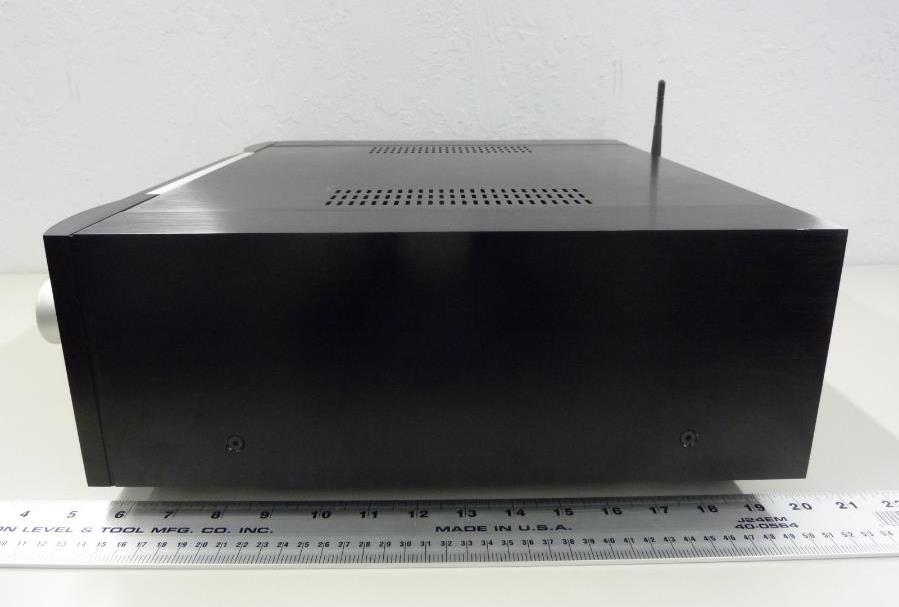

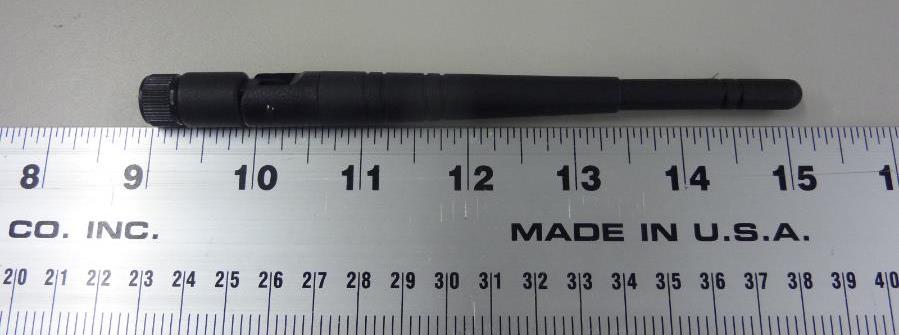

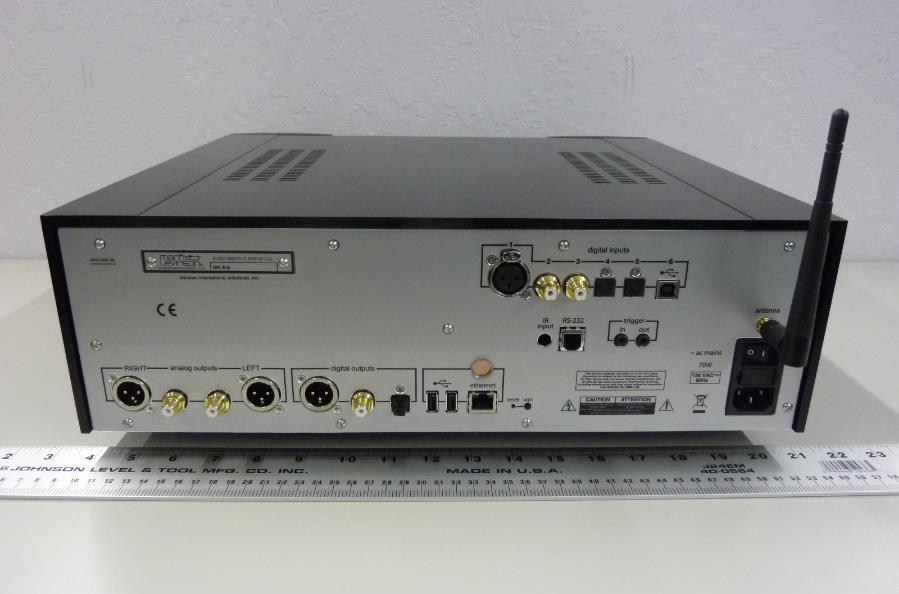

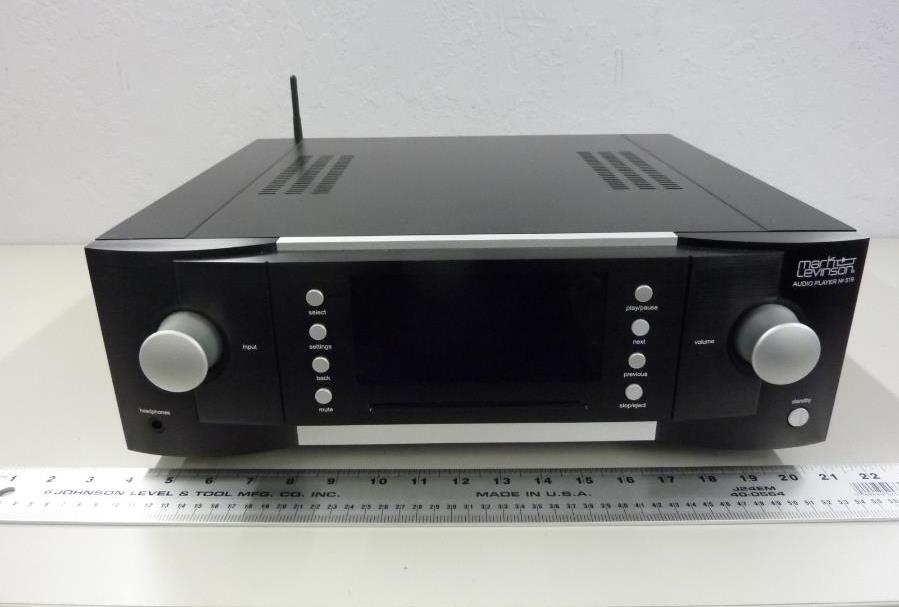

| External Photos | External Photos | 2016-09-20 | PDF 258.2 KB |
| Label Exhibit | ID Label/Location Info | 2016-09-20 | PDF 102.5 KB |
| Label Location | ID Label/Location Info | 2016-09-20 | PDF 201.6 KB |
| Label information | ID Label/Location Info | 2016-09-20 | PDF 102.5 KB |
| label Location | ID Label/Location Info | 2016-09-20 | PDF 201.6 KB |

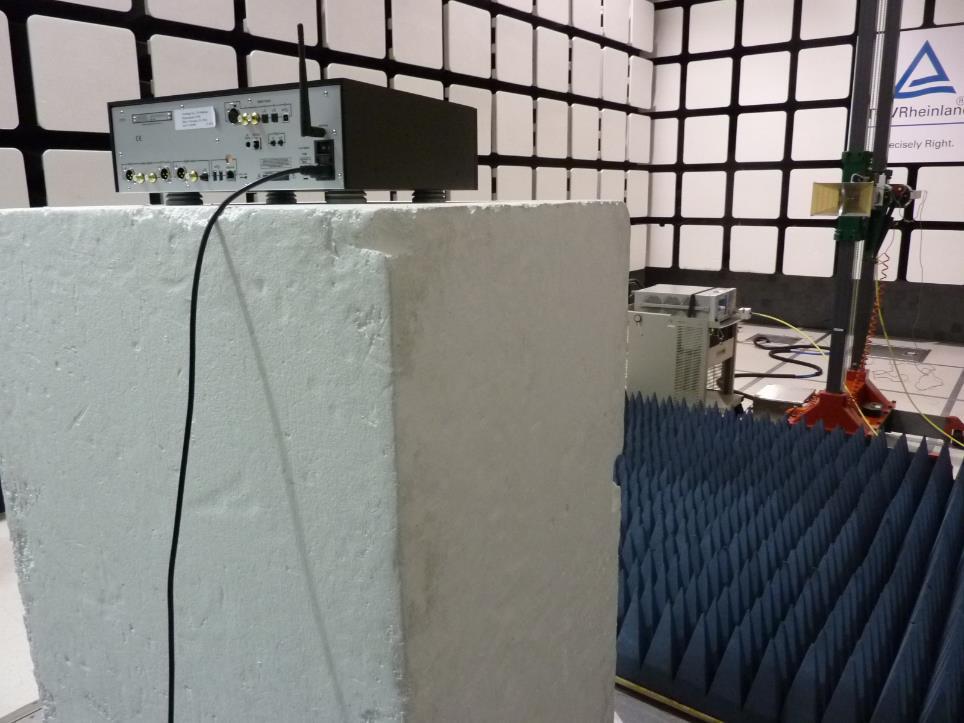

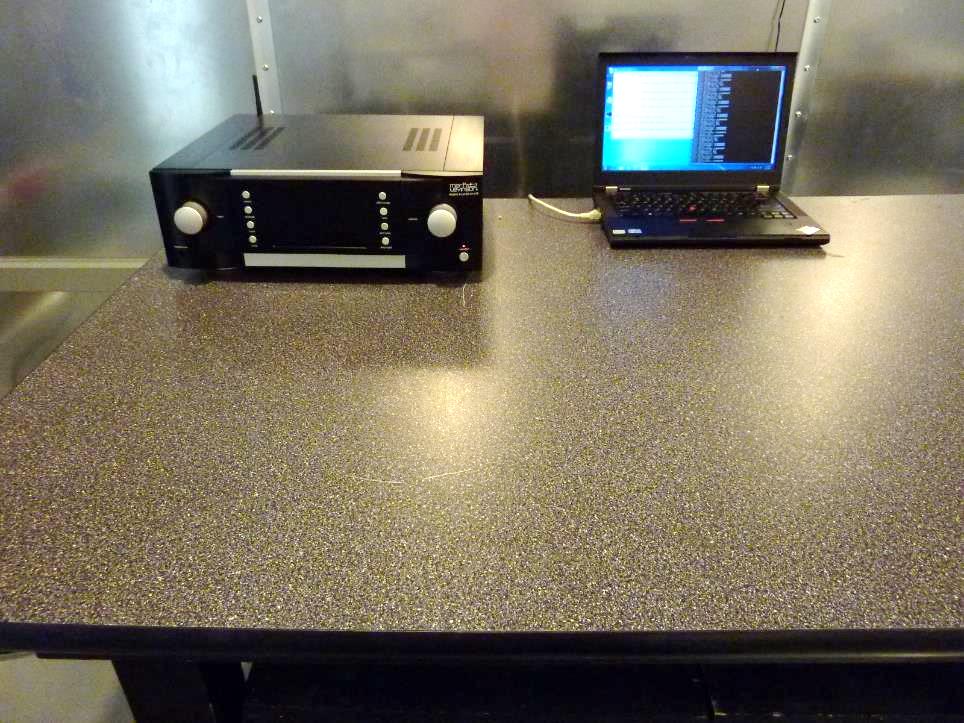

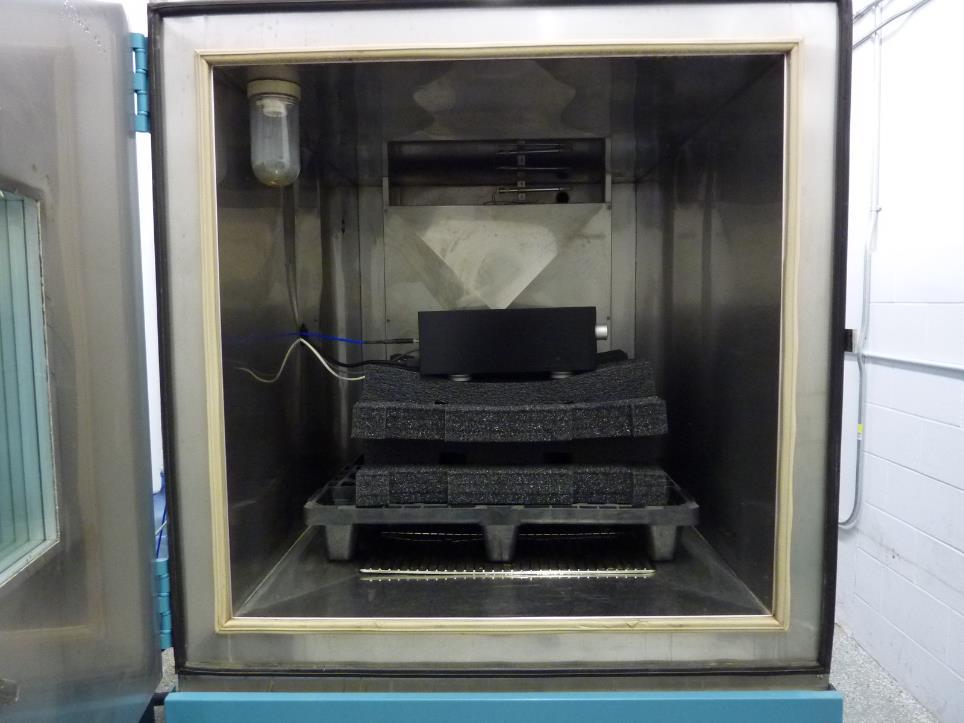

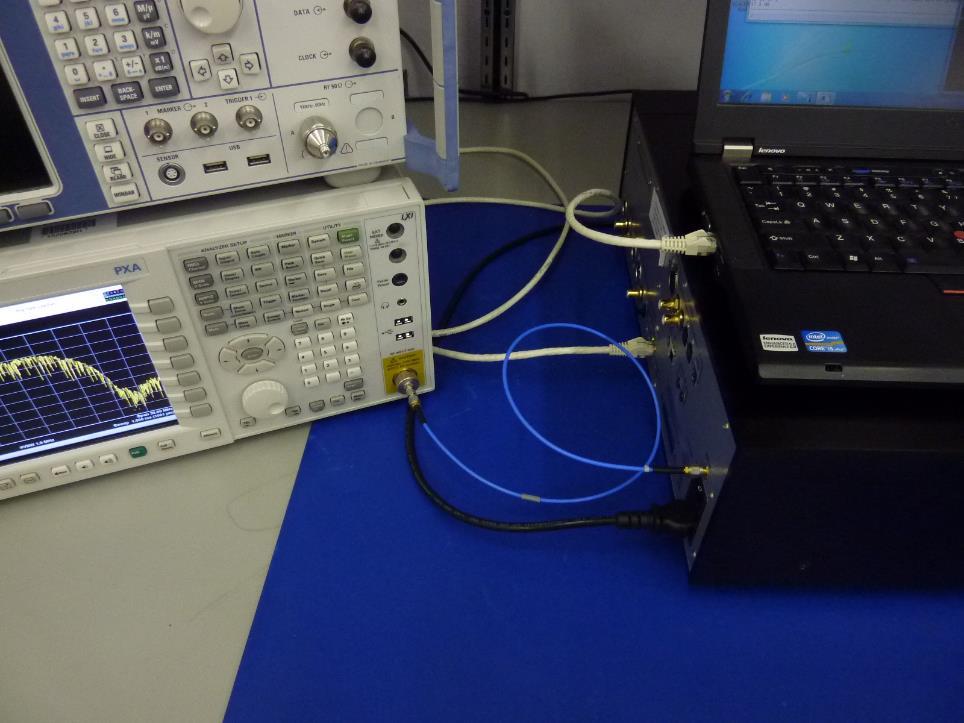

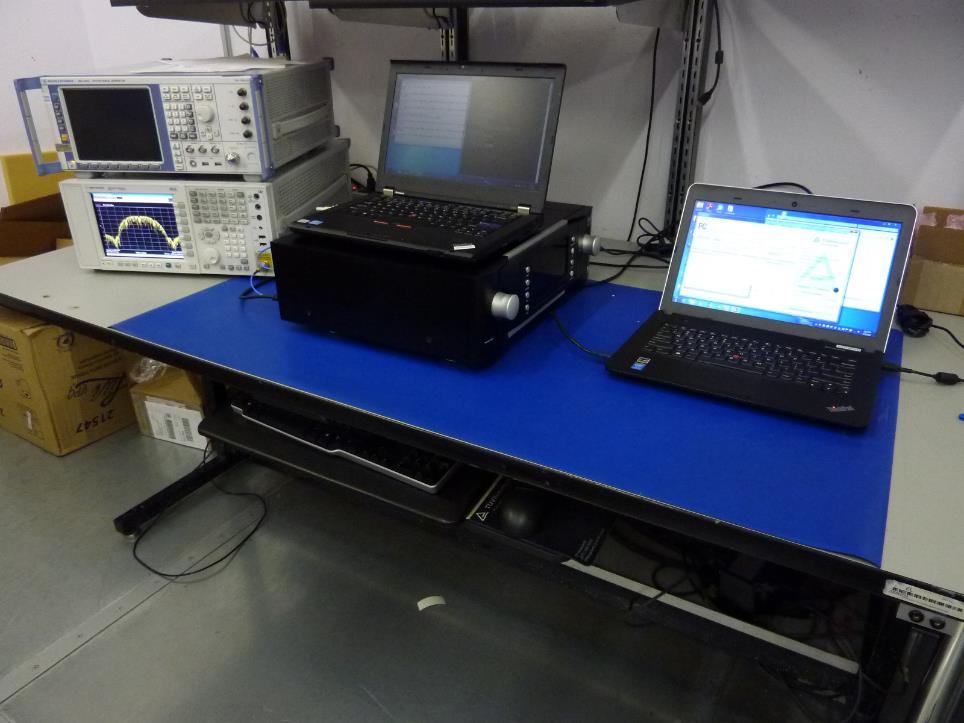

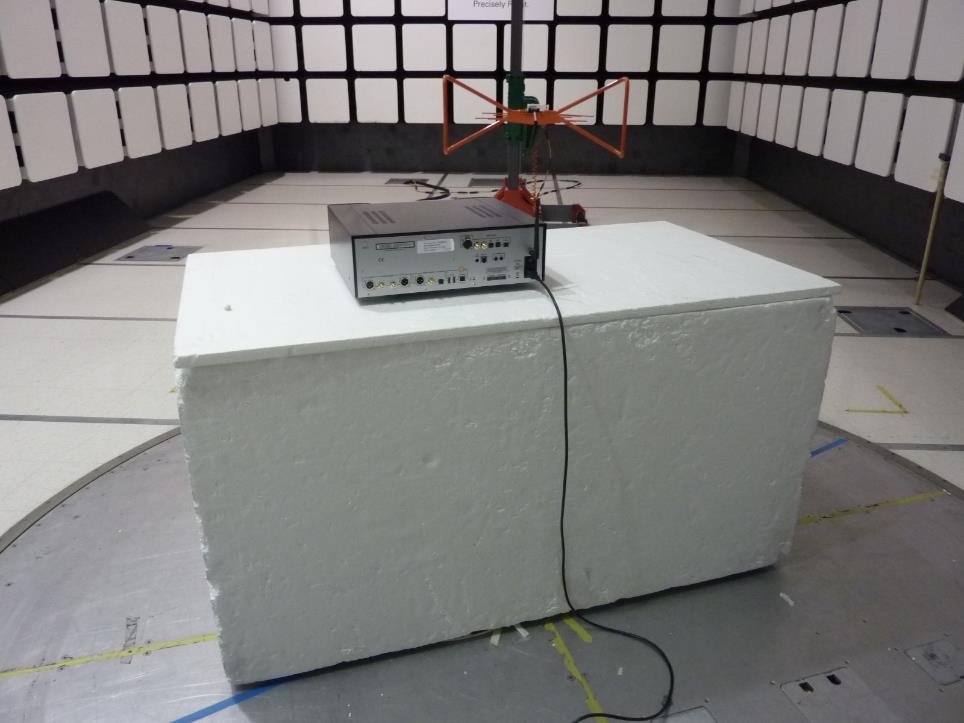

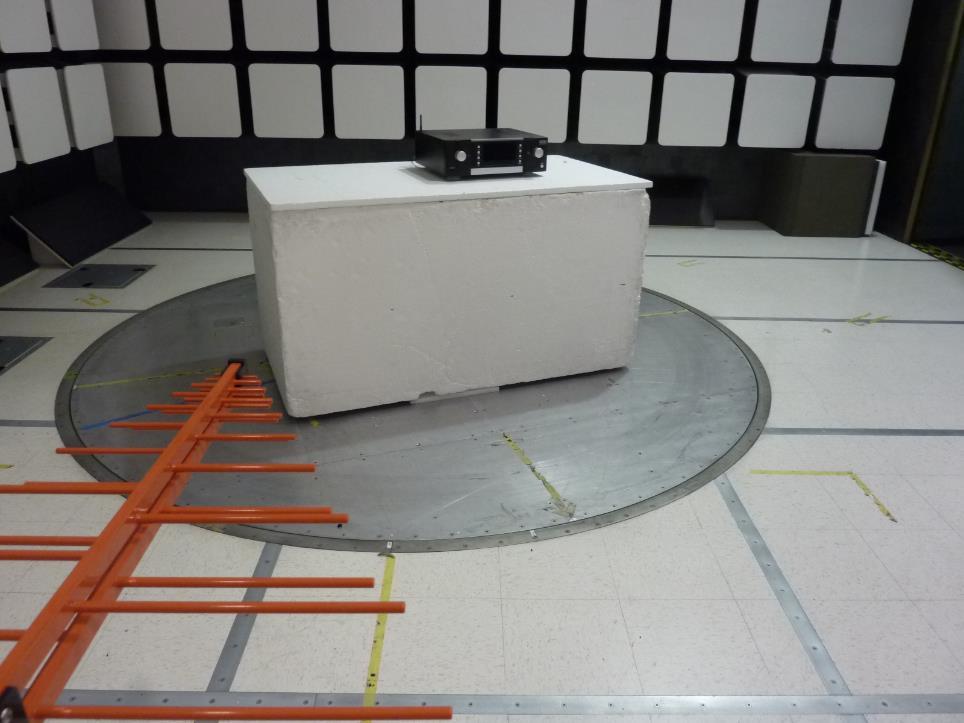

| Test Setup Photos | Test Setup Photos | 2016-09-20 | PDF 1,020.8 KB |
| 2.4 GHz DTS Test Report | Test Report | 2016-09-20 | PDF 3.5 MB |
| 2.4 GHz DTS Test Report-REVISED | Test Report | 2016-09-20 | PDF 3.5 MB |
| DFS Test Report | Test Report | 2016-09-20 | PDF 1.3 MB |
| DFS Test Report-REVISED | Test Report | 2016-09-20 | PDF 1.3 MB |
| UNII 1-2A Test Report | Test Report | 2016-09-20 | PDF 3.9 MB |
| UNII 1-2A Test Report-REVISED | Test Report | 2016-09-20 | PDF 3.9 MB |
| UNII 2C Test Report | Test Report | 2016-09-20 | PDF 3.1 MB |
| UNII 2C Test Report-REVISED | Test Report | 2016-09-20 | PDF 3.1 MB |
| UNII 3 Test Report | Test Report | 2016-09-20 | PDF 2.8 MB |
| UNII 3 Test Report-REVISED | Test Report | 2016-09-20 | PDF 2.7 MB |
| Antenna Distance Claim | Attestation Statements | 2016-09-20 | PDF 160.9 KB |
| Software Security and User Configuration | Attestation Statements | 2016-09-20 | PDF 973.5 KB |
| Confidentiality Request | Cover Letter(s) | 2016-09-20 | PDF 1.3 MB |
| Laird Antenna Spec sheet | Cover Letter(s) | 2016-09-20 | PDF 481.1 KB |
| WiFi Chip spec sheet | Cover Letter(s) | 2016-09-20 | PDF 1.4 MB |
| RF Exposure Exhibit | RF Exposure Info | 2016-09-20 | PDF 359.3 KB |
| TX Block Diagram Metadata only | Block Diagram | PDF 125.3 KB | |
| Schematics Metadata only | Schematics | PDF 106.6 KB | |
| Functional Description Metadata only | Operational Description | PDF 1.3 MB | |
| Functional Descripton Metadata only | Operational Description | PDF 1.3 MB |
Application Information
| Application ID | 74sGpfFzczpMvZX5wQ5fAw== |
|---|---|
| Final Action Date | 2016-09-20 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0024748147 |
| Model | MLNO519 |
| Frequency Range | 5180-5240 MHz |
| Equipment Class | NII - Unlicensed National Information Infrastructure TX |
| Device Description | No.519 |
| Responsible Party | Terry Shi, Prin.Engineer,Regulatory Compliance, Quality, terry.shi@harman.com , 86-75523189391 |
| Test Firm | David Spencer, TUV Rheinland of North America Inc., dspencer@us.tuv.com  , (925) 249-9123 x2116 |
| TCB Email | FCB@us.tuv.com |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | Yes |
| Short-Term Confidentiality Date | 03/15/2017 |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | Yes |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Power listed is the maximum conducted output power. This client device has no radar detection capability. The antenna(s) presented in the test report are approved for use. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons. Operations in the 5.15-5.25GHz band are restricted to indoor usage only. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| 74sGpfFzczpMvZX5wQ5fAw== | 2016-09-20 | Original Equipment |
| 63Oz63IqNgx38aj44vEaaw== | 2016-09-20 | Original Equipment |
Equipment Authorization
| Frequency | Output | Tolerance | Emission | Rules | Grant Notes |
|---|---|---|---|---|---|
| 2412-2462 MHz | 0.05129 | 15M0D1D | 15C | CC | |
| 2412-2462 MHz | 0.02944 | 15M0D1D | 15C | ||
| 2412-2462 MHz | 0.02472 | 17M7D1D | 15C | ||
| 5180-5240 MHz | 0.0191 | 14.42ppm | 17M7D1D | 15E | |
| 5190-5230 MHz | 0.0175 | 14.42ppm | 36M3D1D | 15E | |
| 5260-5320 MHz | 0.02118 | 14.42ppm | 16M6D1D | 15E | |
| 5260-5320 MHz | 0.0166 | 14.42ppm | 17M7D1D | 15E | |
| 5270-5310 MHz | 0.01574 | 14.42ppm | 36M3D1D | 15E | |
| 5500-5700 MHz | 0.02723 | 14.42ppm | 16M6D1D | 15E | |
| 5500-5700 MHz | 0.02415 | 14.42ppm | 17M8D1D | 15E | |
| 5510-5670 MHz | 0.01941 | 14.42ppm | 36M3D1D | 15E | |
| 5745-5825 MHz | 0.0241 | 14.42ppm | 16M6D1D | 15E | |
| 5745-5825 MHz | 0.01991 | 14.42ppm | 17M7D1D | 15E | |
| 5755-5795 MHz | 0.01349 | 14.42ppm | 36M2D1D | 15E |
Grants
TCB Grant - Application 74sGpfFzczpMvZX5wQ5fAw==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
TUV Rheinland of North America, Inc. 1279 Quarry Lane Suite A Pleasanton, CA 94566 |
Date of Grant: 09/20/2016 Application Dated: 09/16/2016 |
| Harman International Industries, Inc |
| 8500 Balboa Boulevard |
| Northridge, CA 91329 |
| Attention: Terry Shi , Prin.Engineer,Regulatory Compliance, Quality |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | APIMLNO519 |
| Name of Grantee: | Harman International Industries, Inc |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | No.519 |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 38 CC ND | 15E | 5180.0 - 5240.0 | 0.02099 | 14.42 PM | 16M6D1D |
| 15E | 5260.0 - 5320.0 | 0.02118 | 14.42 PM | 16M6D1D | |
| 15E | 5500.0 - 5700.0 | 0.02723 | 14.42 PM | 16M6D1D | |
| 15E | 5745.0 - 5825.0 | 0.0241 | 14.42 PM | 16M6D1D | |
| 15E | 5180.0 - 5240.0 | 0.0191 | 14.42 PM | 17M7D1D | |
| 15E | 5260.0 - 5320.0 | 0.0166 | 14.42 PM | 17M7D1D | |
| 15E | 5500.0 - 5700.0 | 0.02415 | 14.42 PM | 17M8D1D | |
| 15E | 5745.0 - 5825.0 | 0.01991 | 14.42 PM | 17M7D1D | |
| 15E | 5190.0 - 5230.0 | 0.0175 | 14.42 PM | 36M3D1D | |
| 15E | 5270.0 - 5310.0 | 0.01574 | 14.42 PM | 36M3D1D | |
| 15E | 5510.0 - 5670.0 | 0.01941 | 14.42 PM | 36M3D1D | |
| 15E | 5755.0 - 5795.0 | 0.01349 | 14.42 PM | 36M2D1D |
| Power listed is the maximum conducted output power. This client device has no radar detection capability. The antenna(s) presented in the test report are approved for use. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons. Operations in the 5.15-5.25GHz band are restricted to indoor usage only. |
| 38: | This device has shown compliance, in all grant-listed U-NII sub-bands, with the new rules for U-NII devices adopted under Docket No. 13-49 and may be marketed, manufactured or imported after the June 1, 2016 transition deadline. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| ND: | This UNII device complies with the Transmit Power Control (TPC) and Dynamic Frequency Selection (DFS) requirements in Section 15.407(h). |
EAS Grant - Application 74sGpfFzczpMvZX5wQ5fAw==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Harman International Industries, Inc 8500 Balboa Boulevard Northridge, CA 91329 United States |
Date of Grant: 09/20/2016 Application Dated: 09/16/2016 |
| Attention: Terry Shi , Prin.Engineer,Regulatory Compliance, Quality |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | APIMLNO519 |
| Name of Grantee: | Harman International Industries, Inc |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | No.519 |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 38 CC ND | 15E | 5180.0 - 5240.0 | 0.02099 | 14.42 PM | 16M6D1D |
| 15E | 5260.0 - 5320.0 | 0.02118 | 14.42 PM | 16M6D1D | |
| 15E | 5500.0 - 5700.0 | 0.02723 | 14.42 PM | 16M6D1D | |
| 15E | 5745.0 - 5825.0 | 0.0241 | 14.42 PM | 16M6D1D | |
| 15E | 5180.0 - 5240.0 | 0.0191 | 14.42 PM | 17M7D1D | |
| 15E | 5260.0 - 5320.0 | 0.0166 | 14.42 PM | 17M7D1D | |
| 15E | 5500.0 - 5700.0 | 0.02415 | 14.42 PM | 17M8D1D | |
| 15E | 5745.0 - 5825.0 | 0.01991 | 14.42 PM | 17M7D1D | |
| 15E | 5190.0 - 5230.0 | 0.0175 | 14.42 PM | 36M3D1D | |
| 15E | 5270.0 - 5310.0 | 0.01574 | 14.42 PM | 36M3D1D | |
| 15E | 5510.0 - 5670.0 | 0.01941 | 14.42 PM | 36M3D1D | |
| 15E | 5755.0 - 5795.0 | 0.01349 | 14.42 PM | 36M2D1D |
| Power listed is the maximum conducted output power. This client device has no radar detection capability. The antenna(s) presented in the test report are approved for use. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons. Operations in the 5.15-5.25GHz band are restricted to indoor usage only. |
| 38: | This device has shown compliance, in all grant-listed U-NII sub-bands, with the new rules for U-NII devices adopted under Docket No. 13-49 and may be marketed, manufactured or imported after the June 1, 2016 transition deadline. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| ND: | This UNII device complies with the Transmit Power Control (TPC) and Dynamic Frequency Selection (DFS) requirements in Section 15.407(h). |
| Mail To: | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
TUV Rheinland of North America, Inc. 1279 Quarry Lane Suite A Pleasanton, CA 94566 |
Date of Grant: 09/20/2016 Application Dated: 09/16/2016 |
| Harman International Industries, Inc |
| 8500 Balboa Boulevard |
| Northridge, CA 91329 |
| Attention: Terry Shi , Prin.Engineer,Regulatory Compliance, Quality |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | APIMLNO519 |
| Name of Grantee: | Harman International Industries, Inc |
| Equipment Class: | Digital Transmission System |
| Notes: | No.519 |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15C | 2412.0 - 2462.0 | 0.05129 | 15M0D1D | |
| 15C | 2412.0 - 2462.0 | 0.02944 | 15M0D1D | ||
| 15C | 2412.0 - 2462.0 | 0.02472 | 17M7D1D |
| Power listed is the maximum conducted output power. The antenna presented in the test report are approved for use. The antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons. This grant will become invalid upon any unapproved changes to the circuit board or components. Any changes would require a Class One or Class Two Permissive change. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
