  4. MO description of operating sequence

DMR0141 Household Microwave Oven Operational... - FCC ID APYDMR0141

FCC ID APYDMR0141

MO description of operating sequence

Household Microwave Oven

by Sharp Corporation

Document preview loads when visible.

Document Details

FCC IDAPYDMR0141
Document ID302489
Document TypeOperational Description

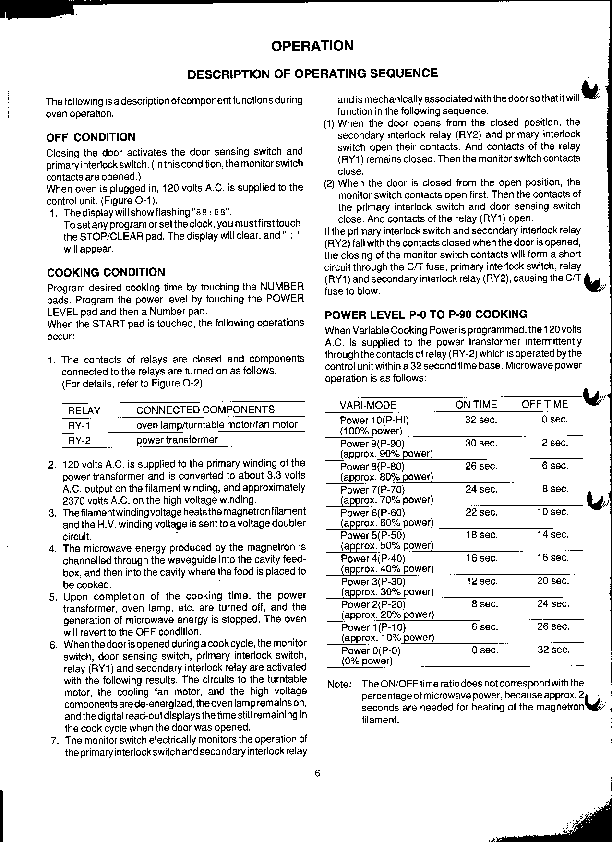

DescriptionMO description of operating sequence
