FCC ID APYHRO00241
Smart Phone
by Sharp Corporation
Grantee Code: APY Product Code: HRO00241
Latest application date: 2016-08-29
Device Images
FCC ID Device Details
| FCC ID | APYHRO00241 |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | APY |
| Product Code | HRO00241 |
| Applicant Business | Sharp Corporation 🇯🇵 |
| Related Domains |  sharp.co.jp  sharpsec.com |
| Equipment Class | Smart Phone |
| Test Firm | Japan Qlty. Assur. Org. Kitakansai Testing Center |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 1850.2-1909.8 MHz | Original Equipment | 2016-08-29 |
| 2402-2480 MHz | Original Equipment | 2016-08-29 |
| 2402-2480 MHz | Original Equipment | 2016-08-29 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| 12_User Manual_APYHRO00241.pdf | Users Manual | 2017-02-25 | PDF 1 MB |
| Z1_DoC_Bluetooth-compliance_APYHRO00241.pdf | Users Manual | 2017-02-25 | PDF 239.2 KB |
| 07-2_Photo_Internal_APYHRO00241.pdf | Internal Photos | 2017-02-25 | PDF 492.7 KB |
| 07-1_Photo_External_APYHRO00241.pdf | External Photos | 2017-02-25 | PDF 340 KB |

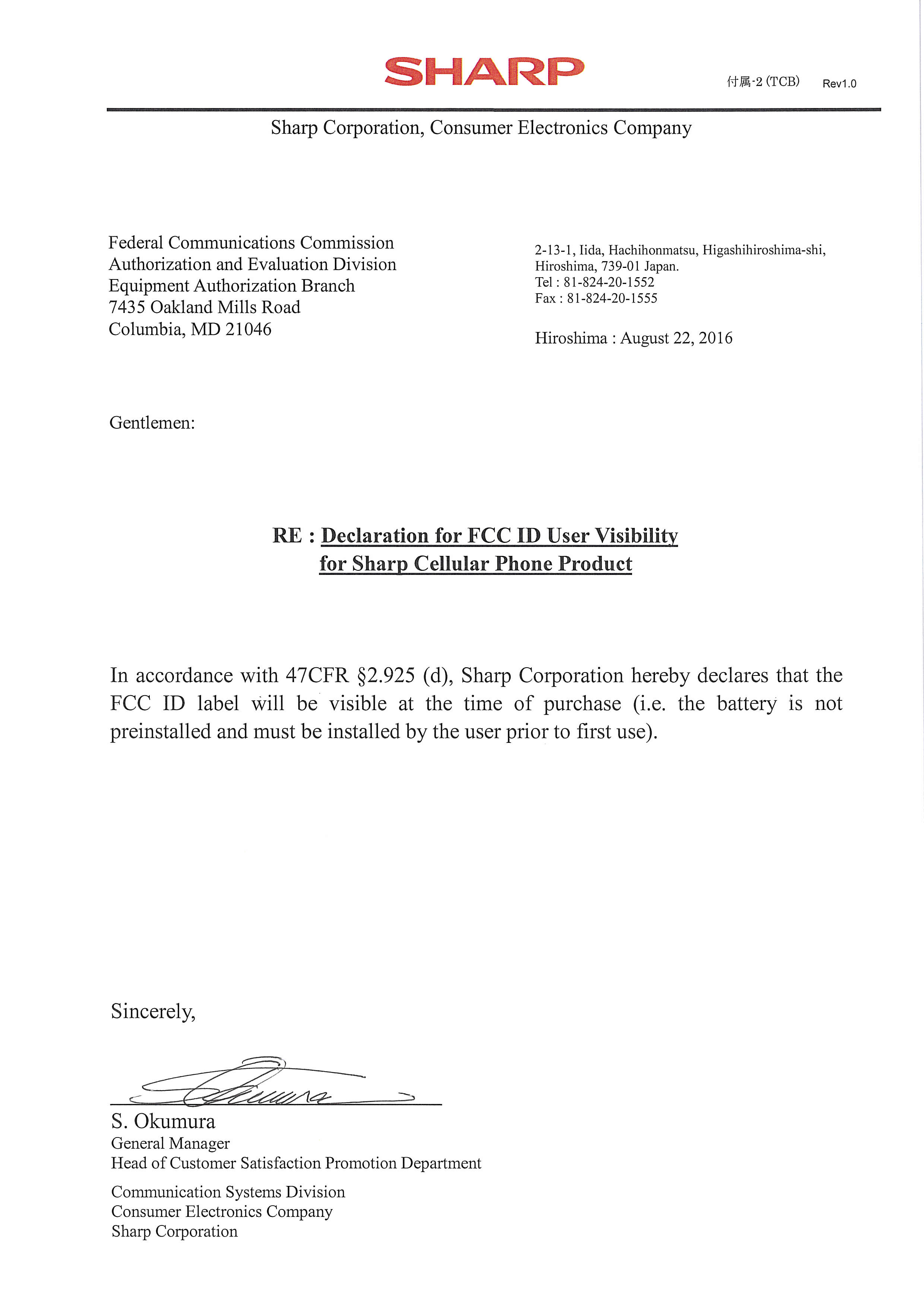

| 03_Declaration FCCID Label visibility_APYHRO00241.pdf | ID Label/Location Info | 2016-08-29 | PDF 460.7 KB |
| 08_FCC ID Location_APYHRO00241.pdf | ID Label/Location Info | 2016-08-29 | PDF 77.1 KB |
| Pt15B_APYHRO00241_TestSetupPhoto(confidential)_11380560H-B.pdf | Test Setup Photos | 2017-02-25 | PDF 661.2 KB |
| Pt15C(BT)_APYHRO00241_TestSetupPhoto(confidential)_KL80160287.pdf | Test Setup Photos | 2017-02-25 | PDF 183.8 KB |
| Pt15C(WLAN_BT-LE)_APYHRO00241_TestSetupPhoto(confidential)_KL80160288.pdf | Test Setup Photos | 2017-02-25 | PDF 183.8 KB |
| Pt24E(PCS)_APYHRO00241_TestSetupPhoto(confidential)_KL80160286.pdf | Test Setup Photos | 2017-02-25 | PDF 99.2 KB |
| SAR_APYHRO00241_TestSetupPhoto(confidential)_KL80160285R.pdf | Test Setup Photos | 2017-02-25 | PDF 167.9 KB |
| Pt15B_APYHRO00241_TestReport_11380560H-B.pdf | Test Report | 2016-08-29 | PDF 582.2 KB |
| Pt15C(BT)_APYHRO00241_TestReport_KL80160287.pdf | Test Report | 2016-08-29 | PDF 805.4 KB |
| Pt15C(WLAN_BT-LE)_APYHRO00241_TestReport_KL80160288.pdf | Test Report | 2016-08-29 | PDF 1.5 MB |
| Pt24E(PCS)_APYHRO00241_TestReport_KL80160286.pdf | Test Report | 2016-08-29 | PDF 444.7 KB |
| 02_Confidential Request_APYHRO00241.pdf | Cover Letter(s) | 2016-08-29 | PDF 648.7 KB |
| Signature Authorization Letter_Oct21-2015.pdf | Cover Letter(s) | 2016-08-29 | PDF 454.7 KB |
| SAR_APYHRO00241_Appendix1_KL80160285R.pdf | RF Exposure Info | 2016-08-29 | PDF 305.5 KB |
| SAR_APYHRO00241_Appendix2_KL80160285R.pdf | RF Exposure Info | 2016-08-29 | PDF 400 KB |
| SAR_APYHRO00241_Appendix3_KL80160285R.pdf | RF Exposure Info | 2016-08-29 | PDF 523.4 KB |
| SAR_APYHRO00241_Appendix4_KL80160285R.pdf | RF Exposure Info | 2016-08-29 | PDF 879.2 KB |
| SAR_APYHRO00241_TestReport_KL80160285R.pdf | RF Exposure Info | 2016-08-29 | PDF 440 KB |
| 06_BlockDiagram_APYHRO00241.pdf Metadata only | Block Diagram | PDF 231.5 KB | |
| 05-1_Schematic_Main-PWB_APYHRO00241.pdf Metadata only | Schematics | PDF 2.1 MB | |
| 05-2_Schematic_LCD-PWB_APYHRO00241.pdf Metadata only | Schematics | PDF 182.6 KB | |
| 05-3_Schematic_Sub-PWB_APYHRO00241.pdf Metadata only | Schematics | PDF 89.6 KB | |
| 05-4_Schematic_USB-PWB_APYHRO00241.pdf Metadata only | Schematics | PDF 68.8 KB | |
| 05-5_Schematic_Relay-FPC_APYHRO00241.pdf Metadata only | Schematics | PDF 127.5 KB | |
| 04_Model Description_APYHRO00241.pdf Metadata only | Operational Description | PDF 106.1 KB | |
| 09_Procedure_OutputPower_Alignment_2G_APYHRO00241.pdf Metadata only | Operational Description | PDF 41.7 KB | |
| 10-1_Theory of Operation_2G(GSM)_APYHRO00241.pdf Metadata only | Operational Description | PDF 9.8 KB | |
| 10-2_Theory of Operation_WLAN_BT_APYHRO00241.pdf Metadata only | Operational Description | PDF 9.1 KB | |
| Z2-1_Antenna Drawing_(Main_WLAN_BT)_APYHRO00241.pdf Metadata only | Operational Description | PDF 277.8 KB | |
| Z2-2_Antenna Drawing_(Sub)_APYHRO00241.pdf Metadata only | Operational Description | PDF 74.1 KB | |
| Z2-3_Antenna Drawing_(Main_Sub_WLAN_BT)_APYHRO00241.pdf Metadata only | Operational Description | PDF 102.8 KB | |
| Z3_WLAN_Software configuration information for restriction_APYHRO00241.pdf Metadata only | Operational Description | PDF 229.7 KB | |
| 11-1_Tune up procedure_GSM_APYHRO00241.pdf Metadata only | Parts List/Tune Up Info | PDF 42.1 KB | |
| 11-2_Tune up procedure_BT_APYHRO00241.pdf Metadata only | Parts List/Tune Up Info | PDF 88 KB | |
| 11-3_Tune up procedure_WLAN_APYHRO00241.pdf Metadata only | Parts List/Tune Up Info | PDF 89.3 KB | |
| 13_PartsList_APYHRO00241.pdf Metadata only | Parts List/Tune Up Info | PDF 48.2 KB |
Application Information
| Application ID | xefSYCCG0rPLnwE/8/7DIw== |
|---|---|
| Final Action Date | 2016-08-29 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0005810866 |
| Model | HRO00241 |
| Frequency Range | 1850.2-1909.8 MHz |
| Equipment Class | PCE - PCS Licensed Transmitter held to ear |
| Device Description | Smart Phone |
| Responsible Party | Taihei Ohtsuka, Division Manager, Head of Quality promotion div., fcc-contact@sharp.co.jp , +81-50-5433-4157 |
| Technical Contact | Steve Petruska, Sharp Electronics Corporation, spetrusk@sharpsec.com , 201-529-9689 |
| Non-Technical Contact | Steve Petruska, Sharp Electronics Corporation, spetrusk@sharpsec.com , 201-529-9689 |
| Test Firm | Kousei Shibata, Japan Qlty. Assur. Org. Kitakansai Testing Center, shibata-kousei@jqa.jp  , 81-72-640-5270 |
| TCB Email | LST.FRE.CertNotice@ul.com  |
| TCB Scope | B1: Commercial mobile radio services equipment in the following 47 CFR Parts 20, 22 (cellular), 24,25 (below 3 GHz) & 27 |
| Short-Term Confidentiality | Yes |
| Short-Term Confidentiality Date | 02/25/2017 |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | Yes |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Output power listed is EIRP. The SAR compliance for body-worn accessory operation is based on a separation distance of 1.0 cm between the unit and the body of the user. Belt clips, holsters and other body-worn accessories may not contain metallic components. End-users must be informed of the body worn operating requirements for satisfying RF exposure compliance. The highest reported SAR for head, body-worn accessory, product specific (hotspot), and simultaneous transmission exposure conditions are 0.38 W/kg, 0.47 W/kg, 0.47 W/kg and 0.70 W/kg respectively. This device also contains functions that are not operational in U.S. territories. This filing is only applicable for U.S. operations. |
