FCC ID ARA-CPE81PRO3XA
CPE8100-PRO-1D-3.X
by Telrad Networks Ltd
Grantee Code: ARA Product Code: CPE81PRO3XA
Latest application date: 2017-04-04
Device Images
FCC ID Device Details
| FCC ID | ARA-CPE81PRO3XA |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | ARA |
| Product Code | CPE81PRO3XA |
| Applicant Business | Telrad Networks Ltd 🇮🇱 |
| Related Domains |  telrad.com |
| Equipment Class | CPE8100-PRO-1D-3.X |
| Test Firm | ITL PRODUCT TESTING LTD |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 3652.5-3697.5 MHz | Original Equipment | 2017-04-04 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| User Manual | Users Manual | 2017-04-04 | PDF 676.5 KB |
| Internal Photo | Internal Photos | 2017-04-04 | PDF 2.8 MB |
| External Photo | External Photos | 2017-04-04 | PDF 1.4 MB |
| Label Location | ID Label/Location Info | 2017-04-04 | PDF 220.3 KB |
| Label Sample | ID Label/Location Info | 2017-04-04 | PDF 646.9 KB |

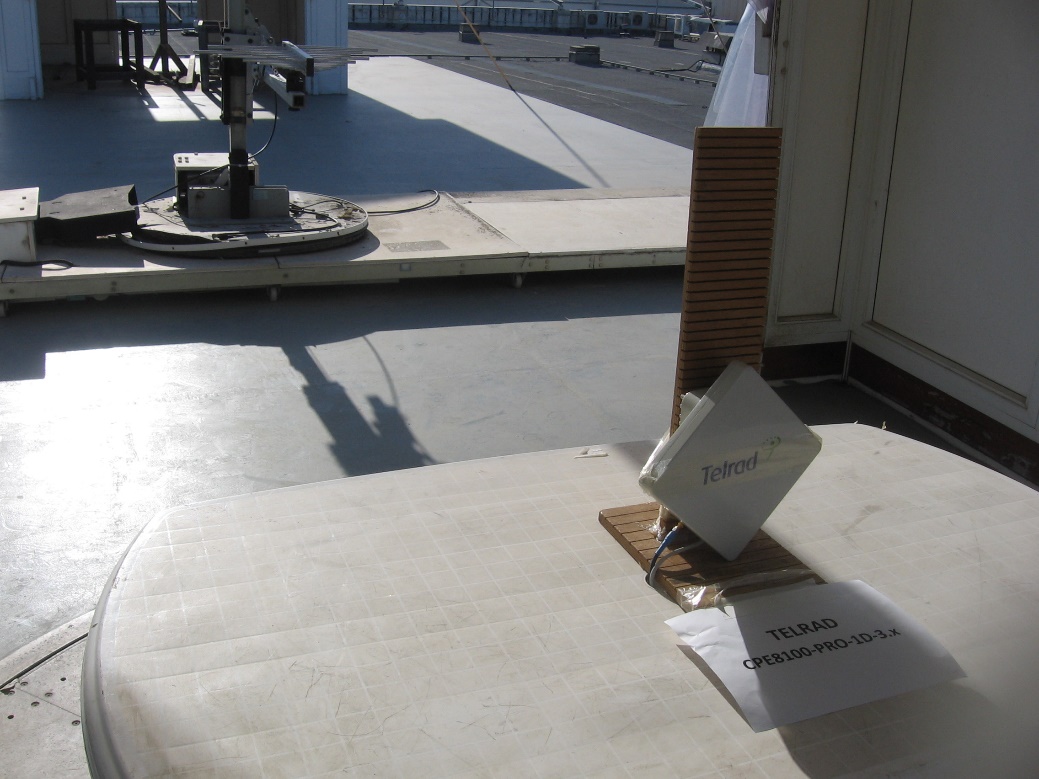

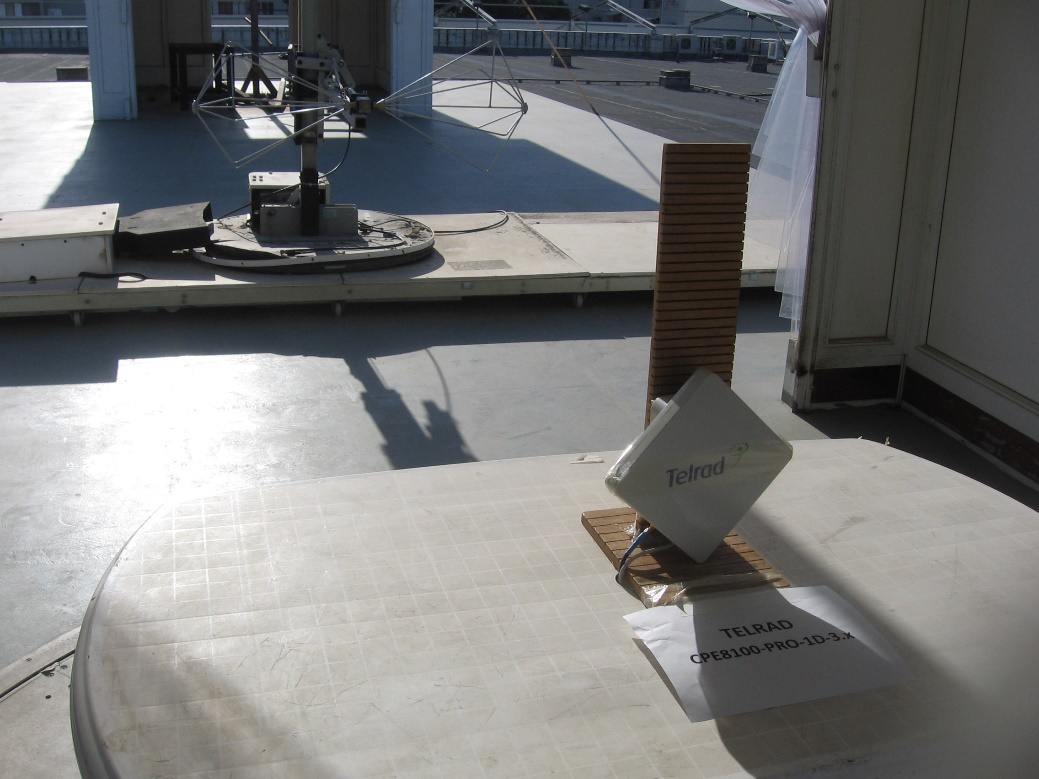

| Test Setup Photo | Test Setup Photos | 2017-04-04 | PDF 628.6 KB |
| Test Report Pages 1-90 | Test Report | 2017-04-04 | PDF 5.6 MB |
| Test Report Pages 91-191 | Test Report | 2017-04-04 | PDF 4.5 MB |
| 731 Signature Authorization Letter | Cover Letter(s) | 2017-04-04 | PDF 58.7 KB |
| Authorization Letter | Cover Letter(s) | 2017-04-04 | PDF 61 KB |
| Confidentiality Request Letter | Cover Letter(s) | 2017-04-04 | PDF 29.9 KB |
| RF Exposure | RF Exposure Info | 2017-04-04 | PDF 69.1 KB |
| Block Diagram Metadata only | Block Diagram | PDF 66.5 KB | |
| Schematics Metadata only | Schematics | PDF 203.8 KB | |
| Operational Description Metadata only | Operational Description | PDF 82.5 KB | |
| Parts List Metadata only | Parts List/Tune Up Info | PDF 144.4 KB | |
| Tune Up Procedure Metadata only | Parts List/Tune Up Info | PDF 15.1 KB |
Application Information
| Application ID | yUjVrP9xfrHOPAJmw87hZw== |
|---|---|
| Final Action Date | 2017-04-04 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0023140502 |
| Model | CPE81PRO3XA |
| Frequency Range | 3652.5-3697.5 MHz |
| Equipment Class | TNB - Licensed Non-Broadcast Station Transmitter |
| Device Description | CPE8100-PRO-1D-3.X |
| Responsible Party | Yishai Amsterdamer, VP R&D;, yishai.amsterdamer@telrad.com , 5182692344 |
| Test Firm | Ilan Cohen, ITL PRODUCT TESTING LTD, icohen@itl.co.il  , 972-8-918-6107 |
| TCB Email | tei@timcoengr.com  |
| TCB Scope | B2: General Mobile Radio And Broadcast Services equipment in the following 47 CFR Parts 22 (non-cellular) 73, 74, 90, 95, 97, & 101 (all below 3 GHz) |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | Yes |
| Grant Comments | Output power listed is EIRP. Professional installation required. This transmitter must be fixed-mounted on outdoor permanent structures with a separation distance of at least 50-cm from all persons, and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device supports LTE of 5, 10, 15, and 20MHz bandwidth modes for FDD LTE Band 43. This device contains functions that are not operational in U.S. Territories; this filing is applicable only for U.S. operations. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| yUjVrP9xfrHOPAJmw87hZw== | 2017-04-04 | Original Equipment |
Equipment Authorization
Grants
TCB Grant - Application yUjVrP9xfrHOPAJmw87hZw==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Timco Engineering, Inc. 849 NW State Road 45 Newberry, FL 32669 |
Date of Grant: 04/04/2017 Application Dated: 03/27/2017 |
| Telrad Networks Ltd |
| Industrial Center |
| PO Box 6118 |
| Lod, 711600 Israel |
| Attention: Yishai Amsterdamer , VP R&D |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | ARA-CPE81PRO3XA |
| Name of Grantee: | Telrad Networks Ltd |
| Equipment Class: | Licensed Non-Broadcast Station Transmitter |
| Notes: | CPE8100-PRO-1D-3.X |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| UR | 90 | 3652.5 - 3697.5 | 3.39 | 1500.0 Hz | 3M60W7D |
| UR | 90 | 3655.0 - 3695.0 | 8.13 | 1500.0 Hz | 8M60W7D |
| UR | 90 | 3657.5 - 3692.5 | 12.3 | 1500.0 Hz | 12M9W7D |
| UR | 90 | 3660.0 - 3690.0 | 16.2 | 1500.0 Hz | 17M2W7D |
| Output power listed is EIRP. Professional installation required. This transmitter must be fixed-mounted on outdoor permanent structures with a separation distance of at least 50-cm from all persons, and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device supports LTE of 5, 10, 15, and 20MHz bandwidth modes for FDD LTE Band 43. This device contains functions that are not operational in U.S. Territories; this filing is applicable only for U.S. operations. |
| UR: | This device incorporates an unrestricted contention based protocol. It is capable of avoiding co frequency interference with devices using all other types of contention-based protocols. |
EAS Grant - Application yUjVrP9xfrHOPAJmw87hZw==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Telrad Networks Ltd Industrial Center PO Box 6118 Lod, 711600 Israel |
Date of Grant: 04/04/2017 Application Dated: 03/27/2017 |
| Attention: Yishai Amsterdamer , VP R&D |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | ARA-CPE81PRO3XA |
| Name of Grantee: | Telrad Networks Ltd |
| Equipment Class: | Licensed Non-Broadcast Station Transmitter |
| Notes: | CPE8100-PRO-1D-3.X |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| UR | 90 | 3652.5 - 3697.5 | 3.39 | 1500.0 Hz | 3M60W7D |
| UR | 90 | 3655.0 - 3695.0 | 8.13 | 1500.0 Hz | 8M60W7D |
| UR | 90 | 3657.5 - 3692.5 | 12.3 | 1500.0 Hz | 12M9W7D |
| UR | 90 | 3660.0 - 3690.0 | 16.2 | 1500.0 Hz | 17M2W7D |
| Output power listed is EIRP. Professional installation required. This transmitter must be fixed-mounted on outdoor permanent structures with a separation distance of at least 50-cm from all persons, and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device supports LTE of 5, 10, 15, and 20MHz bandwidth modes for FDD LTE Band 43. This device contains functions that are not operational in U.S. Territories; this filing is applicable only for U.S. operations. |
| UR: | This device incorporates an unrestricted contention based protocol. It is capable of avoiding co frequency interference with devices using all other types of contention-based protocols. |
