FCC ID AS5BBTRX-15
TD-RRH8x20-25
by Nokia of America Corporation
Grantee Code: AS5 Product Code: BBTRX15
Latest application date: 2016-06-20
Device Images
FCC ID Device Details
| FCC ID | AS5BBTRX-15 |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | AS5 |
| Product Code | BBTRX15 |
| Applicant Business | Nokia of America Corporation 🇺🇸 |
| Related Domains |  nokia-bell-labs.com |
| Equipment Class | TD-RRH8x20-25 |
| Test Firm | Alcatel-Lucent |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 2496-2690 MHz | Class II permissive change or modification of presently authorized equipment | 2016-06-20 |
| 2496-2690 MHz | Class II permissive change or modification of presently authorized equipment | 2015-08-25 |
| 2496-2690 MHz | Class II permissive change or modification of presently authorized equipment | 2015-06-24 |
| 2496-2690 MHz | Class II permissive change or modification of presently authorized equipment | 2014-07-25 |
| 2496-2690 MHz | Original Equipment | 2013-12-12 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| Exhibit D Users Manual per 2 1033 c3 | Users Manual | 2013-12-12 | PDF 658.6 KB |
| Exhibit C Internal Photographs per 2 1033 c12 | Internal Photos | 2013-12-12 | PDF 179.5 KB |
| Exhibit A ID Label and location per 2 1033 c2 and c11 | ID Label/Location Info | 2013-12-12 | PDF 295.2 KB |
| Exhibit C External Photographs per 2 1033 c12 | External Photos | 2013-12-12 | PDF 1.6 MB |

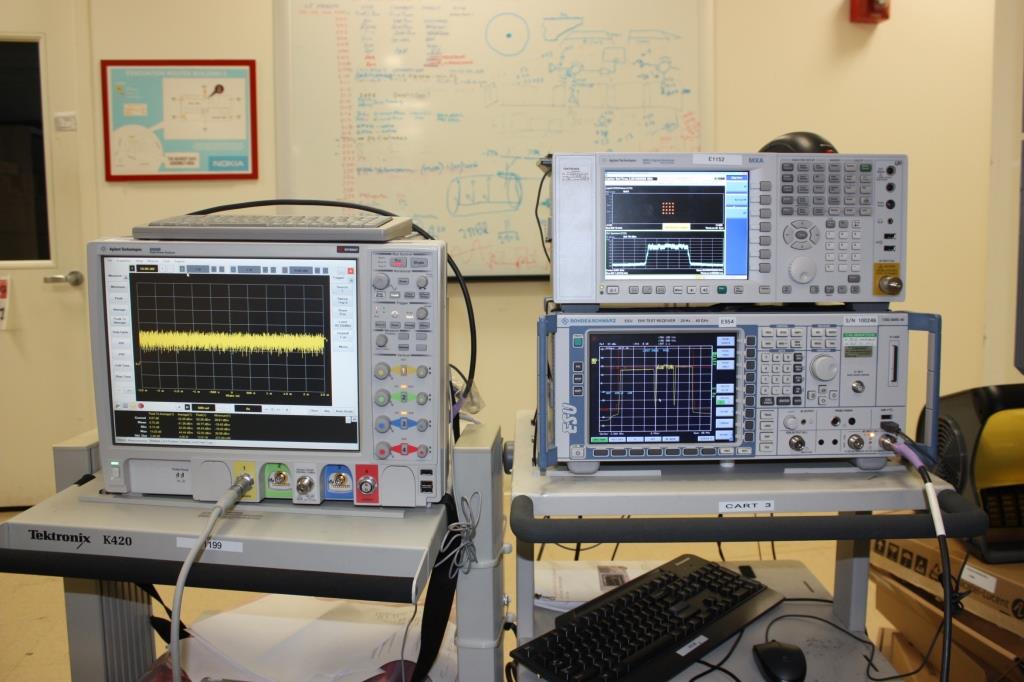

| Test Setup Photos | Test Setup Photos | 2016-06-20 | PDF 1.4 MB |
| Class II Test Report | Test Report | 2016-06-20 | PDF 4.4 MB |
| Test Report | Test Report | 2015-08-25 | PDF 3.9 MB |
| Exhibit E Test Measurement Report per 2 1033 c14 | Test Report | 2015-06-24 | PDF 3.2 MB |
| Exhibit E Test Measurement Report per 2 1033 c14 | Test Report | 2014-07-25 | PDF 5.8 MB |
| Exhibit E Test Measurement Report per 2 1033 c14 | Test Report | 2013-12-12 | PDF 3.7 MB |
| Attestation Statement | Cover Letter(s) | 2016-06-20 | PDF 134.4 KB |
| Attestation Statement | Attestation Statements | 2015-08-25 | PDF 68 KB |
| Attestation Statements | Attestation Statements | 2014-07-25 | PDF 64.9 KB |
| Qualification Statement | Attestation Statements | 2013-12-12 | PDF 65 KB |
| Cover Letter | Cover Letter(s) | 2016-06-20 | PDF 307.7 KB |
| Authorization Letter | Cover Letter(s) | 2015-08-25 | PDF 53 KB |
| Cover Letter Requesting Class II Permissive Change | Cover Letter(s) | 2015-08-25 | PDF 45.4 KB |
| Agent Authorization Letter | Cover Letter(s) | 2015-06-24 | PDF 16.2 KB |
| Cover Letter Requesting Class II Permissive Change | Cover Letter(s) | 2015-06-24 | PDF 44.1 KB |
| Cover Letter Requesting Class II Permissive Change | Cover Letter(s) | 2014-07-25 | PDF 46.7 KB |
| Cover Letter Requesting Confidentiality | Cover Letter(s) | 2014-07-25 | PDF 32.7 KB |
| Signature Authorization Letter | Cover Letter(s) | 2014-07-25 | PDF 271.9 KB |
| Authorization Statement | Cover Letter(s) | 2013-12-12 | PDF 271.9 KB |
| Cover Letter Requesting Certification | Cover Letter(s) | 2013-12-12 | PDF 42.8 KB |
| Cover Letter Requesting Confidentiality | Cover Letter(s) | 2013-12-12 | PDF 33 KB |
| Exhibit B Schematics per 2 1033 c10 Metadata only | Schematics | PDF 177.4 KB |
Application Information
| Application ID | C4oszXkgOXTgW23IIZ/jng== |
|---|---|
| Final Action Date | 2016-06-20 |
| Application Purpose | Class II permissive change or modification of presently authorized equipment |
| Applicant FRN | 0003710431 |
| Model | BBTRX-15 |
| Frequency Range | 2496-2690 MHz |
| Equipment Class | TNB - Licensed Non-Broadcast Station Transmitter |
| Device Description | TD-RRH8x20-25 |
| Responsible Party | Raymond J. Johnson, Technical Manager, ray.johnson@nokia-bell-labs.com , 732-881-6002 |
| Test Firm | Hernan Noguchi, Alcatel-Lucent, hernan.noguchi@alcatel-lucent.com  , 908-582-7160 |
| TCB Email | TEI@TIMCOENGR.COM  |
| TCB Scope | B1: Commercial mobile radio services equipment in the following 47 CFR Parts 20, 22 (cellular), 24,25 (below 3 GHz) & 27 |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | The antenna(s) used for this transmitter must be fixed-mounted on outdoor permanent structures. RF exposure compliance is addressed at the time of licensing, as required by the responsible FCC Bureau(s), including antenna co-location requirements of 1.1307(b)(3) . Device operates in LTE Carrier mode and supports 8x8 MIMO operation. The maximum conducted output power is rated at 20 watts per output port. Class II Permissive Change to add three 20MHz BW contiguous 6.6W carriers. Class II Permissive Change: Add 10 MHz, 10+10 MHz, 10+10+10 MHz and 20+10+10 MHz configurations to the TDRRH8x20-25 filing, which is both LTE operational and 8x20 MIMO compliant. |
