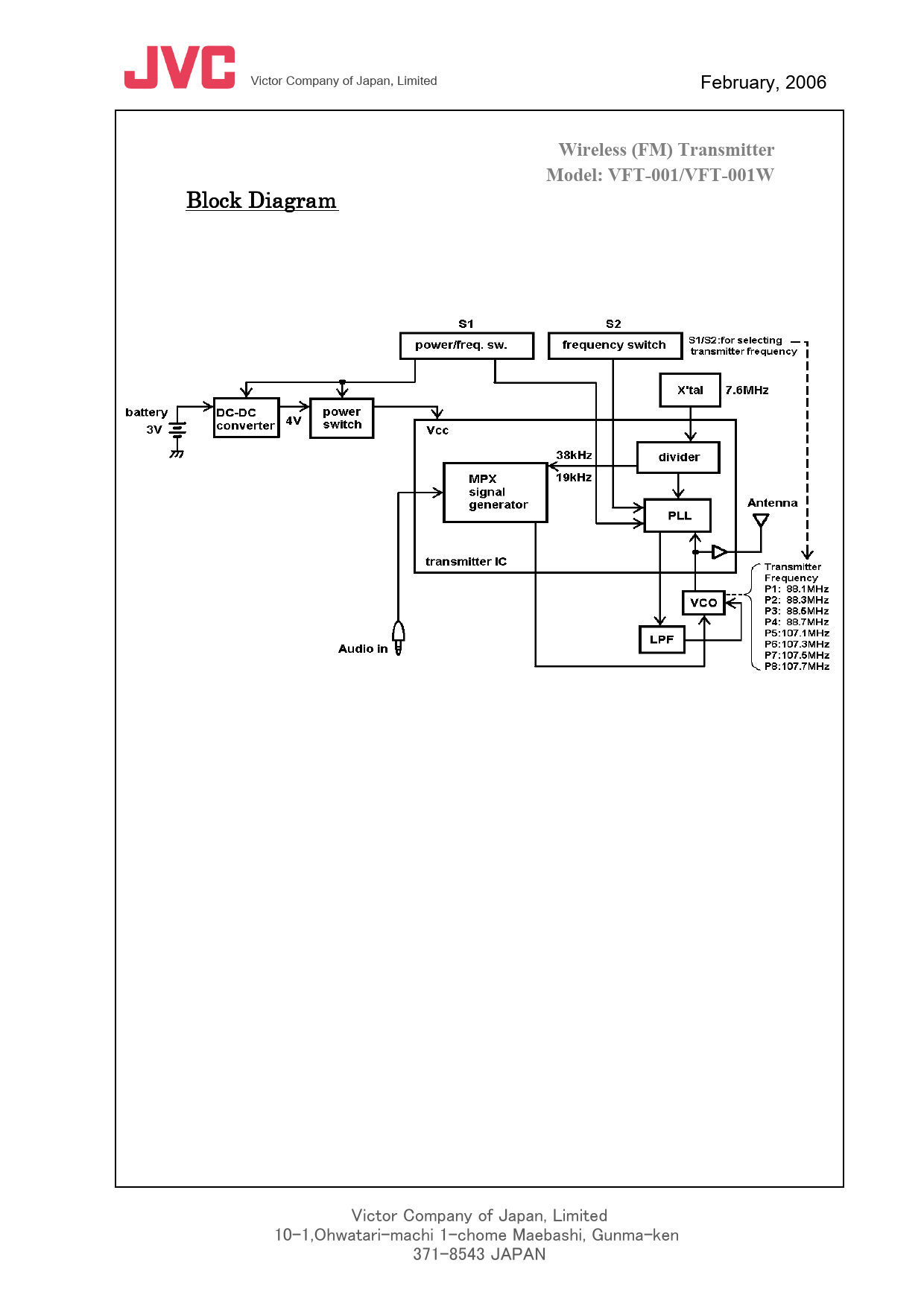

V1U001 Wireless Transmitter Block Diagram - FCC ID ASIV1U001

FCC ID ASIV1U001

Block Diagram

Wireless Transmitter

by JVC KENWOOD Corporation

Document preview loads when visible.

Document Details

FCC IDASIV1U001
Document ID629161
Document TypeBlock Diagram
DescriptionBlock Diagram
Document TitleVFT-001_Data-sheet_060208.xls
ApplicantJVC KENWOOD Corporation
Equipment ClassWireless Transmitter
Product CodeV1U001
Application ID/oU/klnh2inNaYk2eDg8Cg==
Application PurposeOriginal Equipment
Application Date2006-02-16
Frequency Range88-108 MHz
FRN0024756561
Test FirmTaiyo Yuden Co., Ltd. EMC Center
Certified ByKenzo Furuta Manager
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2006-02-16
Available2006-02-16
Created2006-02-09
Modified2006-02-09
Pages1
File TypeAdobe Acrobat PDF
File Size312253
File SHA-2561de71bdd1143be795b7e8e9bd8a71b4dca0b461fa5a3297524b9d76762998e37
PDF Metadata Authorjvc50122
PDF Metadata CreatorPrimoPDF http://www.primopdf.com
PDF Metadata ProducerAFPL Ghostscript 8.13
FCC.gov SourcesFCC.gov 629161
