FCC ID ASLNSX-30D
Shipborne Radar S-Band Down Mast Pedestal
by Raytheon Anschuetz GmbH High Seas Products
Grantee Code: ASL Product Code: NSX30D
Latest application date: 2016-02-11
Device Images
FCC ID Device Details
| FCC ID | ASLNSX-30D |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | ASL |
| Product Code | NSX30D |
| Applicant Business | Raytheon Anschuetz GmbH High Seas Products 🇩🇪 |
| Related Domains |  raykiel.com |
| Equipment Class | Shipborne Radar S-Band Down Mast Pedestal |
| Test Firm | CTC advanced GmbH |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 2900-3100 MHz | Original Equipment | 2016-02-11 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| User Manual | Users Manual | 2016-02-11 | PDF 4.3 MB |
| Test Report Annex B (internal photos) | Internal Photos | 2016-02-11 | PDF 3.2 MB |

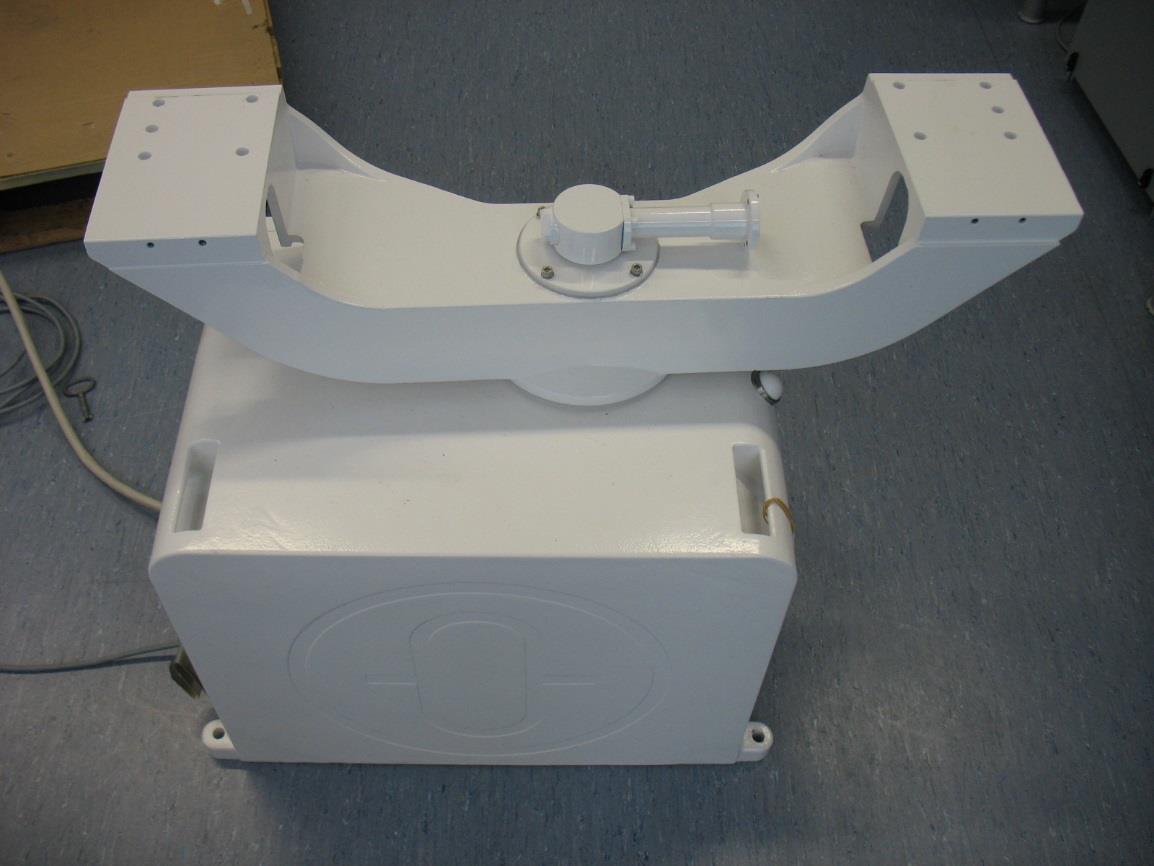

| Test Report Annex A (external photos) | External Photos | 2016-02-11 | PDF 1.4 MB |
| Label and Label locations | ID Label/Location Info | 2016-02-11 | PDF 554.3 KB |
| Test Report Annex D (test setup) | Test Setup Photos | 2016-02-11 | PDF 1.2 MB |
| Test Report FCC | Test Report | 2016-02-11 | PDF 2.9 MB |
| confidentiality request letter | Cover Letter(s) | 2016-02-11 | PDF 225.5 KB |
| RF Exposure Info | RF Exposure Info | 2016-02-11 | PDF 208 KB |
| Block Diagram Metadata only | Block Diagram | PDF 74.2 KB | |
| Schematics Metadata only | Schematics | PDF 757.8 KB | |
| Operational Description Metadata only | Operational Description | PDF 74.2 KB | |
| Tune Up Info Metadata only | Parts List/Tune Up Info | PDF 36.3 KB |
Application Information
| Application ID | NCwGcrDMouFgDCeCO0zXZw== |
|---|---|
| Final Action Date | 2016-02-11 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0009629890 |
| Model | NSX-30D |
| Frequency Range | 2900-3100 MHz |
| Equipment Class | TNB - Licensed Non-Broadcast Station Transmitter |
| Device Description | Shipborne Radar S-Band Down Mast Pedestal |
| Responsible Party | Robert Zissen, Qualification/Certification, Robert_Zissen@raykiel.com , +49 431 3019 613 |
| Test Firm | Gerald Schmidt, CTC advanced GmbH, mail@ctcadvanced.com  , 49-681-598-0 |
| TCB Email | TCB@cetecom.com  |
| TCB Scope | B1: Commercial mobile radio services equipment in the following 47 CFR Parts 20, 22 (cellular), 24,25 (below 3 GHz) & 27 |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Output power listed is nominal peak envelope power. The antenna(s) used for this transmitter must be fixed-mounted on outdoor permanent structures. RF exposure compliance is addressed at the time of licensing, as required by the responsible FCC Bureau(s), including antenna co-location requirements of §1.1307(b)(3). |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| NCwGcrDMouFgDCeCO0zXZw== | 2016-02-11 | Original Equipment |
Equipment Authorization
Grants
TCB Grant - Application NCwGcrDMouFgDCeCO0zXZw==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
CTC advanced GmbH Untertuerkheimer Strasse 6-10 66117 Saarbruecken, Germany |
Date of Grant: 02/11/2016 Application Dated: 02/11/2016 |
| Raytheon Anschuetz GmbH High Seas Products |
| Zeyestrasse 16 - 24 D-24106 Kiel |
| P.O. Box 1166, |
| D-24100 Kiel, Germany |
| Attention: Robert Zissen , Qualification/Certification |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | ASLNSX-30D |
| Name of Grantee: | Raytheon Anschuetz GmbH High Seas Products |
| Equipment Class: | Licensed Non-Broadcast Station Transmitter |
| Notes: | Shipborne Radar S-Band Down Mast Pedestal |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 80 | 2900.0 - 3100.0 | 30000.0 | 1185.0 PM | 49M7P0N |
| Output power listed is nominal peak envelope power. The antenna(s) used for this transmitter must be fixed-mounted on outdoor permanent structures. RF exposure compliance is addressed at the time of licensing, as required by the responsible FCC Bureau(s), including antenna co-location requirements of §1.1307(b)(3). |
EAS Grant - Application NCwGcrDMouFgDCeCO0zXZw==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Raytheon Anschuetz GmbH High Seas Products Zeyestrasse 16 - 24 D-24106 Kiel P.O. Box 1166, D-24100 Kiel, Germany |
Date of Grant: 02/11/2016 Application Dated: 02/11/2016 |
| Attention: Robert Zissen , Qualification/Certification |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | ASLNSX-30D |
| Name of Grantee: | Raytheon Anschuetz GmbH High Seas Products |
| Equipment Class: | Licensed Non-Broadcast Station Transmitter |
| Notes: | Shipborne Radar S-Band Down Mast Pedestal |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 80 | 2900.0 - 3100.0 | 30000.0 | 1185.0 PM | 49M7P0N |
| Output power listed is nominal peak envelope power. The antenna(s) used for this transmitter must be fixed-mounted on outdoor permanent structures. RF exposure compliance is addressed at the time of licensing, as required by the responsible FCC Bureau(s), including antenna co-location requirements of §1.1307(b)(3). |
| Mail To: |
