FCC ID ATH2425795

VIKING P900 PORTABLE RADIO

by E F Johnson Company

Grantee Code: ATH Product Code: 2425795

Latest application date: 2016-03-14

Device Images

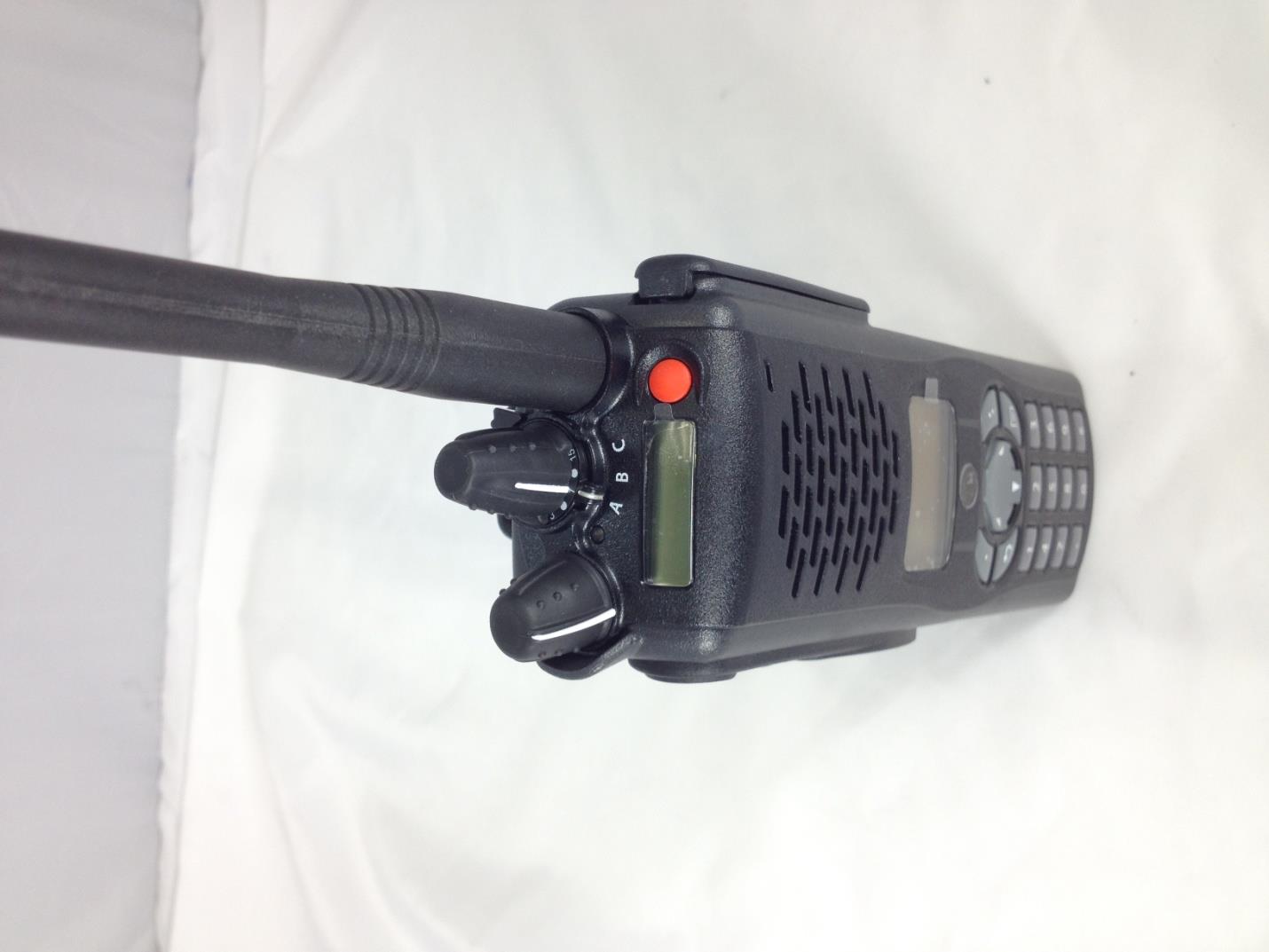

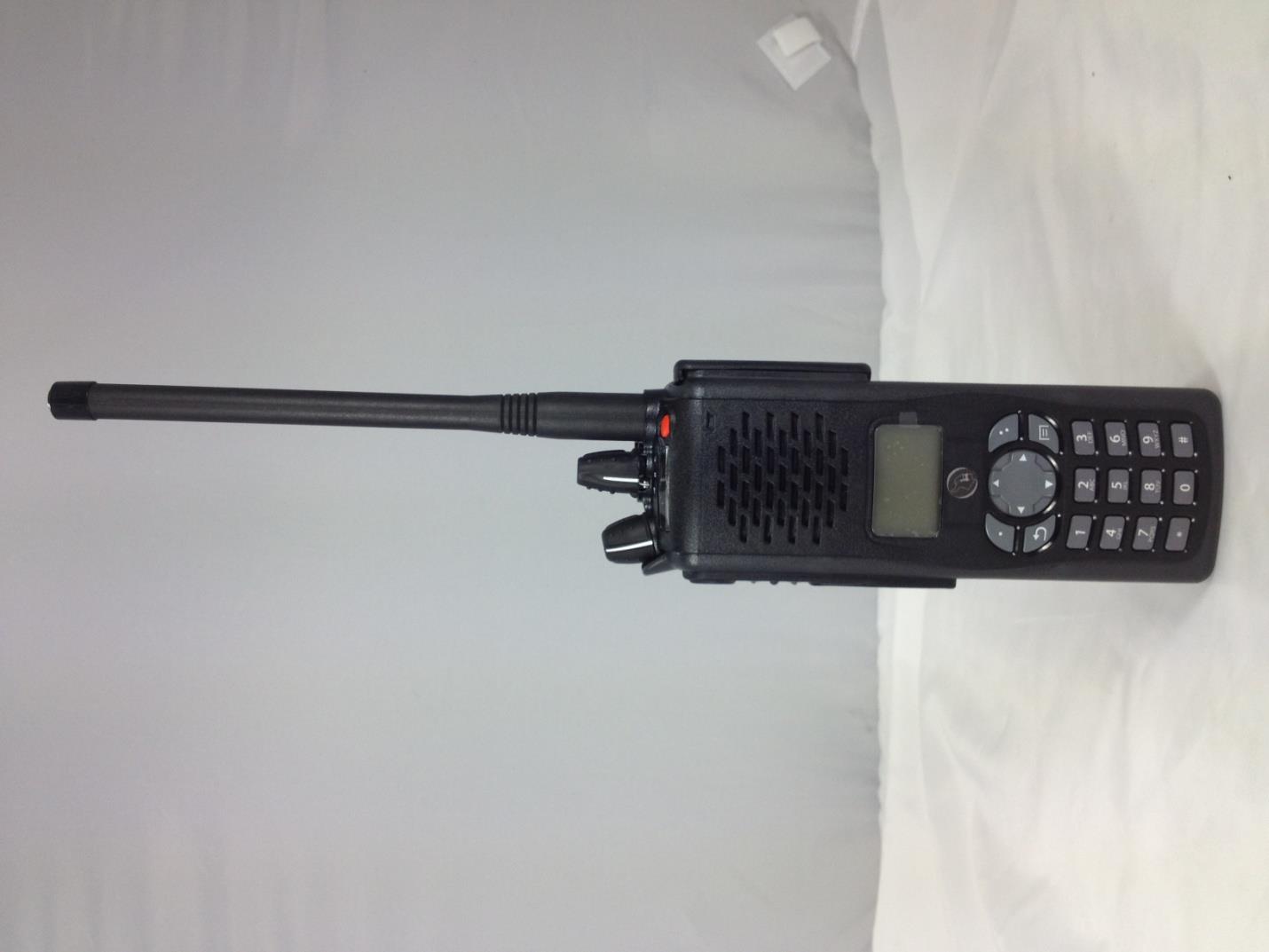

FCC ID ATH2425795 External Photos — External Photos

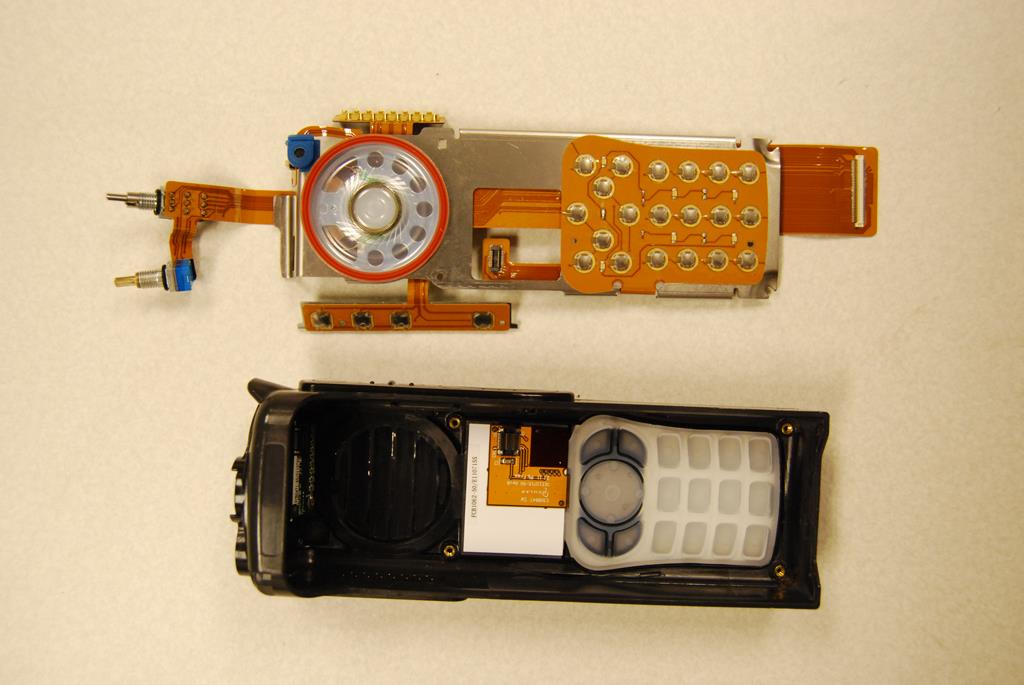

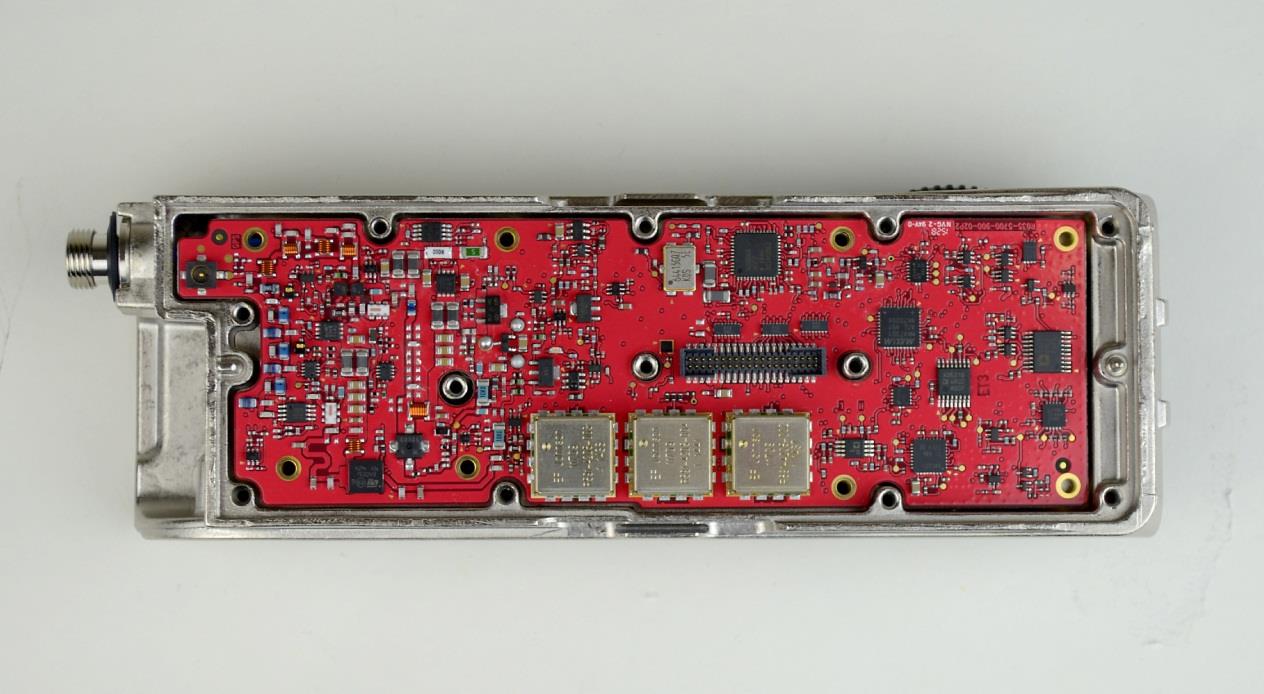

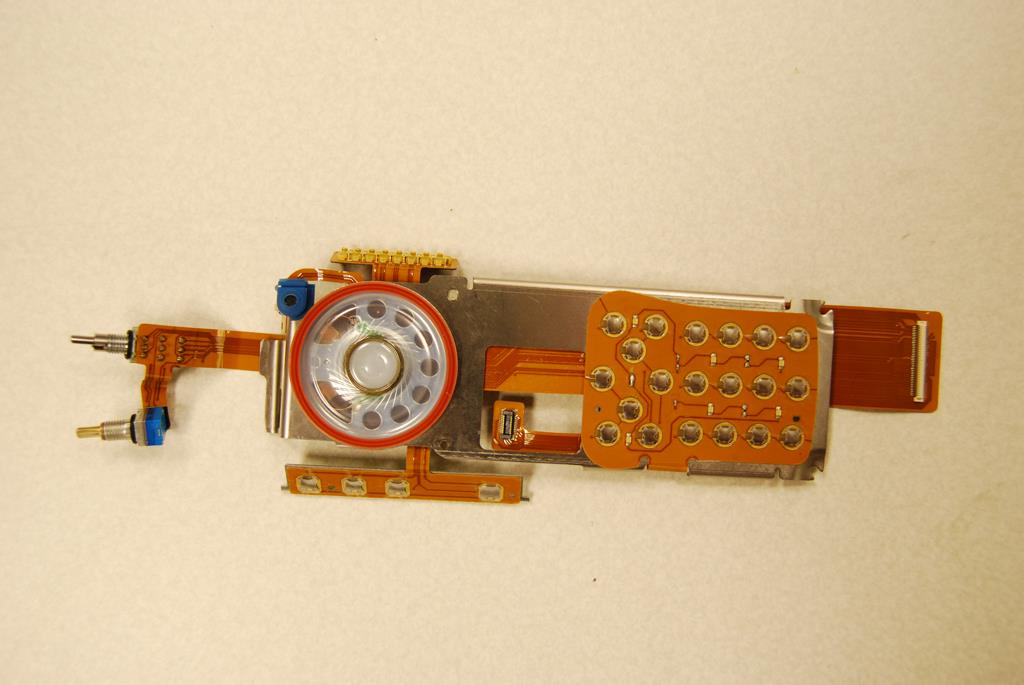

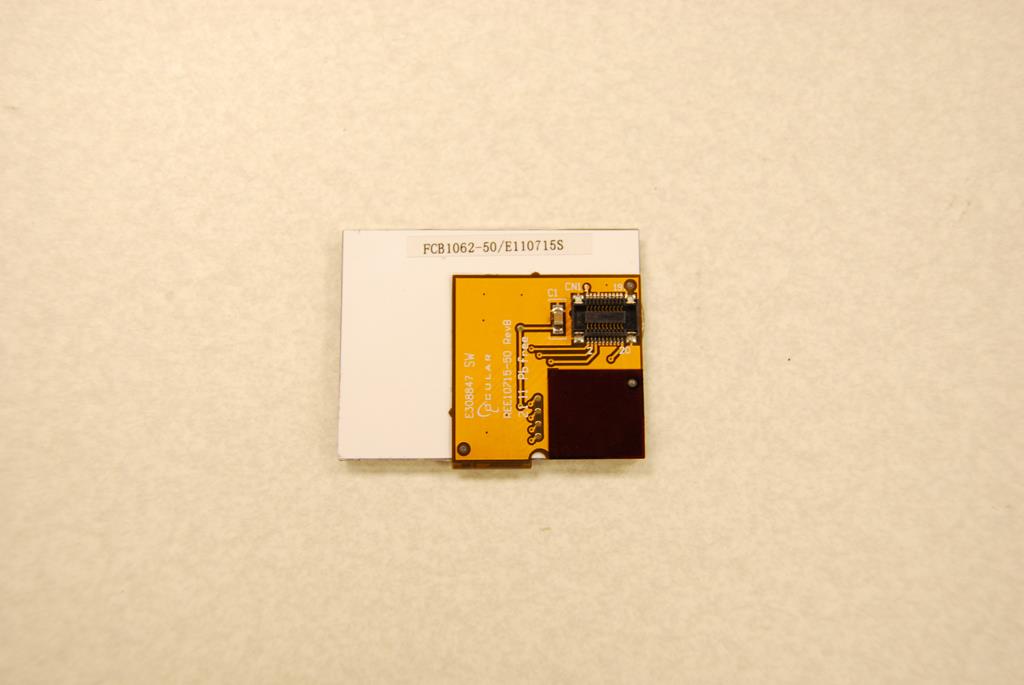

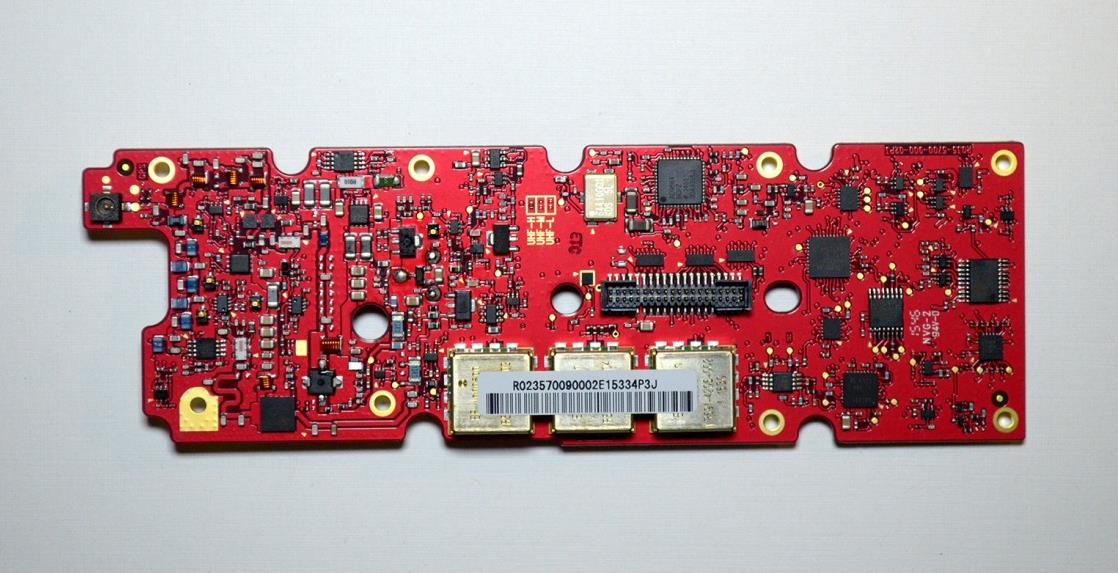

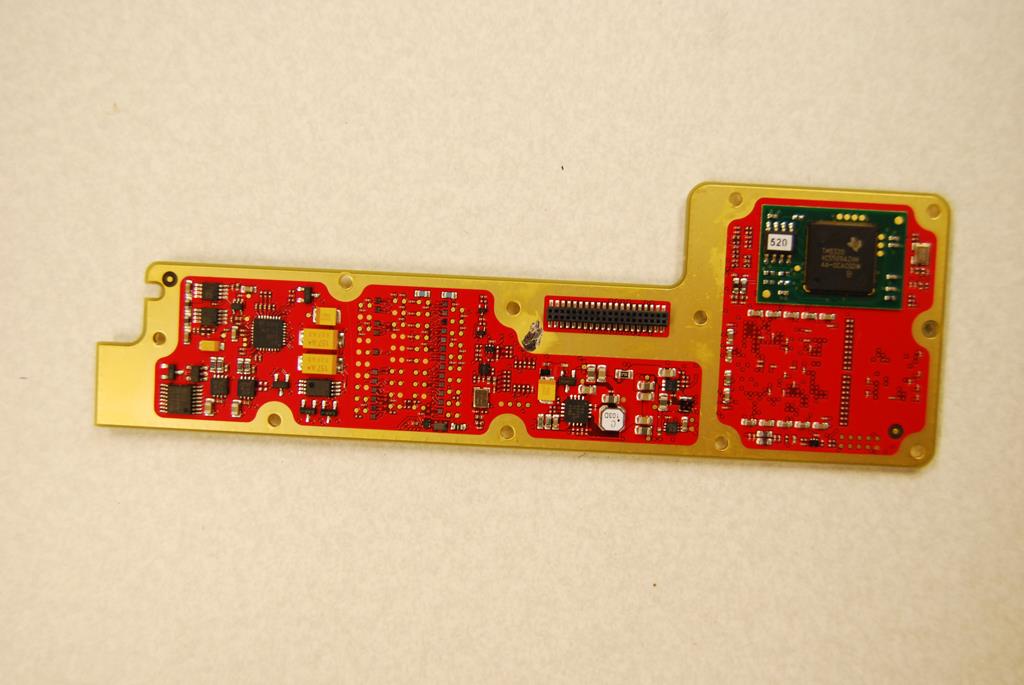

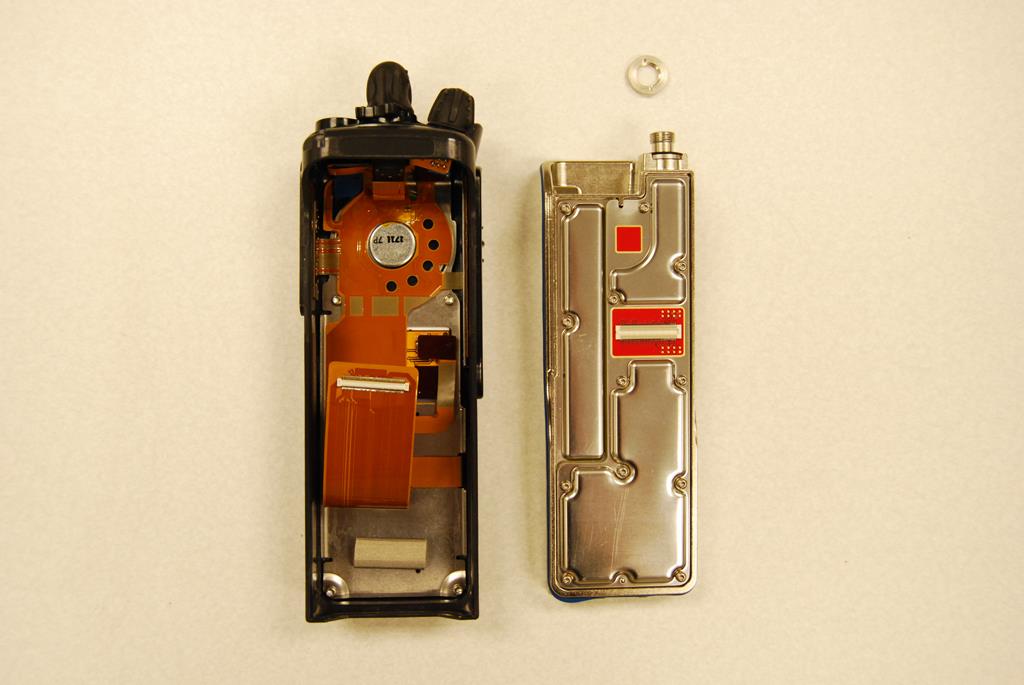

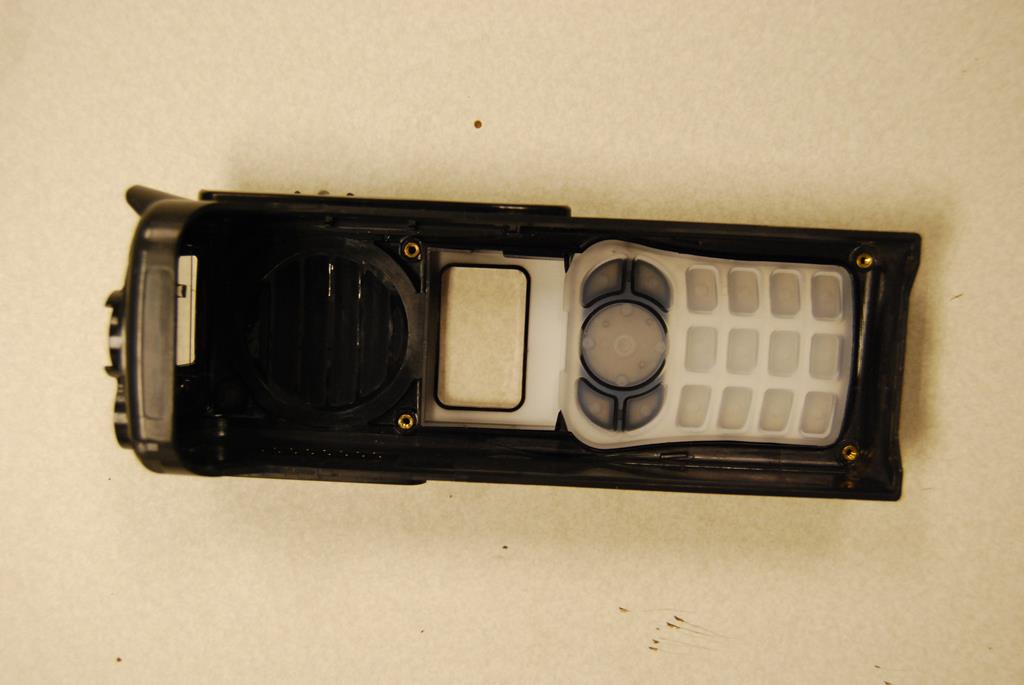

FCC ID ATH2425795 Internal Photos — Internal Photos

FCC ID Device Details

FCC ID	ATH2425795
Mirrors	fcc.id \| gov \| fccid.ai
Grantee Code	ATH
Product Code	2425795
Applicant Business	E F Johnson Company 🇺🇸
Related Domains	efji.com timcoengr.com
Equipment Class	VIKING P900 PORTABLE RADIO
Test Firm	Timco Engineering, Inc.

Operating Frequencies

Frequency Range	Application Purpose	Final Action Date
470-512 MHz	Original Equipment	2016-03-14

Exhibits

Document	Type	Available	File
User Manual	Users Manual	2016-03-14	PDF 3.4 MB
Internal photos	Internal Photos	2016-03-14	PDF 1.5 MB
External Photos	External Photos	2016-03-14	PDF 702.9 KB

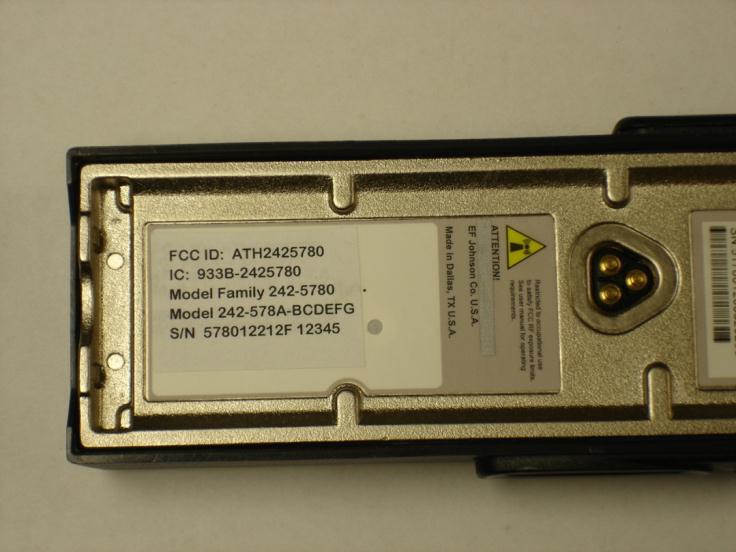

Label location	ID Label/Location Info	2016-03-14	PDF 143.9 KB
Label sample	ID Label/Location Info	2016-03-14	PDF 105.6 KB
Test set Up photos	Test Setup Photos	2016-03-14	PDF 489.2 KB
Test Report - Part 1 of 2	Test Report	2016-03-14	PDF 2.6 MB
Test Report - Part 2 of 2	Test Report	2016-03-14	PDF 2.3 MB
Tuning Attestation per 90.203	Attestation Statements	2016-03-14	PDF 152.6 KB
Confidentiality request letter	Cover Letter(s)	2016-03-14	PDF 178.2 KB
Frequency Justification letter	Cover Letter(s)	2016-03-14	PDF 139.3 KB
SAR Report	RF Exposure Info	2016-03-14	PDF 2.9 MB
Tuning Procedure	Parts List/Tune Up Info	2016-03-14	PDF 76.2 KB
Block Diagram Metadata only	Block Diagram		PDF 265.1 KB
Schematic Metadata only	Schematics		PDF 847.3 KB
Operational Description Metadata only	Operational Description		PDF 190.7 KB

Application Information

Application ID	cMEFdLNYExbNW0GNDcNxRA==
Final Action Date	2016-03-14
Application Purpose	Original Equipment
Applicant FRN	0004201521
Model	2425795
Frequency Range	470-512 MHz
Equipment Class	TNF - Licensed Non-Broadcast Transmitter Held to Face
Device Description	VIKING P900 PORTABLE RADIO
Responsible Party	Karthik Rangarajan, SR VP Engineering, krangarajan@efji.com , 972-819-0734
Technical Contact	Cory Leverett, Timco Engineering, Inc., tei@timcoengr.com , 8884272424
Non-Technical Contact	Sharon Hoffman, Timco Engineering, Inc., tei@timcoengr.com , 8884272424
Test Firm	Bruno Clavier, Timco Engineering, Inc., bruno@timcoengr.com , 352-472-5500
TCB Email	tei@timcoengr.com
TCB Scope	B2: General Mobile Radio And Broadcast Services equipment in the following 47 CFR Parts 22 (non-cellular) 73, 74, 90, 95, 97, & 101 (all below 3 GHz)
Short-Term Confidentiality	No
Long-Term Confidentiality	Yes
Grant Deferral	No
Modular Equipment	Does not apply
Composite Device	No
Composite Part	No
Cognitive Radio	No
Authorization Waiver	No
Authorization Waiver Approved	No
Section 5301 Certification	Yes
Related OET Knowledge DataBase Inquiry	No
Grant Comments	Power listed is conducted. This device must be restricted to work related operations in an Occupational/Controlled RF exposure Environment, not exceeding a maximum transmitting duty factor of 50%. All qualified end-users of this device must have the knowledge to control their exposure conditions and/or duration to comply with the Occupational/Controlled MPE limit and requirements. A label, as described in this filing, must be displayed on the device to direct users to specific training information for meeting Occupational Exposure Requirements. SAR compliance for body-worn operating configurations is limited to the specific belt-clip/holster/accessories tested for this filing. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. The highest reported SAR values for Head and Body-Worn accessory exposure conditions are 2.45 W/kg and 5.83 W/kg respectively for a 50 % Duty Cycle Factor.

Applications

Application ID	Date	Purpose
cMEFdLNYExbNW0GNDcNxRA==	2016-03-14	Original Equipment

Equipment Authorization

Frequency	Output	Tolerance	Emission	Rules	Grant Notes
470-512 MHz	4	1.5ppm	8K10F1E	9	EF
470-512 MHz	4	1.5ppm	8K10F1D	9	EF
470-512 MHz	4	1.5ppm	8K10F7E	9	EF
763-775 MHz	3	1.5ppm	11K0F3E	9	EF
763-775 MHz	3	1.5ppm	8K10F1E	9	EF
763-775 MHz	3	1.5ppm	8K10F1D	9	EF
763-775 MHz	3	1.5ppm	8K10F7E	9	EF
793-803 MHz	3	1.5ppm	11K0F3E	9	EF
793-803 MHz	3	1.5ppm	8K10F1E	9	EF
793-803 MHz	3	1.5ppm	8K10F1D	9	EF
793-803 MHz	3	1.5ppm	8K10F7E	9	EF
806-824 MHz	3.3	1.5ppm	16K0F3E	9	EF
806-824 MHz	3.3	1.5ppm	14K0F3E	9	EF
806-824 MHz	3.3	1.5ppm	11K0F3E	9	EF
806-824 MHz	3.3	1.5ppm	8K10F1E	9	EF
806-824 MHz	3.3	1.5ppm	8K10F1D	9	EF
806-824 MHz	3.3	1.5ppm	8K10F7E	9	EF
851-869 MHz	3.3	1.5ppm	16K0F3E	9	EF
851-869 MHz	3.3	1.5ppm	14K0F3E	9	EF
851-869 MHz	3.3	1.5ppm	11K0F3E	9	EF
851-869 MHz	3.3	1.5ppm	8K10F1E	9	EF
851-869 MHz	3.3	1.5ppm	8K10F1D	9	EF
851-869 MHz	3.3	1.5ppm	8K10F7E	9	EF

Grants

TCB Grant - Application cMEFdLNYExbNW0GNDcNxRA==

TCB	GRANT OF EQUIPMENT AUTHORIZATION	TCB
Certification
Issued Under the Authority of the
Federal Communications Commission
By:

Timco Engineering, Inc.
849 NW State Road 45
Newberry, FL 32669

Date of Grant: 03/14/2016

Application Dated: 03/14/2016

E F Johnson Company

1440 Corporate Drive

Irving, TX 56093

Attention: Karthik Rangarajan , SR VP Engineering

NOT TRANSFERABLE

EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below.

FCC IDENTIFIER:	ATH2425795

Name of Grantee:	E F Johnson Company

Equipment Class:	Licensed Non-Broadcast Transmitter Held to Face
Notes:	VIKING P900 PORTABLE RADIO

Grant Notes	FCC Rule Parts	Frequency Range (MHZ)	Output Watts	Frequency Tolerance	Emission Designator
EF	90	470.0 - 512.0	4.0	1.5 PM	16K0F3E
EF	90	470.0 - 512.0	4.0	1.5 PM	11K0F3E
EF	90	470.0 - 512.0	4.0	1.5 PM	8K10F1E
EF	90	470.0 - 512.0	4.0	1.5 PM	8K10F1D
EF	90	470.0 - 512.0	4.0	1.5 PM	8K10F7E
EF	90	763.0 - 775.0	3.0	1.5 PM	11K0F3E
EF	90	763.0 - 775.0	3.0	1.5 PM	8K10F1E
EF	90	763.0 - 775.0	3.0	1.5 PM	8K10F1D
EF	90	763.0 - 775.0	3.0	1.5 PM	8K10F7E
EF	90	793.0 - 803.0	3.0	1.5 PM	11K0F3E
EF	90	793.0 - 803.0	3.0	1.5 PM	8K10F1E
EF	90	793.0 - 803.0	3.0	1.5 PM	8K10F1D
EF	90	793.0 - 803.0	3.0	1.5 PM	8K10F7E
EF	90	806.0 - 824.0	3.3	1.5 PM	16K0F3E
EF	90	806.0 - 824.0	3.3	1.5 PM	14K0F3E
EF	90	806.0 - 824.0	3.3	1.5 PM	11K0F3E
EF	90	806.0 - 824.0	3.3	1.5 PM	8K10F1E
EF	90	806.0 - 824.0	3.3	1.5 PM	8K10F1D
EF	90	806.0 - 824.0	3.3	1.5 PM	8K10F7E
EF	90	851.0 - 869.0	3.3	1.5 PM	16K0F3E
EF	90	851.0 - 869.0	3.3	1.5 PM	14K0F3E
EF	90	851.0 - 869.0	3.3	1.5 PM	11K0F3E
EF	90	851.0 - 869.0	3.3	1.5 PM	8K10F1E
EF	90	851.0 - 869.0	3.3	1.5 PM	8K10F1D
EF	90	851.0 - 869.0	3.3	1.5 PM	8K10F7E

Power listed is conducted. This device must be restricted to work related operations in an Occupational/Controlled RF exposure Environment, not exceeding a maximum transmitting duty factor of 50%. All qualified end-users of this device must have the knowledge to control their exposure conditions and/or duration to comply with the Occupational/Controlled MPE limit and requirements. A label, as described in this filing, must be displayed on the device to direct users to specific training information for meeting Occupational Exposure Requirements. SAR compliance for body-worn operating configurations is limited to the specific belt-clip/holster/accessories tested for this filing. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. The highest reported SAR values for Head and Body-Worn accessory exposure conditions are 2.45 W/kg and 5.83 W/kg respectively for a 50 % Duty Cycle Factor.

EF:	This device may contain functions that are not operational in U.S Territories except as noted in the filing. This grant has extended frequencies as noted in the filing and Section 2.927(b) applies to this authorization.

EAS Grant - Application cMEFdLNYExbNW0GNDcNxRA==

COPY	FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION	COPY
Certification

E F Johnson Company
1440 Corporate Drive
Irving, TX 56093
United States

Date of Grant: 03/14/2016

Application Dated: 03/14/2016

Attention: Karthik Rangarajan , SR VP Engineering

NOT TRANSFERABLE

EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below.

FCC IDENTIFIER:	ATH2425795

Name of Grantee:	E F Johnson Company

Equipment Class:	Licensed Non-Broadcast Transmitter Held to Face
Notes:	VIKING P900 PORTABLE RADIO
Modular Type:	Does not apply

Grant Notes	FCC Rule Parts	Frequency Range (MHZ)	Output Watts	Frequency Tolerance	Emission Designator
EF	90	470.0 - 512.0	4.0	1.5 PM	16K0F3E
EF	90	470.0 - 512.0	4.0	1.5 PM	11K0F3E
EF	90	470.0 - 512.0	4.0	1.5 PM	8K10F1E
EF	90	470.0 - 512.0	4.0	1.5 PM	8K10F1D
EF	90	470.0 - 512.0	4.0	1.5 PM	8K10F7E
EF	90	763.0 - 775.0	3.0	1.5 PM	11K0F3E
EF	90	763.0 - 775.0	3.0	1.5 PM	8K10F1E
EF	90	763.0 - 775.0	3.0	1.5 PM	8K10F1D
EF	90	763.0 - 775.0	3.0	1.5 PM	8K10F7E
EF	90	793.0 - 803.0	3.0	1.5 PM	11K0F3E
EF	90	793.0 - 803.0	3.0	1.5 PM	8K10F1E
EF	90	793.0 - 803.0	3.0	1.5 PM	8K10F1D
EF	90	793.0 - 803.0	3.0	1.5 PM	8K10F7E
EF	90	806.0 - 824.0	3.3	1.5 PM	16K0F3E
EF	90	806.0 - 824.0	3.3	1.5 PM	14K0F3E
EF	90	806.0 - 824.0	3.3	1.5 PM	11K0F3E
EF	90	806.0 - 824.0	3.3	1.5 PM	8K10F1E
EF	90	806.0 - 824.0	3.3	1.5 PM	8K10F1D
EF	90	806.0 - 824.0	3.3	1.5 PM	8K10F7E
EF	90	851.0 - 869.0	3.3	1.5 PM	16K0F3E
EF	90	851.0 - 869.0	3.3	1.5 PM	14K0F3E
EF	90	851.0 - 869.0	3.3	1.5 PM	11K0F3E
EF	90	851.0 - 869.0	3.3	1.5 PM	8K10F1E
EF	90	851.0 - 869.0	3.3	1.5 PM	8K10F1D
EF	90	851.0 - 869.0	3.3	1.5 PM	8K10F7E

EF:	This device may contain functions that are not operational in U.S Territories except as noted in the filing. This grant has extended frequencies as noted in the filing and Section 2.927(b) applies to this authorization.
